Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

11 part groups · 5 illustrations

Illustrations

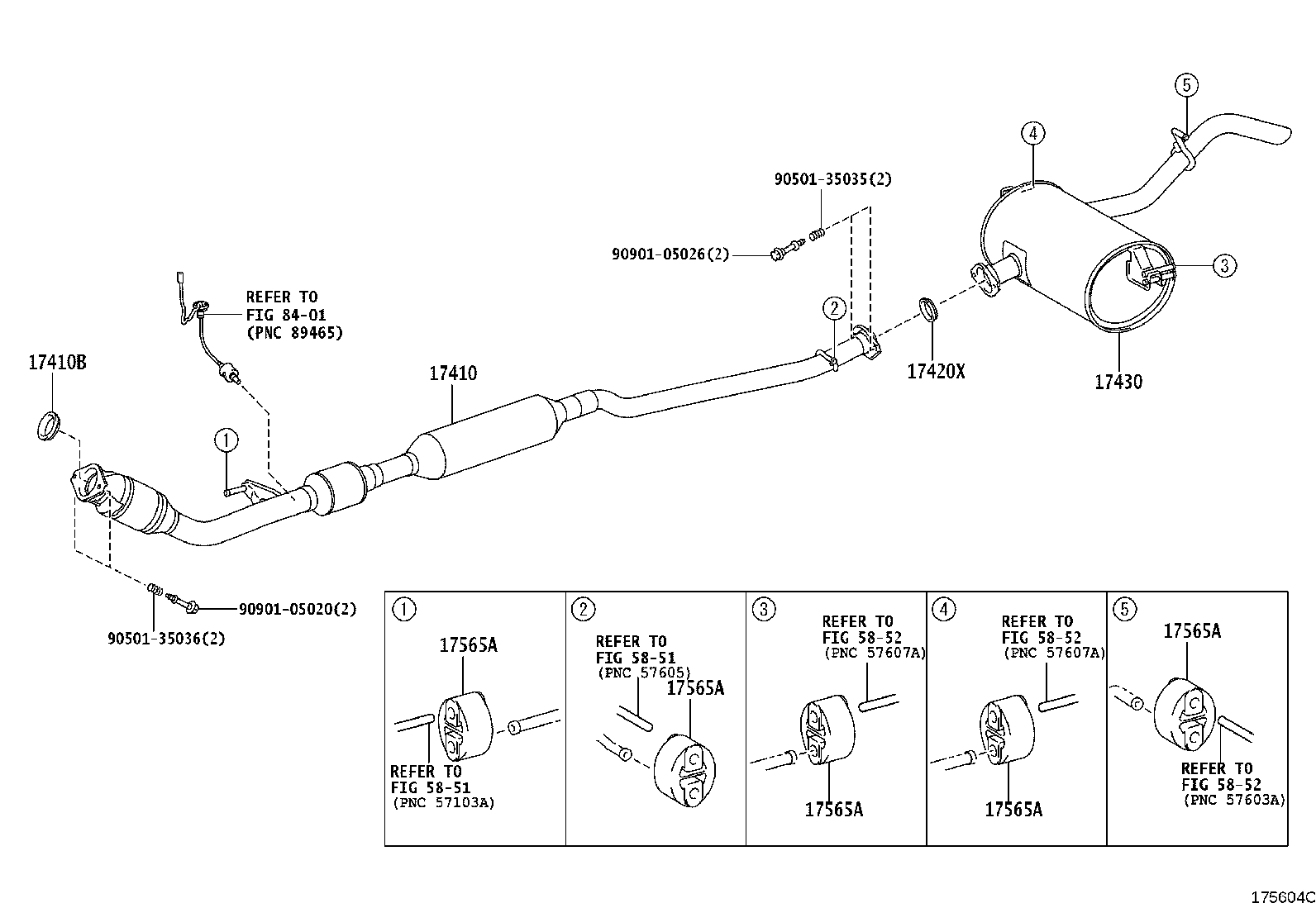

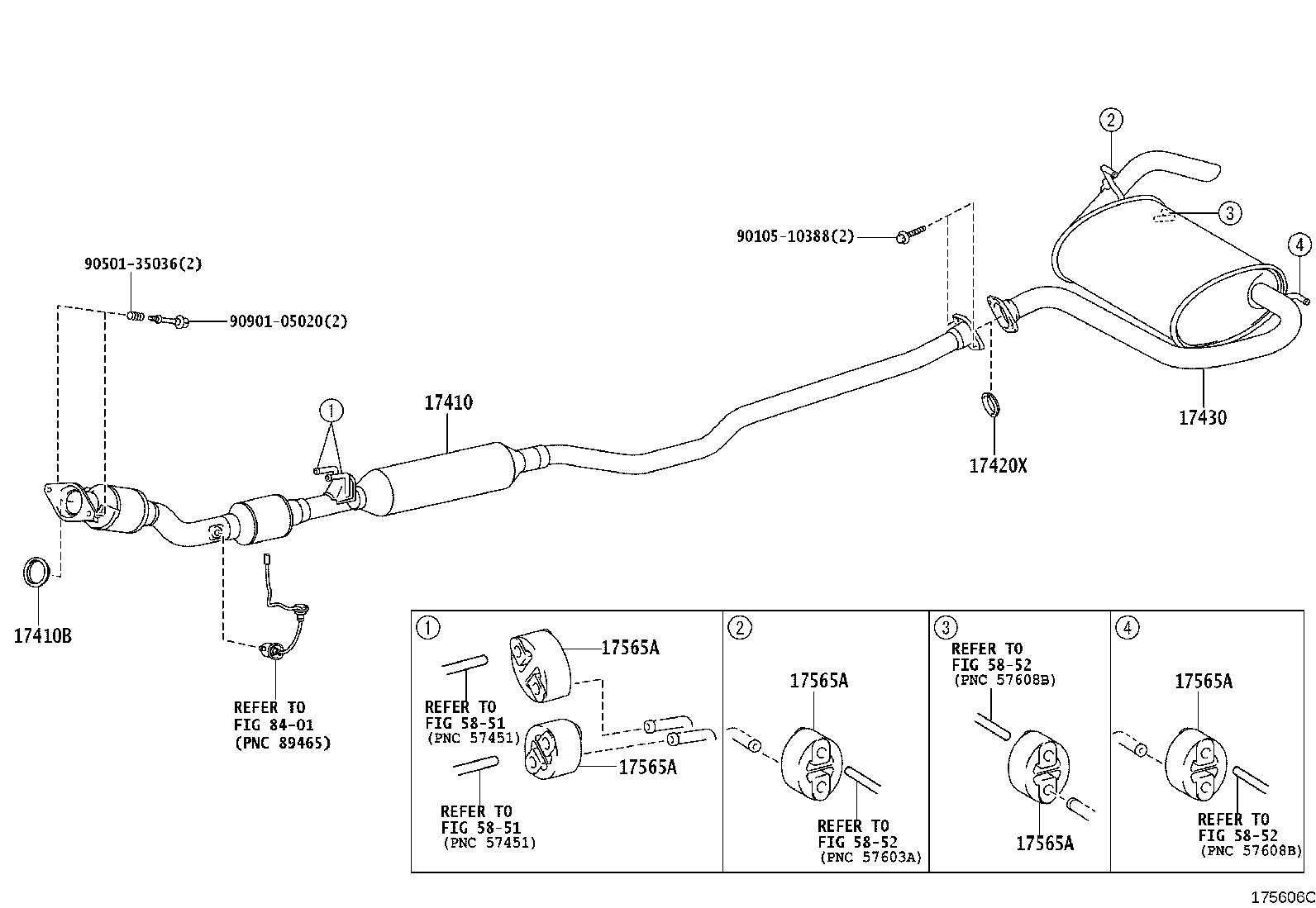

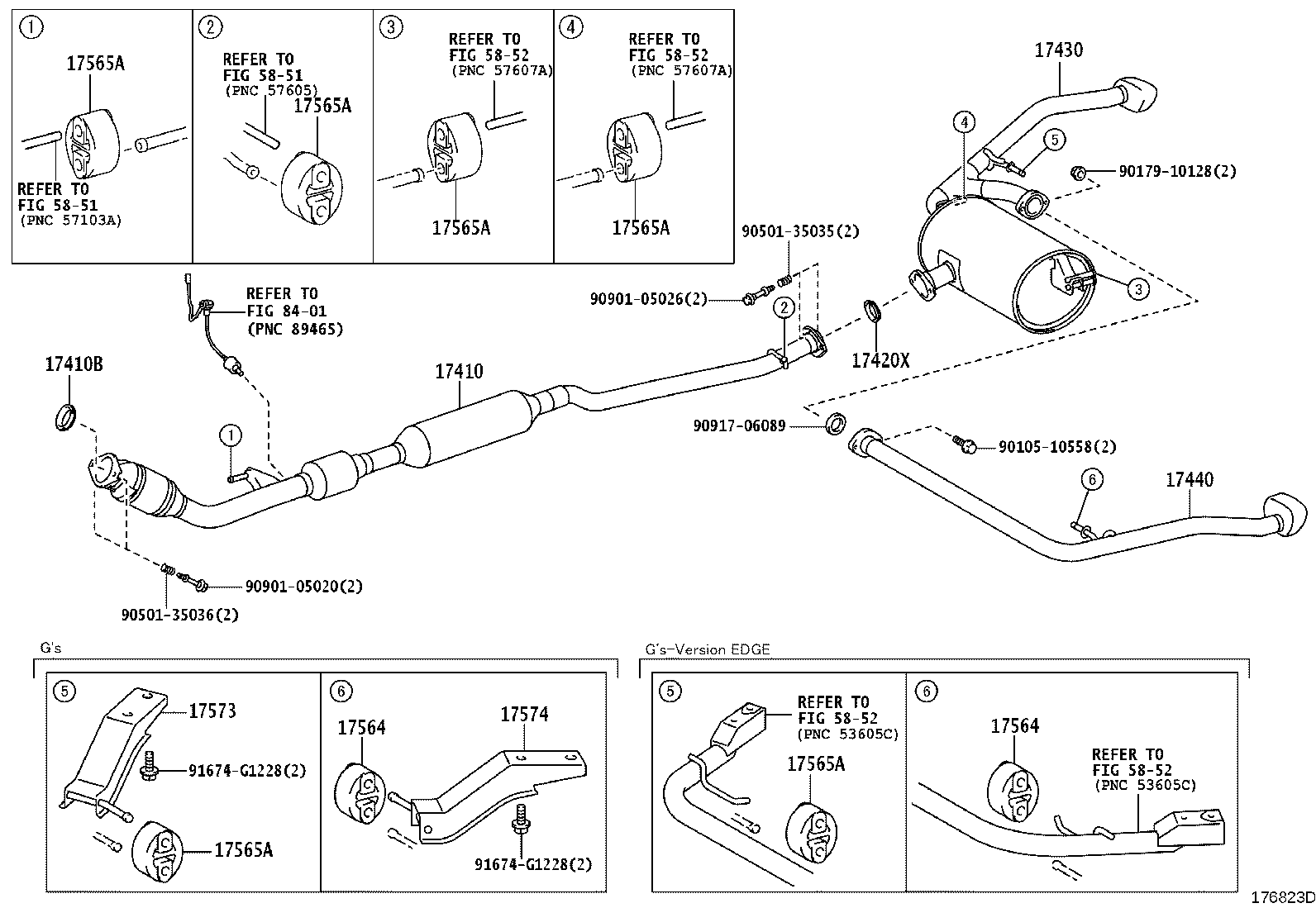

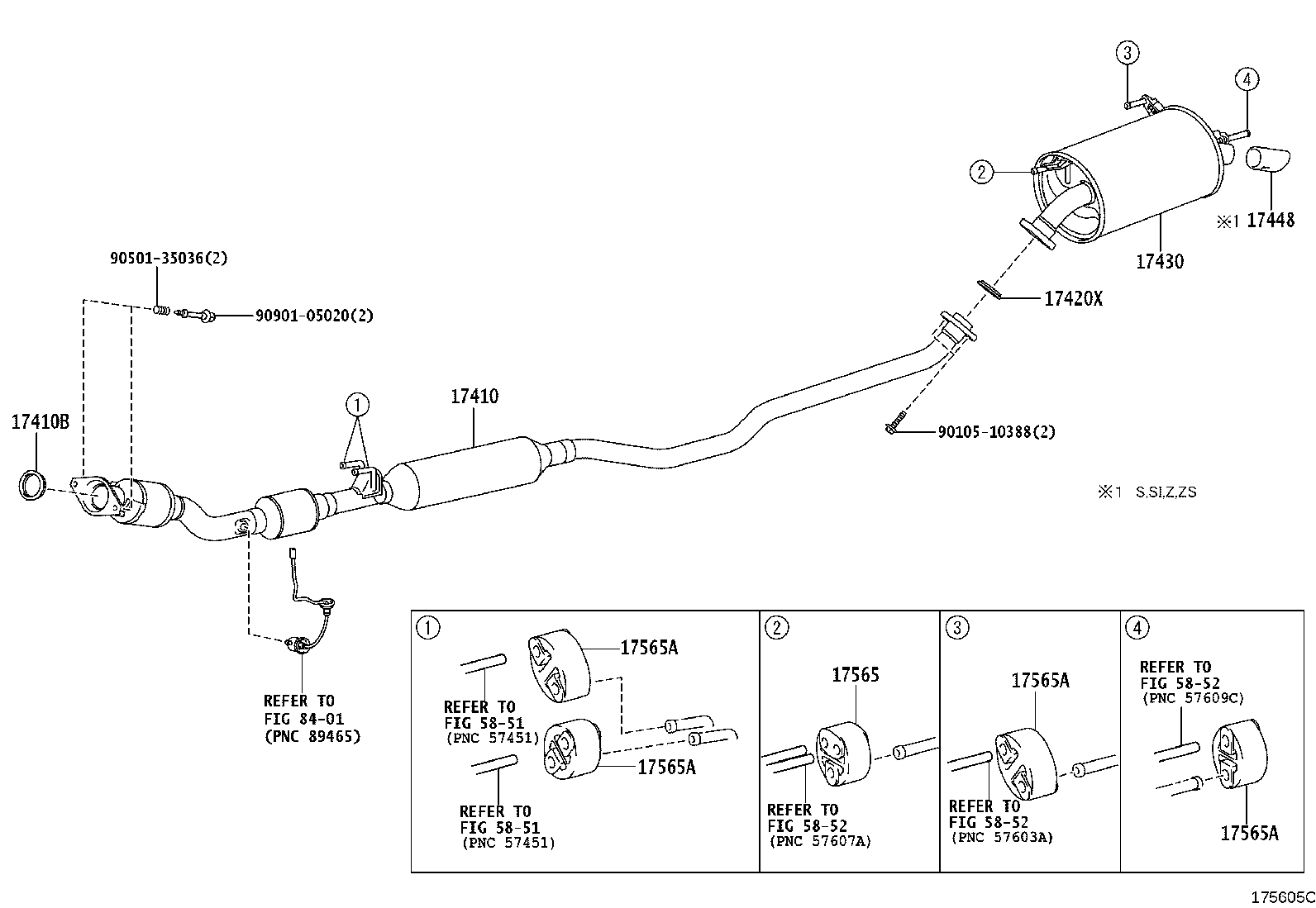

Figure 175607C 175607C 2007-06 → — Figure 175604C 175604C 2007-06 → — Figure 175605C 175605C 2007-06 → — Figure 175606C 175606C 2007-06 → — Figure 176823D 176823D 2010-06 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17448 Baffle, Tailpipe
17564 Support,Exhaust Pipe, NO.4
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17574 Bracket, Exhaust Pipe Support, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
