Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

16 part groups · 3 illustrations

Illustrations

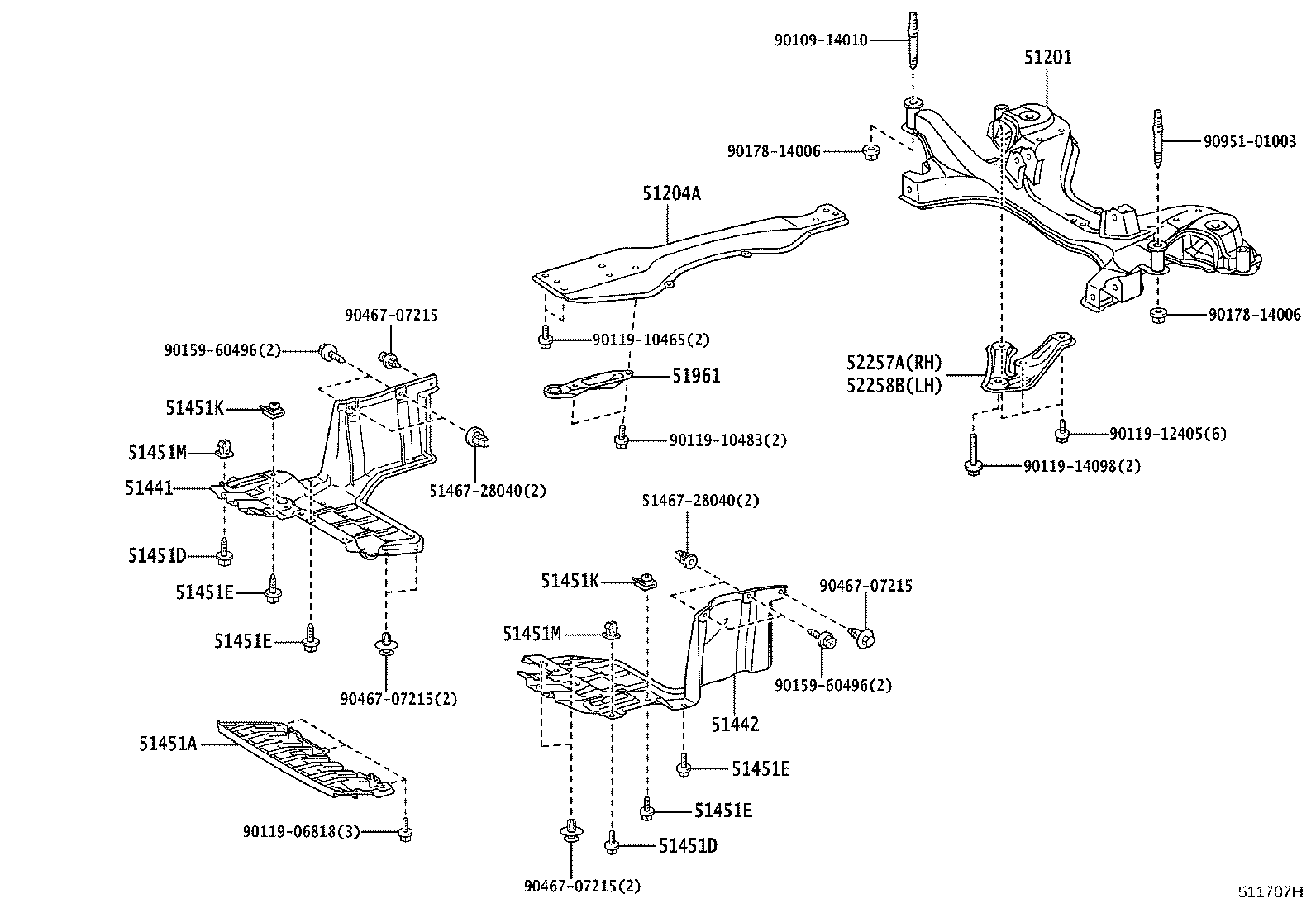

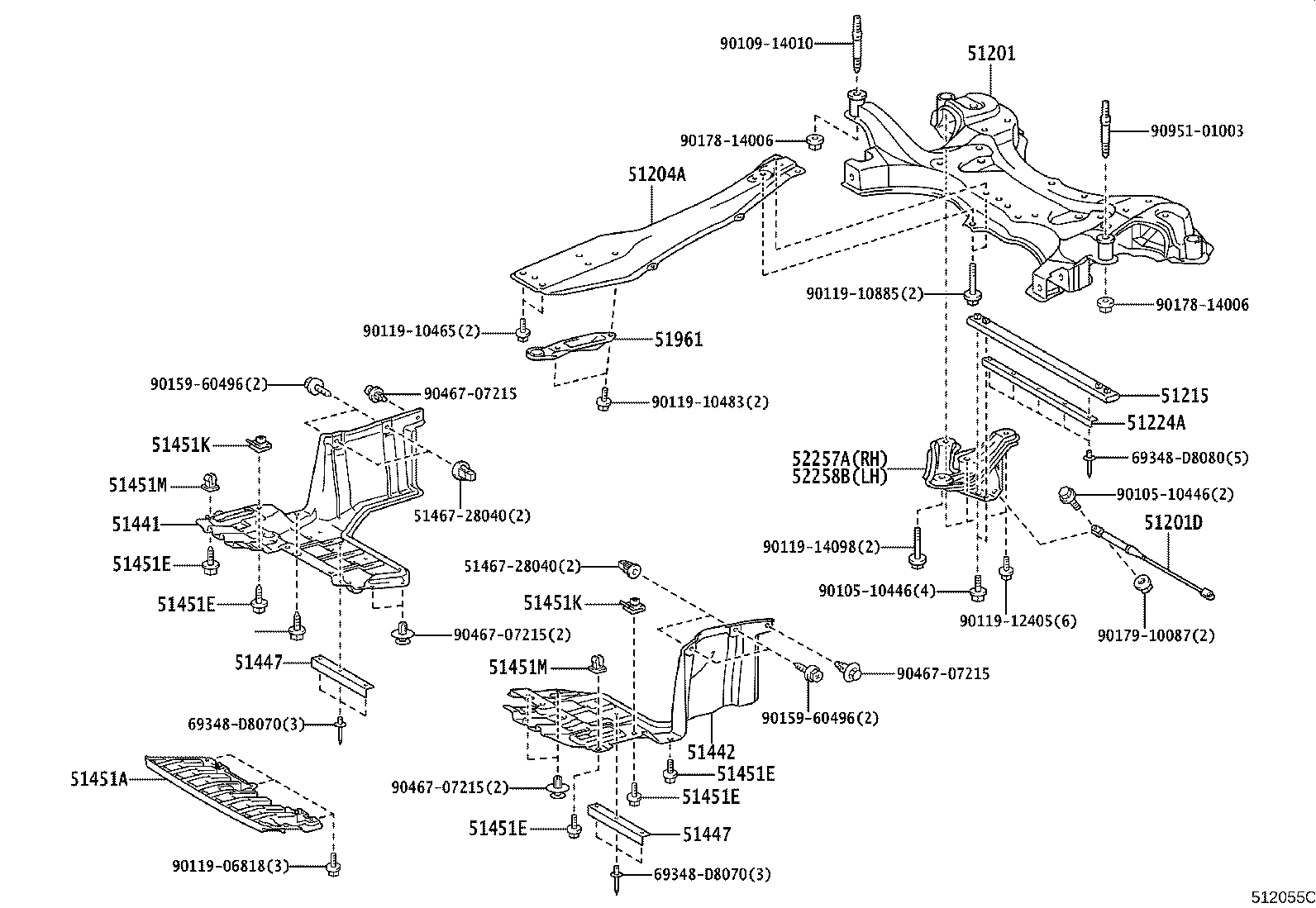

Figure 511706G 511706G 2007-06 → — Figure 511707H 511707H 2007-06 → — Figure 512055C 512055C 2010-06 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51201D Damper, Front Suspension Member
51204A Member Sub-assy, Engine Mounting, Center
51215 Reinforcement, Front Suspension Crossmember
51224A Plate, Front Suspension Menber Brace
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51447 Guide, Engine Under Cover Air
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51451E Screw, NO.2
51451K Grommet, Screw, NO.1
51451M Grommet, Screw, NO.2
51961 Hook, NO.1
52257A Brace, Front Suspension Member, Rear RH
52258B Brace, Front Suspension Member, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
