Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

24 part groups · 10 illustrations

Illustrations

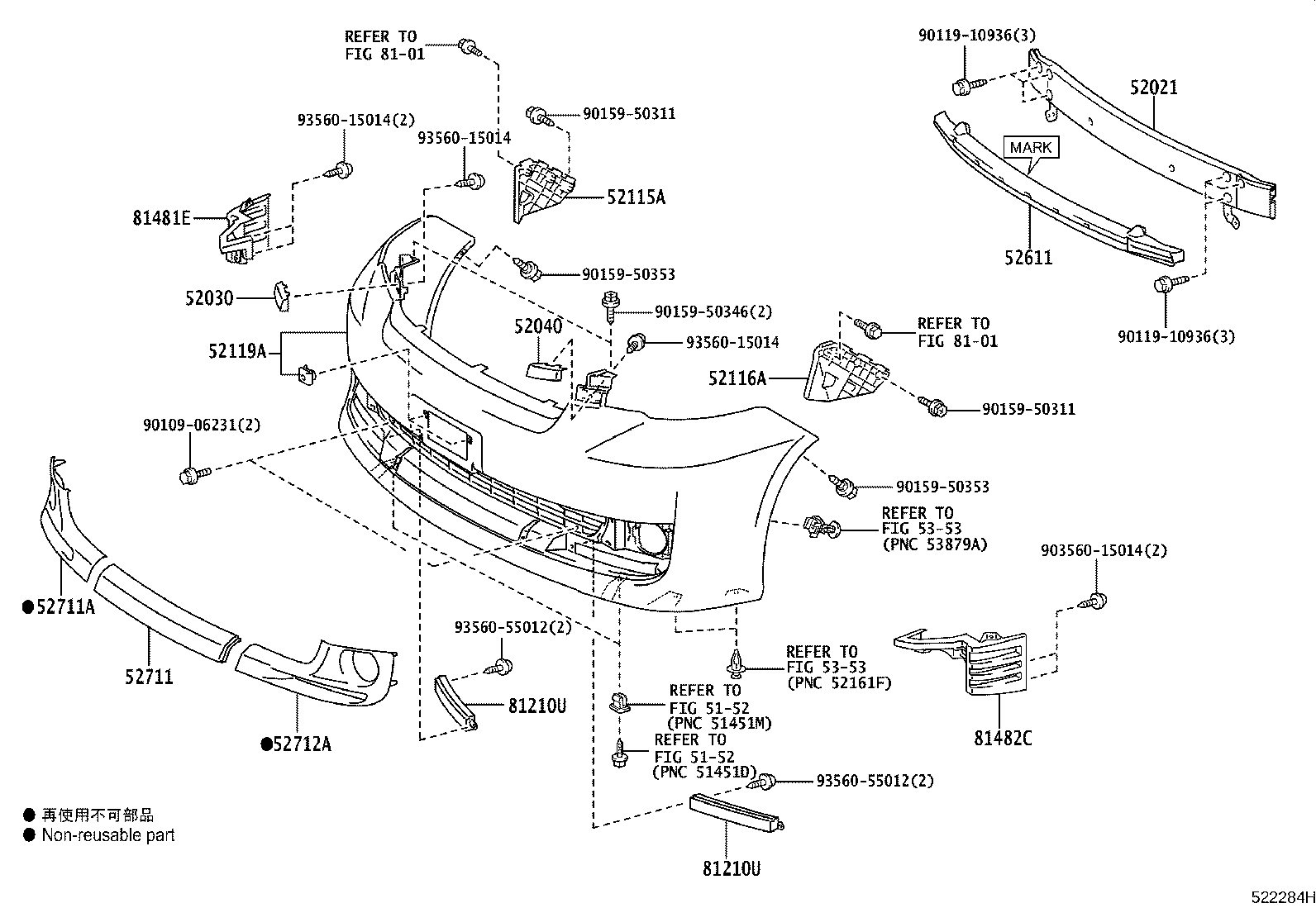

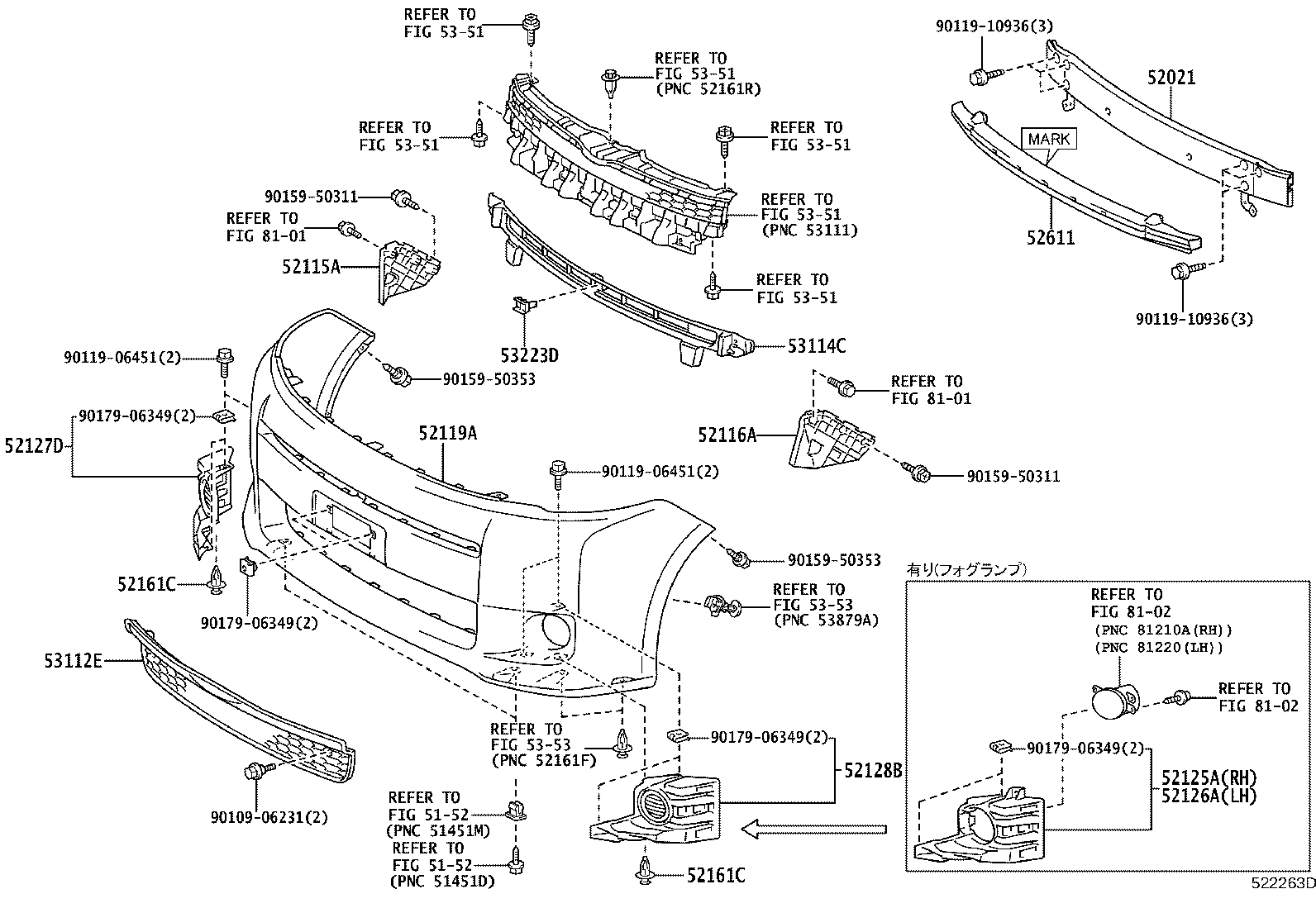

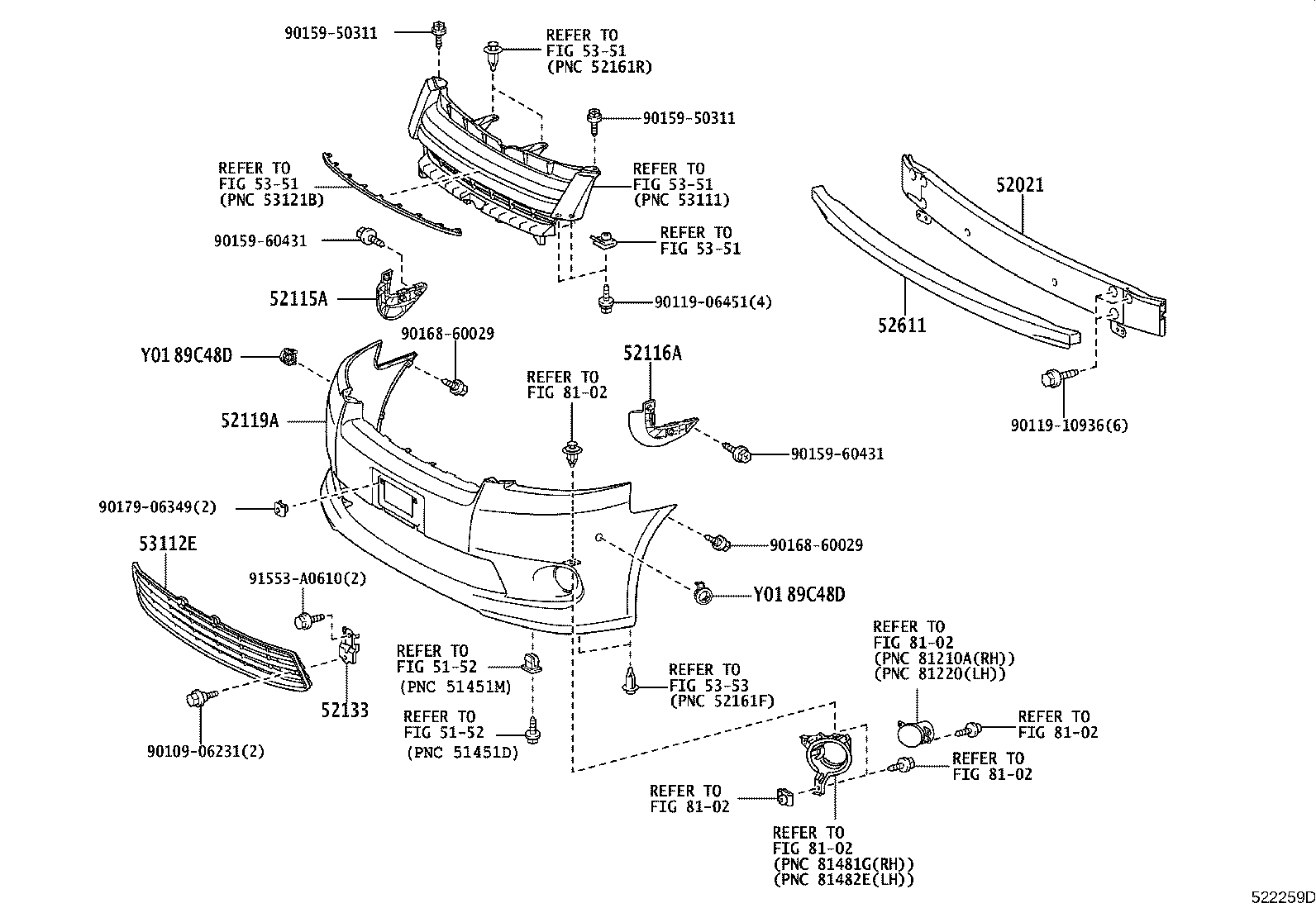

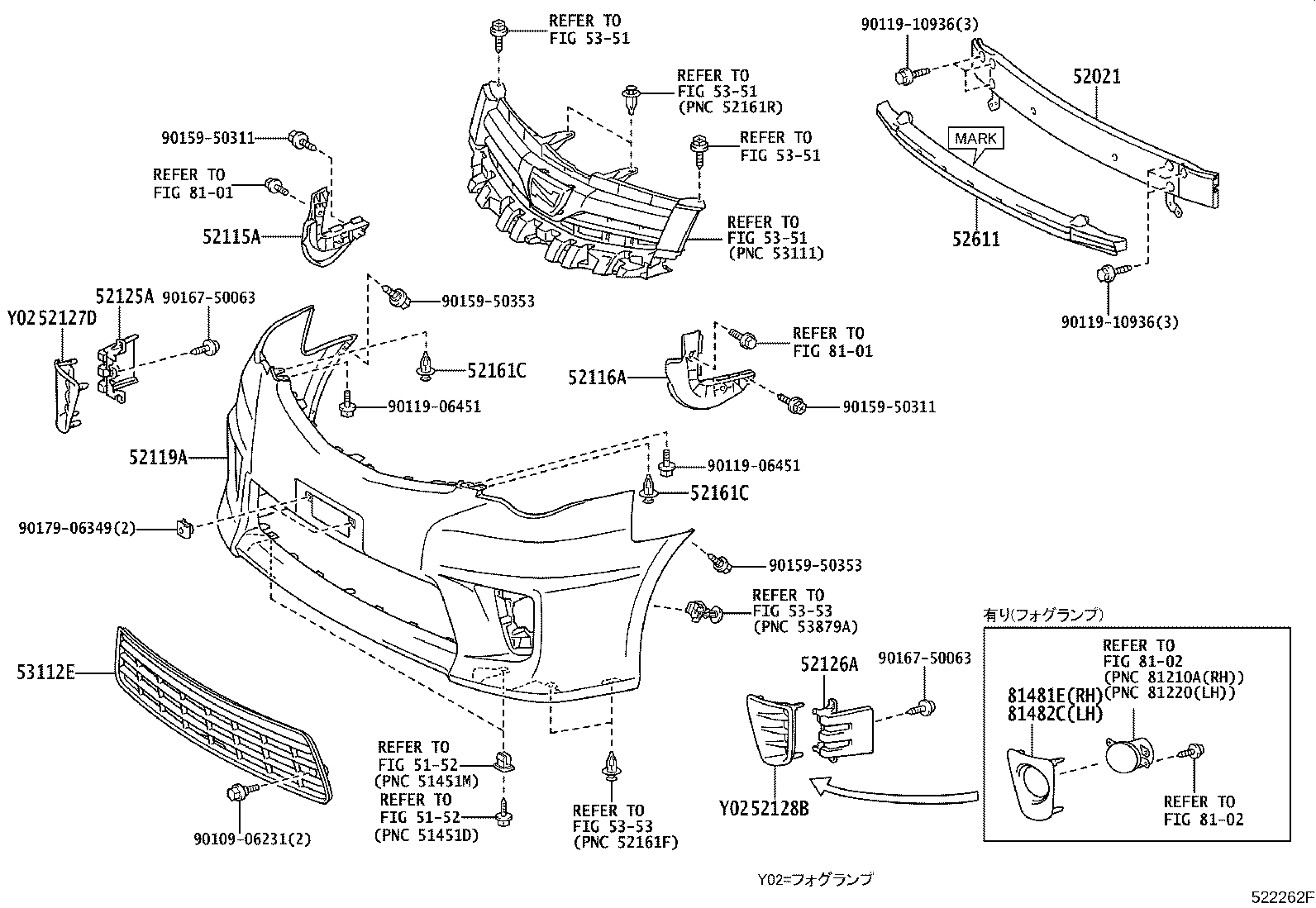

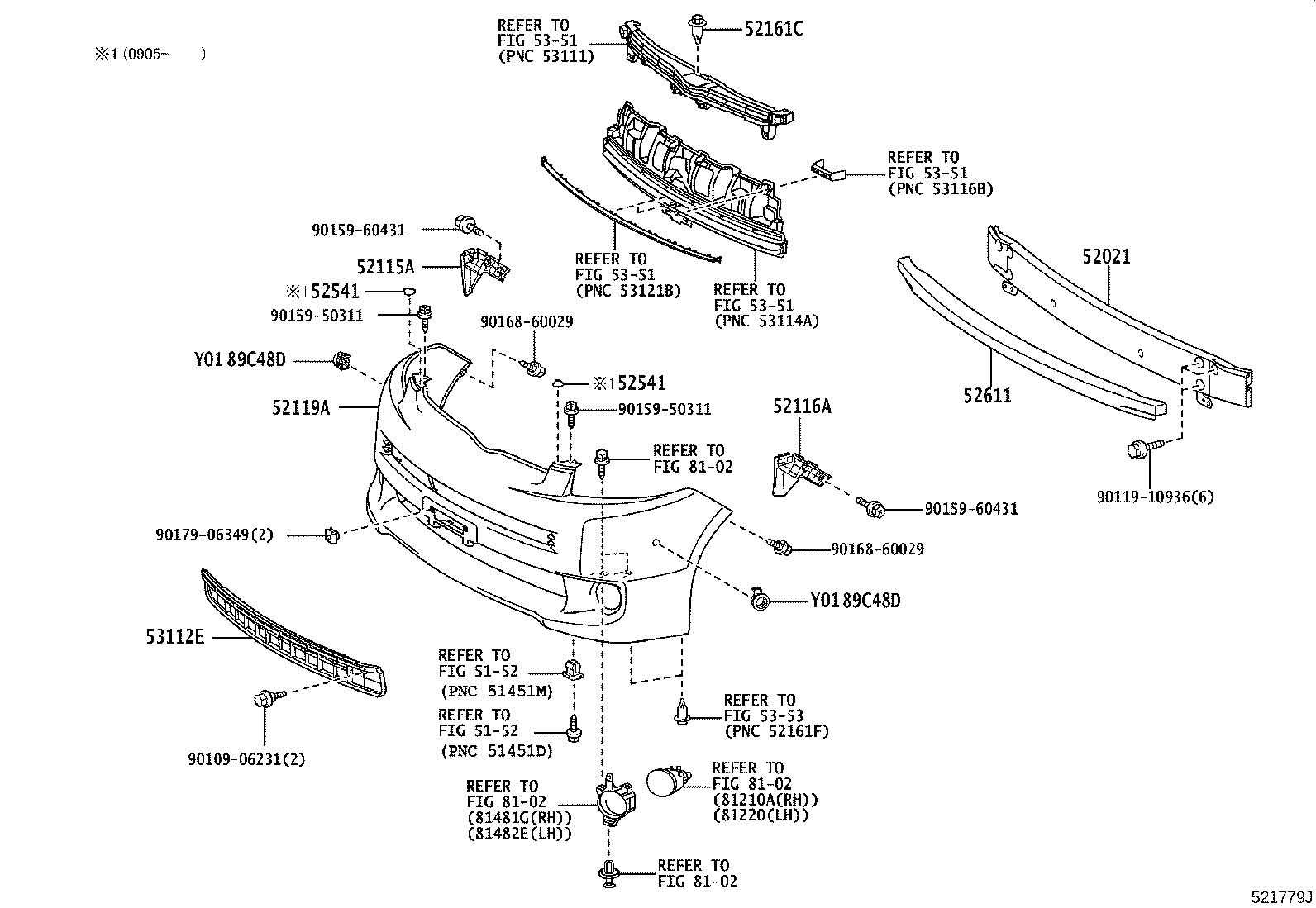

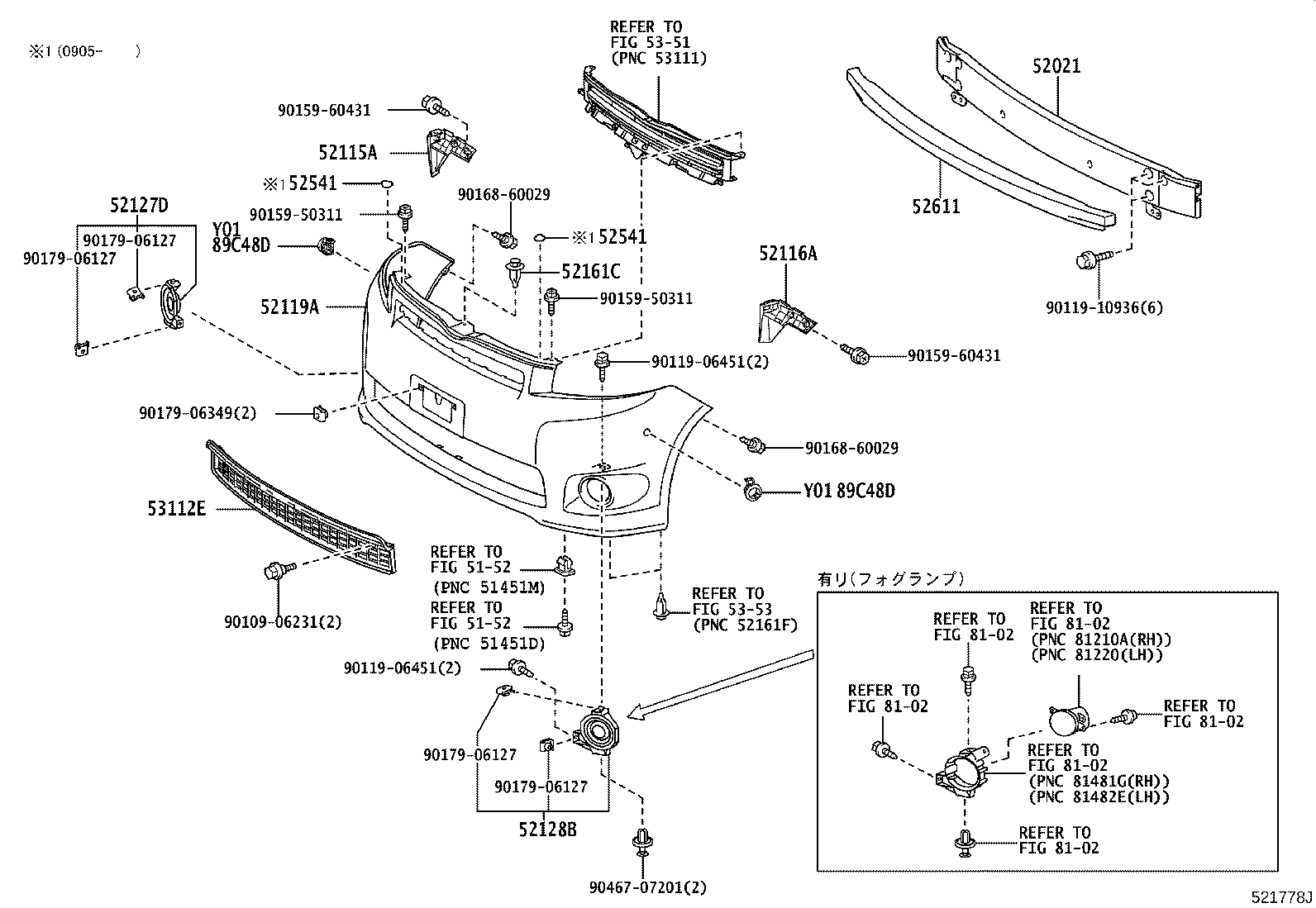

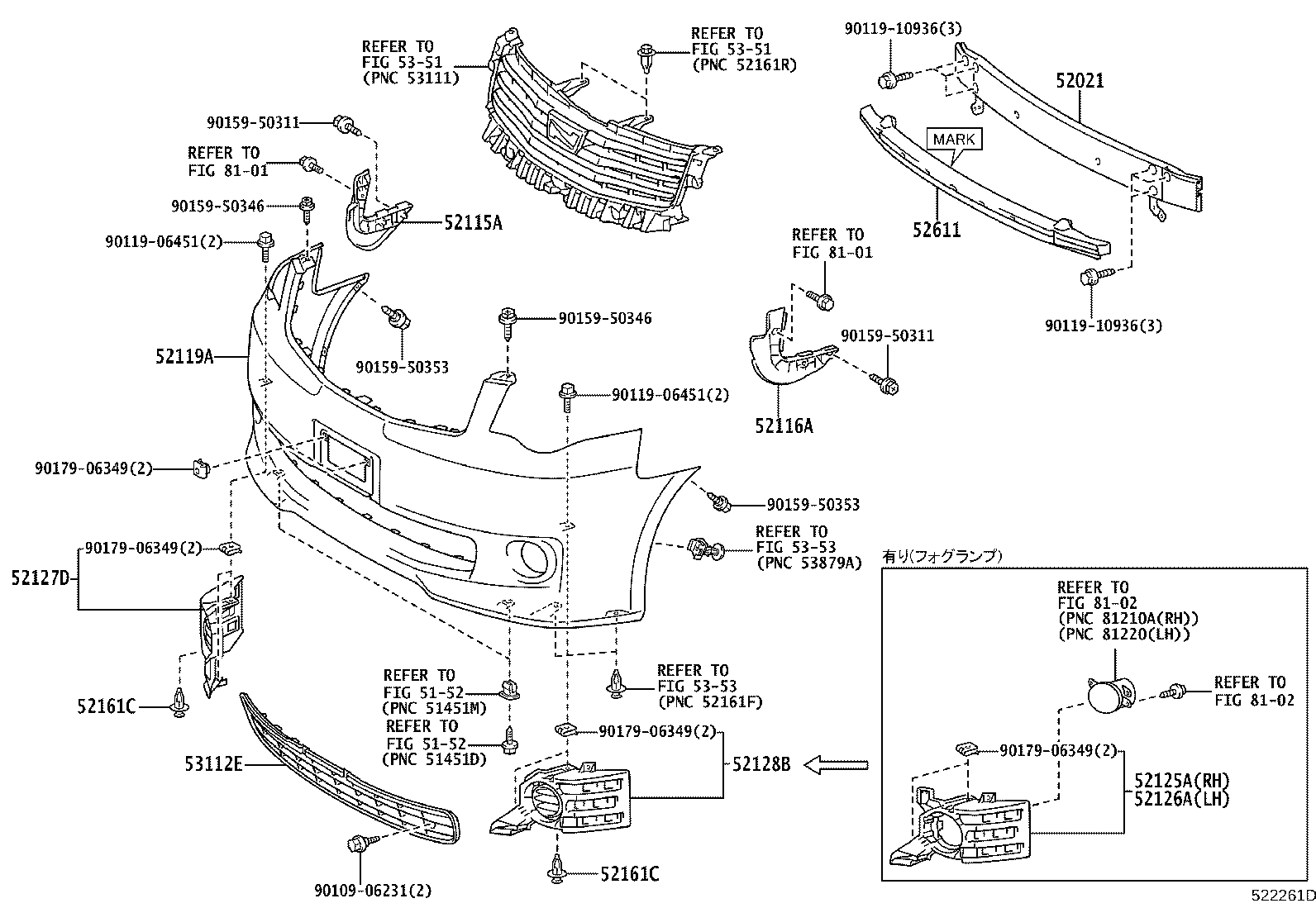

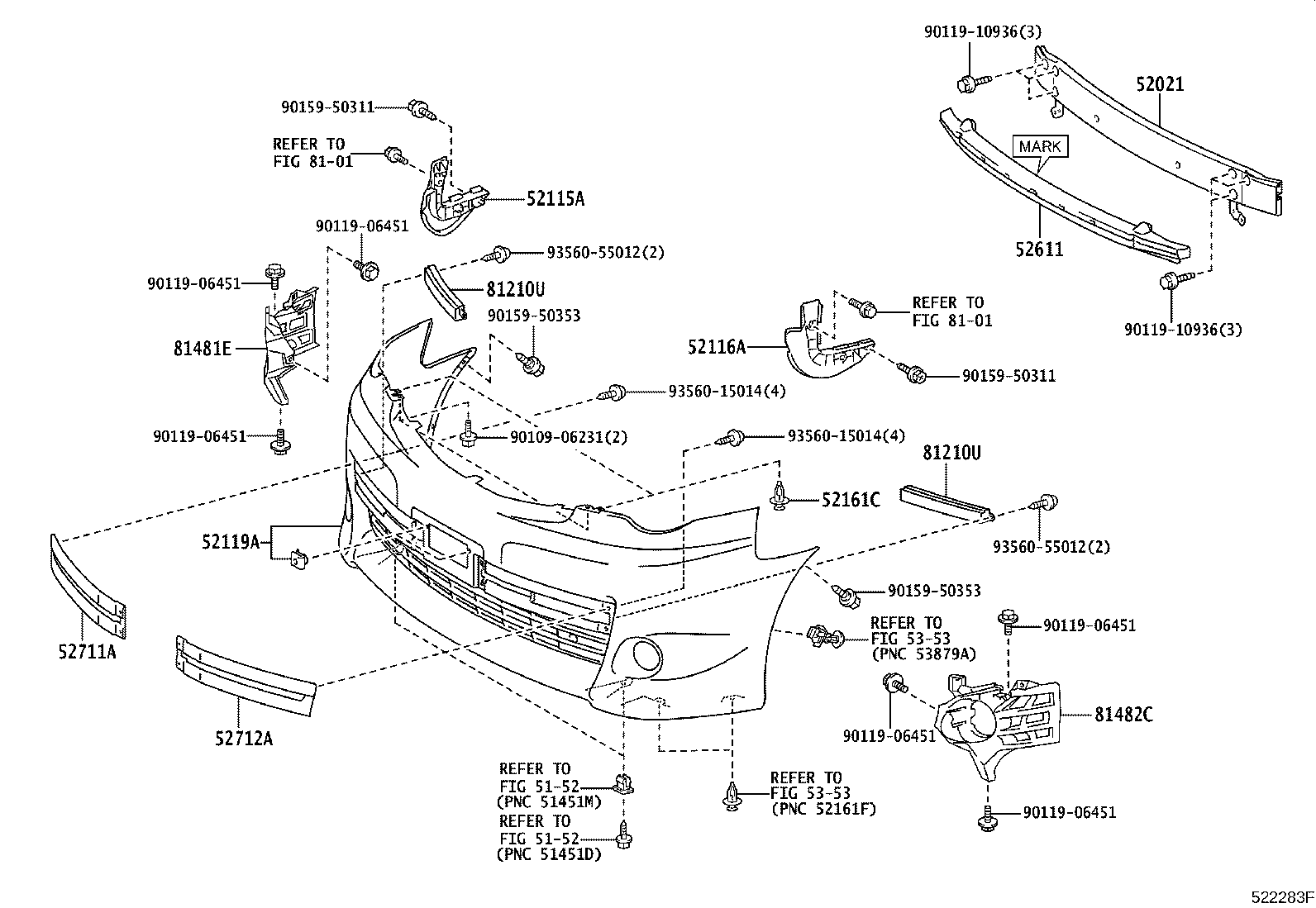

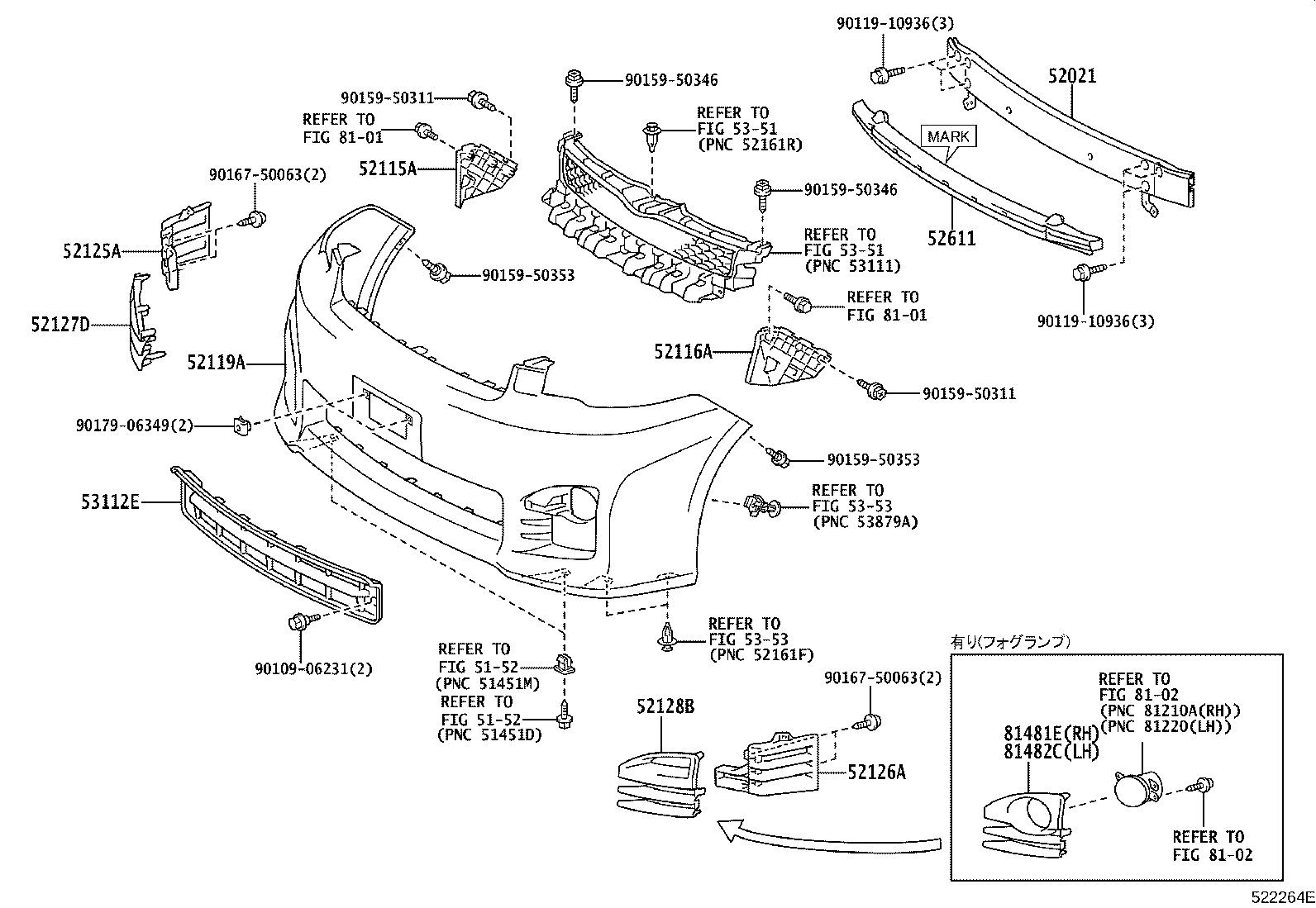

Figure 522258D 522258D 2007-06 → 2010-04 Figure 522259D 522259D 2007-06 → 2010-04 Figure 521778J 521778J 2007-06 → 2010-04 Figure 521779J 521779J 2007-06 → 2010-04 Figure 522261D 522261D 2010-04 → — Figure 522262F 522262F 2010-04 → — Figure 522263D 522263D 2010-04 → — Figure 522264E 522264E 2010-04 → — Figure 522283F 522283F 2010-06 → — Figure 522284H 522284H 2010-06 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52133 Reinforcement, Front Bumper
52161C Piece, Front Bumper
52541 Protector, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
52711A Garnish, Front Bumper
52712A Garnish, Front Bumper, LH
53112E Grille, Radiator, Lower NO.1
53114C Grille, Radiator, Inner
53223D Bracket, Radiator Grille Mounting
81210U Led Illumination Beam Assy
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
