Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 3 illustrations

Illustrations

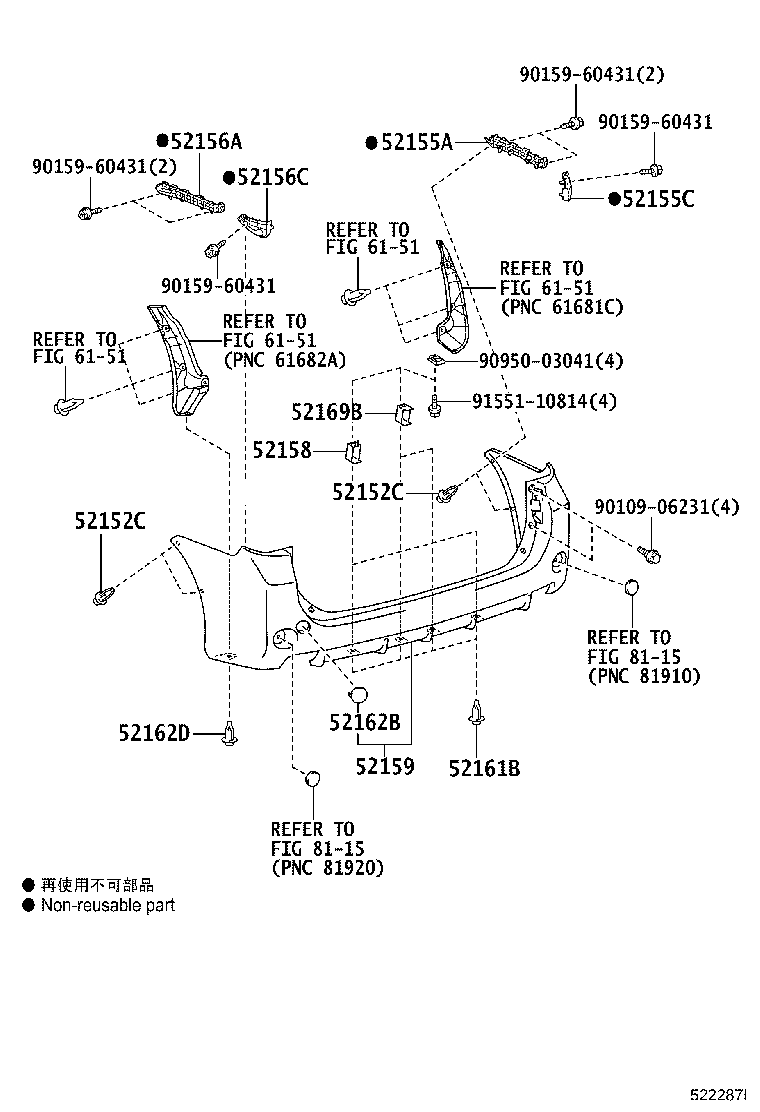

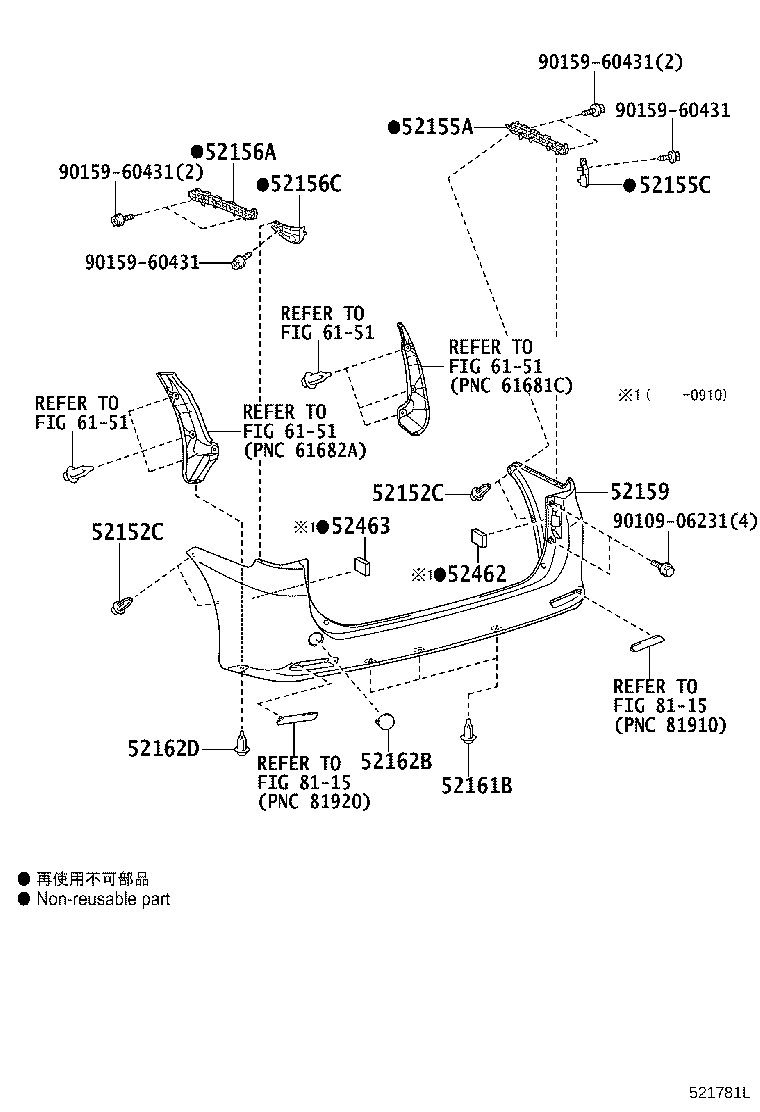

Figure 521992J 521992J 2007-06 → — Figure 521781L 521781L 2007-06 → — Figure 522287I 522287I 2010-06 → —

Part groups

PNCDescription
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52155C Support, Rear Bumper Side, NO.1 RH
52156A Support, Rear Bumper Side, LH
52156C Support, Rear Bumper Side, NO.1 LH
52158 Bracket, Rear Bumper
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52162D Piece, Rear Bumper
52169B Bracket, Rear Bumper, Center
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
