Toyota Noah/Voxy
2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan
Supported model
Data version 2015-04

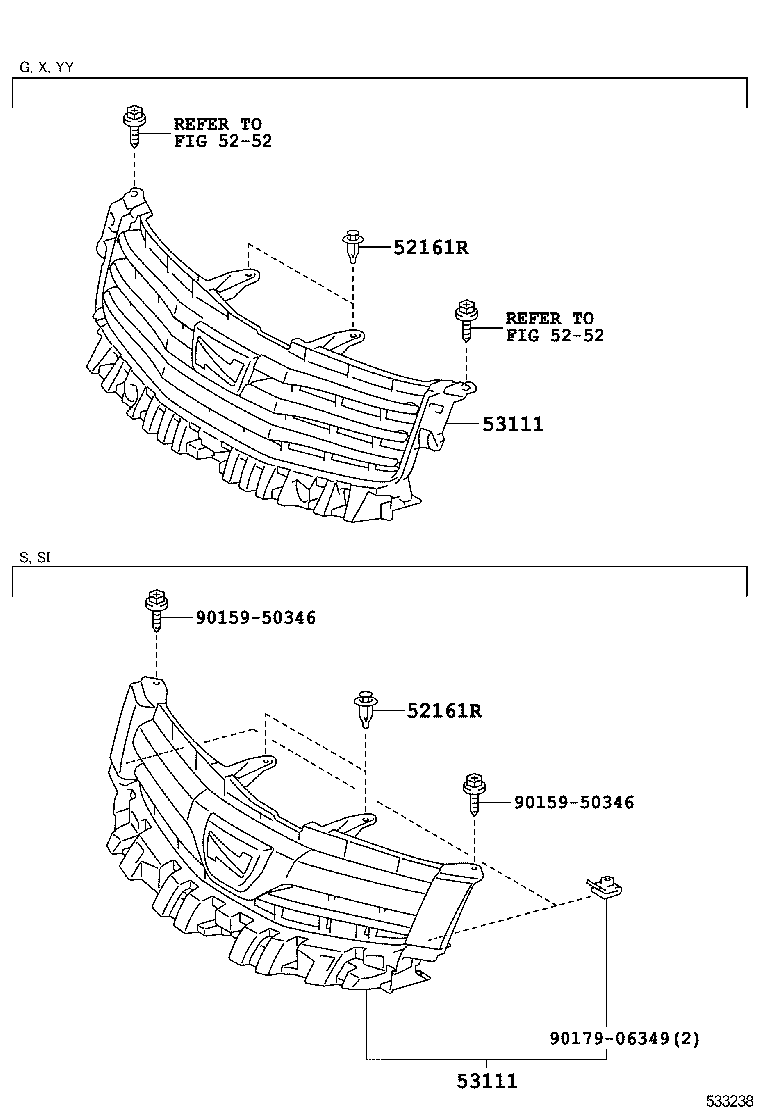

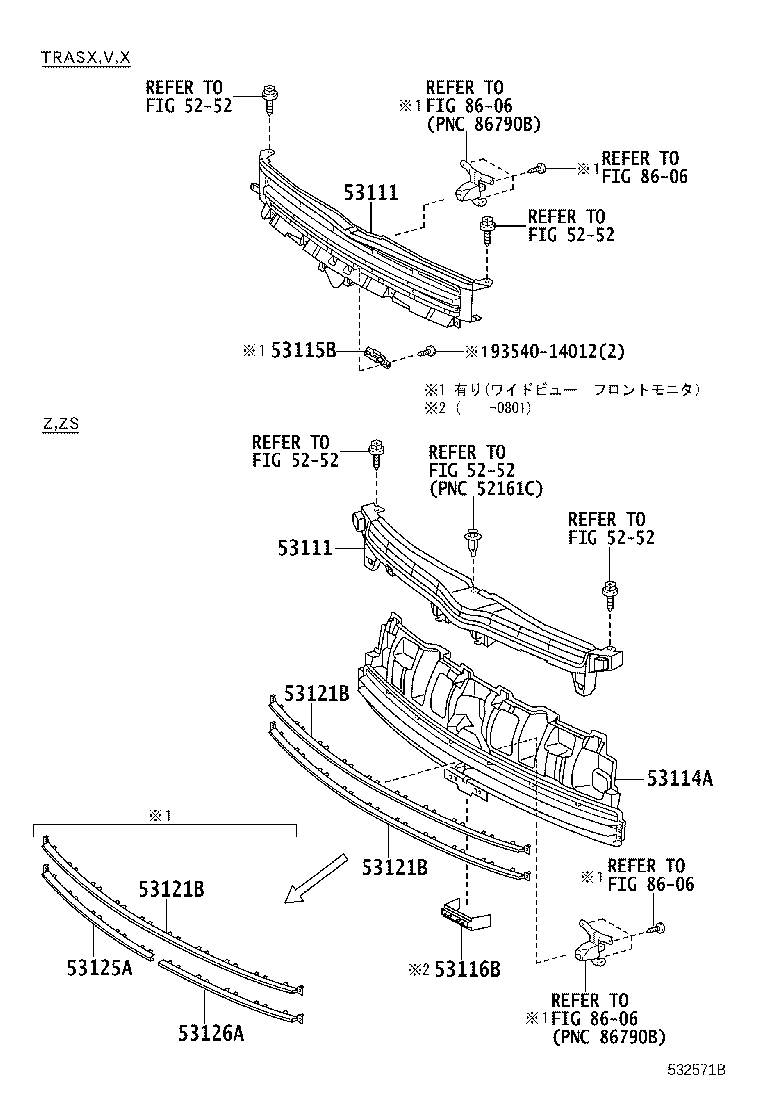

Radiator Grille
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161R | Piece, Front Bumper |
| 53111 | Grille, Radiator |
| 53111J | Protector, Radiator Grille |
| 53114A | Grille, Radiator, Inner |
| 53115B | Bracket, Radiator Grille |
| 53116B | Bracket, Radiator Grille, NO.2 |
| 53121B | Moulding, Radiator Grille, Upper |
| 53125A | Moulding, Radiator Grille, Center RH |
| 53126A | Moulding, Radiator Grille, Center LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
