Toyota Noah/Voxy
2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan
Supported model
Data version 2015-04
Hood & Front Fender
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161F | Piece, Front Bumper |

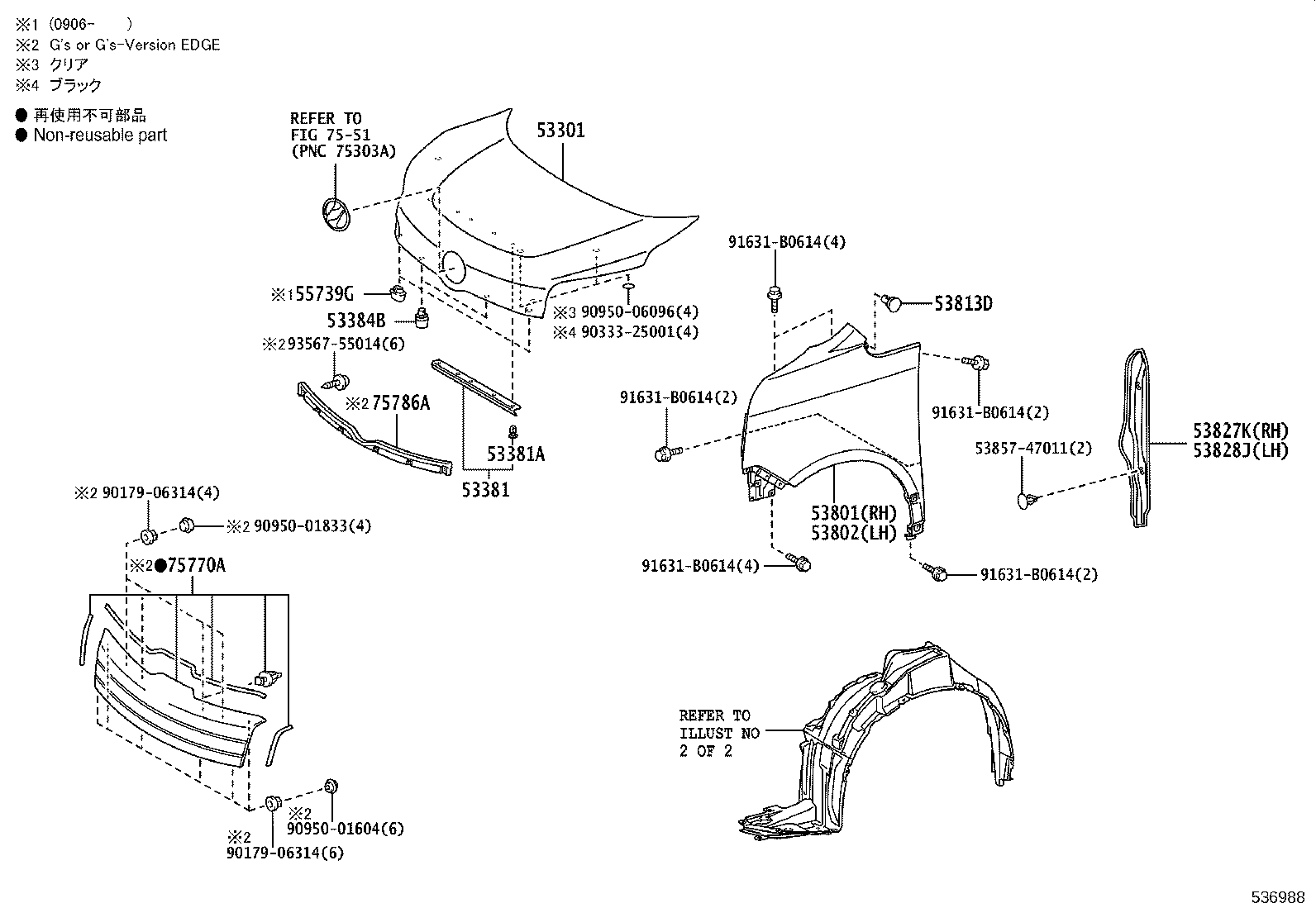

| 53301 | Hood Sub-assy |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53384B | Cushion, Hood, Center |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53813D | Extension, Front Fender |
| 53827K | Protector, Front Fender Side Panel, RH |
| 53828J | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |

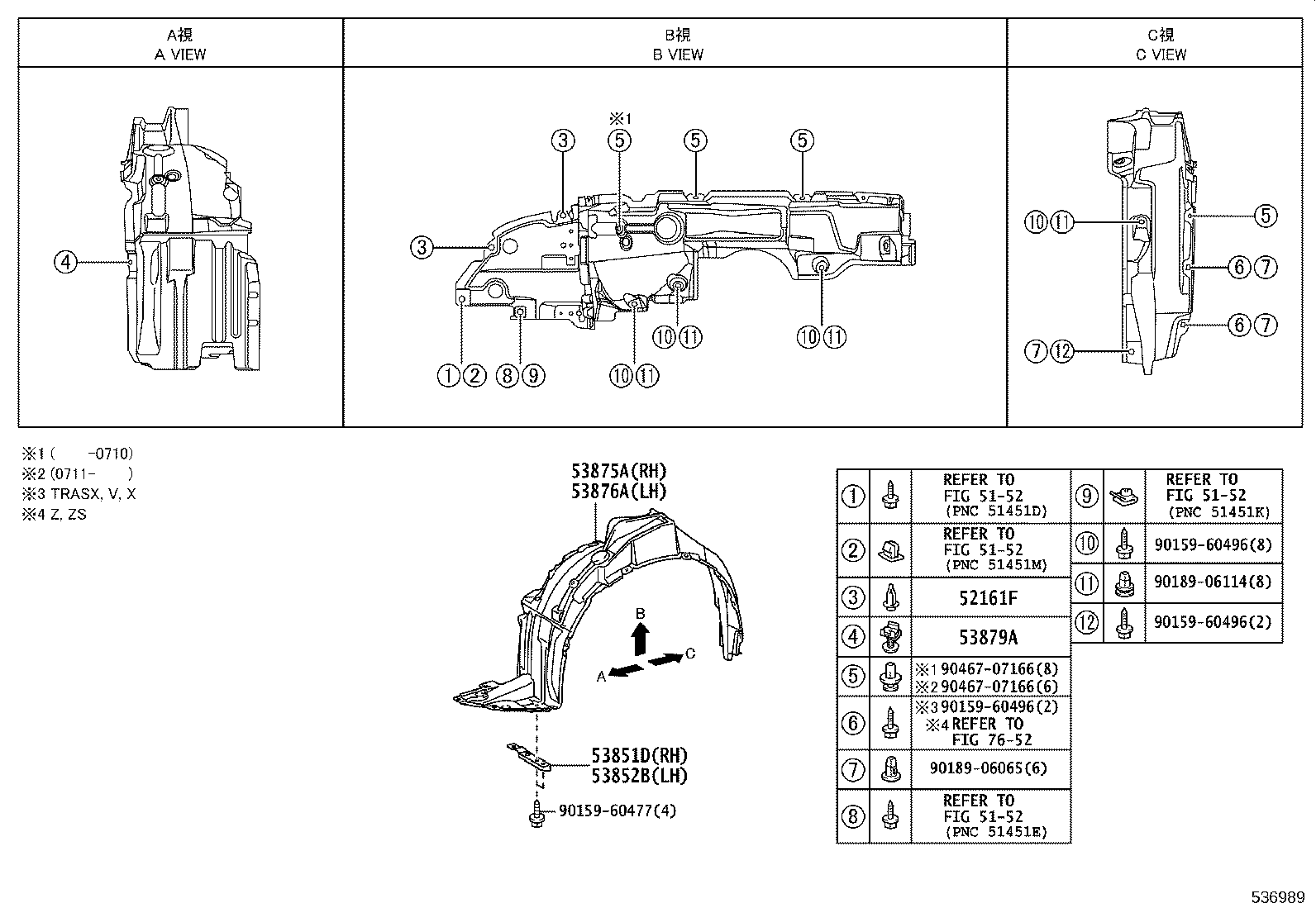

| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 55739G | Stopper, Hood |
| 75770A | Moulding Assy, Hood, Front |
| 75777C | Pad, Hood Front Moulding |
| 75786A | Retainer, Hood Front Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
