Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

6 part groups · 2 illustrations

Illustrations

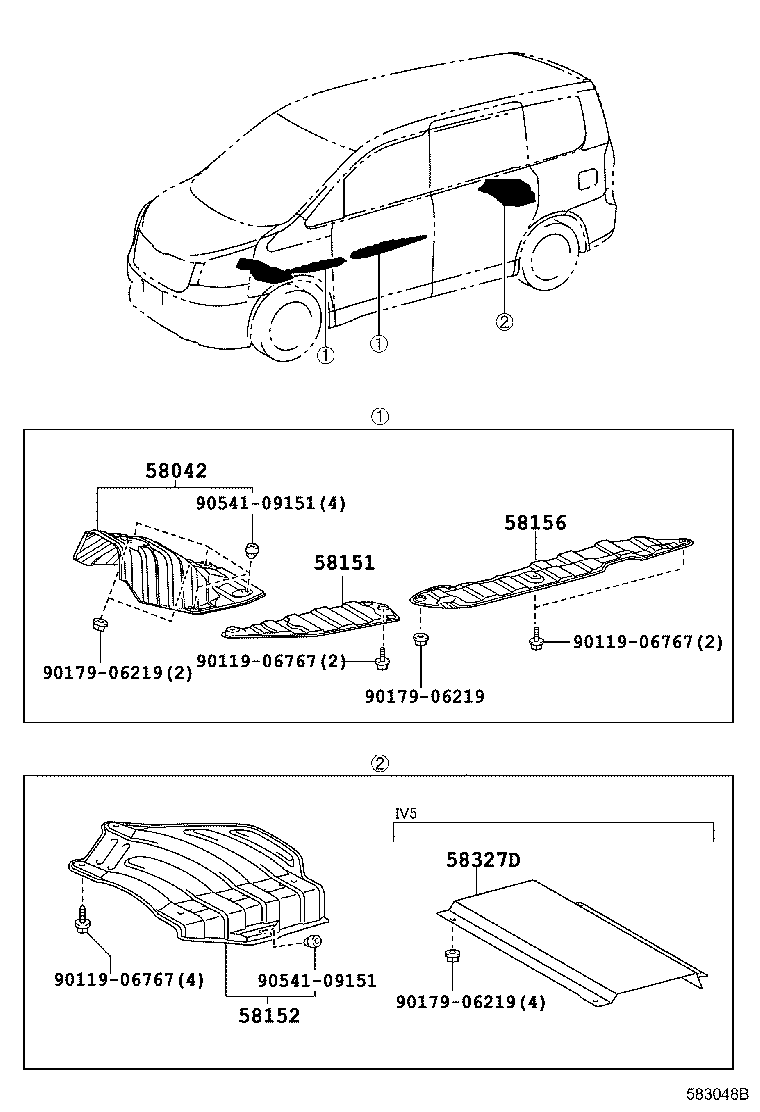

Figure 583047C 583047C 2007-06 → — Figure 583048B 583048B 2007-06 → —

Part groups

PNCDescription
58041C Insulator Sub-assy, Front Floor Heat, NO.1
58042 Insulator Sub-assy, Front Floor Heat, NO.2
58151 Insulator, Front Floor Heat, NO.1
58152 Insulator Sub-assy, Center Floor Heat, NO.2
58156 Insulator, Front Floor Heat, NO.4
58327D Insulator, Main Muffler Heat, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
