Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

16 part groups · 2 illustrations

Illustrations

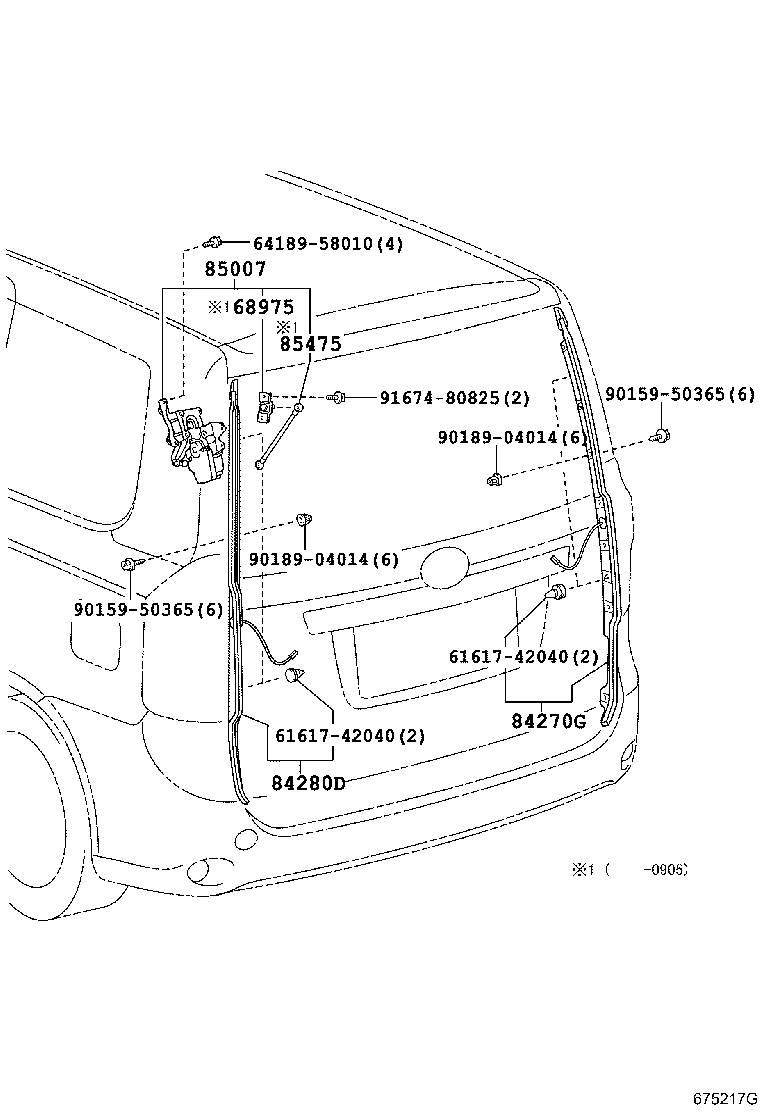

Figure 675216G 675216G 2007-06 → — Figure 675217G 675217G 2007-06 → —

Part groups

PNCDescription
68810D Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68838 Pad, Back Door Hinge, NO.1
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
68975 Plate, Back Door Stay
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69403A Stopper Sub-assy, Back Door Side Female, RH
69404A Stopper Sub-assy, Back Door Side Female, LH
69430A Striker Assy, Back Door Lower Lock
69461 Stopper, Back Door Side Male, RH
69462 Stopper, Back Door Side Male, LH
84270G Sensor Assy, Power Back Door, RH
84280D Sensor Assy, Power Back Door, LH
85007 Motor Unit, Back Door
85475 Rod, Power Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
