Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

360 part groups · 24 illustrations

Illustrations

71C906B 2007-06 → 2010-04

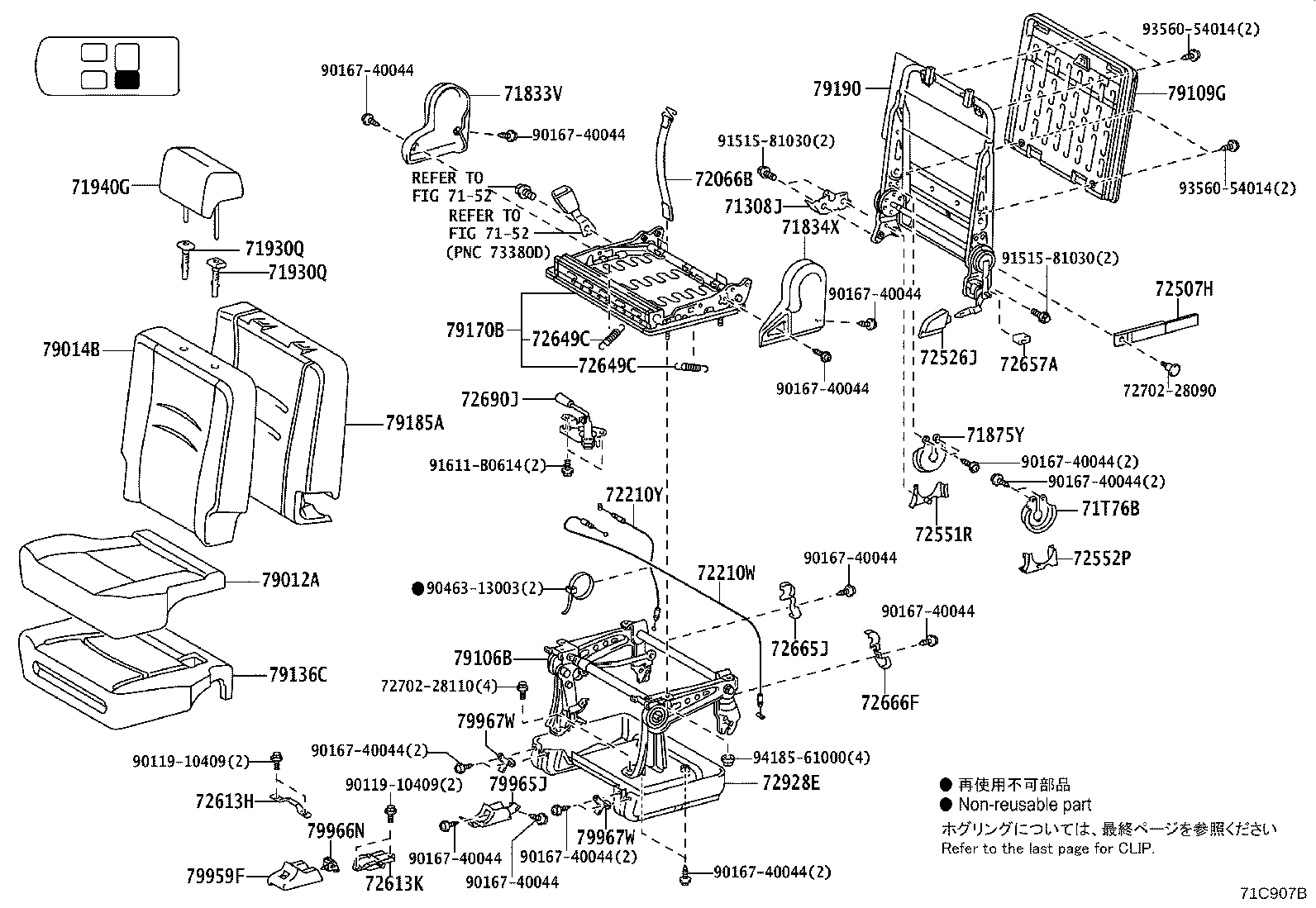

71C907B 2007-06 → 2010-04

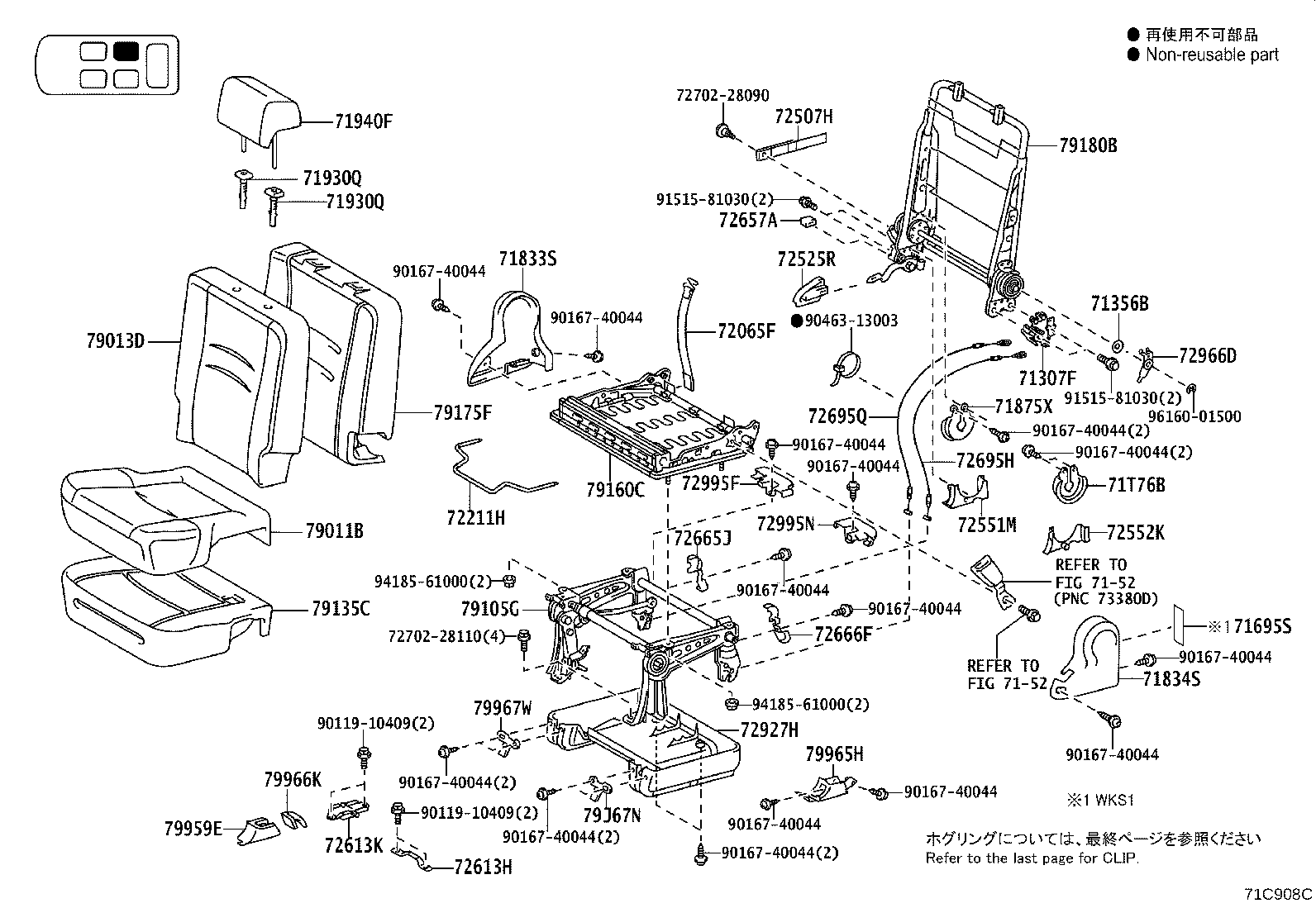

71C908C 2007-06 → 2010-04

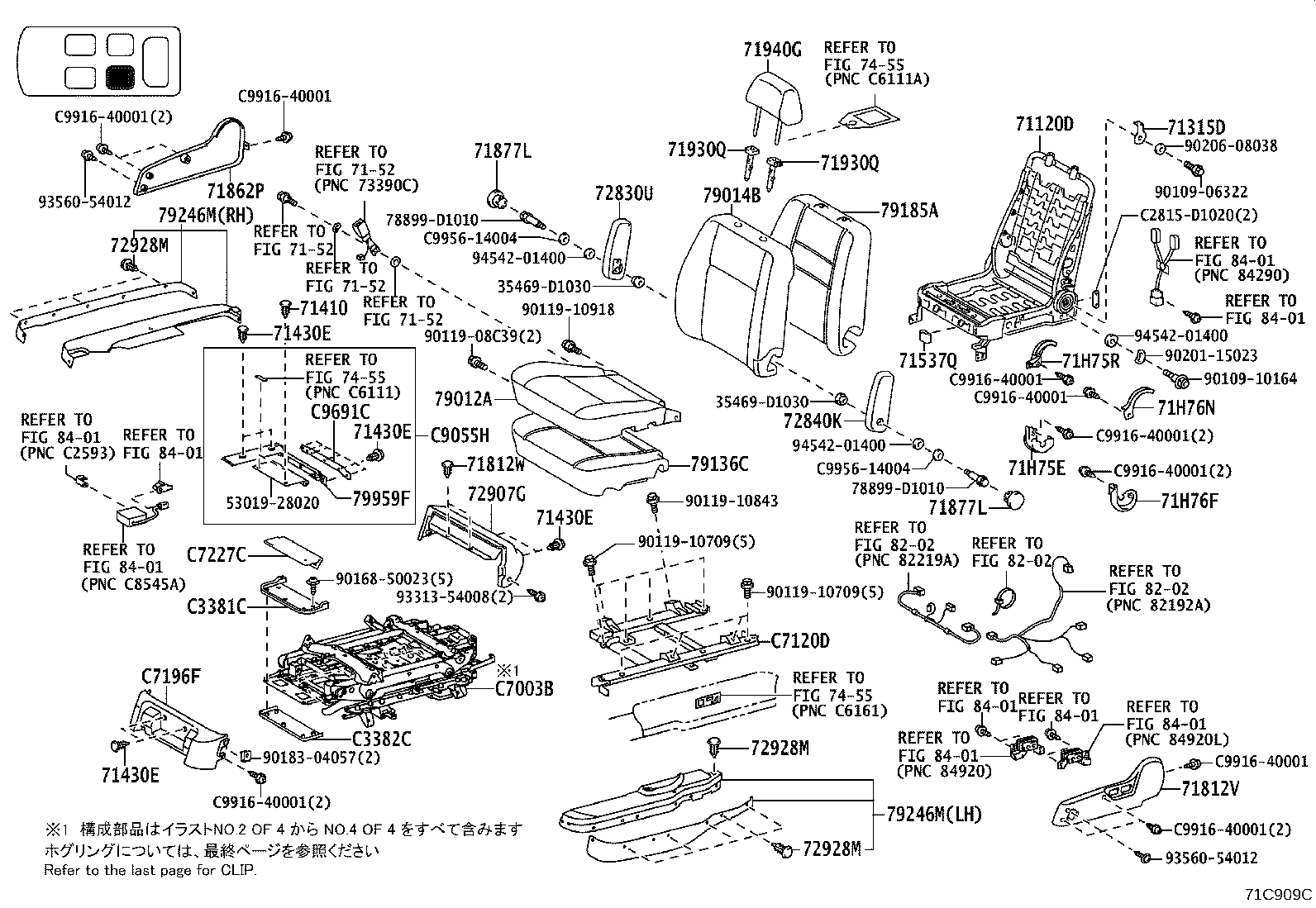

71C909C 2007-06 → 2010-04

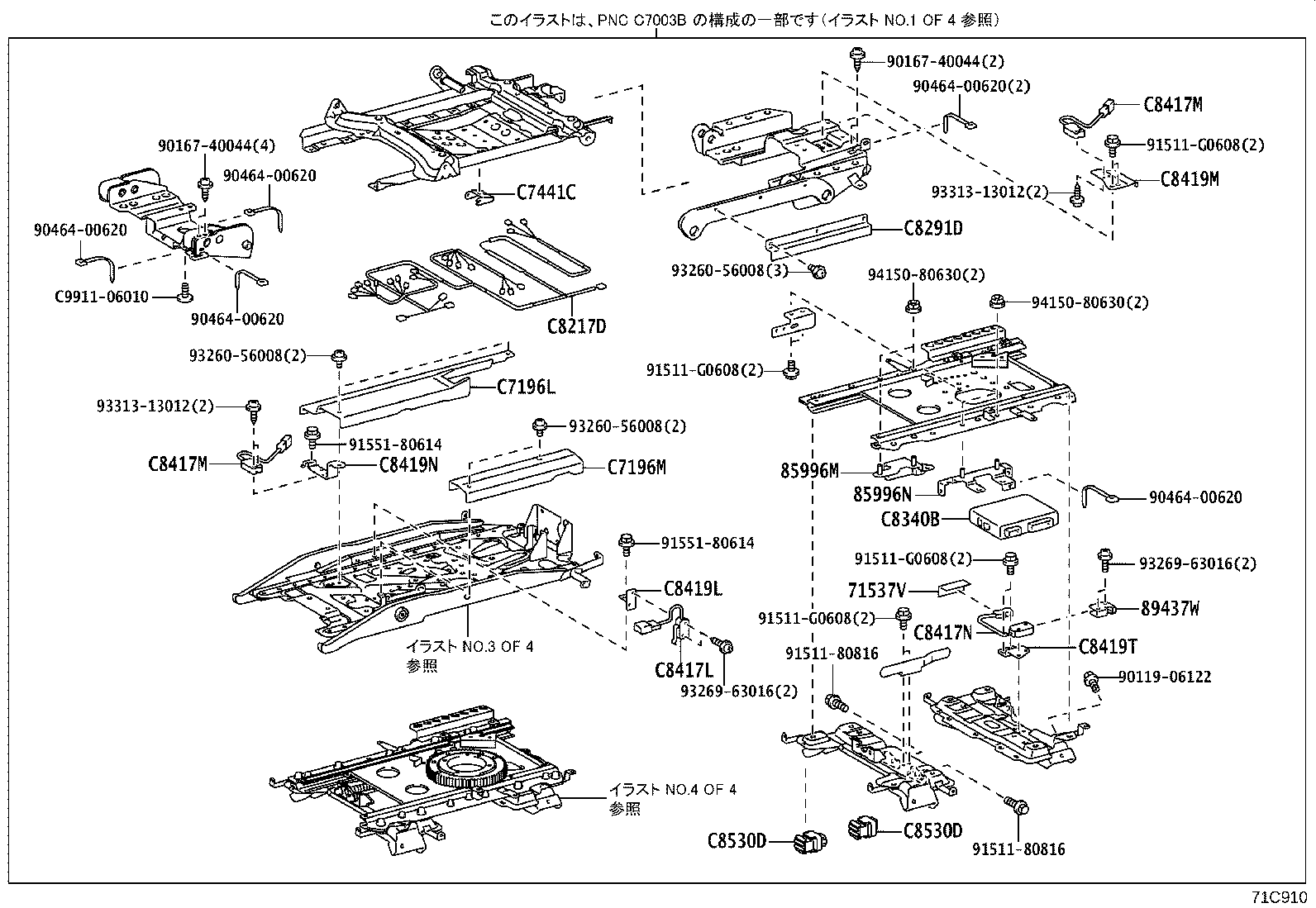

71C910A 2007-06 → 2010-04

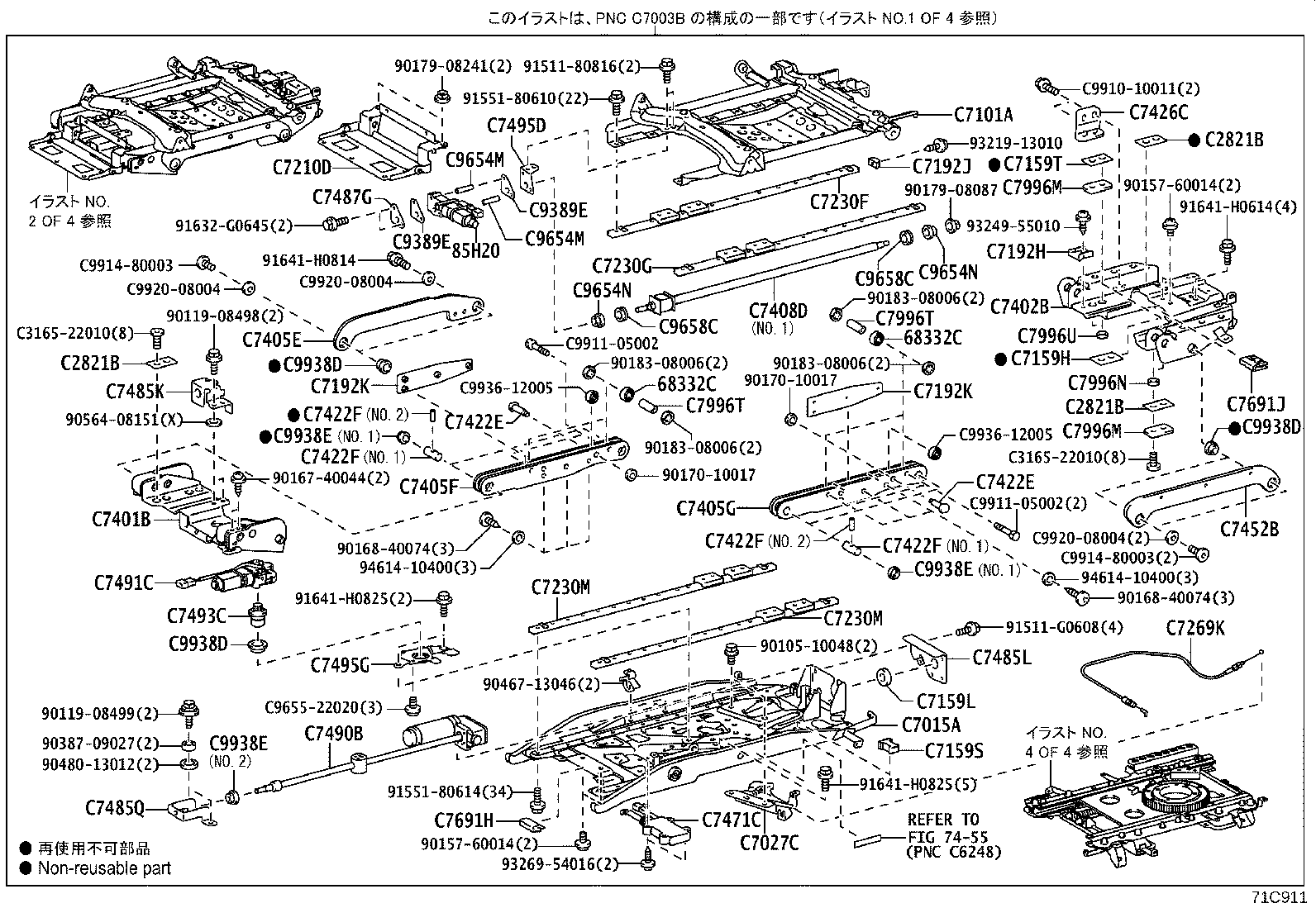

71C911A 2007-06 → 2010-04

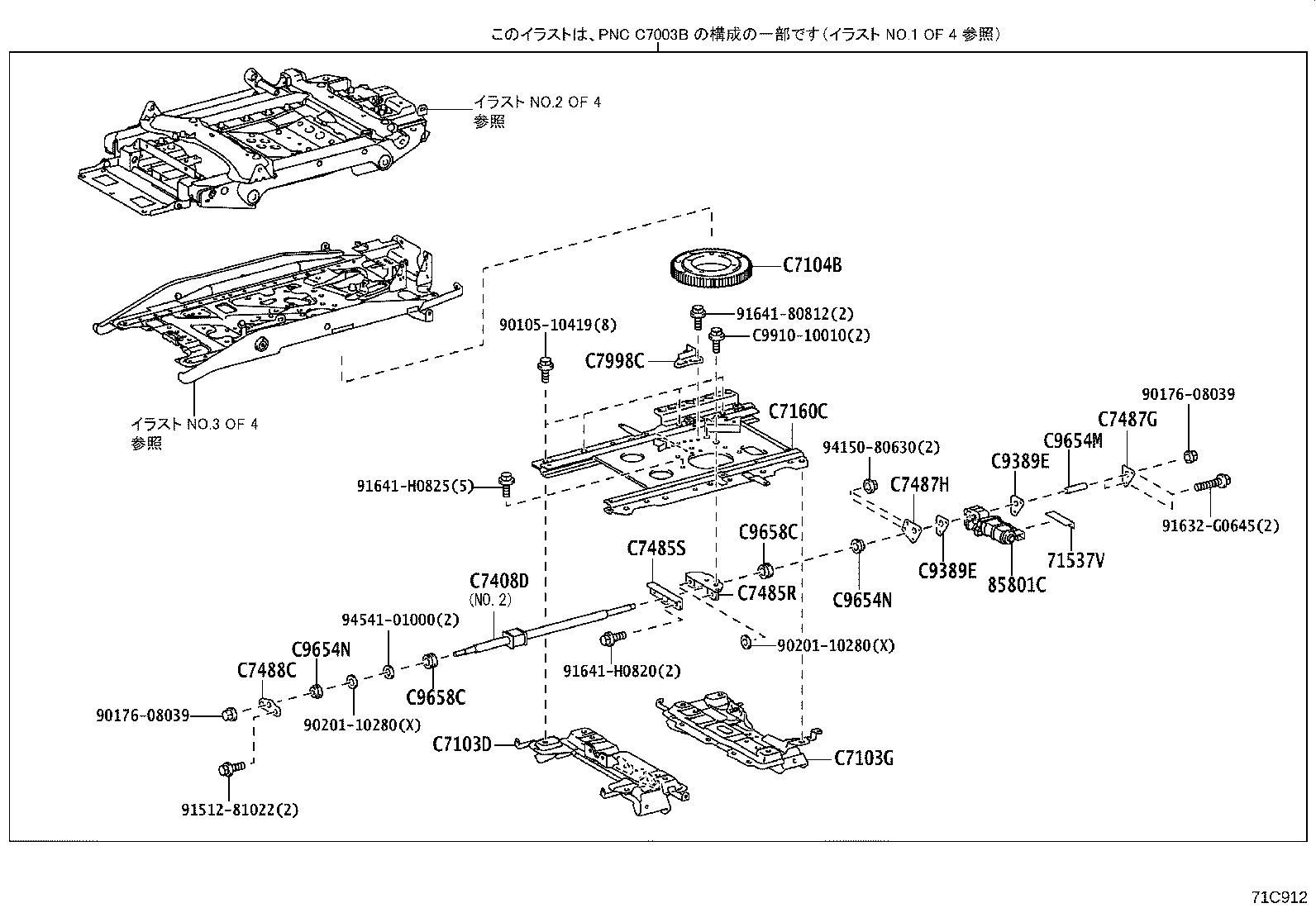

71C912A 2007-06 → 2010-04

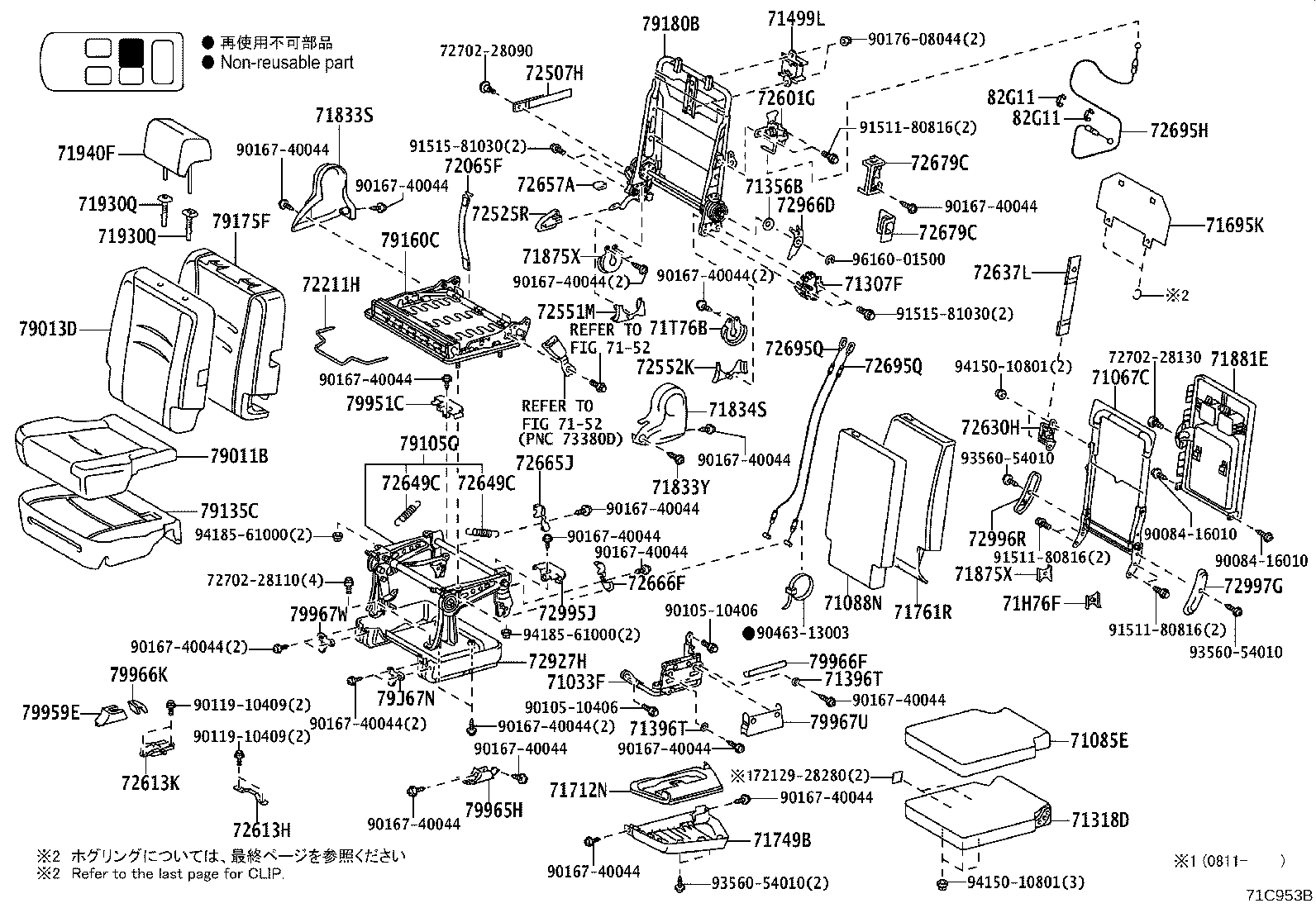

71C953B 2007-06 → 2010-04

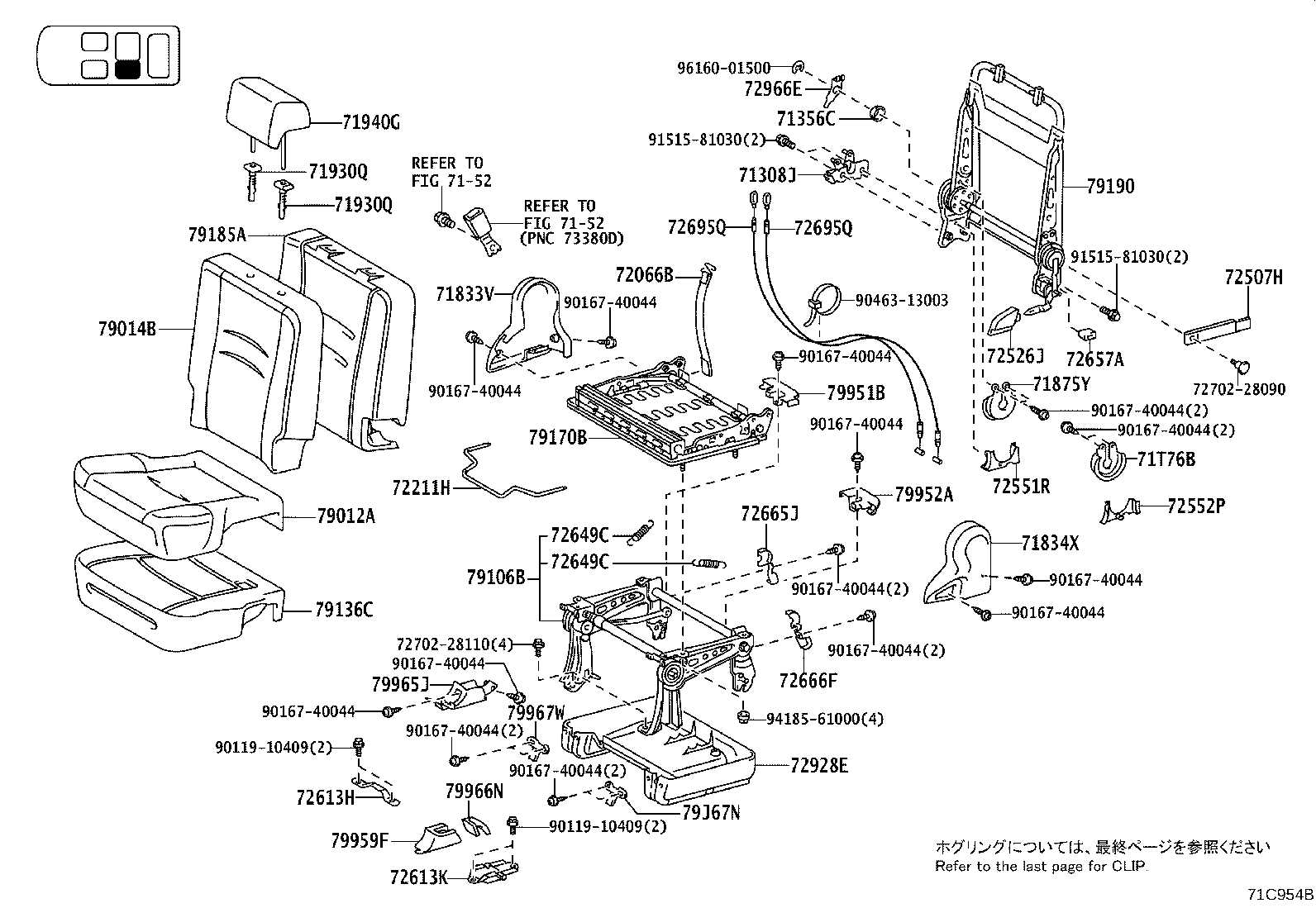

71C954B 2007-06 → 2010-04

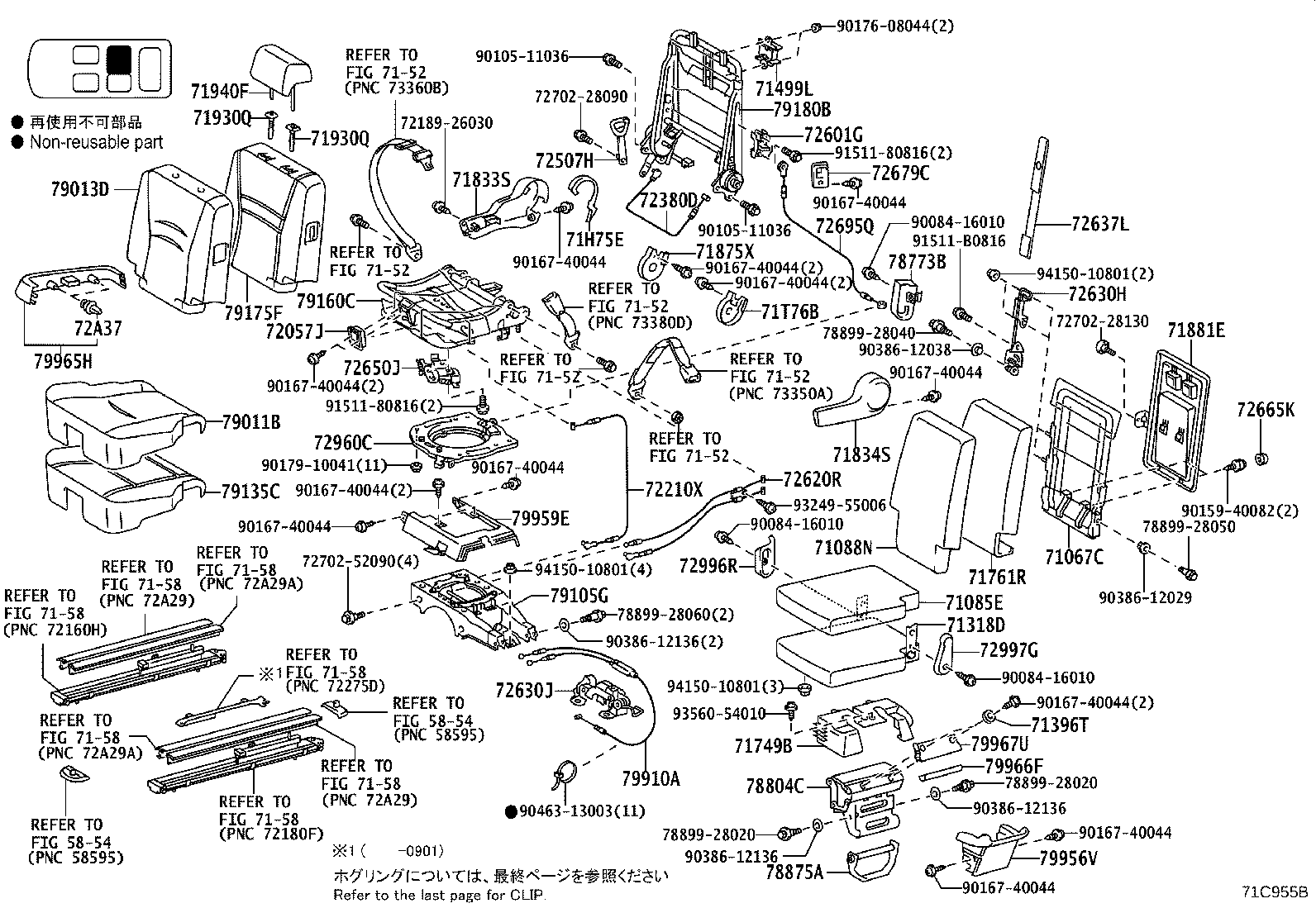

71C955B 2007-06 → 2010-04

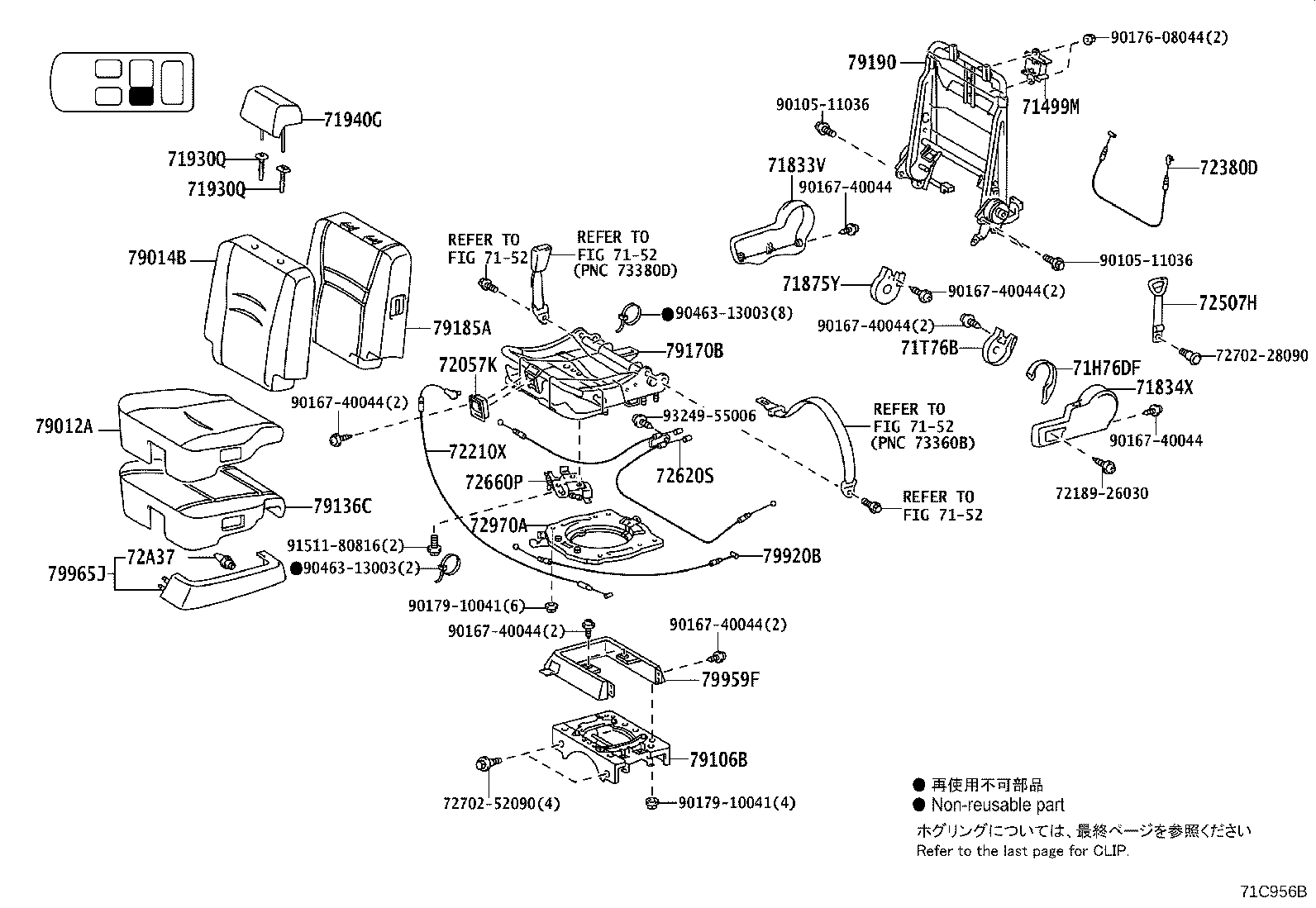

71C956B 2007-06 → 2010-04

Part groups

PNC	Description
53019G	Shutter Sub-assy, Radiator
58204M	Bracket Sub-assy, Rear Seat
68332C	Roller, Slide Door, Lower
71033F	Leg Sub-assy, Rear Seat Cushion, RH
71067C	Frame Sub-assy, Rear Side Seatback, RH
71085E	Cover Sub-assy, Rear Side Seat Cushion, RH
71088N	Cover Sub-assy, Rear Side Seatback, RH
71120D	Frame Assy, Rear Seat W/Adjuster, LH
71208B	Wire Sub-assy, NO.2 Seat Cushion, RH NO.1
71208D	Wire Sub-assy, NO.2 Seat Cushion, LH NO.1
71307F	Bracket Sub-assy, NO.1 Seat Cushion(FOR RH SEAT)
71308J	Bracket Sub-assy, Rear Seat Cushion Support, LH
71315D	Plate, Rear Seat Hinge, Lower
71318D	Pad, Center Seat Cushion
71330D	Hinge Assy, Rear NO.2 Seat, RH
71340C	Hinge Assy, Rear NO.2 Seat, LH
71356B	Plate, Rear Seatback Hinge, Inner RH
71356C	Plate, Rear Seatback Hinge, Inner LH
71393C	Band, NO.2 Seat Cushion, RH NO.1
71393E	Band, NO.2 Seat Cushion, LH NO.1
71393G	Band, NO.1 Seat Cushion(FOR RH SEAT)
71393H	Band, NO.1 Seat Cushion(FOR LH SEAT)
71396R	Cushion, NO.2 Seat Support, Rear(FOR RH SEAT)
71396S	Cushion, NO.2 Seat Support, Rear(FOR LH SEAT)
71396T	Cushion, NO.1 Seat Support, Rear
71398L	Guide, NO.2 Seat Cushion Support, RH
71398M	Guide, NO.2 Seat Cushion Support, LH
71410	Clip(FOR REAR SEAT CUSHION)
71430E	Clip
71485E	Cover, Rear Seat Hinge
71486F	Cover, Rear Seat Hinge, LH
71499L	Damper, NO.1 Seatback Spring, RH
71499M	Damper, NO.1 Seatback Spring, LH
71537Q	Protector, Rear NO.1 Seat Cushion, LH
71537V	Protector, Rear Seat Cushion Edge
71693F	Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693J	Cover, Rear Seat Cushion Hinge, NO.3
71693M	Cover, Rear Seat Cushion Hinge, Outer RH
71694F	Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.4
71694G	Cover, Rear Seat Cushion Hinge, Inner LH
71695K	Protector, NO.1 Seatback, RH
71696F	Protector, NO.2 Seatback, RH
71696N	Protector, Rear Seat, NO.2
71712N	Cover, Side Seat Cushion, Rear
71749B	Cover, Side Seat Lower Cushion, RH
71761R	Pad, Rear Side Seatback
71812V	Shield, Rear Seat Cushion, LH
71812W	Clip, Rear Seat Cushion Shield, LH
71833S	Cover, Rear Seat Reclining, NO.1 RH
71833V	Cover, NO.1 Seat Reclining, NO.2 RH
71833Y	Clip, NO.1 Seat Reclining Cover(FOR RH SEAT)
71834S	Cover, Rear Seat Reclining, NO.1 LH
71834V	Cover, Rear Seat Reclining, NO.3 LH
71834X	Cover, Rear Seat Reclining, NO.2 LH
71843K	Cover, Rear NO.2 Seat Reclining, NO.2 RH
71843M	Cover, Rear Seat Reclining, NO.2 RH
71844H	Cover, Rear Seat Reclining, NO.2 LH
71844K	Cover, Rear NO.2 Seat Reclining, NO.2 LH
71845F	Cap, Rear Seat Cover
71846J	Cap, Rear Seatback Board, NO.2
71848U	Cap, NO.2 Seat Adjuster Cover, RH
71849M	Cap, NO.2 Seat Adjuster Cover, LH
71862P	Shield, Rear Seat Cushion, Inner LH
71868T	Shield, Rear Seat Cushion, Inner NO.1 LH
71868U	Shield, Rear Seat Cushion, Inner NO.1 LH (FOR LH SEAT)
71874X	Shield, Rear Seat Cushion, Lower LH
71875X	Cover, Reclining Adjuster Inside, RH
71875Y	Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEATBACK)
71877K	Cover, Rear Seat Armrest Hole RH
71877L	Cover, Rear Seat Armrest Hole LH
71878H	Cover, Rear Seat Reclining, Inner RH
71878J	Cover, Rear NO.1 Seat Reclining, Inner RH
71879H	Cover, Rear Seat Reclining, Inner LH
71879J	Cover, Rear NO.1 Seat Reclining, Inner LH
71881E	Board, Rear NO.1 Seatback, Center
71930Q	Support Assy, Rear Seat Headrest
71931G	Support Assy, Rear Seat Headrest
71940F	Headrest Assy, NO.1 Seat, RH
71940G	Headrest Assy, NO.1 Seat, LH
71940N	Headrest Assy, Rear Seat, NO.2
71960G	Headrest Assy, Rear NO.1 Seat, Center
71964A	Case, Rear Seat Headrest
71970C	Headrest Assy, Rear Seat
71H67	Shield, Rear Seat Cushion, Inner NO.1 RH
71H67A	Shield, NO.1 Seat Cushion, Inner NO.1 RH(FOR LH SEAT)
71H75E	Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT)
71H75G	Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 RH SEAT)
71H75L	Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71H75R	Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H75X	Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEAT)
71H76E	Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT)
71H76F	Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT)
71H76H	Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 LH SEAT)
71H76N	Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT)
71H76P	Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEAT)
71T76B	Cover, Reclining Adjuster Inside, LH
72045B	Cover Sub-assy, NO.1 Seat Track, Outer RH
72046D	Cover Sub-assy, Rear Seat Track, Outer LH NO.1
72057E	Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057J	Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K	Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72058F	Lever Sub-assy, NO.1 Seat Lock Control, LH
72063B	Hook Sub-assy, Rear Seat, RH
72064B	Hook Sub-assy, Rear Seat, LH
72065D	Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065F	Belt Sub-assy, Rear Seat Hook, RH
72066B	Belt Sub-assy, Rear Seat Hook, LH
72066C	Hook Sub-assy,Rear Seat Cushion Lock,LH
72210W	Cable Assy, NO.1 Seat Track Control, LH NO.2
72210X	Cable Assy, NO.1 Seat Track Control, RH
72210Y	Cable Assy, NO.1 Seat Track Control, RH NO.1
72211H	Handle, Seat Track Adjusting, RH
72380D	Cable Assy, Seat Adjuster Control, NO.2
72507H	Handle Sub-assy, Reclining Release, RH
72525P	Handle, NO.2 Seat Reclining Adjuster Release, RH
72525R	Handle, Reclining Adjuster Release, RH
72526J	Handle, NO.1 Seat Reclining Adjuster Release, LH
72526K	Handle, NO.2 Seat Reclining Adjuster Release, LH
72551M	Cover, Reclining Hinge, RH NO.1(FOR RH SEAT)
72551R	Cover, Reclining Hinge, RH NO.1(FOR LH SEAT)
72552K	Cover, Reclining Hinge, LH NO.1(FOR RH SEAT)
72552P	Cover, Reclining Hinge, LH NO.1(FOR LH SEAT)
72570E	Cable Assy, NO.1 Seat Reclining Adjusting, RH
72573D	Lever, NO.1 Seat Reclining Control, RH
72574A	Lever, Reclining Control, LH
72590G	Cable Assy, Reclining Remote Control, LH
72601G	Striker Sub-assy, Rear Seat Lock
72612A	Bracket, Rear Seat Lock, LH
72613H	Striker, Rear Seat Lock
72613K	Striker, Rear Seat Lock, NO.2
72613L	Striker, Rear Seat Lock, Rear Outer
72615M	Cover, NO.1 Seatback Lock Striker(FOR RH SEAT)
72615N	Cover, NO.1 Seatback Lock Striker(FOR LH SEAT)
72620R	Cable Assy, Rear NO.1 Seat Lock(FOR RH SEAT)
72620S	Cable Assy, Rear NO.1 Seat Lock(FOR LH SEAT)
72620U	Cable Assy, Rear NO.1 Seat Lock
72630H	Lock Assy, NO.1 Seatback
72630J	Lock Assy, Rear NO.1 Seat
72637L	Handle, Rear Seat Lock
72649C	Spring, Rear Seat Cushion Support
72650H	Cable Assy, Rear NO.2 Seat Lock, RH
72650J	Lock Assy, Rear Seat, RH
72657A	Silencer, Rear Seatback Lock Control Rod
72660N	Cable Assy, Rear NO.2 Seat Cushion Lock, LH
72660P	Lock Assy, Rear Seat, LH
72665J	Cover, Rear Seat Lock, RH
72665K	Cap(FOR REAR SEATBACK LOCK COVER)
72666F	Cover, Rear Seat Lock, LH
72668G	Bezel, NO.1 Seatback Lock, Lower(FOR RH SEAT)
72679C	Bezel, Rear Seatback Lock Control
72690H	Lever Assy, NO.1 Seat Cushion Lock Release, RH
72690J	Lever Assy, NO.1 Seat Cushion Lock Release, LH
72695H	Cable, Rear NO.1 Seat Lock Control, RH
72695Q	Cable, Rear Seat Lock Control
72779B	Guide, Rear Seat Hinge Pawl
72781G	Spring, Rear NO.2 Seat Plate, LH
72781H	Spring, Rear NO.2 Seat Plate, RH
72830U	Armrest Assy, Rear Seat, RH
72830V	Armrest Assy, Rear NO.1 Seat, RH
72840K	Armrest Assy, Rear NO.1 Seat, LH
72895D	Case, Rear Seat Belt
72907G	Cover Sub-assy, Rear Seat Turn
72927F	Cover, Rear Seat Cushion Under, RH
72927H	Cover, Rear NO.1 Seat Cushion Under, RH NO.1
72928E	Cover, Rear Seat Cushion Under, LH
72928F	Cover, Rear NO.2 Seat Cushion Under, LH
72928M	Clip, Rear NO.1 Seat Cushion Under Cover
72960C	Table Assy, NO.1 Seat Turn, RH
72966D	Plate, Rear Seat Turn Lock, NO.1 RH
72966E	Plate, Rear Seat Turn Lock, NO.1 LH
72970A	Table Assy, NO.1 Seat Turn, LH
72995F	Cover, Rear Seat Cushion, RH
72995J	Cover, Rear NO.1 Seat Cushion
72995N	Cover, Rear Seat Cushion, LH
72996H	Cover, Rear Seatback
72996R	Cover, Rear NO.1 Seatback, RH
72997G	Cover, Rear NO.1 Seatback, LH NO.1
72A37	Clip (FOR SEAT TRACK COVER)
73949A	Cap
78773B	Cover, Sub Seat Hinge, RH
78804C	Leg Sub-assy, Sub Seat Cushion
78875A	Striker, Sub Seat Lock
78987B	Cover, Rear NO.1 Seat Footrest, NO.1 LH
78988G	Cover, Rear Seat Footrest, NO.2
78F56	Cap
79011B	Cover Sub-assy, NO.1 Seat Cushion, RH
79012A	Cover Sub-assy, NO.1 Seat Cushion, LH
79013D	Cover Sub-assy, NO.1 Seatback, RH
79014B	Cover Sub-assy, NO.1 Seatback, LH
79021D	Cover Sub-assy, NO.2 Seat Cushion, RH
79022B	Cover Sub-assy, NO.2 Seat Cushion, LH
79023D	Cover Sub-assy, NO.2 Seatback, RH
79024D	Cover Sub-assy, NO.2 Seatback, LH
79105G	Leg Sub-assy, NO.1 Seat, RH
79106B	Leg Sub-assy, NO.1 Seat, LH
79109F	Board Sub-assy, NO.1 Seatback, RH
79109G	Board Sub-assy, NO.1 Seatback, LH
79135C	Pad, NO.1 Seat Cushion, RH
79136C	Pad, NO.1 Seat Cushion, LH
79160C	Spring Assy, NO.1 Seat Cushion
79170B	Spring Assy, NO.1 Seat Cusuion, LH
79175F	Pad, NO.1 Seatback, RH
79180B	Spring Assy, NO.1 Seatback, RH
79185A	Pad, NO.1 Seatback, LH
79190	Spring Assy, NO.1 Seatback, LH
79235F	Pad, NO.2 Seat Cushion, RH
79236G	Cover, NO.2 Seat Leg, RH
79245A	Pad, NO.2 Seat Cushion, LH
79246H	Cover, NO.2 Seat Leg, LH
79246M	Cover, Rear Seat Leg, LH
79246Q	Cover, Rear Seat Leg, RH (FOR LH SEAT)
79260C	Spring Assy, NO.2 Seat Cushion, RH
79270B	Spring Assy, NO.2 Seat Cushion, LH
79273D	Cover, NO.2 Seat Hinge, Rear RH
79273F	Cover, NO.2 Seat Hinge, NO.2
79275F	Pad, NO.2 Seatback, RH
79285C	Pad, NO.2 Seatback, LH
79378E	Cover, NO.3 Seat Cushion Hinge, RH
79378F	Cover, NO.2 Seat Cushion Hinge, LH
79908A	Plate Sub-assy, Seat Hinge, LH
79910A	Cable Assy, Rear Seat Turn, NO.1
79920B	Cable Assy, Rear Seat Turn, NO.2
79937G	Cover, Rear Seat Leg, NO.2
79937H	Cover, Rear Seat Leg, NO.2
79951B	Cover, NO.1 Seat Cushion, NO.1
79951C	Cover, NO.1 Seat Cushion, NO.3
79952A	Cover, NO.1 Seat Cushion, NO.2
79956V	Cover, Rear Seat Leg Side, RH
79956Y	Clip (FOR REAR SEAT LEG BRACKET COVER)
79959E	Cover, NO.1 Seat Leg, RH
79959F	Cover, NO.1 Seat Leg, LH
79959T	Cover, Rear Seat Leg, LH
79965H	Cover, NO.1 Seat Leg Side, NO.2(FOR RH SEAT)
79965J	Cover, NO.1 Seat Leg Side, NO.2(FOR LH SEAT)
79966F	Cover, NO.1 Seat Leg Side, NO.3(FOR RH SEAT)
79966K	Cover, Rear Seat Leg, RH(FOR RH SEAT)
79966N	Cover, Rear Seat Leg, LH(FOR LH SEAT)
79967U	Cover, Rear NO.1 Seat Leg Side, NO.2
79967W	Cover, Rear NO.1 Seat Leg Side, NO.4
79J67N	Cover, Rear Seat Leg Side, NO.7
79J68B	Clip
82G11	Clamp, Wiring Harness
85801C	Motor Assy, Power Seat(FOR LH SEAT)
85996K	Clip(FOR RELAY BRACKET)
85996M	Bracket, Relay, NO.1
85996N	Bracket, Relay, NO.2
85H20	Motor Assy, Power Seat
89437W	Cover, Sensor
C2821B	Seal, Front Panel, NO.1
C3381C	Cover, Slide Step, NO.1
C3382C	Cover, Slide Step, NO.2
C4109D	Housing Sub-assy, Slide Door Lock, Rear
C6359A	Cap, Protector Bar

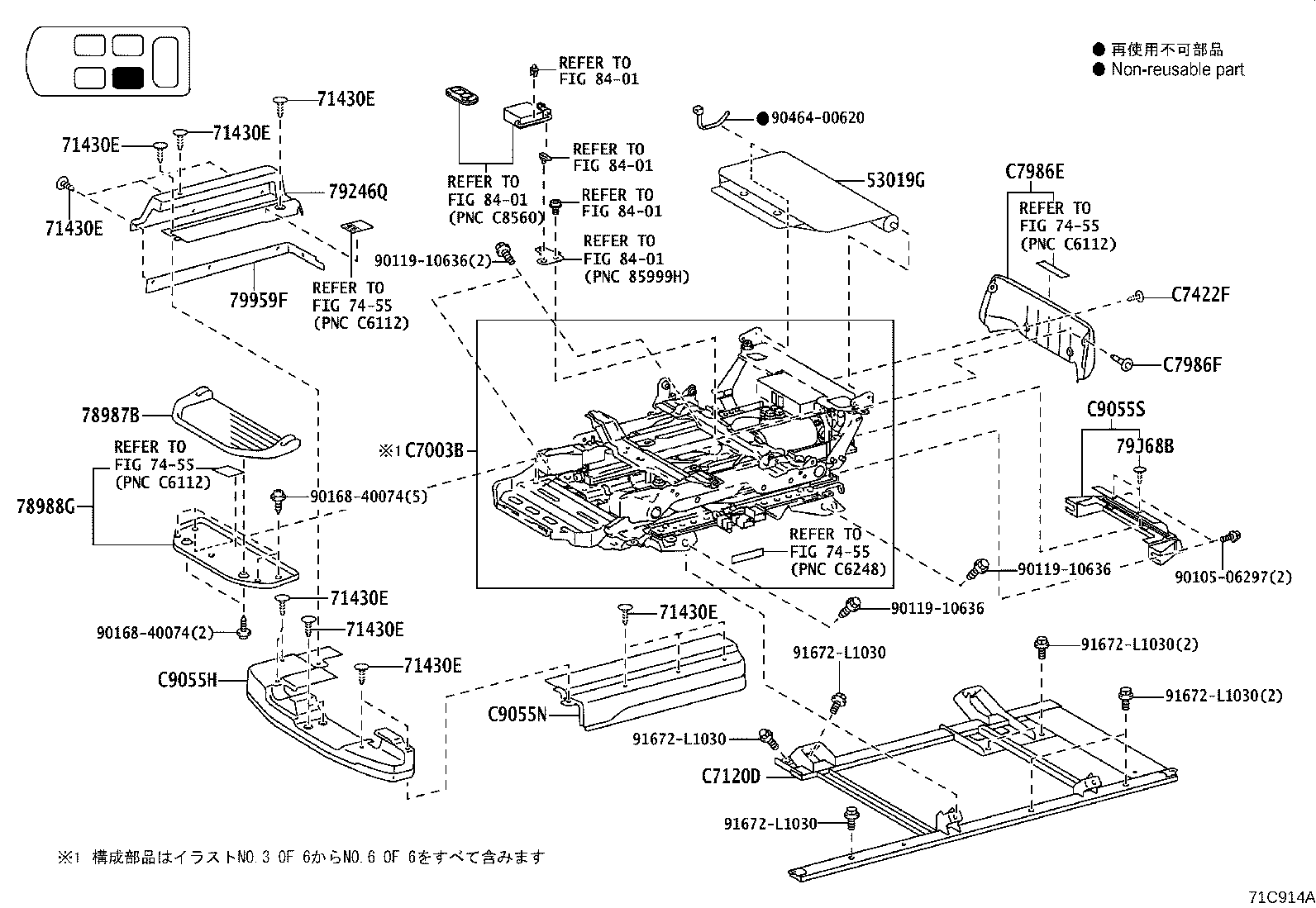

C7003B	Lift Unit, Rear Seat
C7015A	Panel Sub-assy, Turn Table
C7027C	Lock Sub-assy, Welcab Seat Turn
C7101A	Bracket Sub-assy, Seat Holder, Front
C7103D	Panel Sub-assy, Welcab Seat Leg, NO.1
C7103G	Panel Sub-assy, Welcab Seat Leg, NO.2
C7104B	Plate Sub-assy, Seat Turn
C7110B	Bracket Sub-assy, Seat Holder, Rear
C7111A	Bracket, Seat Holder, Front
C7117B	Plate, Seat Holder, LH
C7120D	Leg Assy, Welcab Seat
C7120H	Leg Assy, Welcab Seat, NO.2
C7159H	Cushion, Welcab Seat Leg Stopper
C7159L	Cushion, Welcab Seat Leg Stopper, NO.1
C7159S	Cushion, Welcab Seat Leg Stopper, NO.3
C7159T	Cushion, Welcab Seat Leg Stopper, NO.4
C7160C	Panel Assy, Slide Table
C7179G	Bracket, Welcab Seat Cover NO.1
C7192H	Plate, Seat Holder Stopper, NO.1
C7192J	Plate, Seat Holder Stopper, NO.2
C7192K	Plate, Seat Holder Stopper, NO.3
C7192L	Plate, Seat Holder Stopper, NO.4
C7196F	Cover, Turn Table, NO.1
C7196L	Cover, Turn Table, NO.2
C7196M	Cover, Turn Table, NO.3
C7208B	Plate Sub-assy, Seat Turn Lock

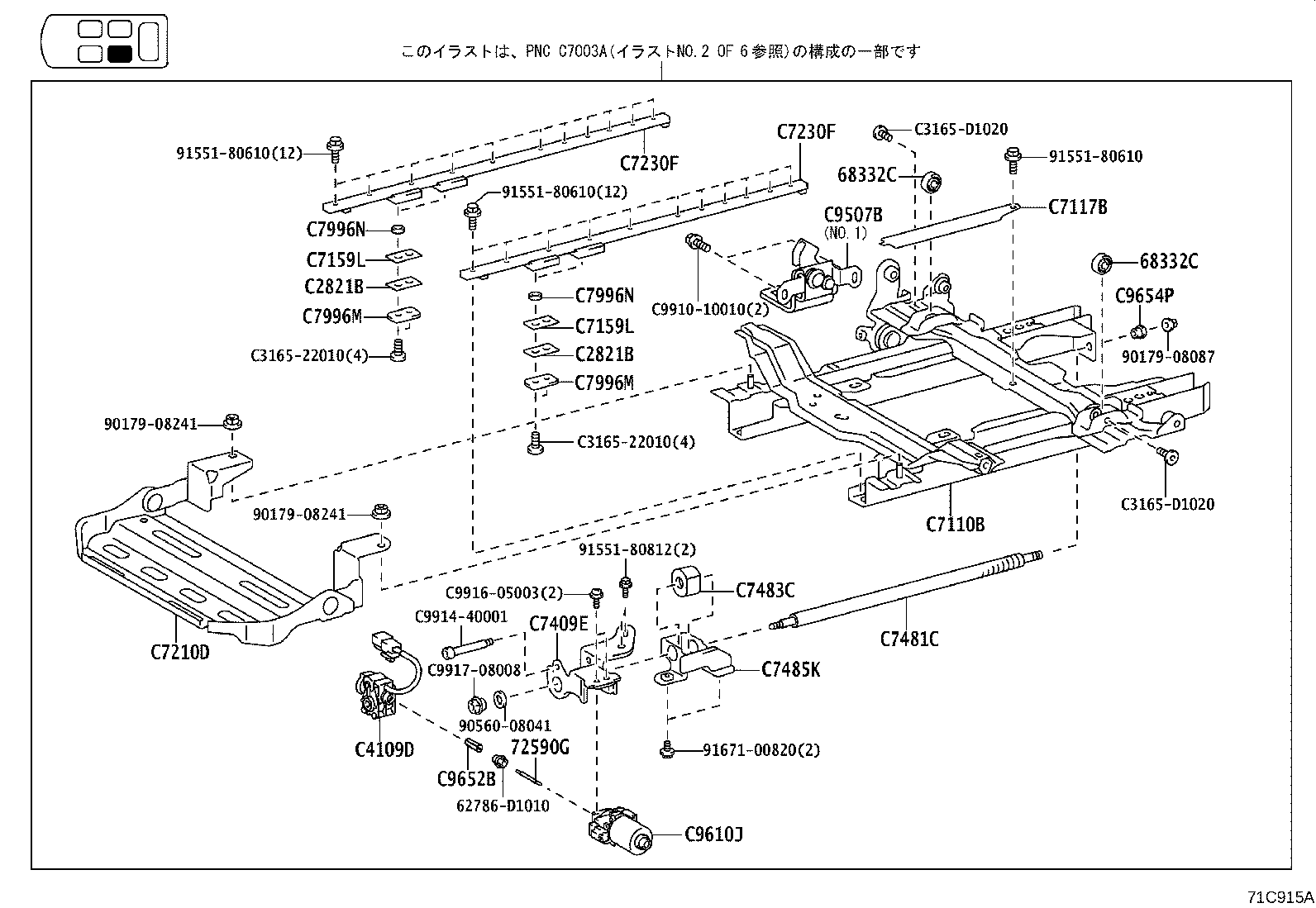

C7210D	Footrest Assy, Welcab Seat
C7227C	Carpet, Welcab Seat Footrest Step
C7230F	Track Assy, Welcab Seat, NO.1
C7230G	Track Assy, Welcab Seat, NO.2
C7230M	Track Assy, Welcab Seat, NO.3
C7269K	Cable, Seat Turn Lock Release
C7401B	Guide Sub-assy, Welcab Seat, Front
C7402B	Guide Sub-assy, Welcab Seat, Rear
C7405E	Arm Sub-assy, Welcab Seat Link, NO.1
C7405F	Arm Sub-assy, Welcab Seat Link, NO.2
C7405G	Arm Sub-assy, Welcab Seat Link, NO.3
C7408D	Rod Sub-assy, Welcab Seat, NO.1
C7409E	Bracket Sub-assy, Welcab Seat Rod Support, NO.1
C7409F	Bracket Sub-assy, Welcab Seat Rod Support, NO.2
C7409G	Bracket Sub-assy, Welcab Seat Rod Support, NO.3
C7422E	Pin, Welcab Seat Arm Guide, NO.1
C7422F	Pin, Welcab Seat Arm Guide, NO.2
C7426C	Bracket, Welcab Seat Guide, NO.2
C7441C	Guide, Welcab Seat Cable
C7442B	Guard, Welcab Seat Cable
C7452B	Arm, Welcab Seat Link, NO.2
C7453B	Arm, Welcab Seat Link, NO.3
C7471C	Control, Welcab Seat Lock
C7481C	Rod, Welcab Seat, NO.1
C7481D	Rod, Welcab Seat, NO.2
C7483C	Gear Welcab Seat Leg, NO.1
C7485K	Bracket, Welcab Seat Rod Support, NO.1
C7485L	Bracket, Welcab Seat Rod Support, NO.2
C7485Q	Bracket, Welcab Seat Rod Support, NO.5
C7485R	Bracket, Welcab Seat Rod Support, NO.3
C7485S	Bracket, Welcab Seat Rod Support, NO.4
C7487G	Plate, Welcab Seat Rod Support, NO.2
C7487H	Plate, Welcab Seat Rod Support, NO.1
C7488C	Plate, Welcab Seat Rod Support, NO.2
C7490B	Cylinder Assy, Welcab Seat
C7491C	Moter, Welcab Seat
C7493C	Gear, Welcab Seat Motor
C7495D	Bracket, Welcab Seat Motor, NO.1
C7495G	Bracket, Welcab Seat Motor, NO.2
C7691H	Cushion, Seat Flat, NO.2 RH
C7691J	Cushion, Seat Flat, NO.1 RH
C7986E	Cover, Rear Seat Turn Guard
C7986F	Clip, Rear Seat Turn Guard Cover
C7996M	Spacer, Turn Seat
C7996N	Spacer, Turn Seat, NO.2
C7996T	Spacer, Turn Seat, NO.3
C7996U	Spacer, Turn Seat, NO.4
C7998C	Plate, Turn Seat Leg, Lower
C8217D	Wire, Welcab Seat Main
C8284C	Wire, Power Lift Main
C8291D	Protector, Tecs Wiring Harness, NO.1
C8299D	Bracket, Welcab Seat Harness Connector, NO.1

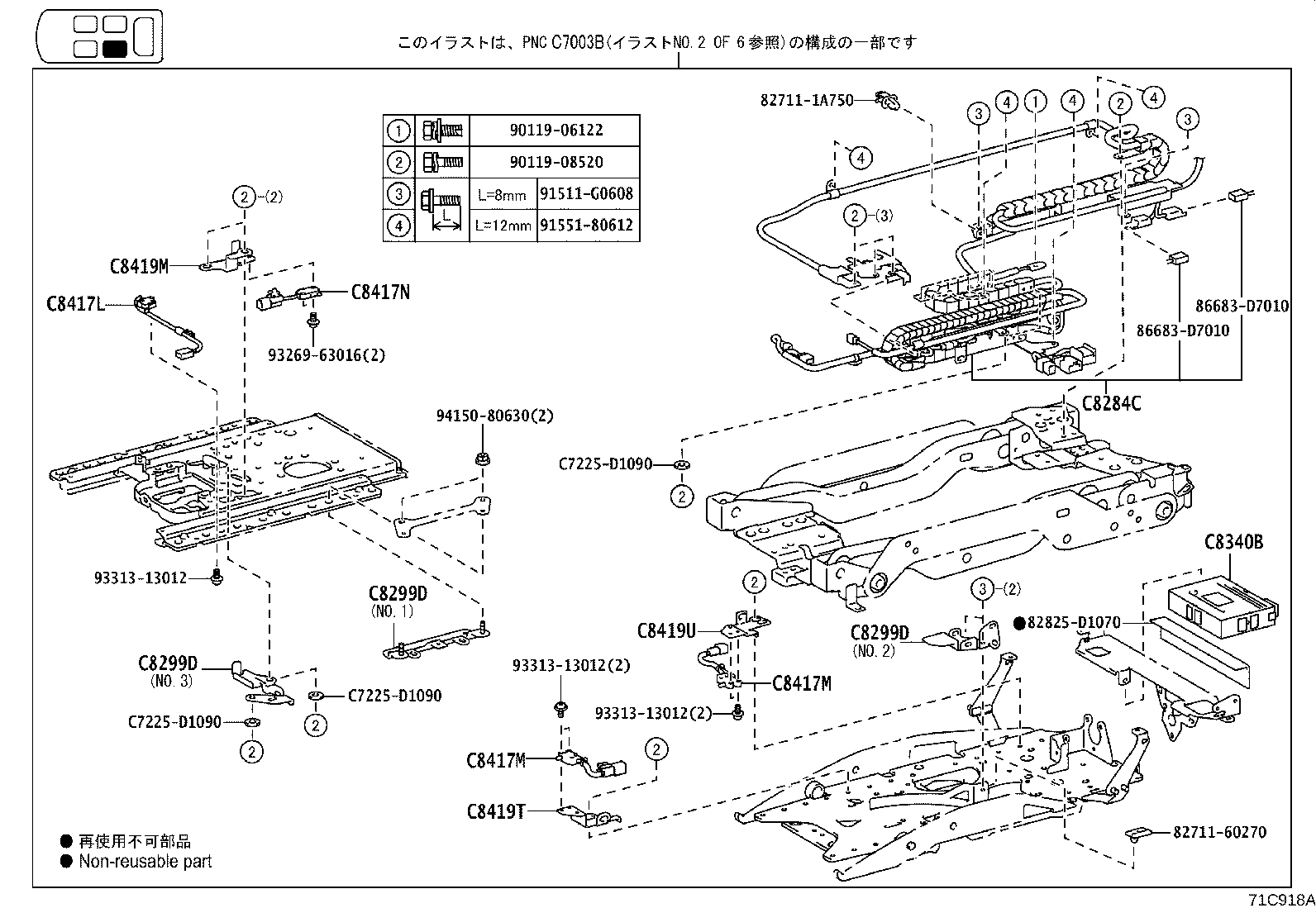

C8340B	Computer Assy, Welcab Device Control
C8417L	Switch, Limit, NO.1
C8417M	Switch, Limit, NO.2
C8417N	Switch, Limit, NO.3
C8419L	Bracket, Limit Switch, NO.1
C8419M	Bracket, Limit Switch, NO.2
C8419N	Bracket, Limit Switch, NO.3
C8419T	Bracket, Limit Switch, NO.4
C8419U	Bracket, Limit Switch, NO.5
C8530D	Relay Assy, Power Lift Motor
C9055H	Cover Sub-assy, Power Lift, NO.1
C9055N	Cover Sub-assy, Power Lift, NO.3
C9055S	Cover Sub-assy, Power Lift, NO.4
C9389E	Cushion, Platform Stopper
C9507B	Lock Sub-assy, Platform, NO.1
C9570C	Lock Assy, Platform
C9599B	Hook, Platform Safety Lock
C9603A	Gear Sub-assy, Power Lift
C9610J	Motor Assy, Power Lift
C9611B	Motor, Power Lift, NO.1
C9611C	Motor, Power Lift, NO.2
C9652B	Cap, Power Lift Cylinder, NO.1
C9654M	Collar, Power Lift Cylinder, NO.1
C9654N	Collar, Power Lift Cylinder, NO.2
C9654P	Collar, Power Lift Cylinder, NO.3
C9658C	Plate, Power Lift Cylinder Rod
C9691C	Cover, Power Lift Motor
C9938D	Bush, NO.1
C9938E	Bush, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
