Toyota Noah/Voxy
2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan
Supported model
Data version 2015-04
Armrest & Visor

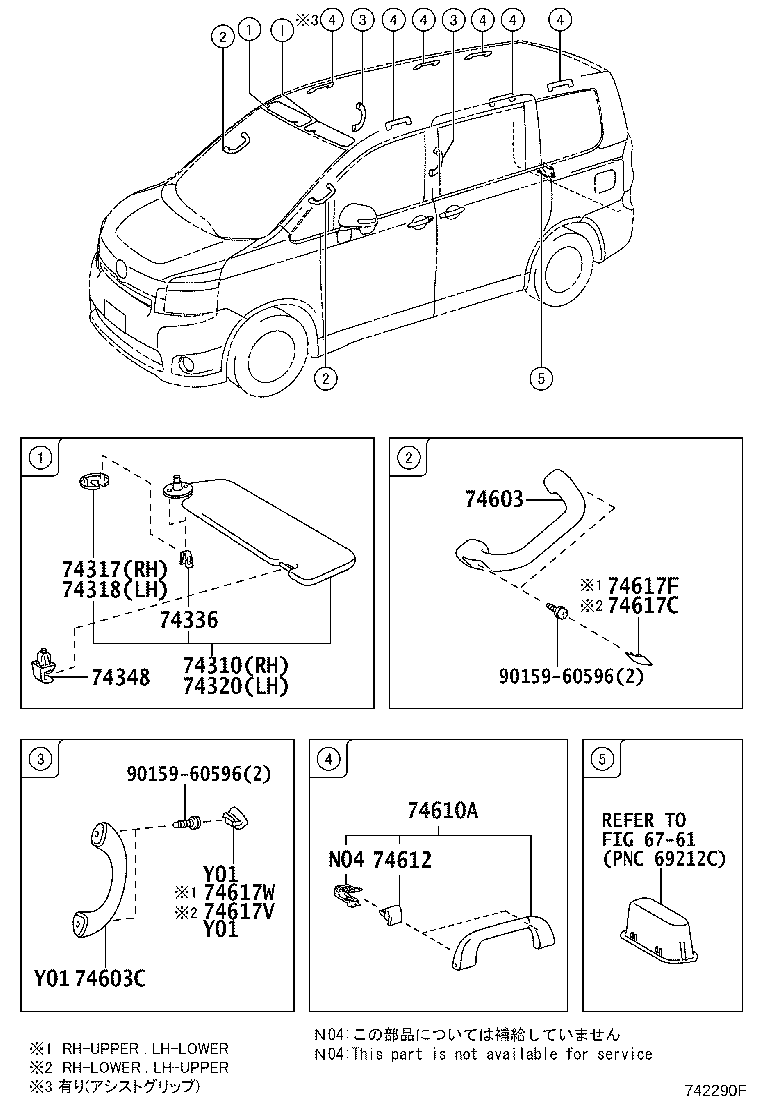

17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74336 | Clip, Visor Arm Set |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74603C | Grip Sub-assy, Assist |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74617V | Plug, Assist Grip |
| 74617W | Plug, Assist Grip |
| 74620B | Grip Assy, Assist, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
