Toyota Noah/Voxy
2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan
Supported model
Data version 2015-04

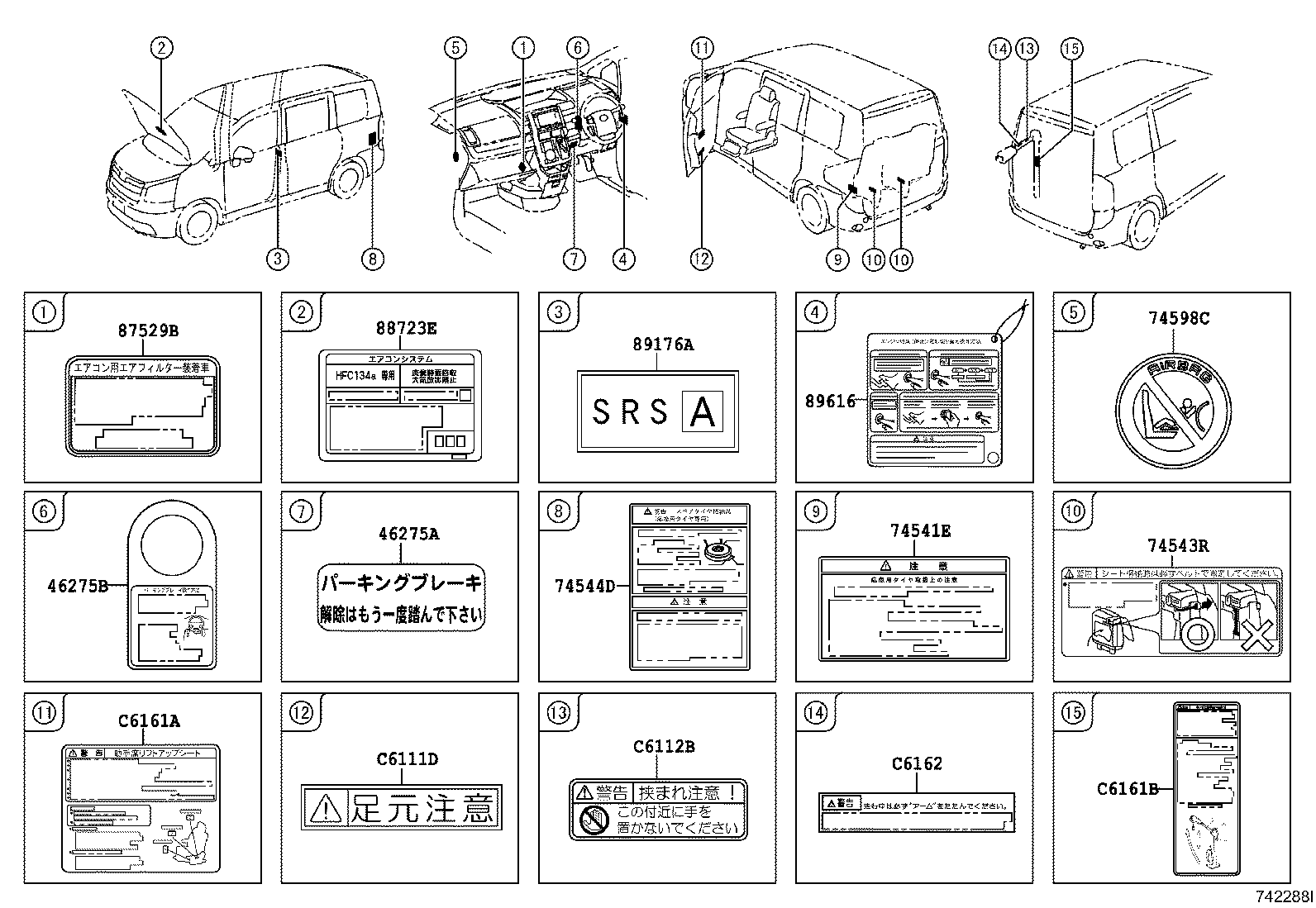

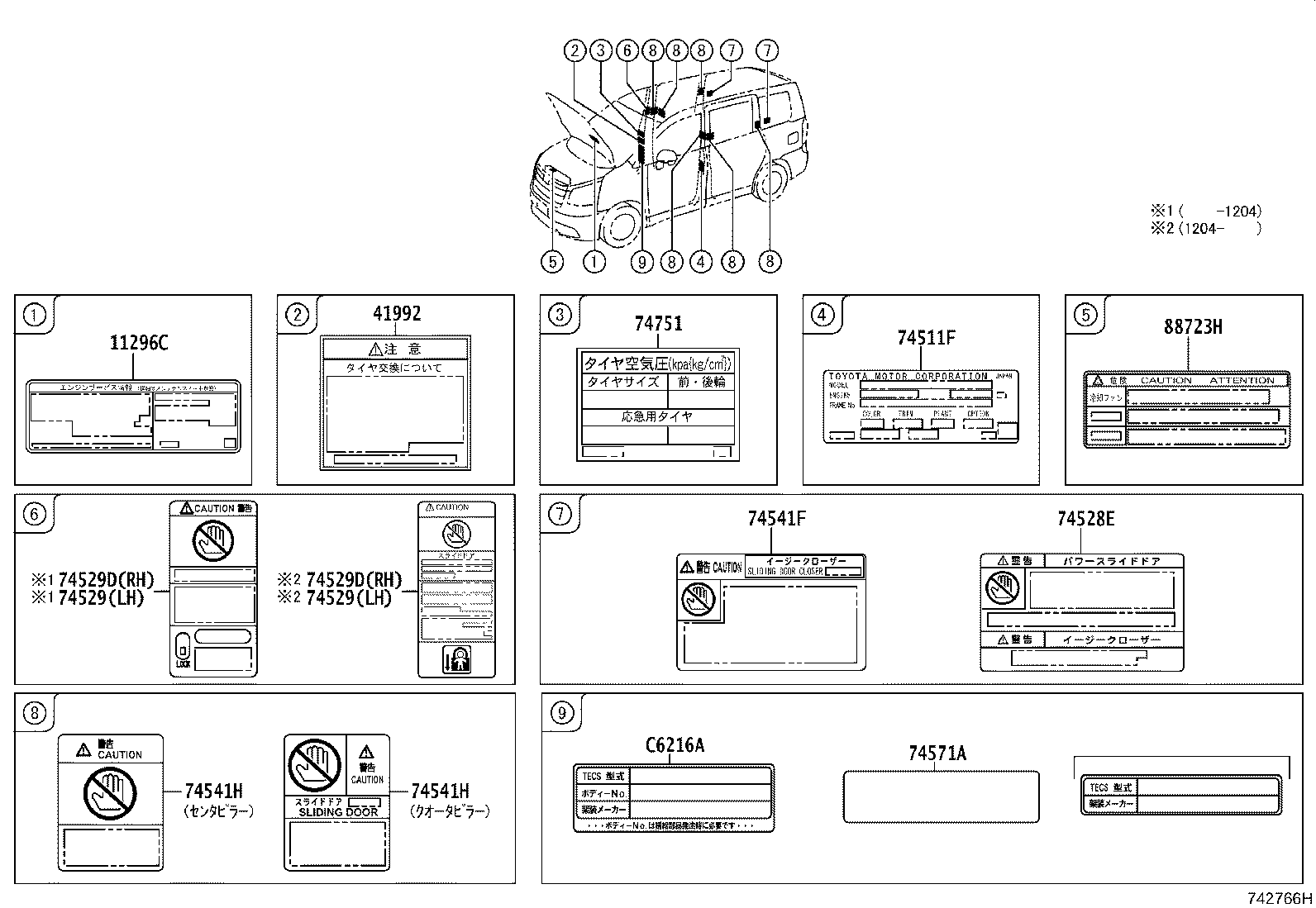

Caution Plate
31 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11296C | Label, Engine Service Information |
| 41992 | Label, Differential Notice |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 46275B | Label, Parking Brake Release Information, NO.2 |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74528E | Label, Power Slide Door Notice |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74529C | Plate, Back Door Caution |
| 74529D | Plate, Child Protector Lock Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74541F | Label, Slide Door Glass Caution |
| 74541H | Plate, Body Caution |
| 74543R | Label, Rear Seat Caution |
| 74544D | Plate, Tire Carrier Caution |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74571A | Film, Label Cover |
| 74598C | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 88723H | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
| 89616 | Label, Push Start Information |
| C6111 | Plate, Safety Caution |
| C6111A | Plate, Safety Caution |
| C6112 | Label, Safety Information, NO.2 |
| C6161 | Label, Power Lift Caution |
| C6161A | Label, Power Lift Caution |
| C6216A | Plate, Identification Number |
| C6248 | Label, Body Number |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
