Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

9 part groups · 5 illustrations

Illustrations

Figure 814289E

814289E 2007-06 → 2010-04

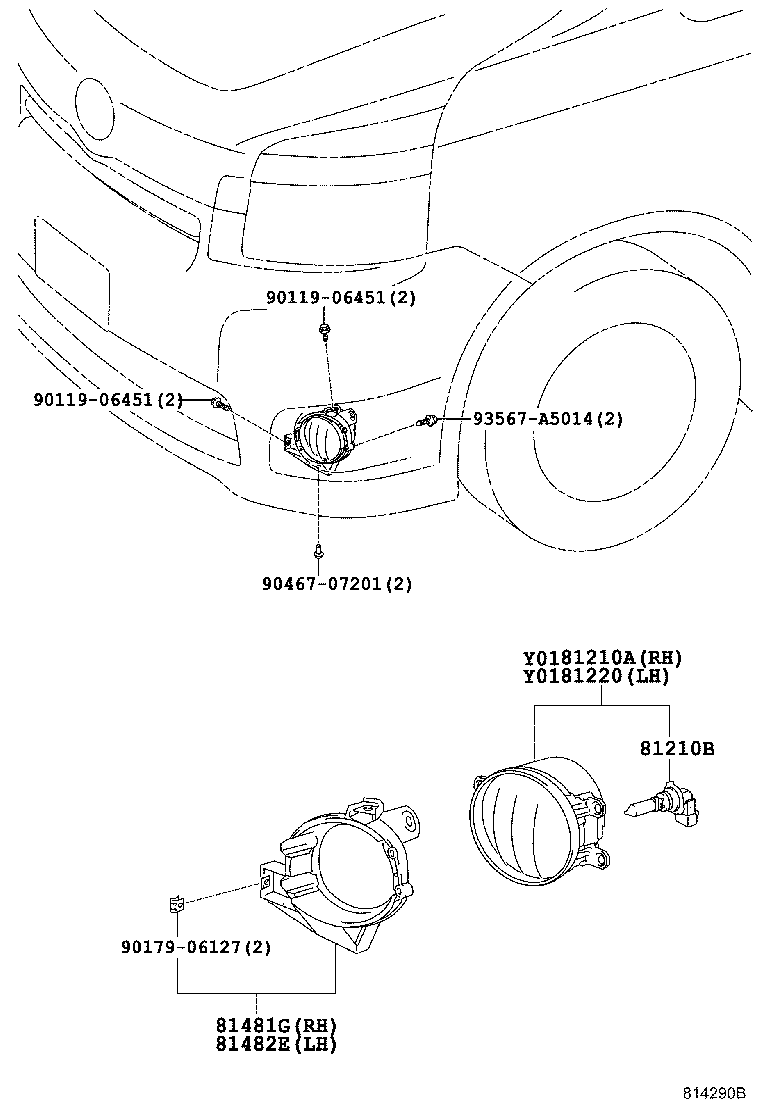

Figure 814290B

814290B 2007-06 → 2010-04

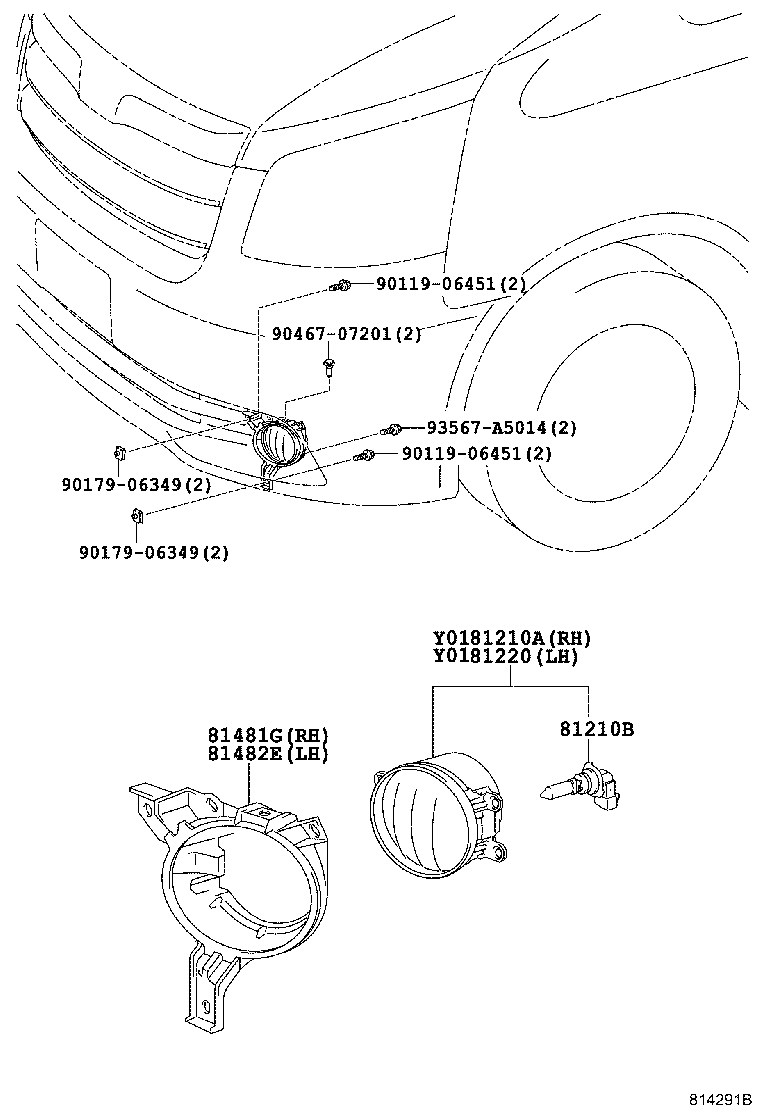

Figure 814291B

814291B 2007-06 → 2010-04

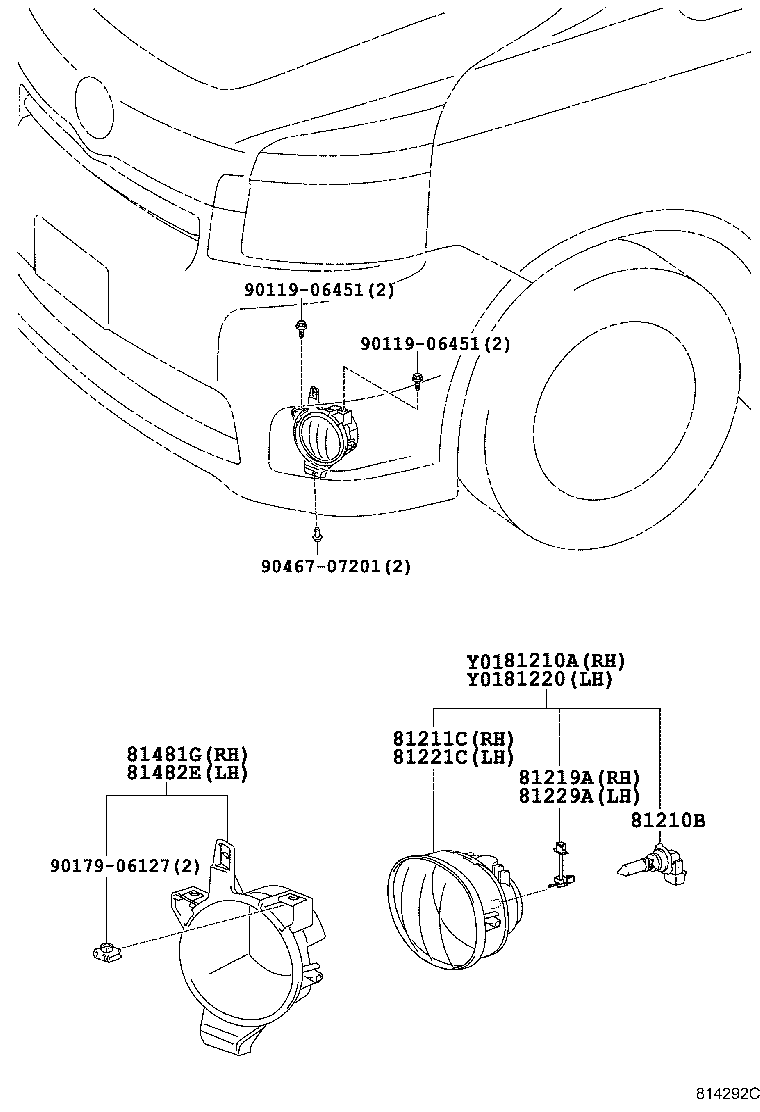

Figure 814292C

814292C 2007-06 → 2010-04

Figure 815360D

815360D 2010-04 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81219A	Bracket, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH
81229A	Bracket, Fog Lamp, LH
81481G	Bracket, Fog Lamp, RH
81482E	Bracket, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
