Toyota Noah/Voxy
2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan
Supported model
Data version 2015-04

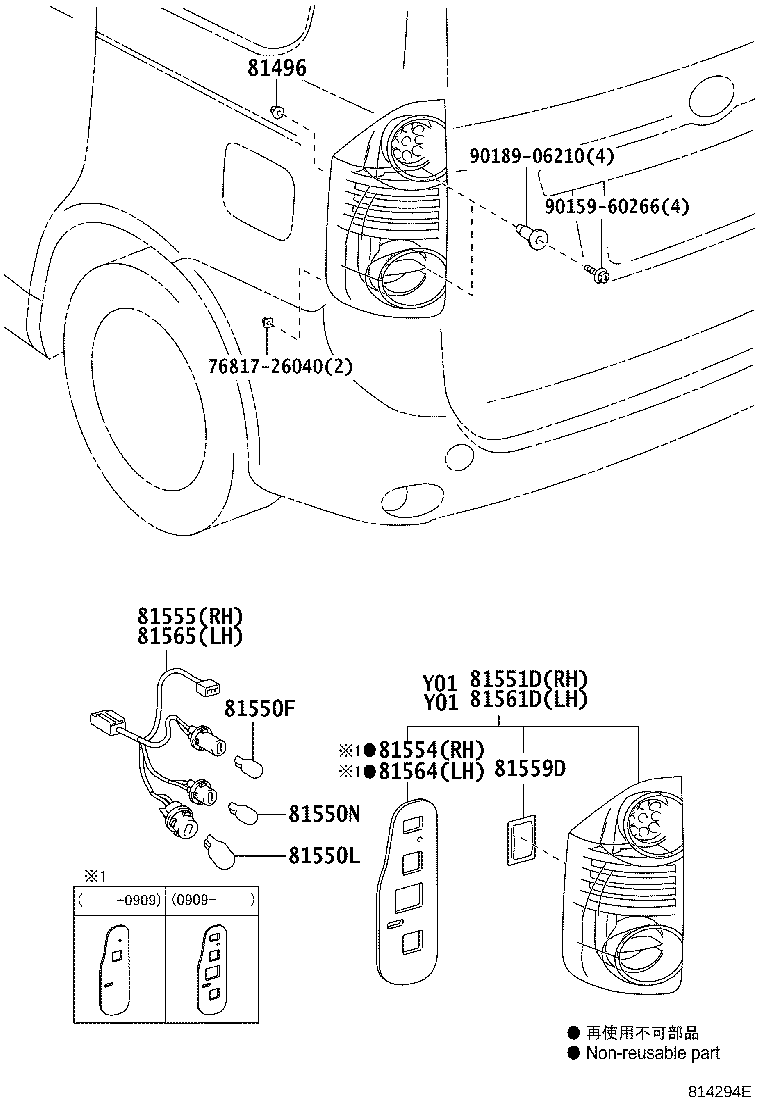

Rear Combination Lamp
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81550F | Bulb, Taillamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81559D | Desiccant, Rear Combination Lamp |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
