Toyota Noah/Voxy
2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan
Supported model
Data version 2015-04
Interior Lamp
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240D | Lamp Assy, Room, NO.2 |
| 81240E | Bulb, Room Lamp, NO.2 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81241A | Lens, Room Lamp, NO.2 |
| 81249 | Switch, Room Lamp |

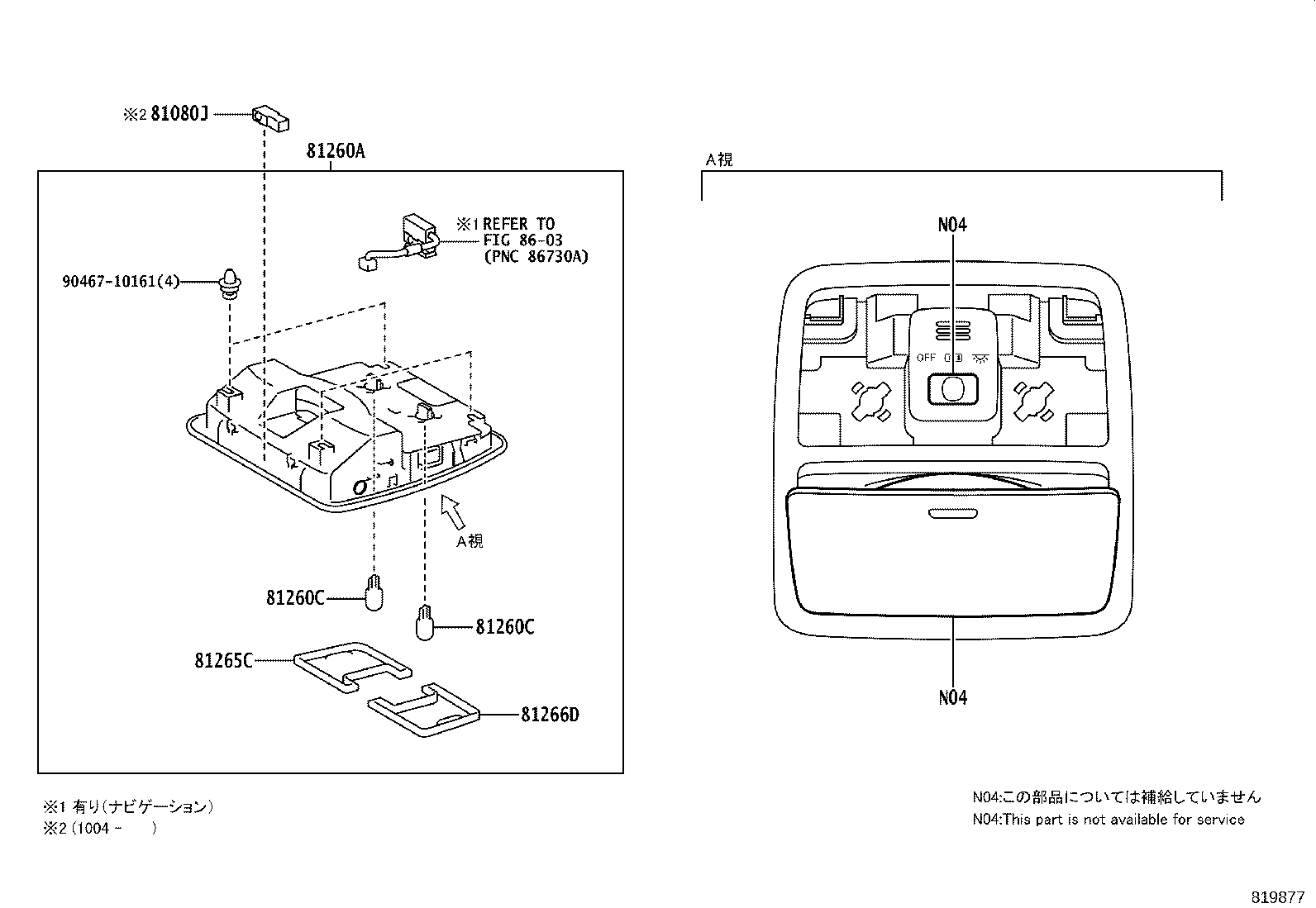

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81265C | Lens, Map Lamp, NO.1 |
| 81266D | Lens, Map Lamp, NO.2 |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
