Factory parts data · Europe

Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

3 part groups · 2 illustrations

Illustrations

863225 2007-06 → —

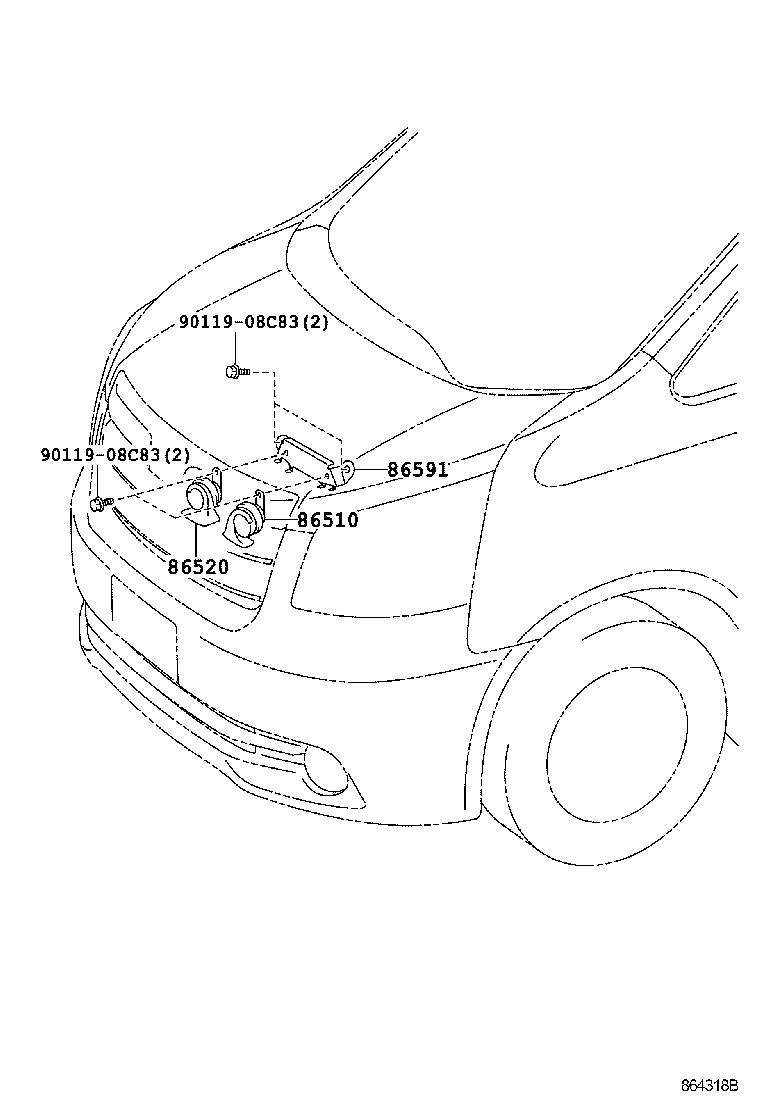

Figure 864318B

864318B 2010-06 → —

Part groups

PNC	Description
86510	Horn Assy, High Pitched
86520	Horn Assy, Low Pitched
86591	Bracket, Horn

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
