Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

21 part groups · 3 illustrations

Illustrations

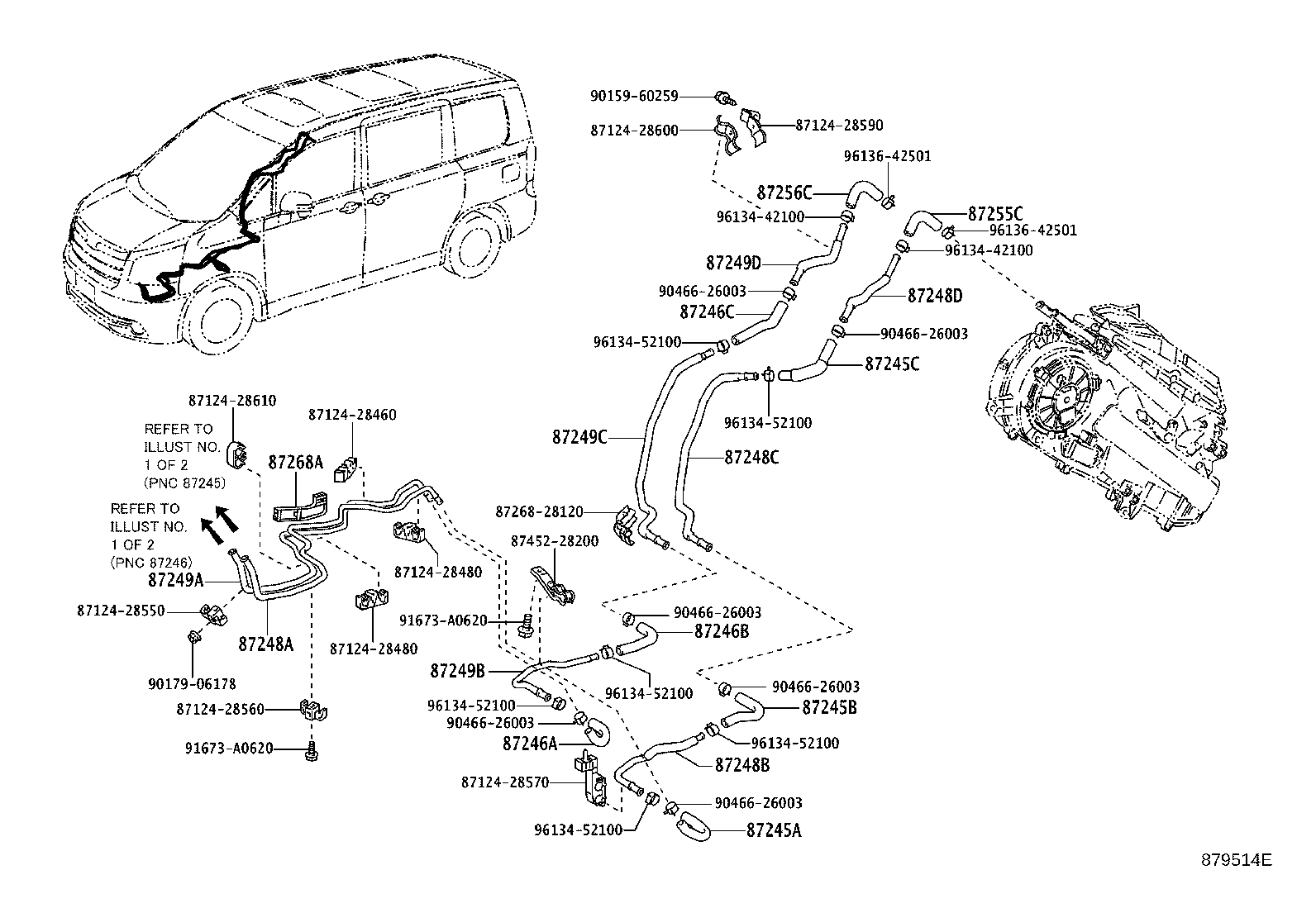

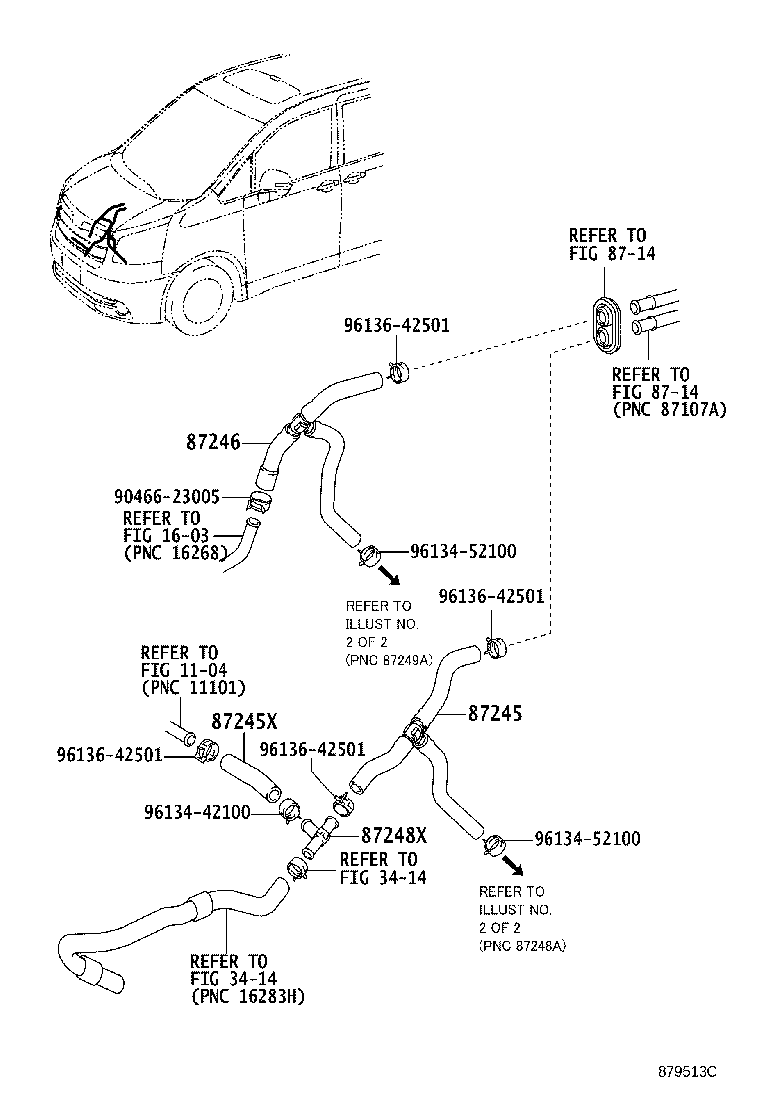

Figure 879512B 879512B 2007-06 → — Figure 879513C 879513C 2007-06 → — Figure 879514E 879514E 2007-06 → —

Part groups

PNCDescription
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245X Hose, Heater Water
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87255C Hose, Rear Heater Water Inlet, C
87256C Hose, Rear Heater Water Outlet, C
87268A Protector, Rear Heater Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
