Toyota Noah/Voxy

2007-06 → 2014-01 · chassis ZRR7# · catalogue 651170 · Japan

Supported model Data version 2015-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 4 illustrations

Illustrations

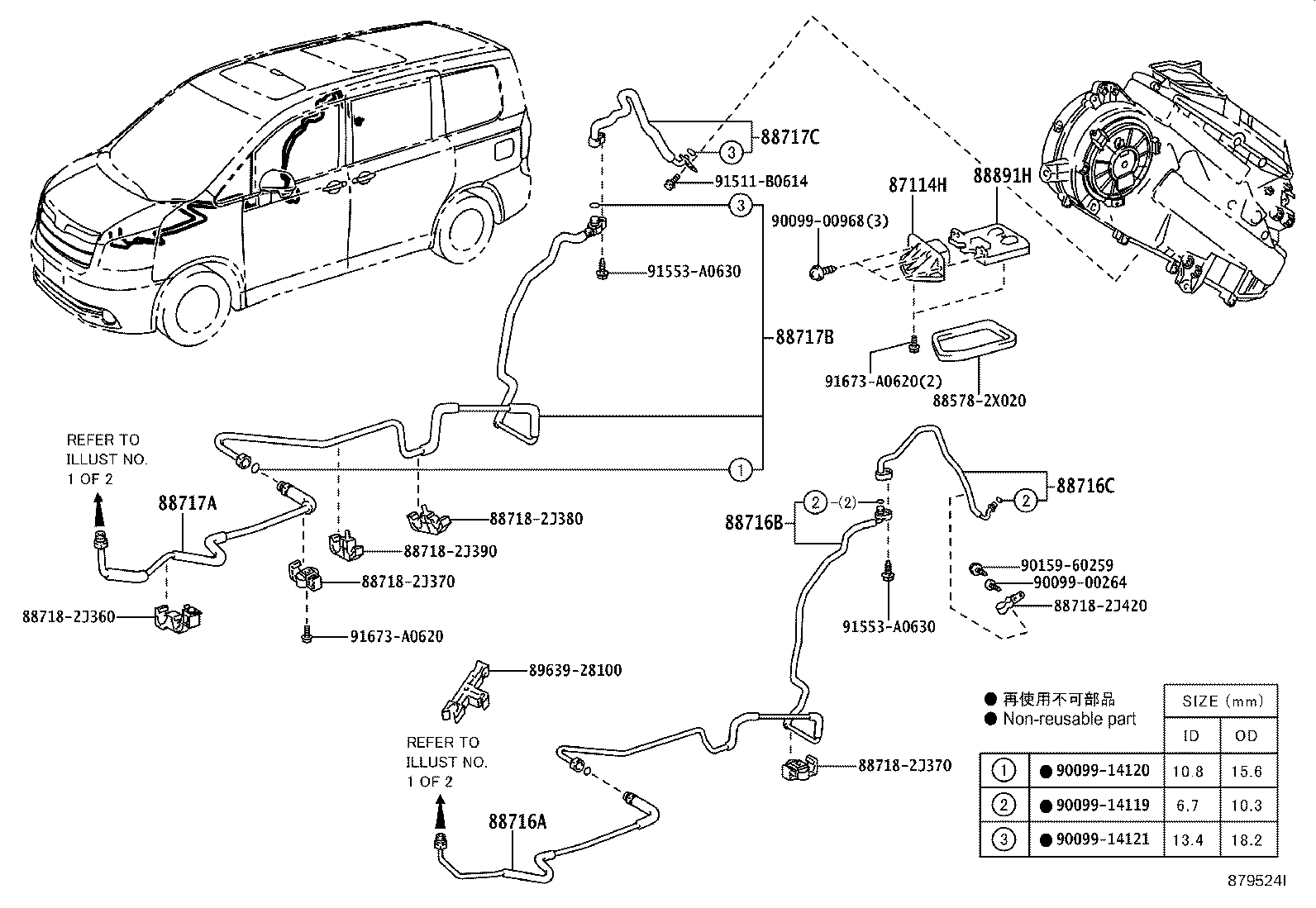

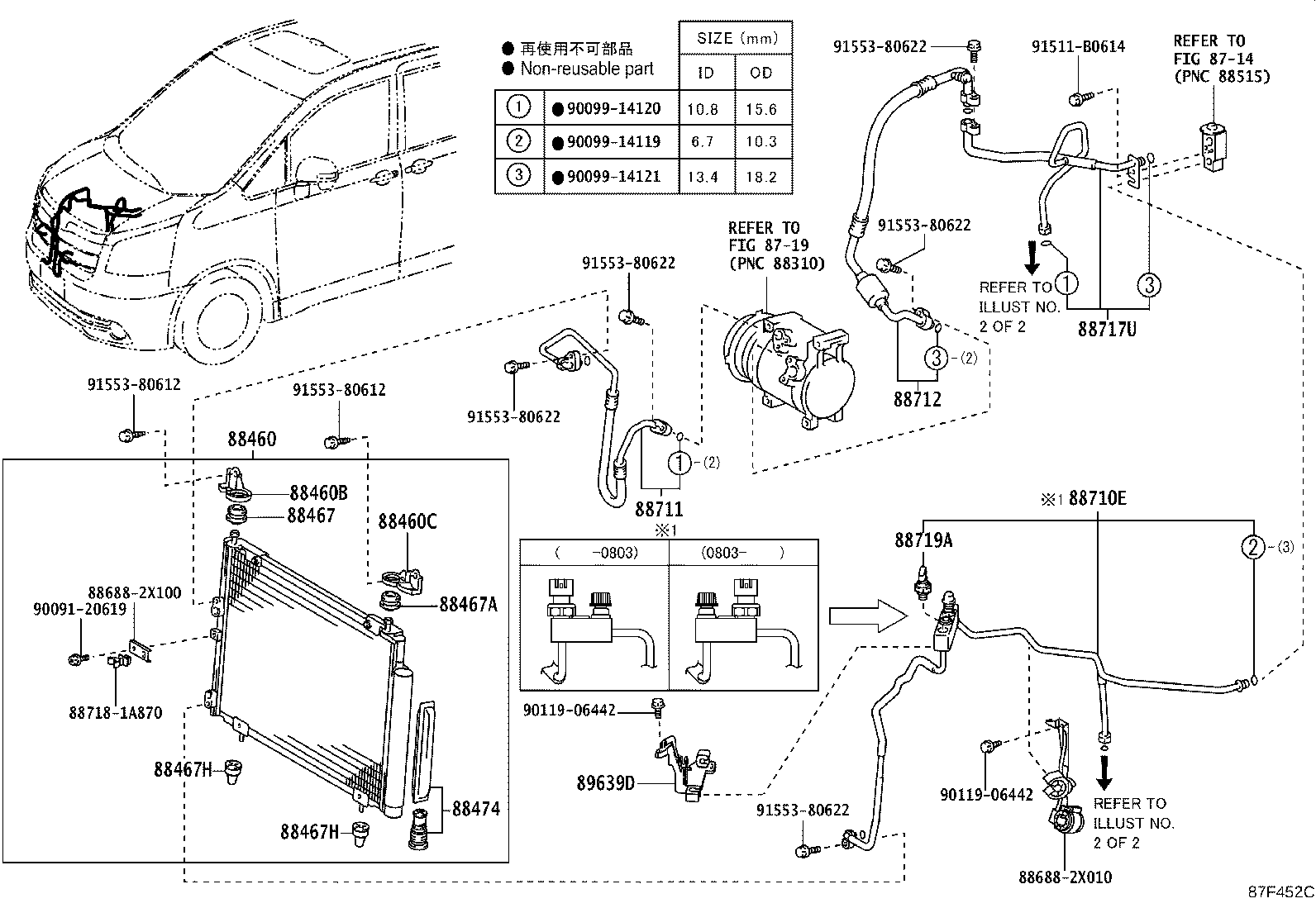

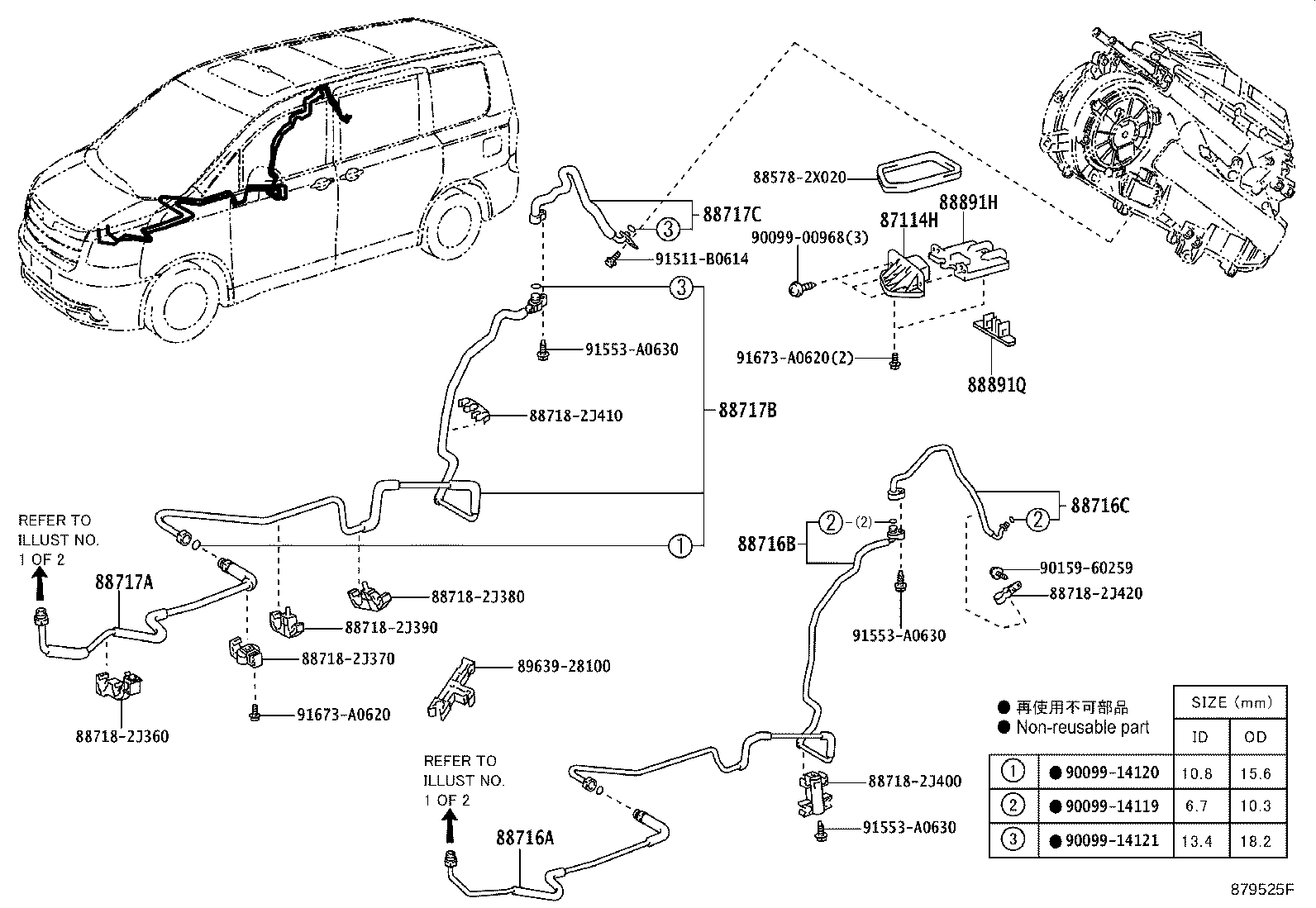

Figure 879522H 879522H 2007-06 → — Figure 87F452C 87F452C 2007-06 → — Figure 879524I 879524I 2007-06 → — Figure 879525F 879525F 2007-06 → —

Part groups

PNCDescription
87114H Cover, Heater
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88467H Cushion, Condenser Bracket, NO.1
88474 Dryer, Cooler
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717U Tube, Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
88891Q Cover, Cooler, NO.2
89639D Clamp, Airconditioner Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
