Toyota Noah/Voxy/Esquire

2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

17 part groups · 2 illustrations

Illustrations

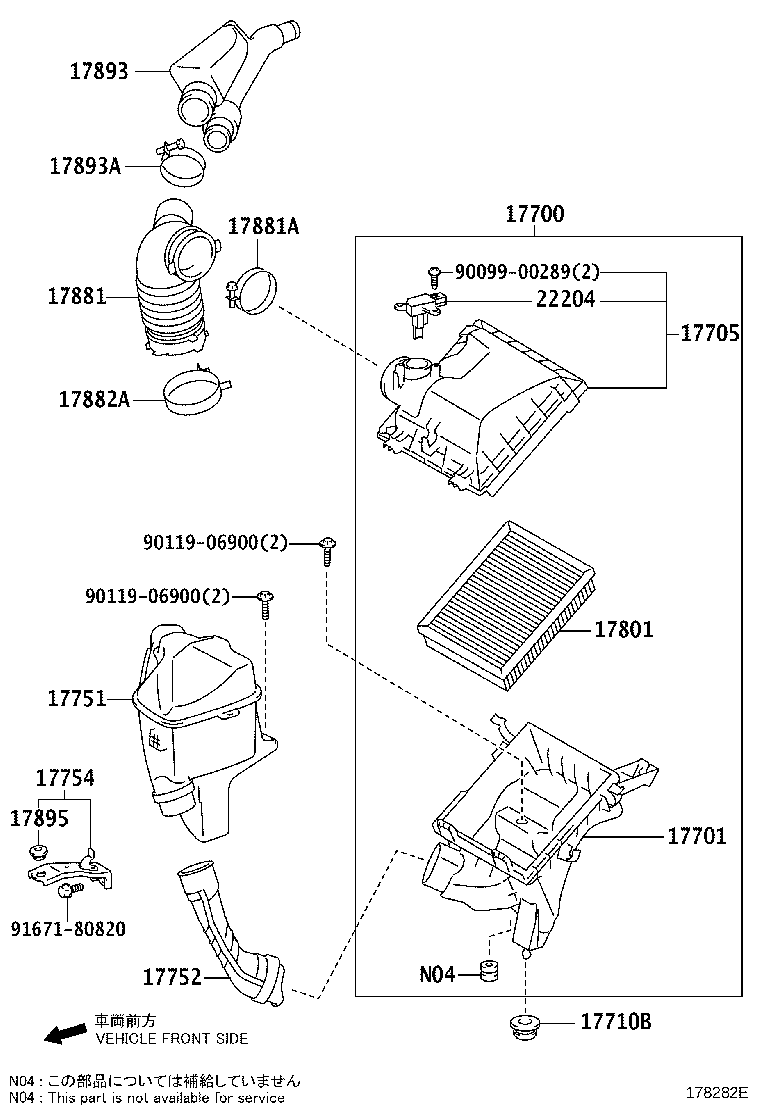

Figure 178281E 178281E 2014-01 → — Figure 178282E 178282E 2014-02 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17754 Stay, Air Cleaner Inlet
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882B Clamp(FOR COOL AIR INTAKE)
17893 Resonator, Intake Air
17893A Clamp, Hose
17895 Shroud, Hot Air
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
