Brake Pedal & Bracket

4 part groups · 2 illustrations

Illustrations

Figure 479196D

479196D 2014-01 → —

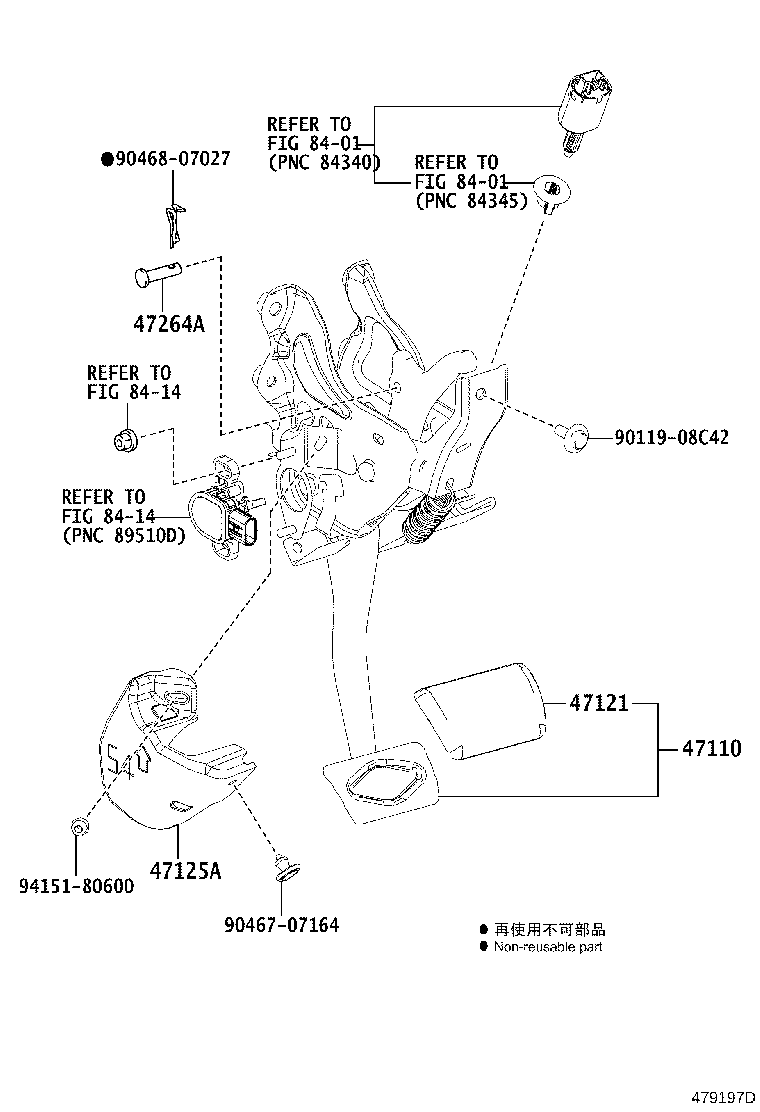

Figure 479197D

479197D 2014-02 → —

Part groups

PNC	Description
47110	Support Assy, Brake Pedal
47121	Pad, Brake Pedal
47125A	Bracket, Brake Pedal
47264A	Pin(FOR PUSH ROD)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
