Toyota Noah/Voxy/Esquire

2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

34 part groups · 9 illustrations

Illustrations

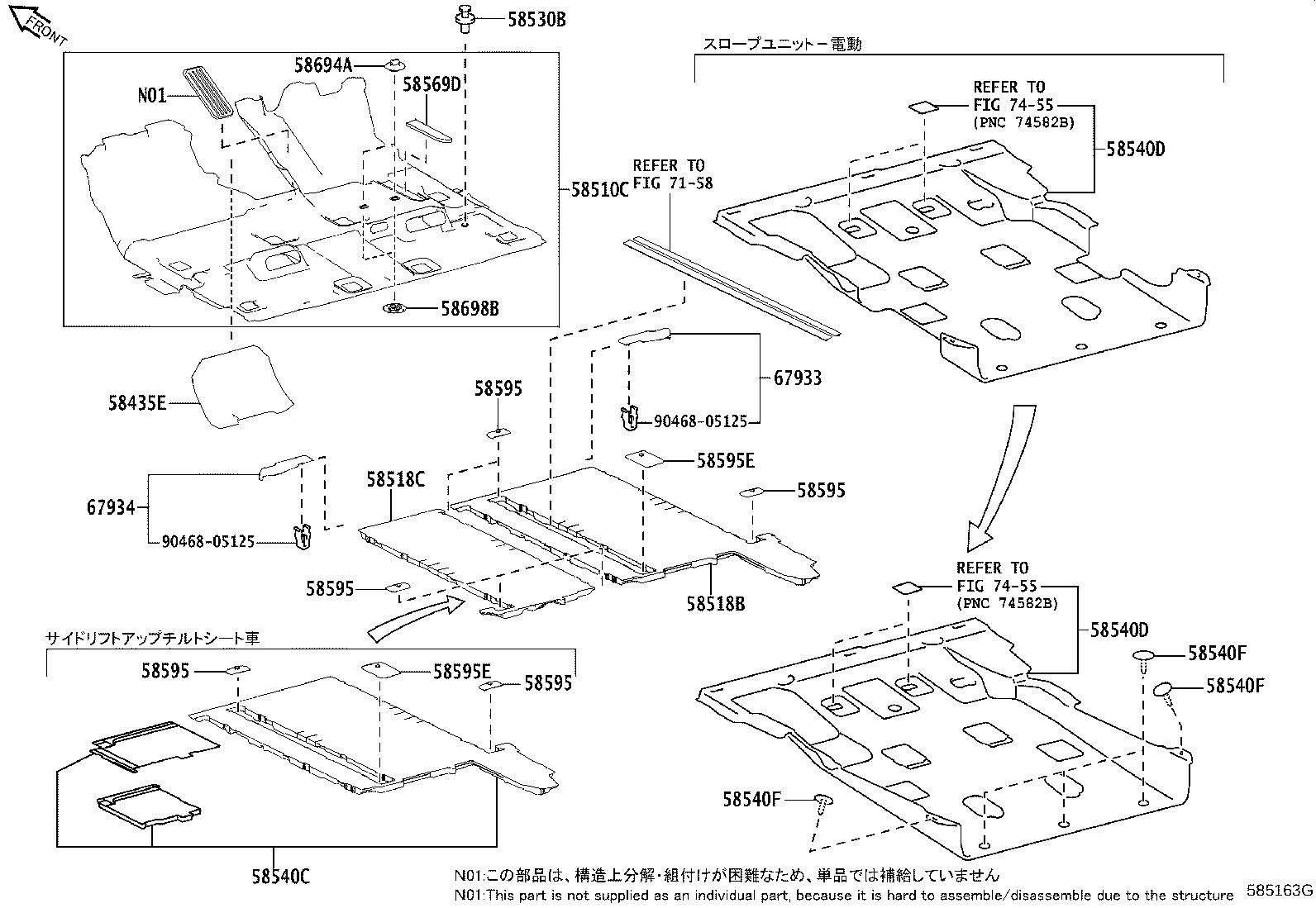

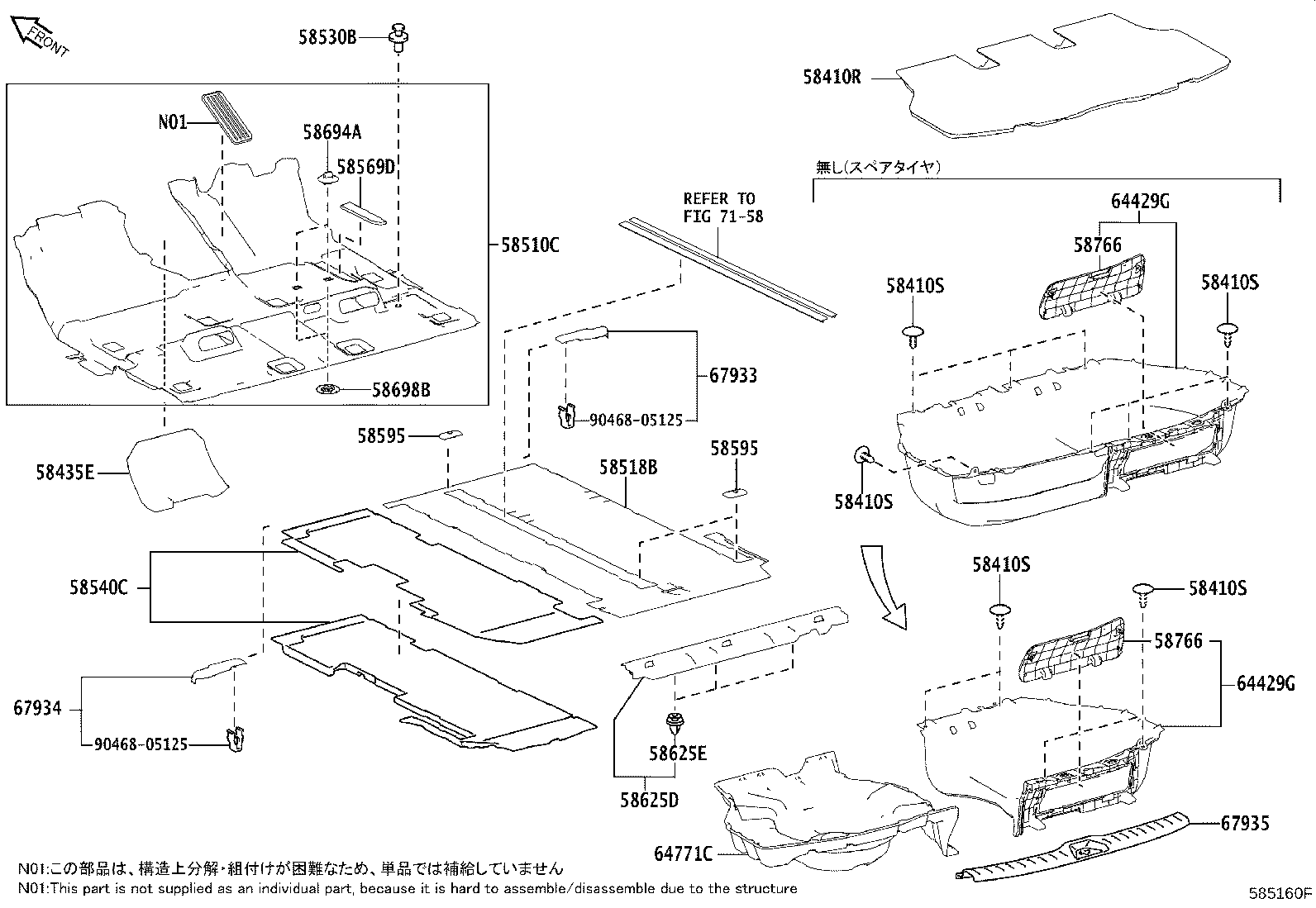

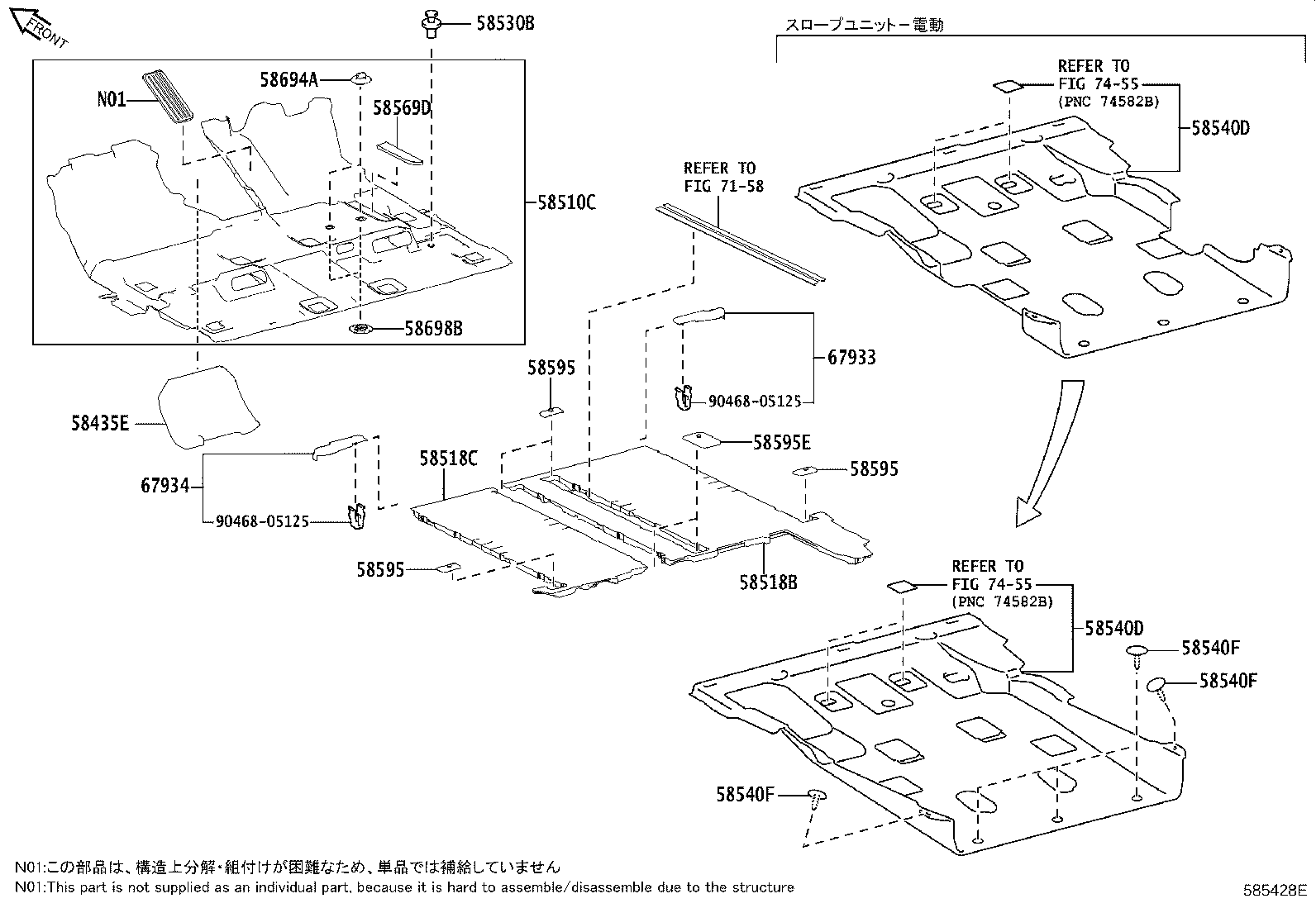

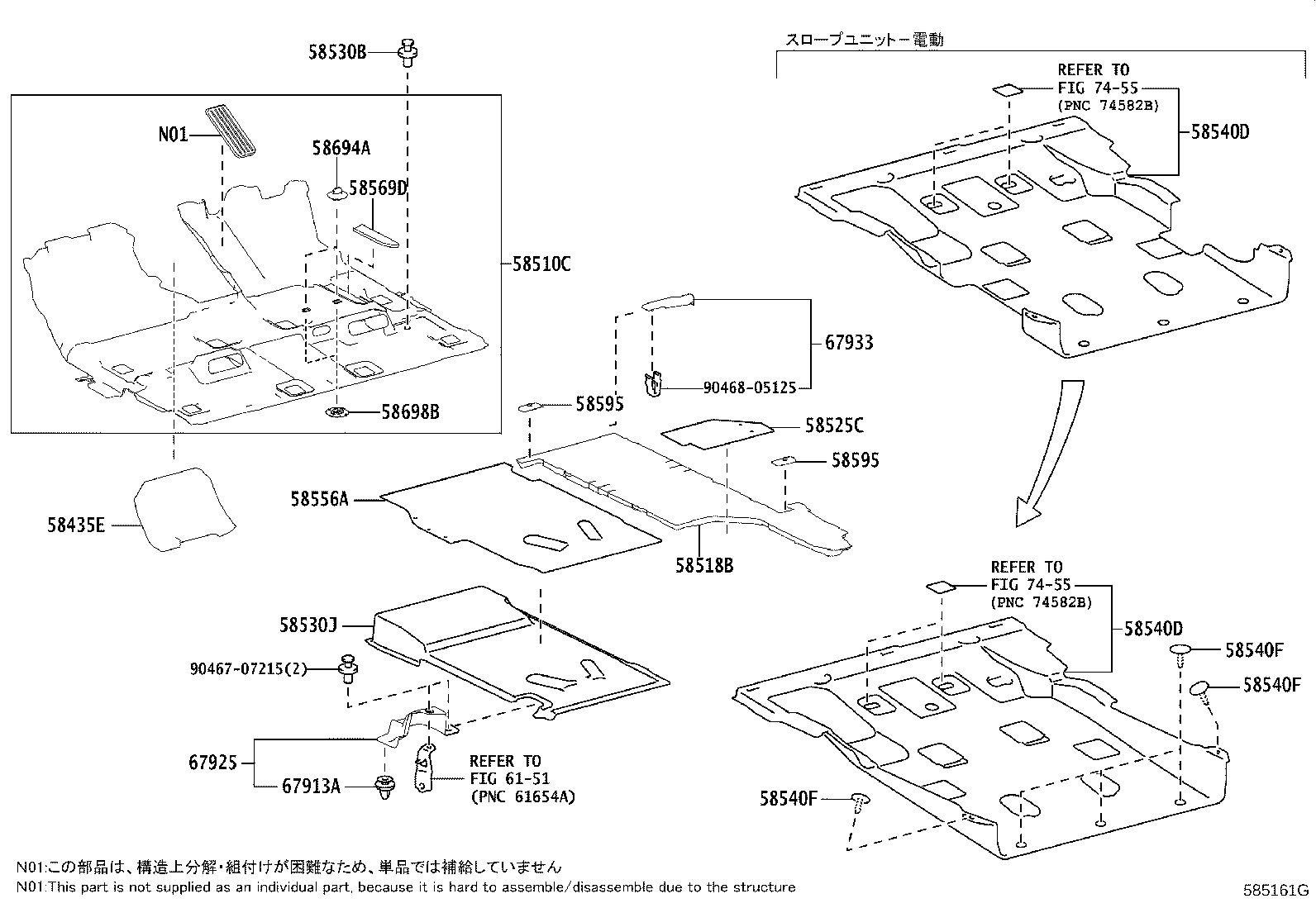

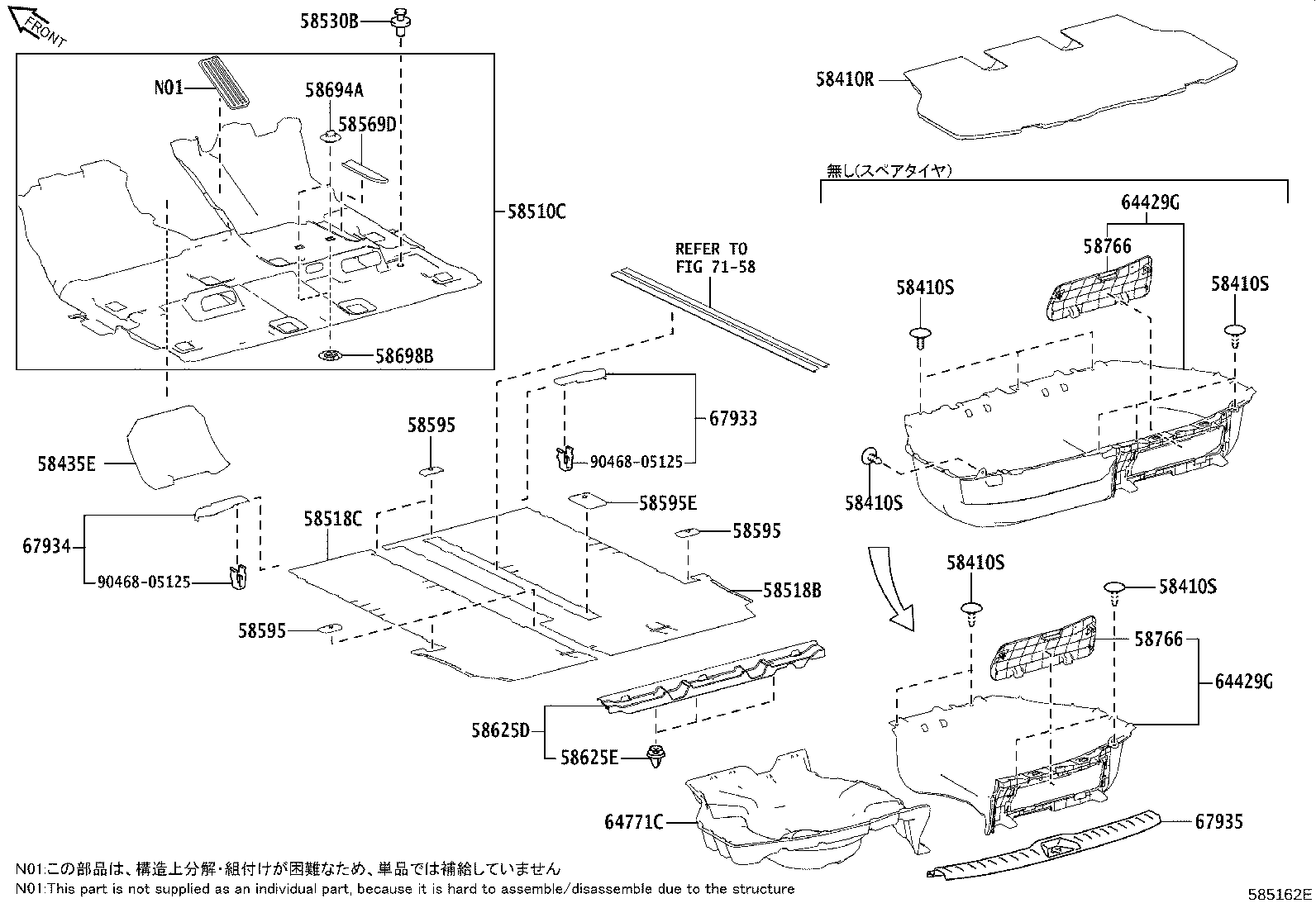

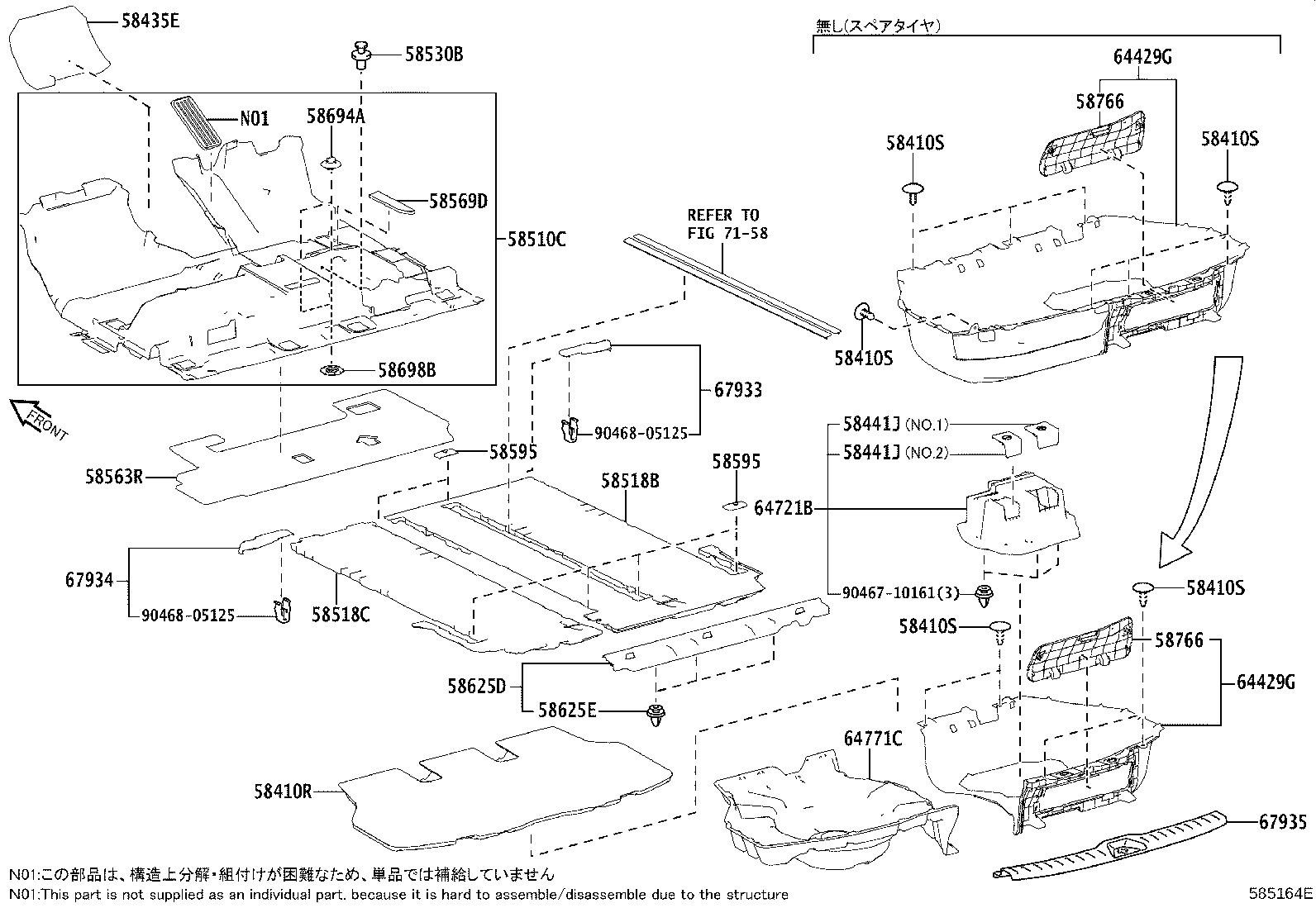

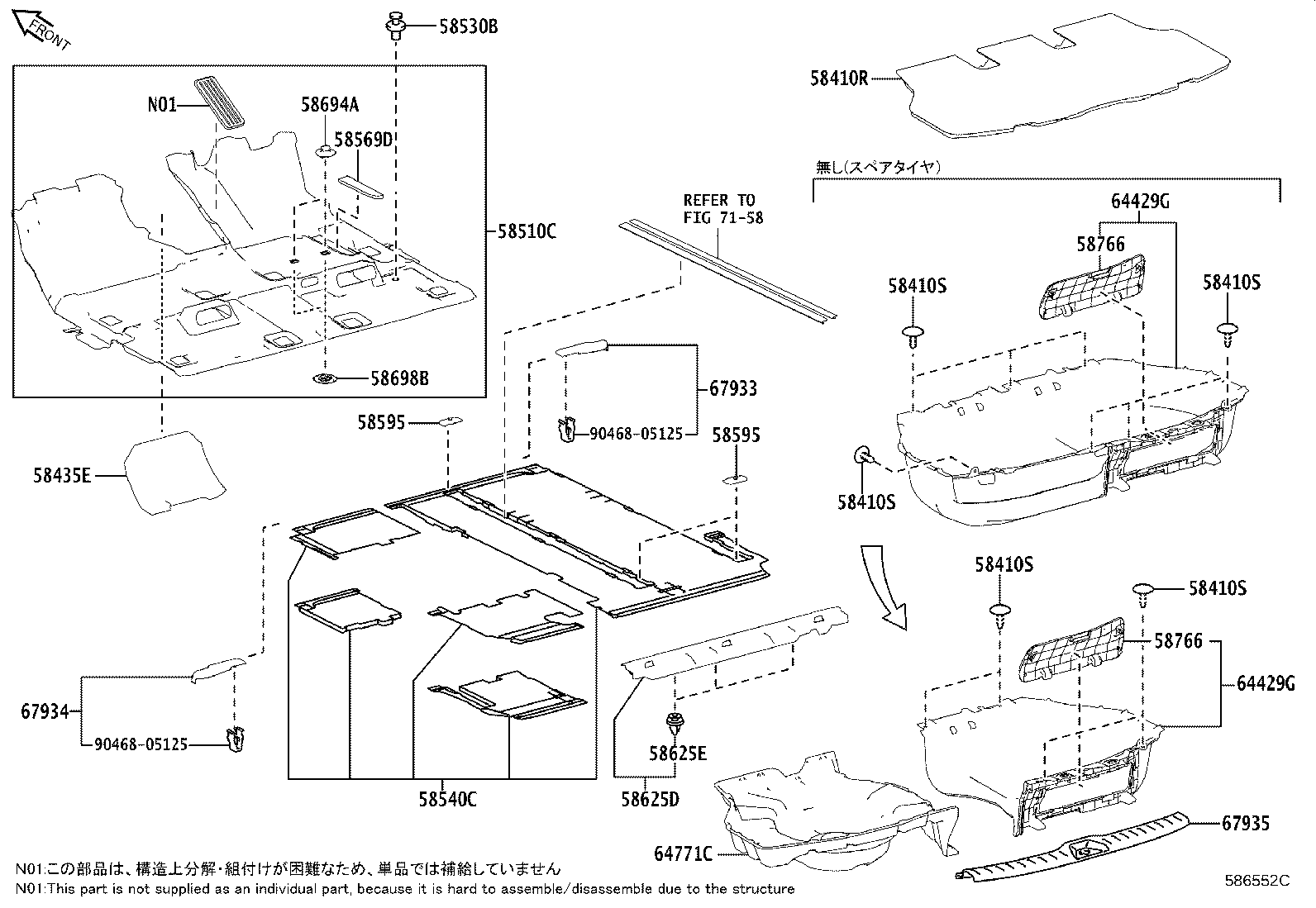

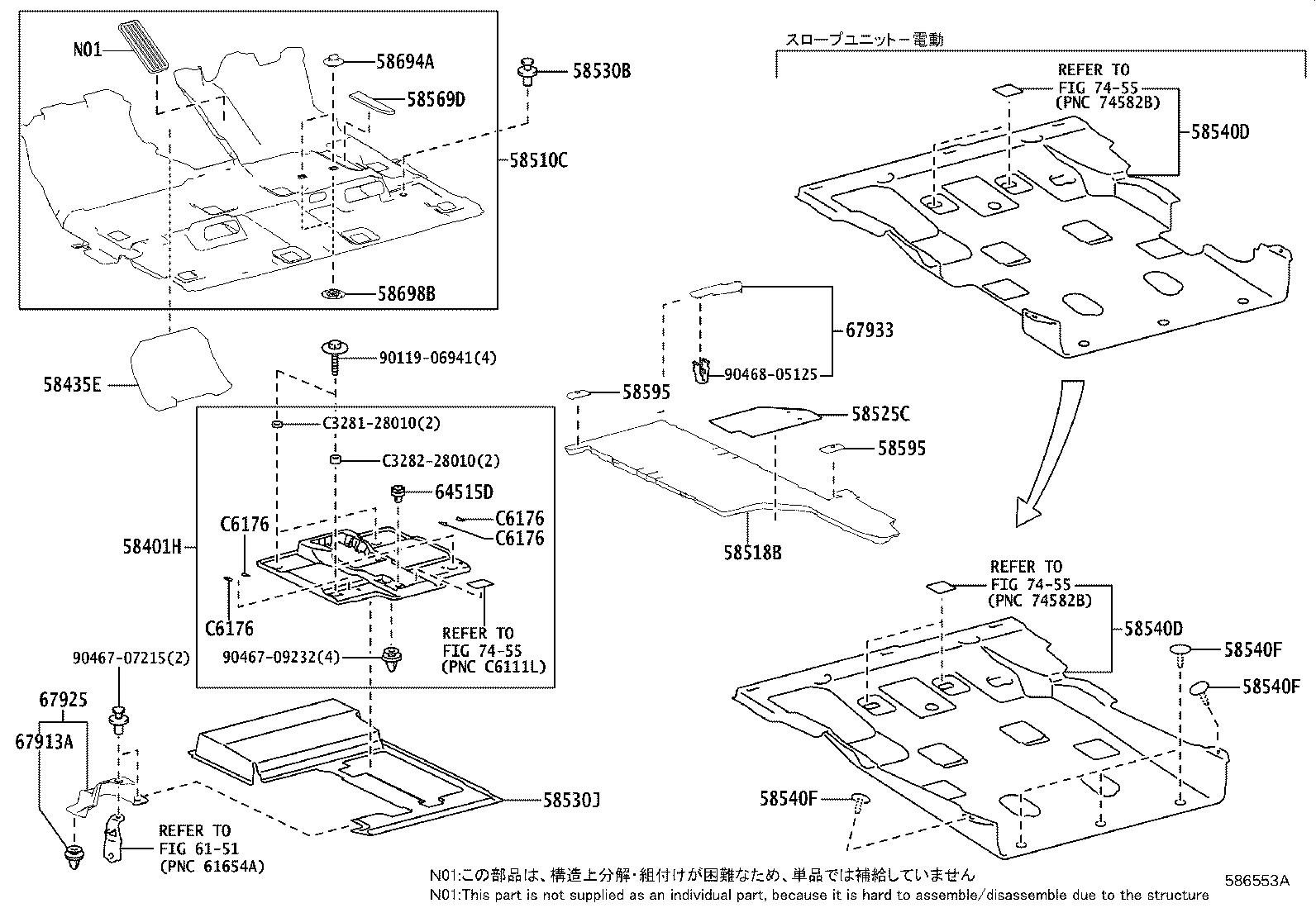

Figure 585159F 585159F 2014-01 → — Figure 585160F 585160F 2014-01 → — Figure 585161G 585161G 2014-01 → — Figure 585162E 585162E 2014-01 → — Figure 585163G 585163G 2014-01 → — Figure 585164E 585164E 2014-02 → — Figure 585428E 585428E 2014-10 → — Figure 586552C 586552C 2017-10 → — Figure 586553A 586553A 2017-12 → —

Part groups

PNCDescription
58401H Board Sub-assy, Rear Floor, NO.1
58410R Board Assy, Deck
58410S Clip, Deck Board
58435E Silencer, Front Floor, Center
58441J Cover, Battery Service Hole
58510C Carpet Assy, Front Floor, Front
58518B Mat, Rear Floor, NO.2
58518C Mat, Rear Floor, NO.2
58525C Mat, Rear Floor, Rear NO.1 LH
58530B Clip(FOR FRONT FLOOR CARPET)
58530J Carpet Assy, Floor, Center
58540C Mat Assy, Floor, Rear
58540D Carpet Assy, Floor, Rear
58540F Clip(FOR REAR FLOOR CARPET)
58556A Mat, Front, LH
58563R Silencer, Front Floor, NO.3
58569D Cover, Front Floor Caution Plate
58595 Moulding, Floor Carpet, NO.3
58595E Moulding, Floor Carpet, NO.4
58625D Plate, Rear Floor Mat, NO.1
58625E Clip(FOR REAR FLOOR MAT PLATE)
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
58766 Cover, Jack Box Hole
64429G Box, Luggage Compartment Trim
64515D Holder(FOR FLOOR BOARD)
64721B Cover, Luggage Compartment Trim, NO.1
64771C Cover, Spare Wheel
67913A Clip(FOR SCUFF PLATE)
67925 Cover, Door Scuff Plate
67933 Plate, Quarter Scuff, Inner RH
67934 Plate, Quarter Scuff, Inside LH
67935 Plate, Back Door Scuff
C6176 Plate, Winch Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
