Toyota Noah/Voxy/Esquire

2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 4 illustrations

Illustrations

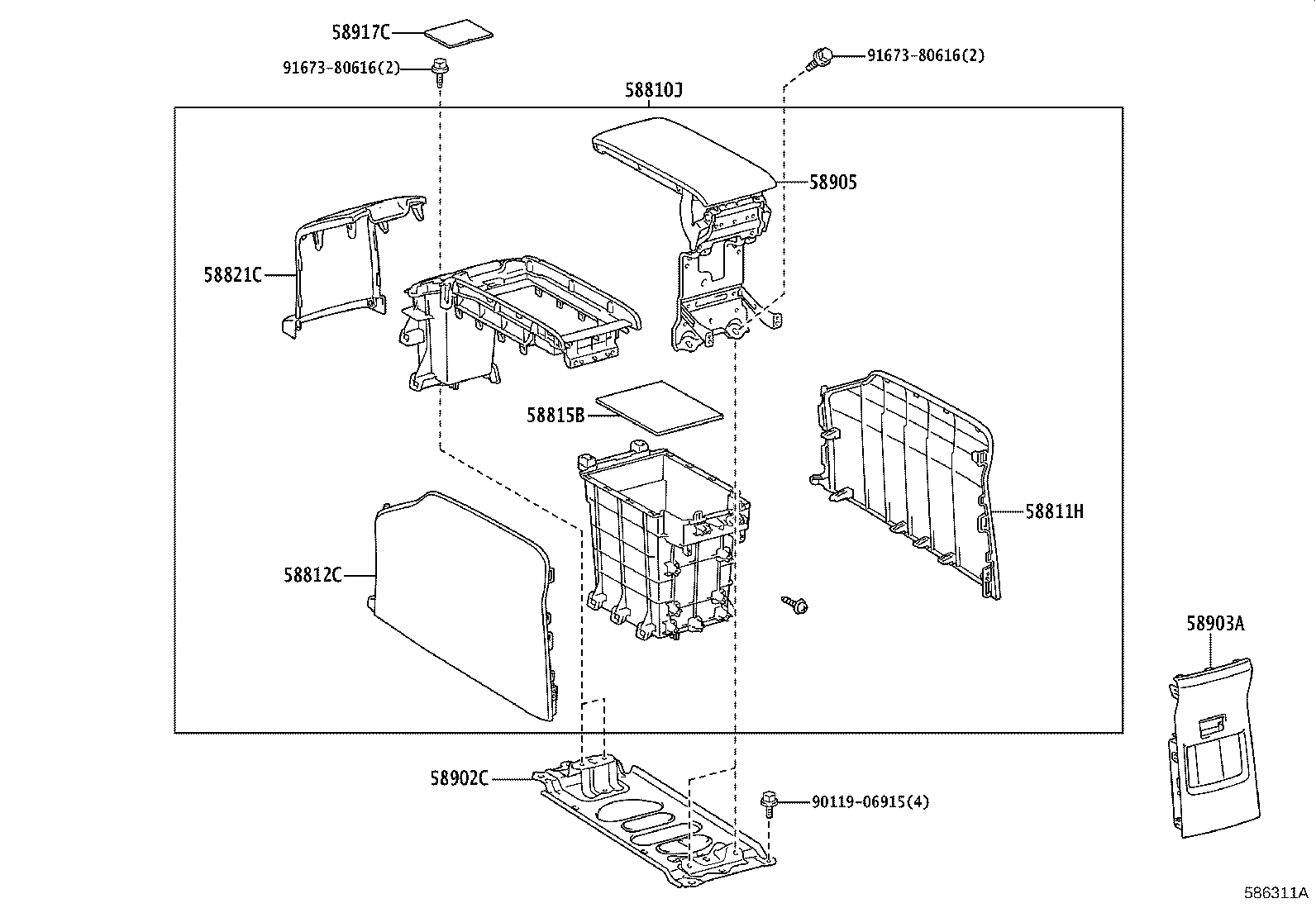

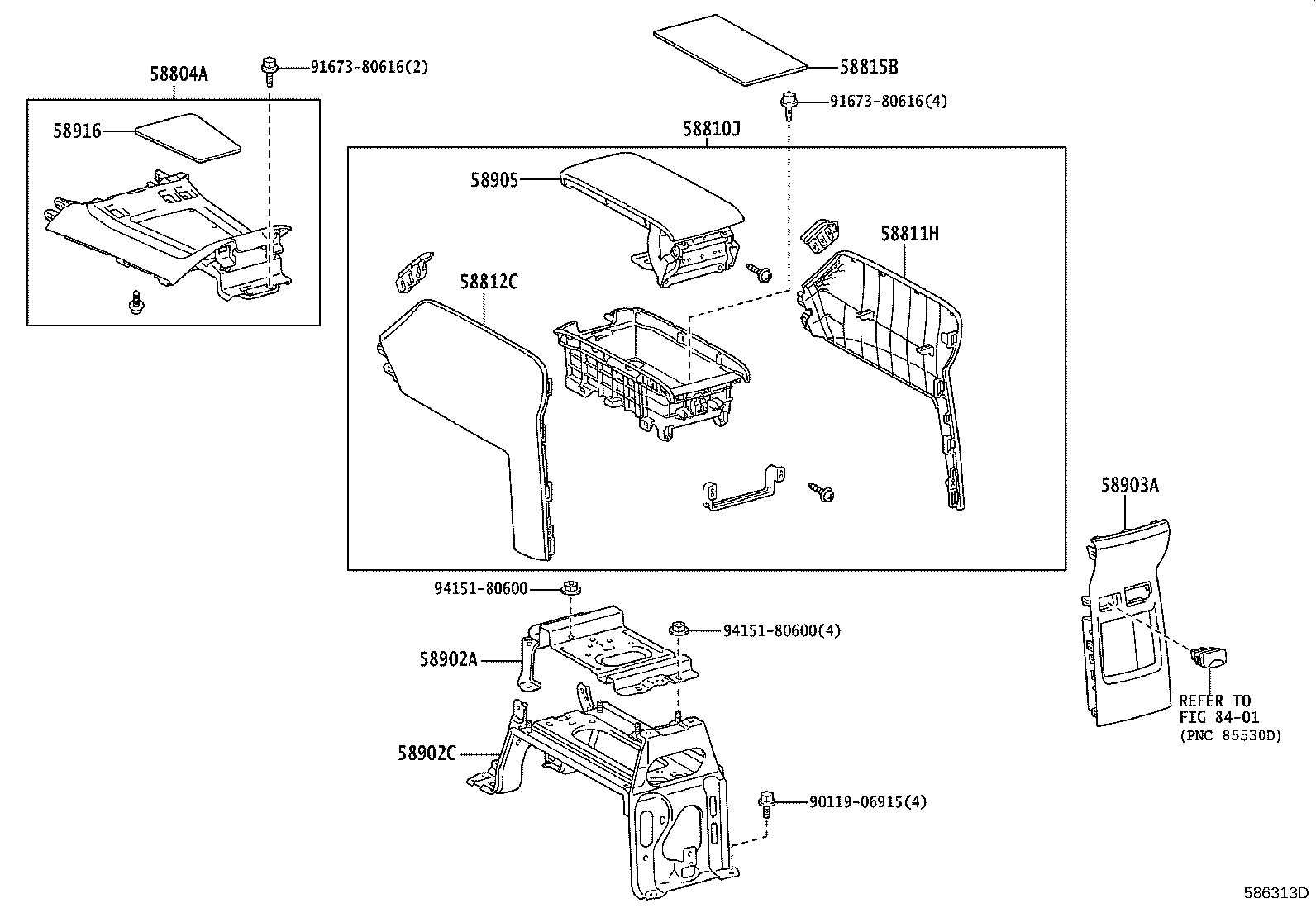

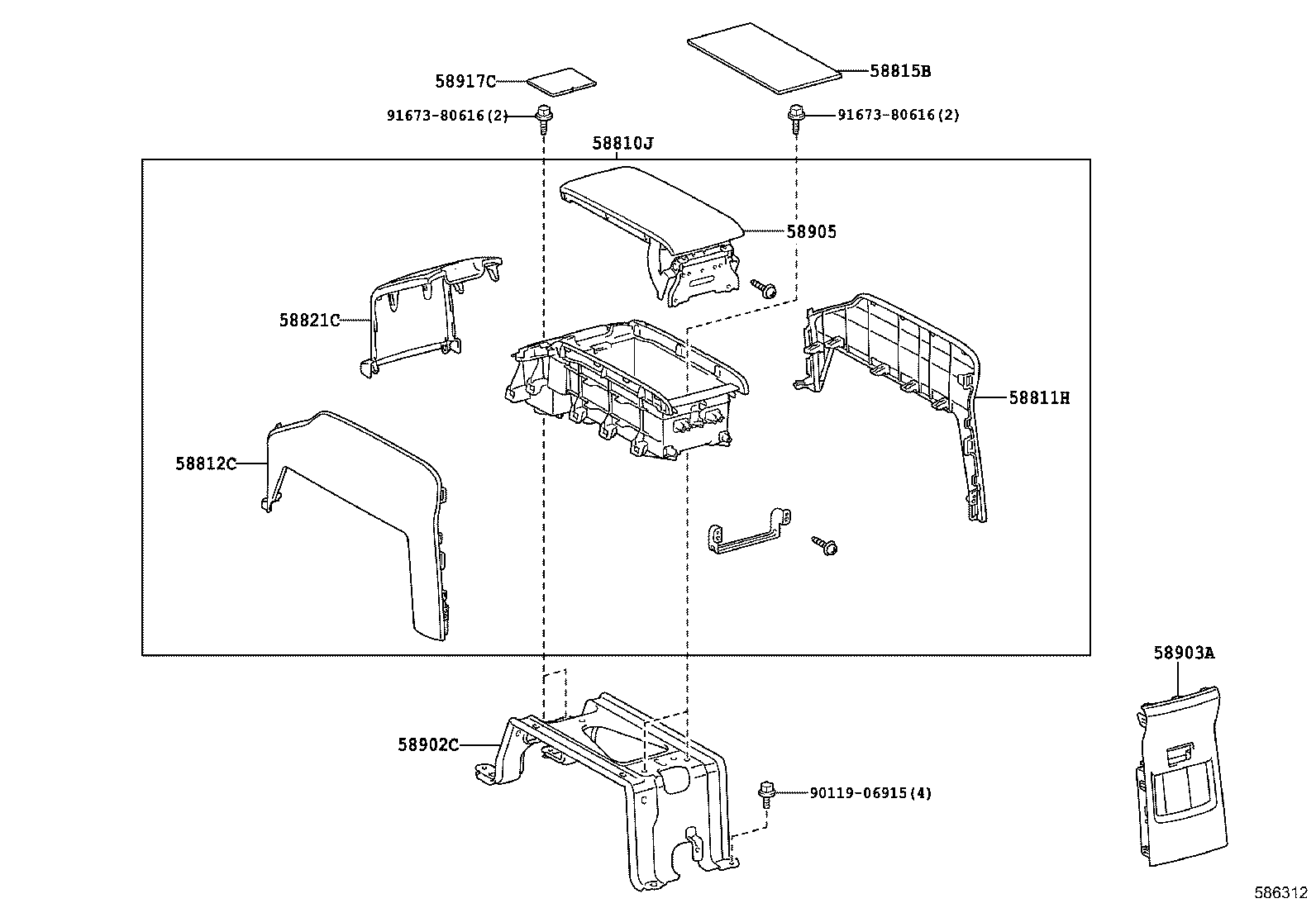

Figure 585034C 585034C 2014-02 → 2017-06 Figure 586311A 586311A 2017-06 → — Figure 586312 586312 2017-06 → — Figure 586313D 586313D 2017-06 → —

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58811D Clip(FOR CONSOLE BOX)
58811H Box, Console, RH
58812C Box, Console, LH
58815B Carpet, Console Box
58821C Panel, Console, Upper
58839A Cover, Console Box Hole
58902A Bracket Sub-assy, Console Box Mounting, NO.1
58902C Bracket Sub-assy, Console Box Mounting
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58916 Mat, Box Bottom
58917C Mat, Box Bottom, NO.2
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
