Toyota Noah/Voxy/Esquire
2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan
Supported model
Data version 2023-05

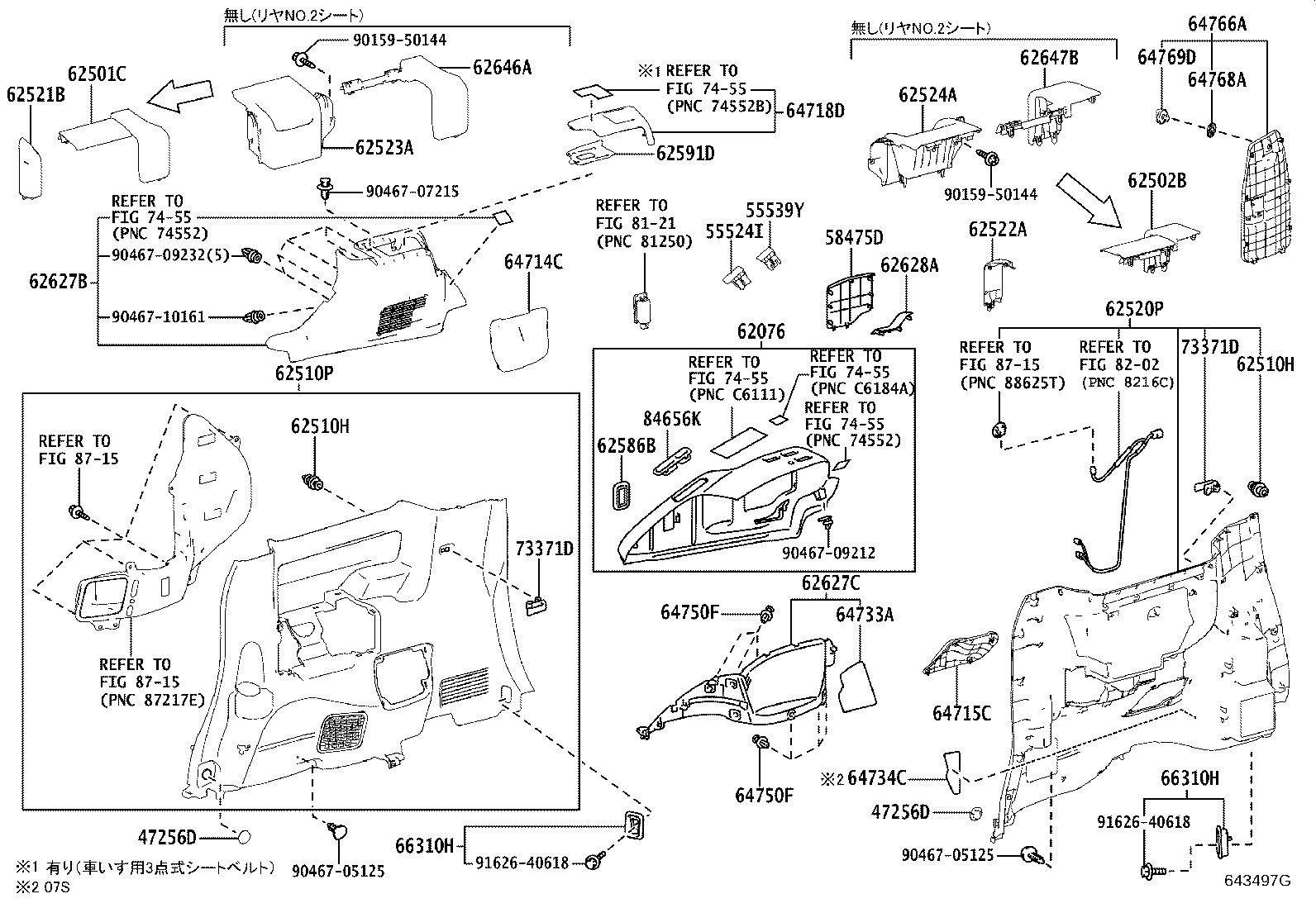

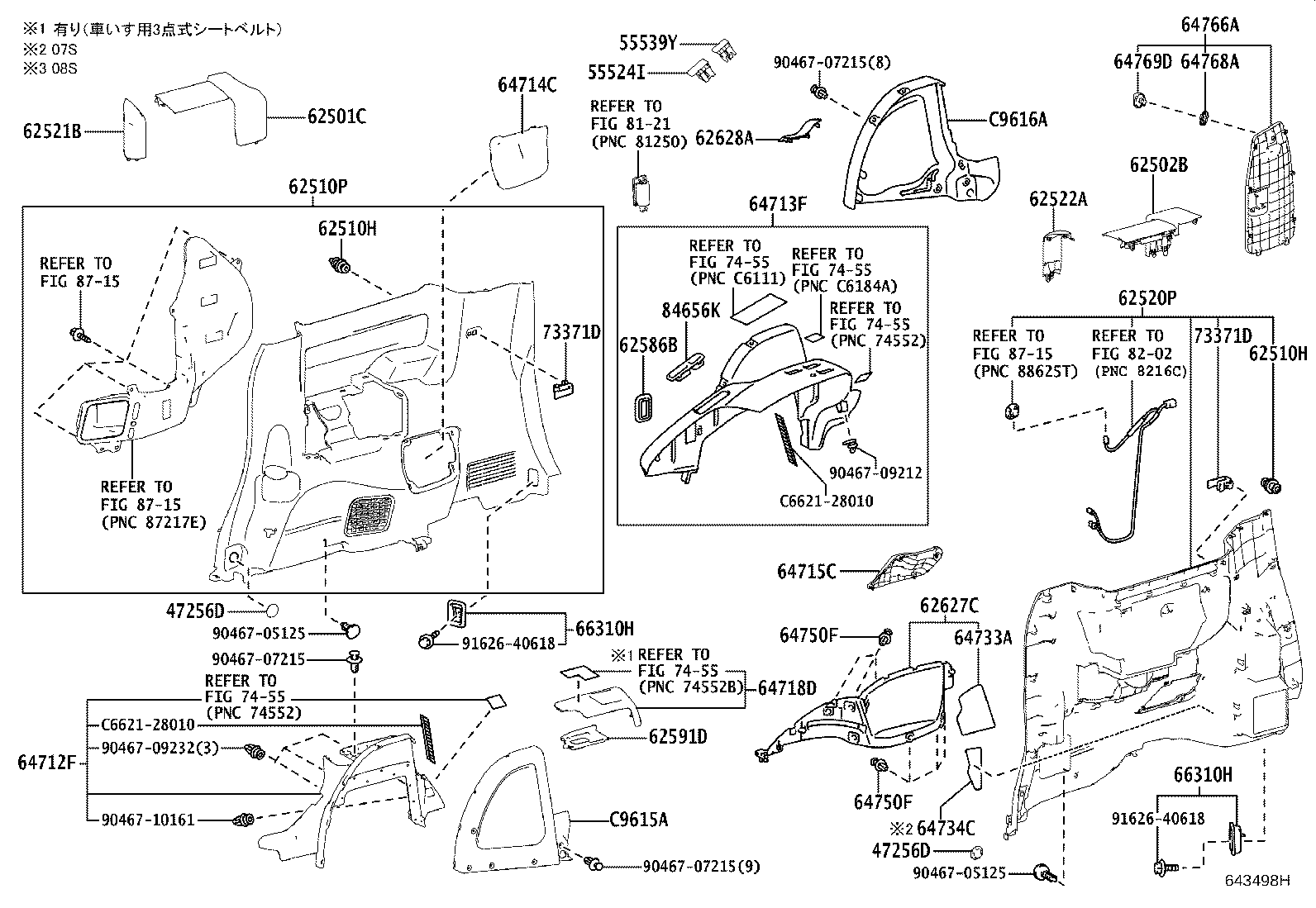

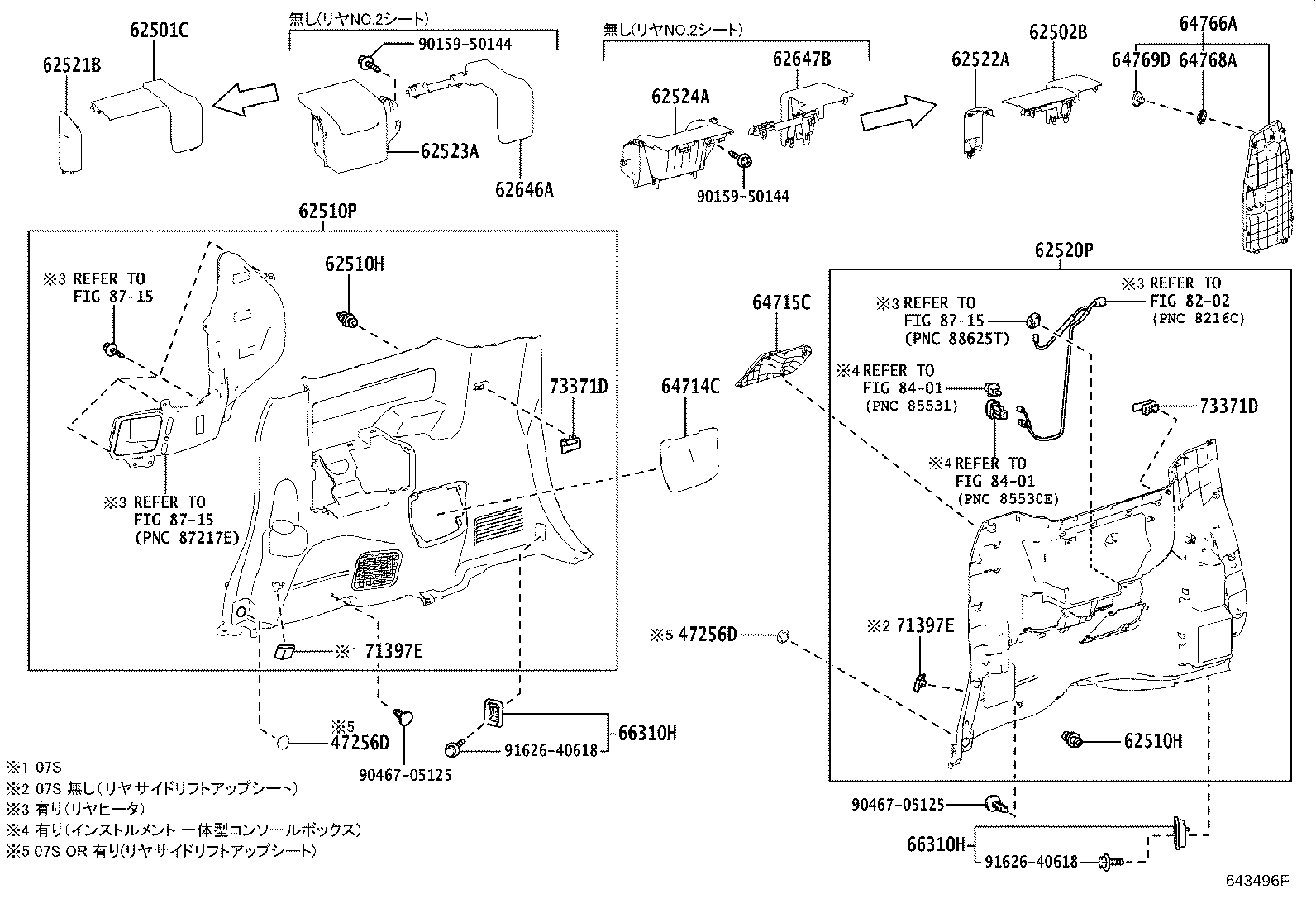

Inside Trim Board
87 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47256B | Grommet, Cap |
| 47256D | Grommet, Cap |
| 55524I | Cover, Swich Base Hole |
| 55539Y | Cover, Spare Switch Hole |
| 58475D | Cover, Ecu Service |
| 58521K | Hook, Floor Carpet |
| 62076 | Cover Sub-assy, Side Trim, Lower LH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62427 | Bracket, Center Pillar Garnish, RH |
| 62428 | Bracket, Center Pillar Garnish, LH |
| 62451A | Clip, Side Garnish |
| 62451C | Garnish, Roof Side Rail, Rear RH |
| 62452C | Garnish, Roof Side Rail, Rear LH |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 62489A | Clip, Roof Side Inner Garnish |
| 62489B | Clip, Roof Side Inner Garnish |
| 62501C | Cover Sub-assy, Quarter Trim, RH |
| 62502B | Cover Sub-assy, Quarter Trim, LH |
| 62510H | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62523A | Cover, Quarter Trim, Lower RH |
| 62524A | Cover, Quarter Trim, Lower LH |
| 62566A | Cover, Rear Pillar, RH |
| 62566C | Clamp, Cowl Side Trim |
| 62567B | Cover, Rear Pillar, LH |
| 62570E | Clip, Rear Window Side Garnish |
| 62586B | Retainer, Quarter Trim, NO.2 |
| 62591D | Plate, Side Trim Base, NO.1 |
| 62627B | Cover, Quarter Trim |
| 62627C | Cover, Side Trim, NO.1 |
| 62628A | Cover, Side Trim, LH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62638B | Clip |
| 62639A | Garnish, Quarter Pillar, LH |
| 62646A | Base, Quarter Trim, Rear RH |
| 62647B | Base, Quarter Trim, Rear LH |
| 64515A | Holder, Luggage Compartment Door Hook |
| 64712F | Cover, Deck Side Trim, Front RH |
| 64713F | Cover, Deck Side Trim, Front LH |
| 64714C | Cover, Deck Side Trim, RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64718D | Cover, Deck Trim Service Hole |
| 64733A | Pad, Deck Trim Side, NO.1 |
| 64734C | Pad, Deck Trim Side, NO.2 |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64766A | Cover, Deck Side Trim Tool |
| 64768A | Stopper, Quarter Trim Lid |
| 64769D | Knob, Jack Cover |
| 66310H | Hook Assy, Rope |
| 67887L | Weatherstrip, Slide Door, NO.2 RH |
| 67888L | Weatherstrip, Rear Door, NO.2 LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918D | Plate, Rear Door Scuff, LH |
| 71397E | Stopper, Rear Seat |
| 73371D | Hanger, Rear Seat Shoulder Belt |
| 84656K | Bezel, Switch |
| C9615A | Cover, Power Lift Motor, NO.1 |
| C9616A | Cover, Power Lift Motor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
