Toyota Noah/Voxy/Esquire
2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan
Supported model
Data version 2023-05

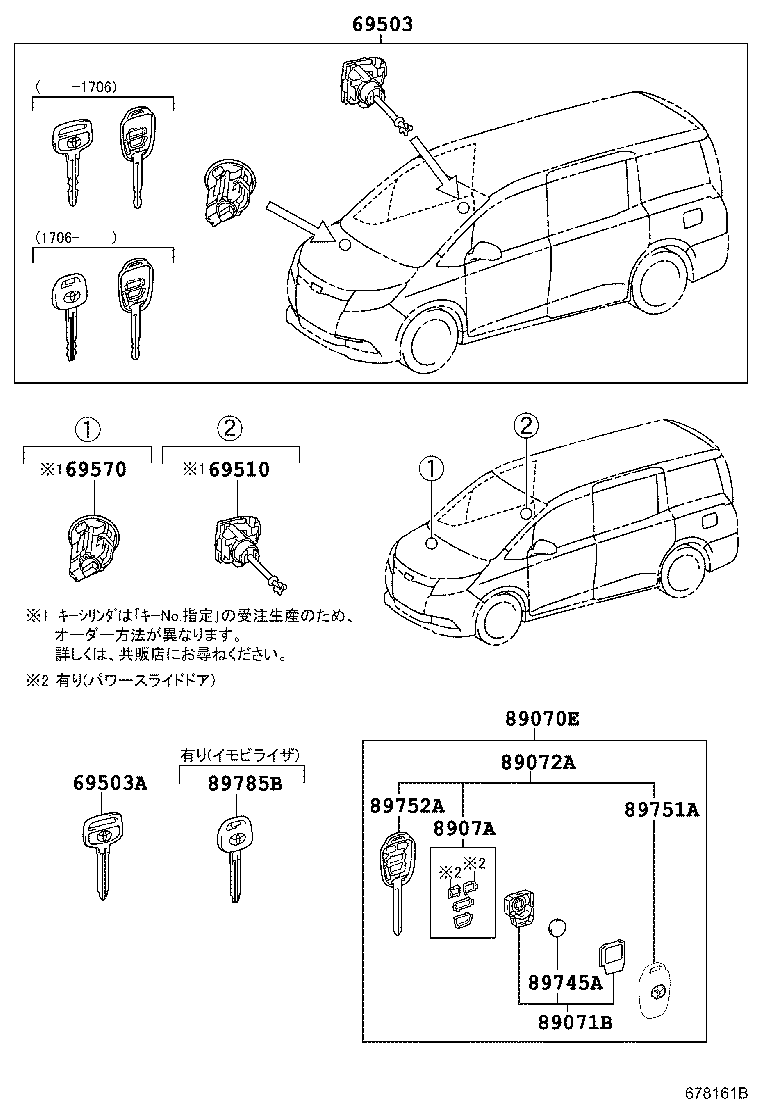

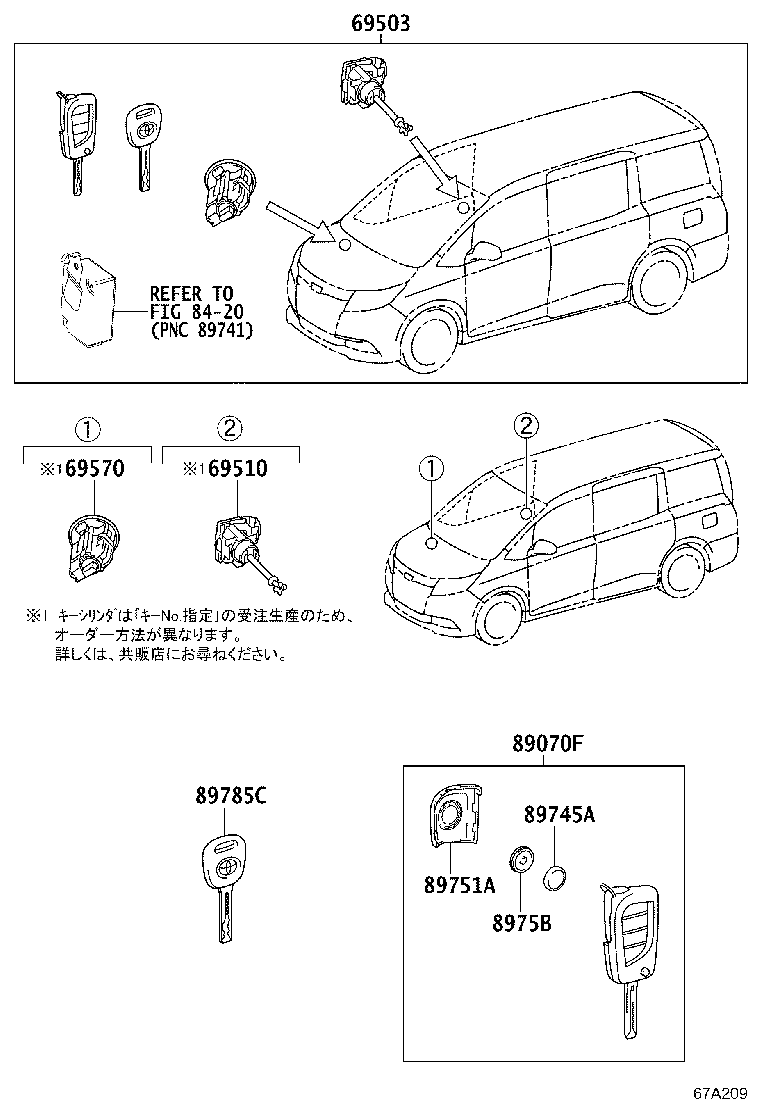

Lock Cylinder Set
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69503B | Key, Cut |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 89070E | Transmitter Assy, Door Control |
| 89070F | Transmitter Assy, Door Control (CUT KEY) |
| 89071B | Module Set, Transmitter Sub-assy, Door Control |
| 89072A | Housing Set, Door Control Transmitter |
| 89072B | Housing Set, Door Control Transmitter (FOR SMART KEY) |
| 8907A | Switch Set, Transmitter |
| 89745A | Battery, Transmitter |
| 89745C | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89752A | Case, Transmitter Housing |
| 8975B | Cover, Transmitter Battery Housing |
| 89785B | Transmitter, Transponder Key Master |
| 89785C | Transmitter, Transponder Key Master |
| 89904B | Transmitter Sub-assy, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
