Toyota Noah/Voxy/Esquire
2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan
Supported model
Data version 2023-05
Seat Belt

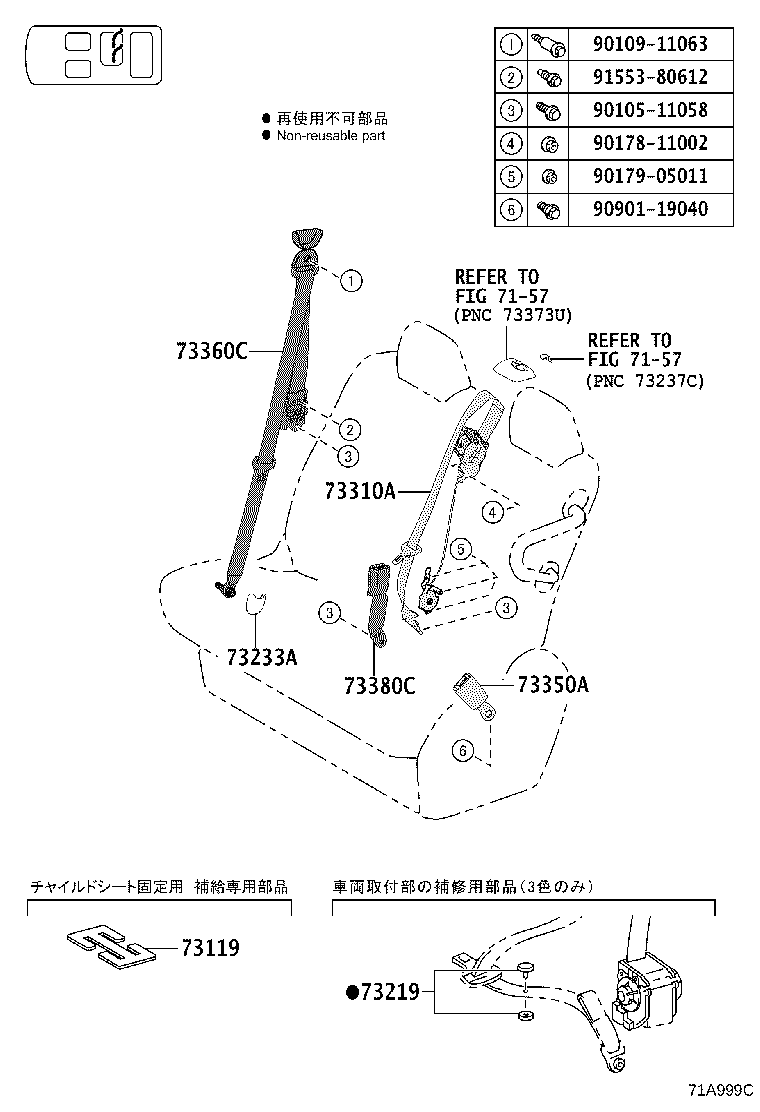

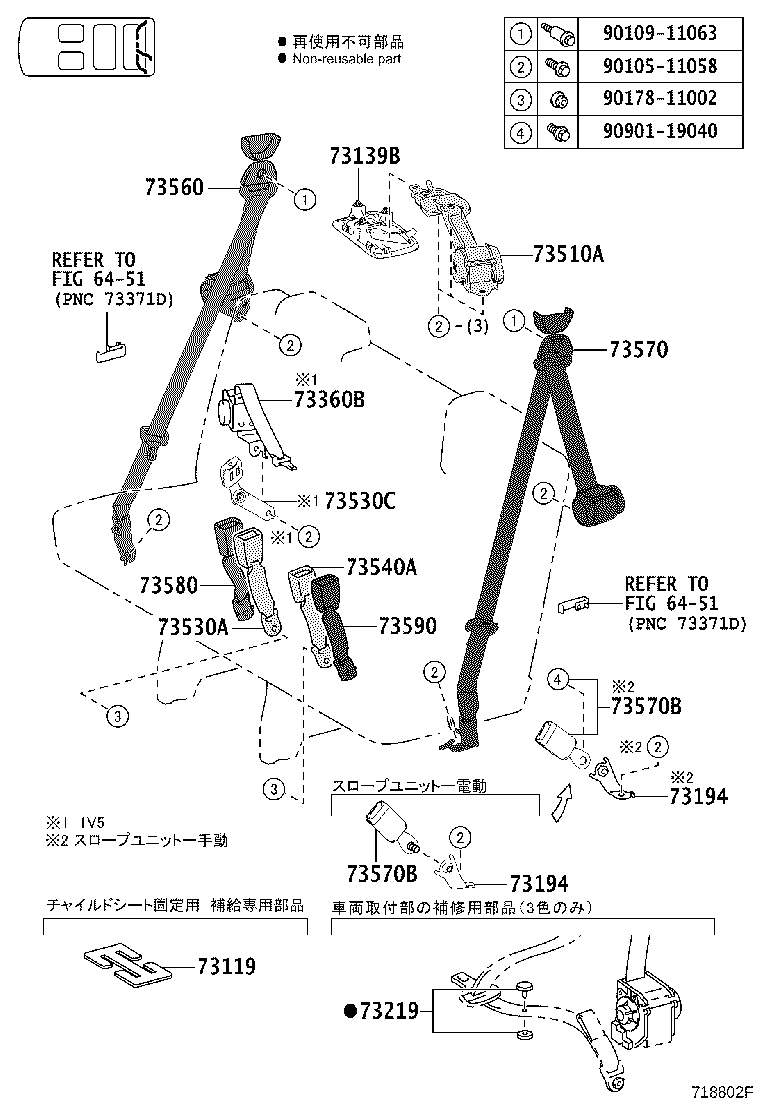

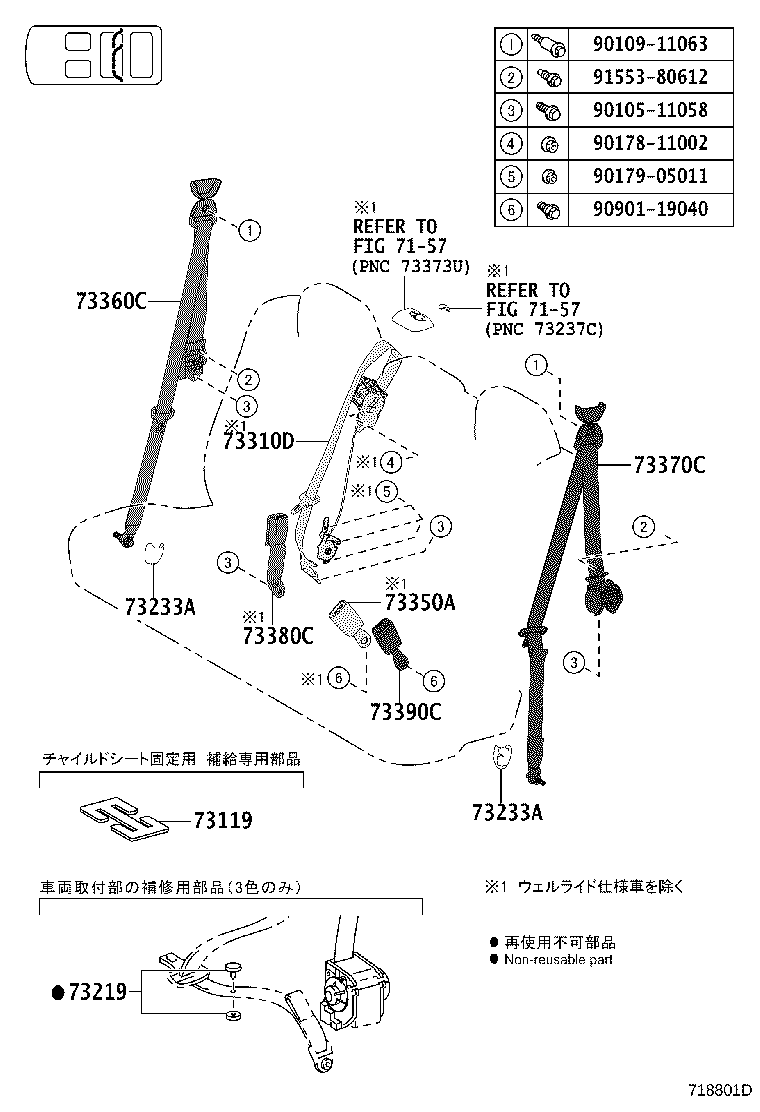

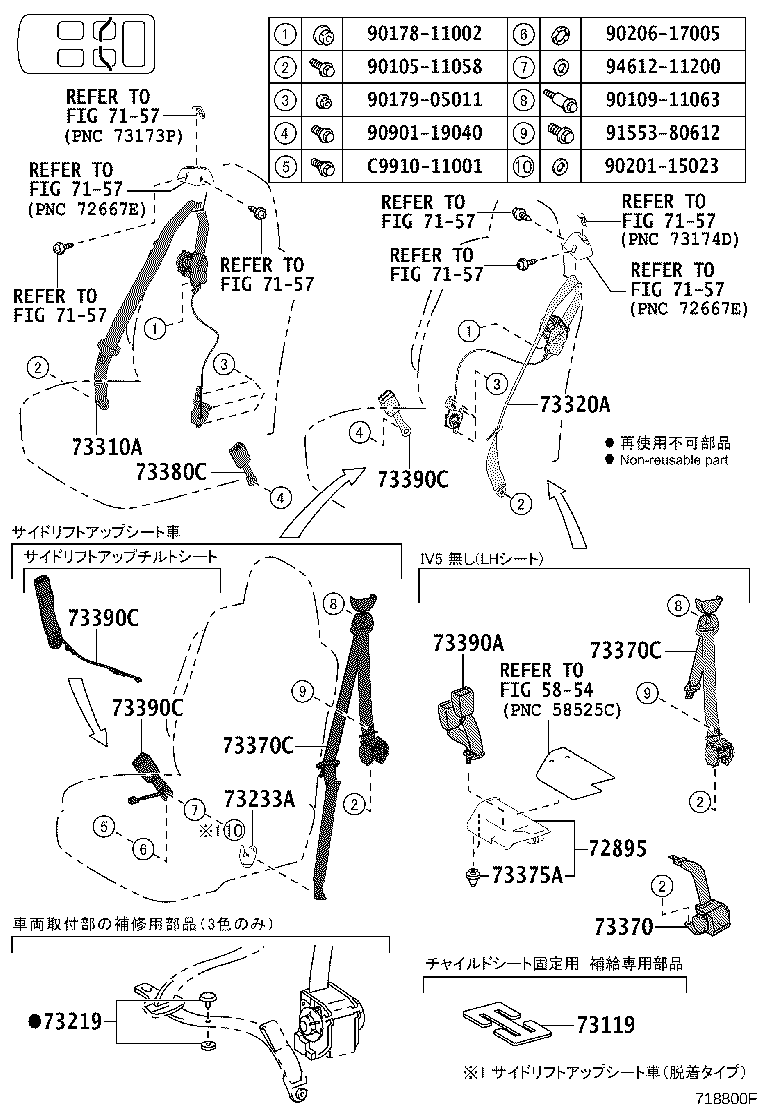

36 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 72895 | Case, Rear Seat Belt |
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73131A | Bracket, Seat Belt |
| 73139B | Cover, Seat Belt Anchor |
| 73194 | Bracket, Seat Belt Inner Anchor, NO.2 LH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73233A | Cover, Lap Belt Outer Anchor, Rear NO.1 Seat |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73310A | Belt Assy, NO.1 Seat 3 Point Type, RH |
| 73310D | Belt Assy, Rear Seat 3 Point Type, Center |
| 73320A | Belt Assy, NO.1 Seat 3 Point Type, LH |
| 73350A | Belt Assy, Rear NO.1 Seat Lap Type, Center |
| 73360B | Belt Assy, Rear Seat, Outer |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73375A | Clip, Rear Seat Belt Cover |
| 73380C | Belt Assy, Rear NO.1 Seat, Inner RH |
| 73390A | Belt Assy, Rear Seat, Inner |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73510A | Belt Assy, Rear NO.2 Seat, 3 Point Type |
| 73530A | Belt Assy, Rear NO.2 Seat Lap Type, RH |
| 73530C | Belt Assy, NO.2 Seat Lap Type |
| 73540A | Belt Assy, Rear NO.2 Seat Lap Type, LH |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73570B | Belt Assy, Rear Seat, Outer |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
