Toyota Noah/Voxy/Esquire

2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Rail

16 part groups · 4 illustrations

Illustrations

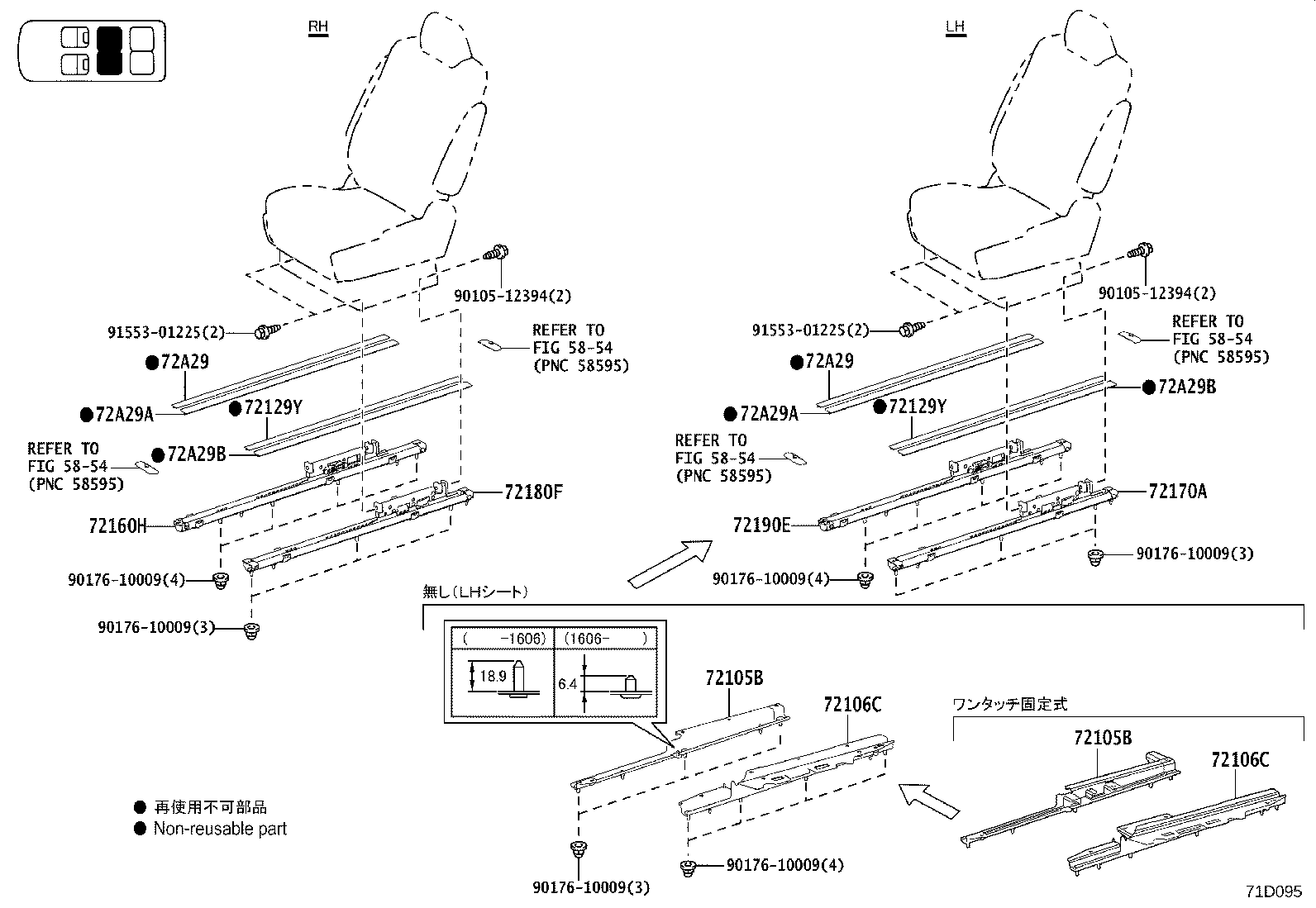

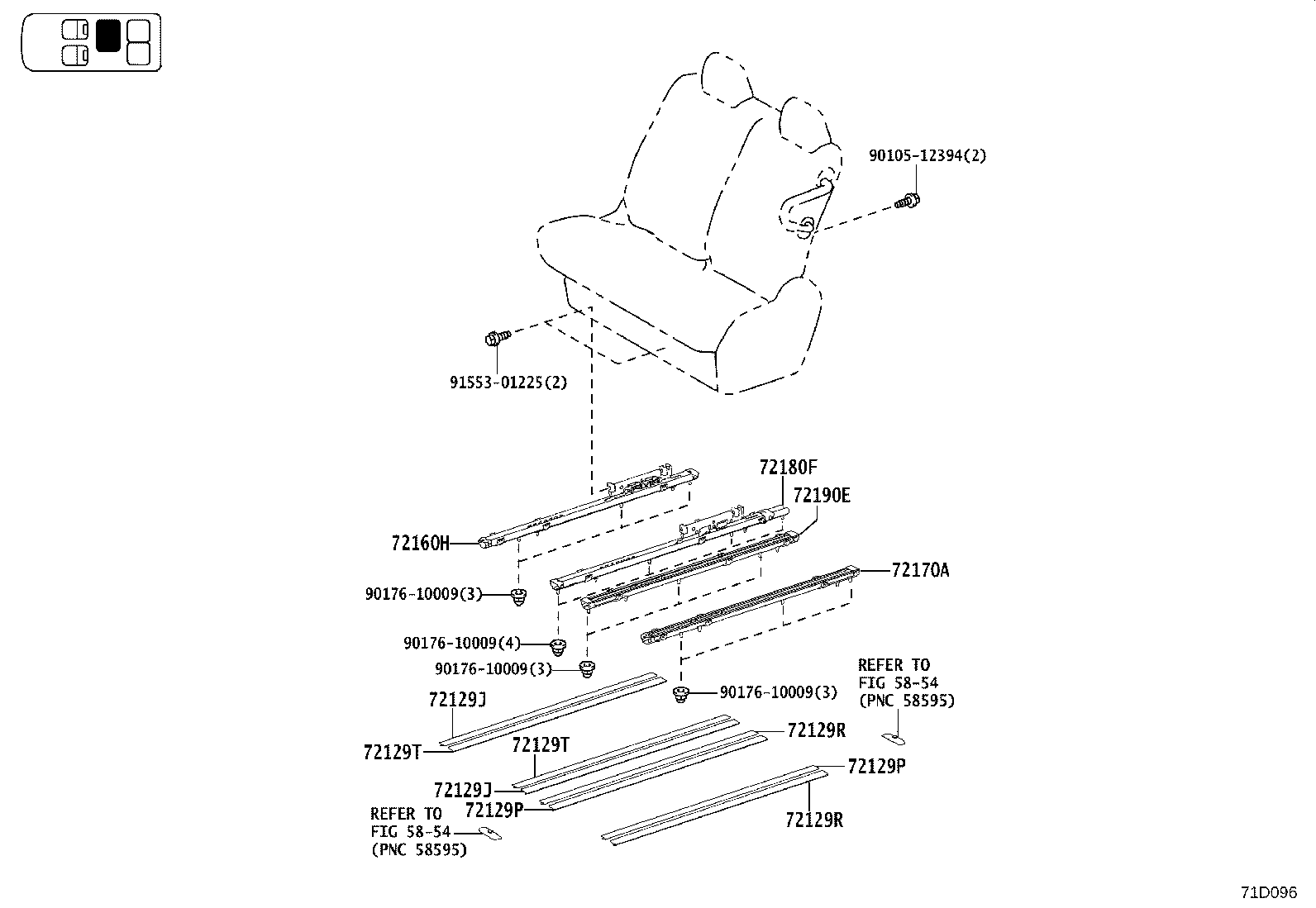

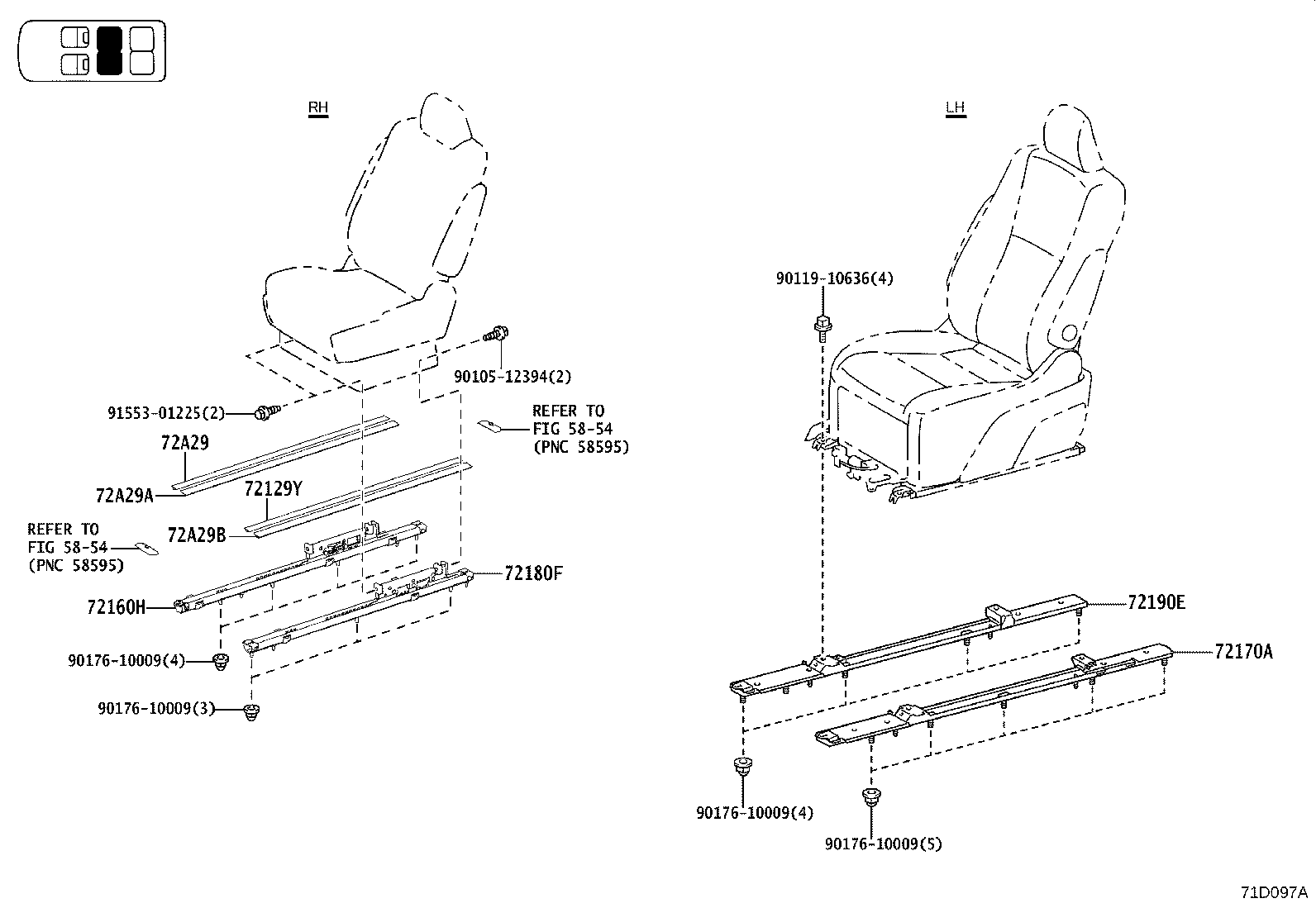

Figure 71D094 71D094 2014-01 → — Figure 71D095 71D095 2014-01 → — Figure 71D096 71D096 2017-09 → — Figure 71D097A 71D097A 2017-10 → —

Part groups

PNCDescription
72105B Rail Sub-assy, Rear Seat Track, Upper RH(FOR LH SEAT)
72106C Rail Sub-assy, Rear Seat Track, Upper LH(FOR LH SEAT)
72129J Protector, Seat Track Lower Rail, RH Outer NO.1
72129P Protector, Seat Track Lower Rail, LH Inner NO.1
72129R Protector, Seat Track Lower Rail, LH Outer NO.1
72129T Protector, Seat Track Lower Rail, RH Inner NO.1
72129Y Protector, Seat Track Lower Rail, NO.3
72160H Track Assy, Rear Seat, Outer RH
72170A Track Assy, Rear Seat, Outer LH
72180F Track Assy, Rear Seat, Inner RH
72190E Track Assy, Rear Seat, Inner LH
72275D Stopper, Rear Seat Track Slide, RH NO.1
72275F Stopper, Rear Seat Track Slide, LH NO.1
72A29 Protector, Seat Track Lower Rail, NO.1
72A29A Protector, Seat Track Lower Rail, NO.2
72A29B Protector, Seat Track Lower Rail, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
