Toyota Noah/Voxy/Esquire

2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

68 part groups · 9 illustrations

Illustrations

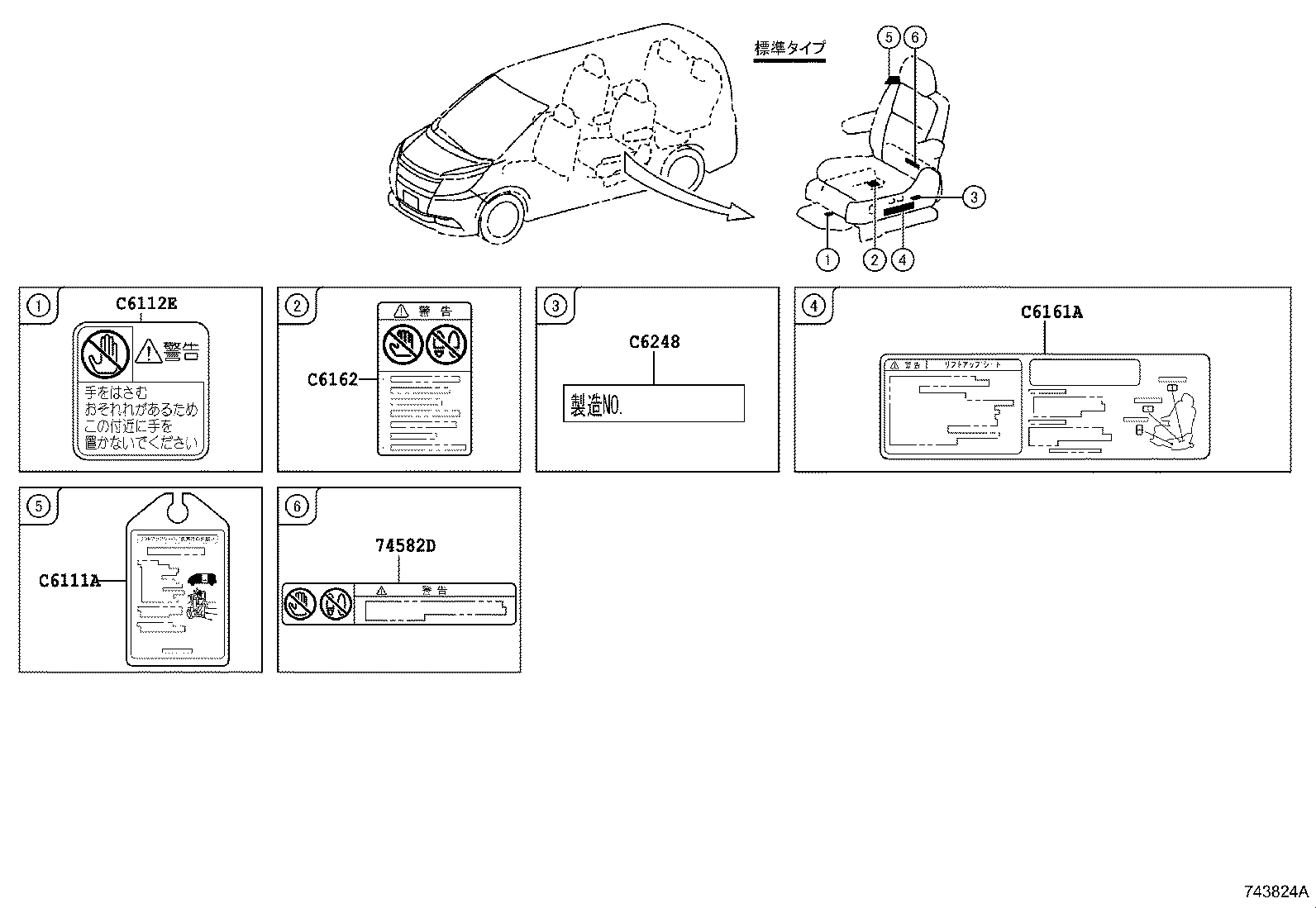

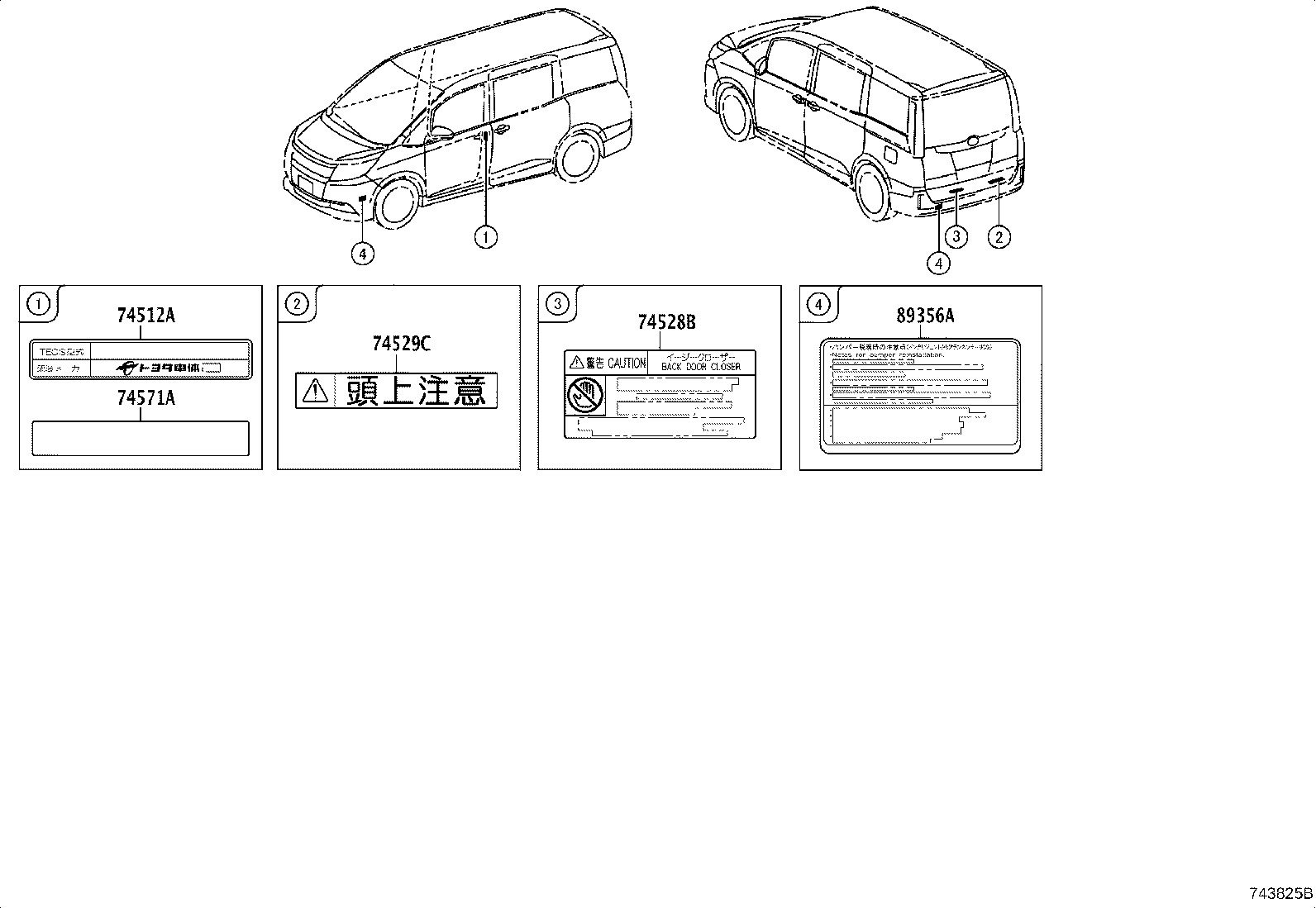

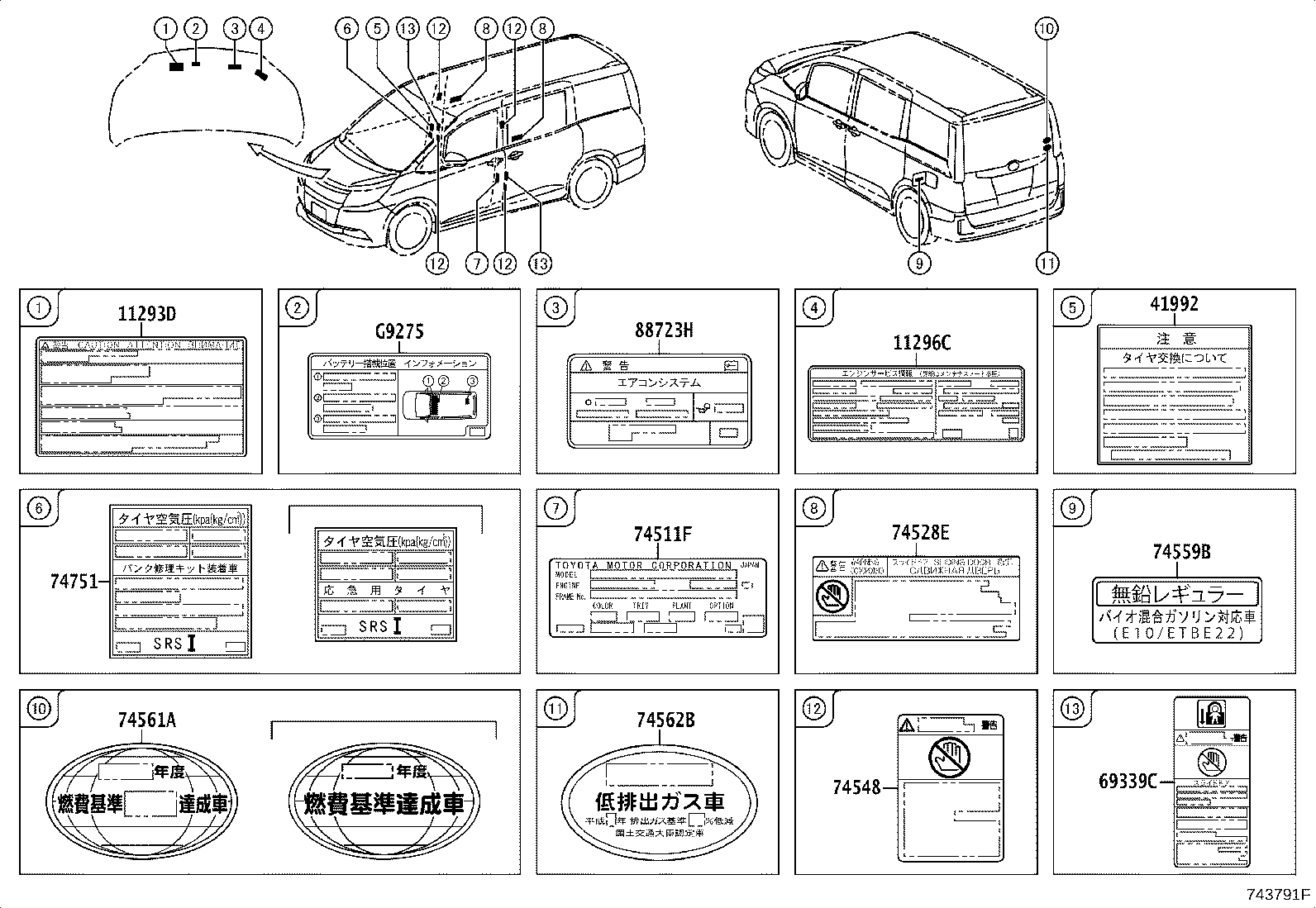

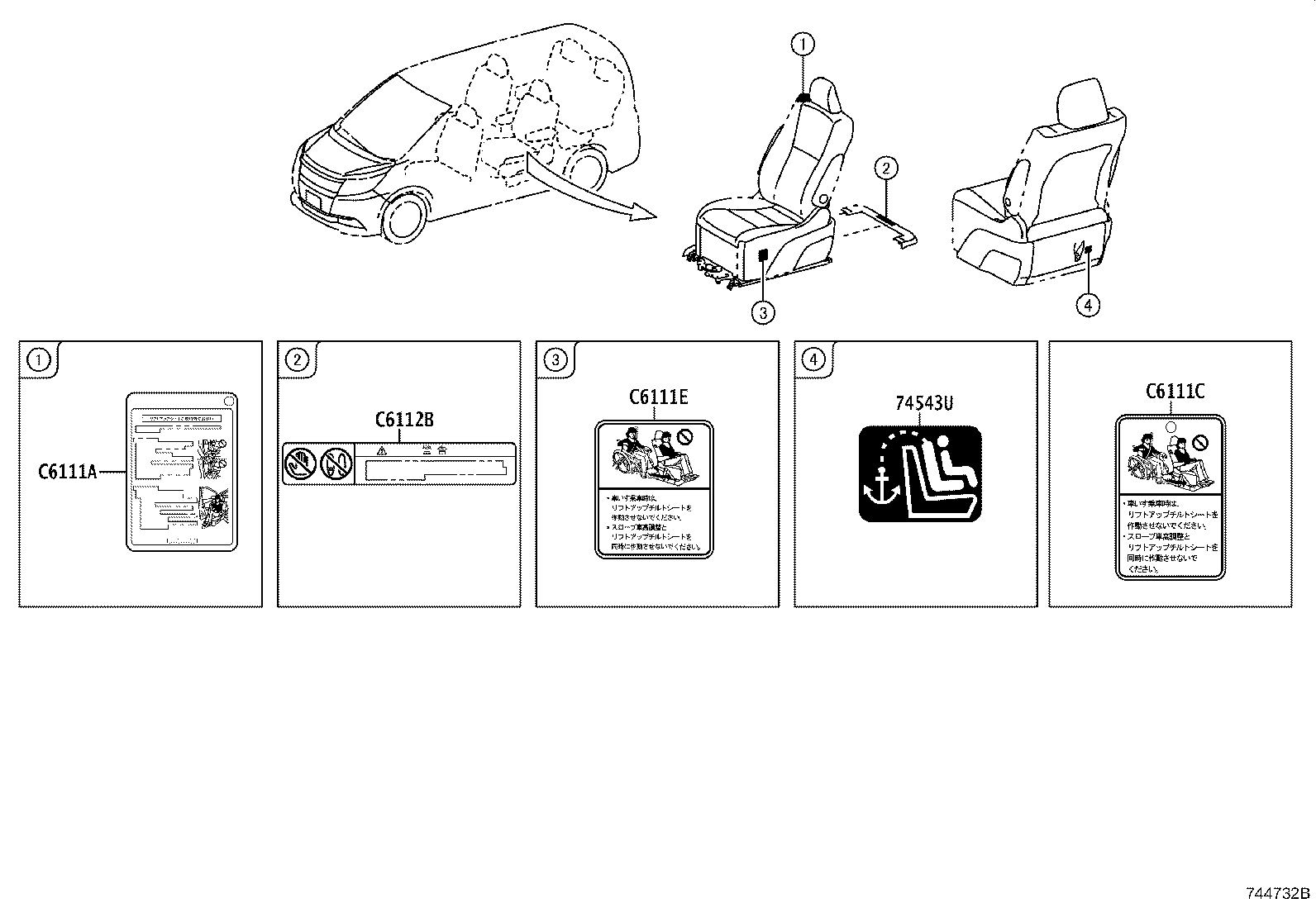

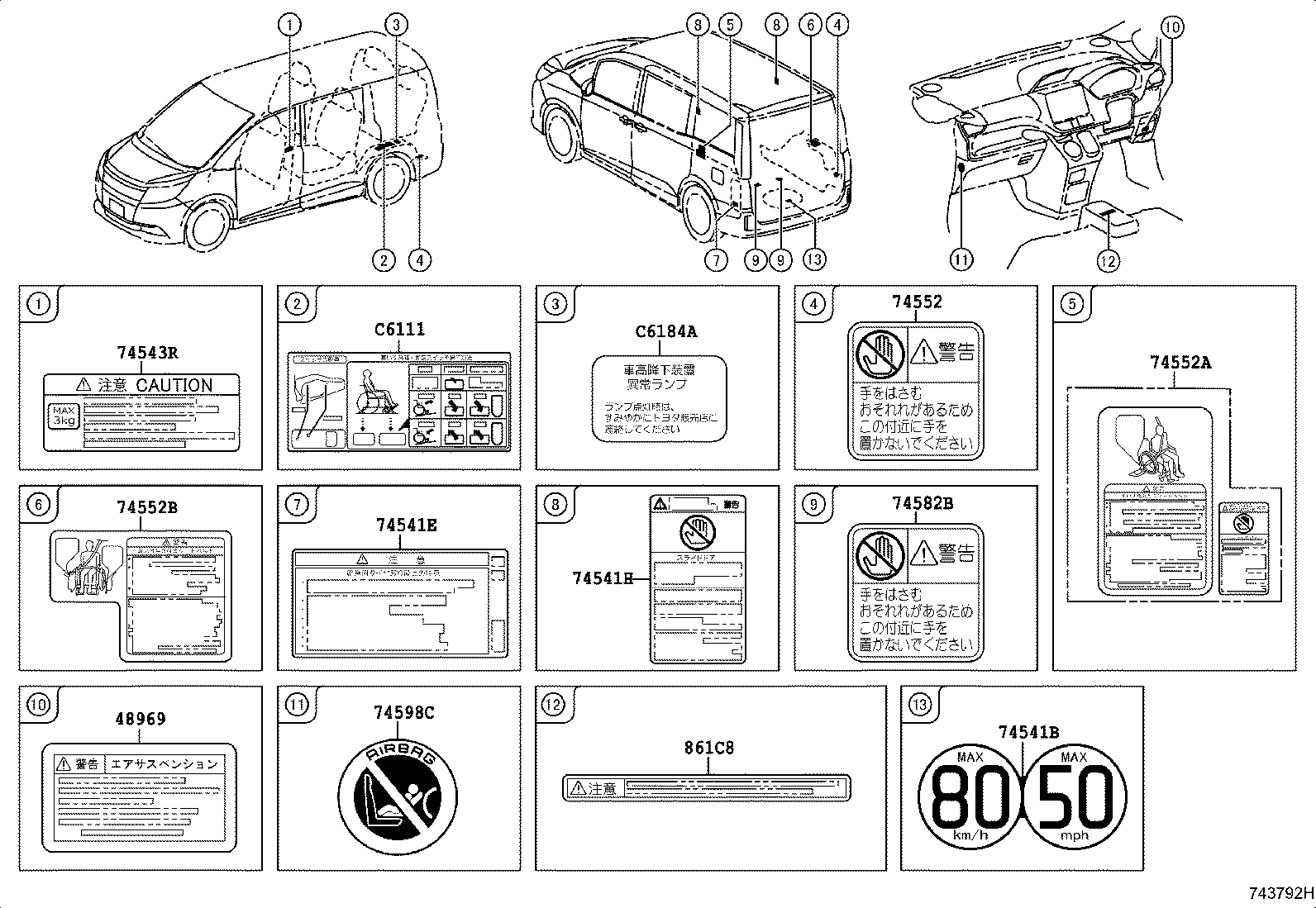

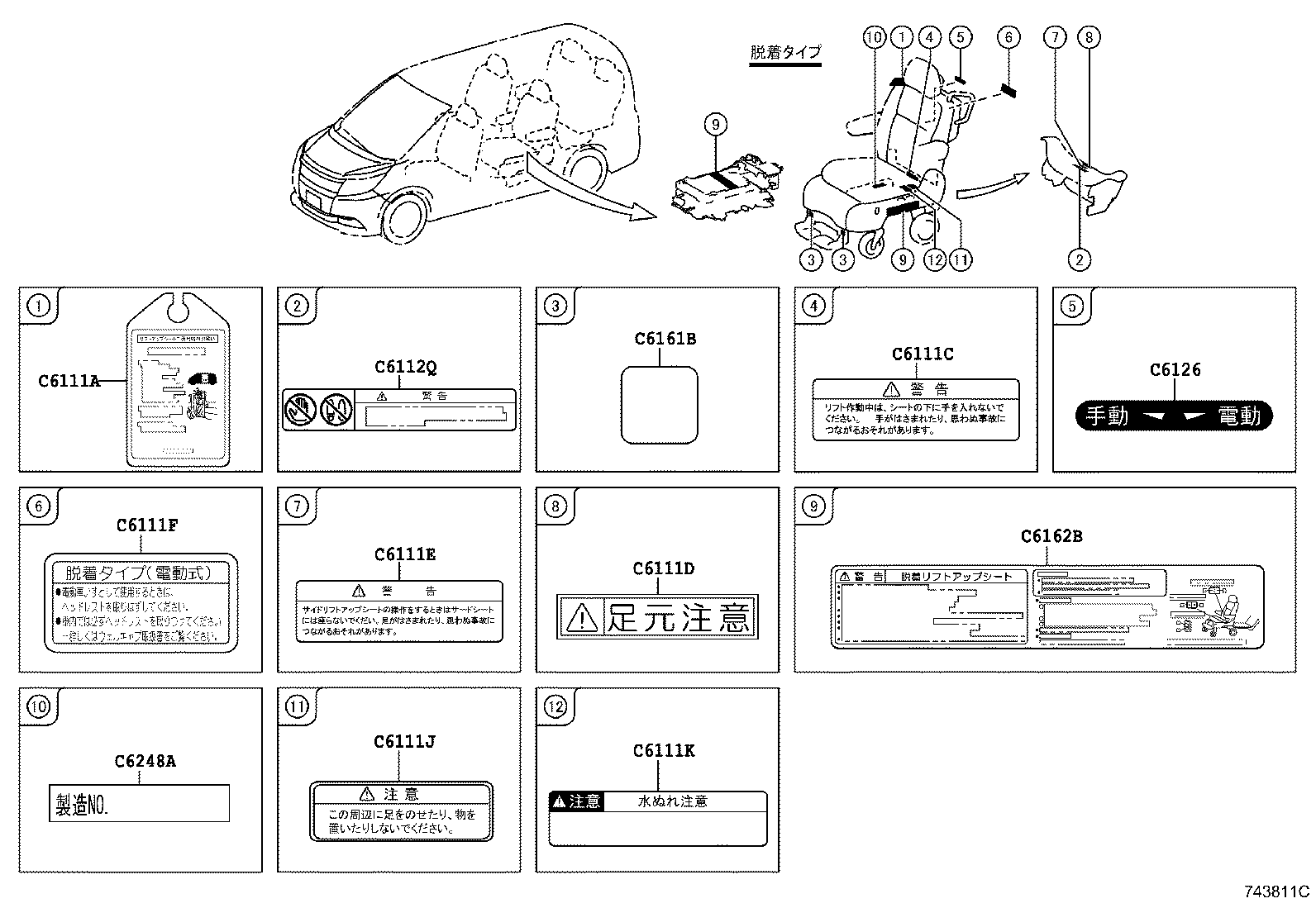

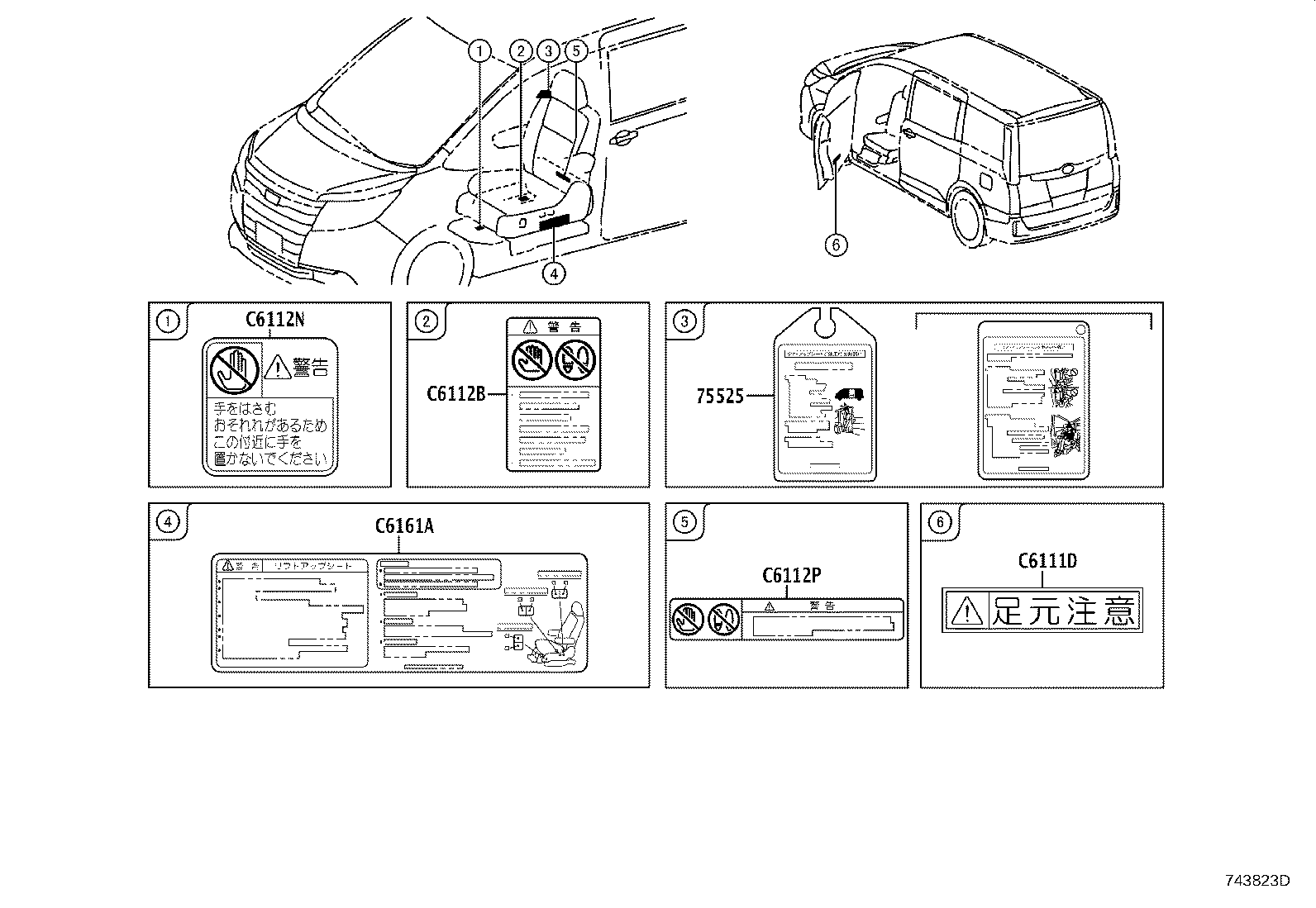

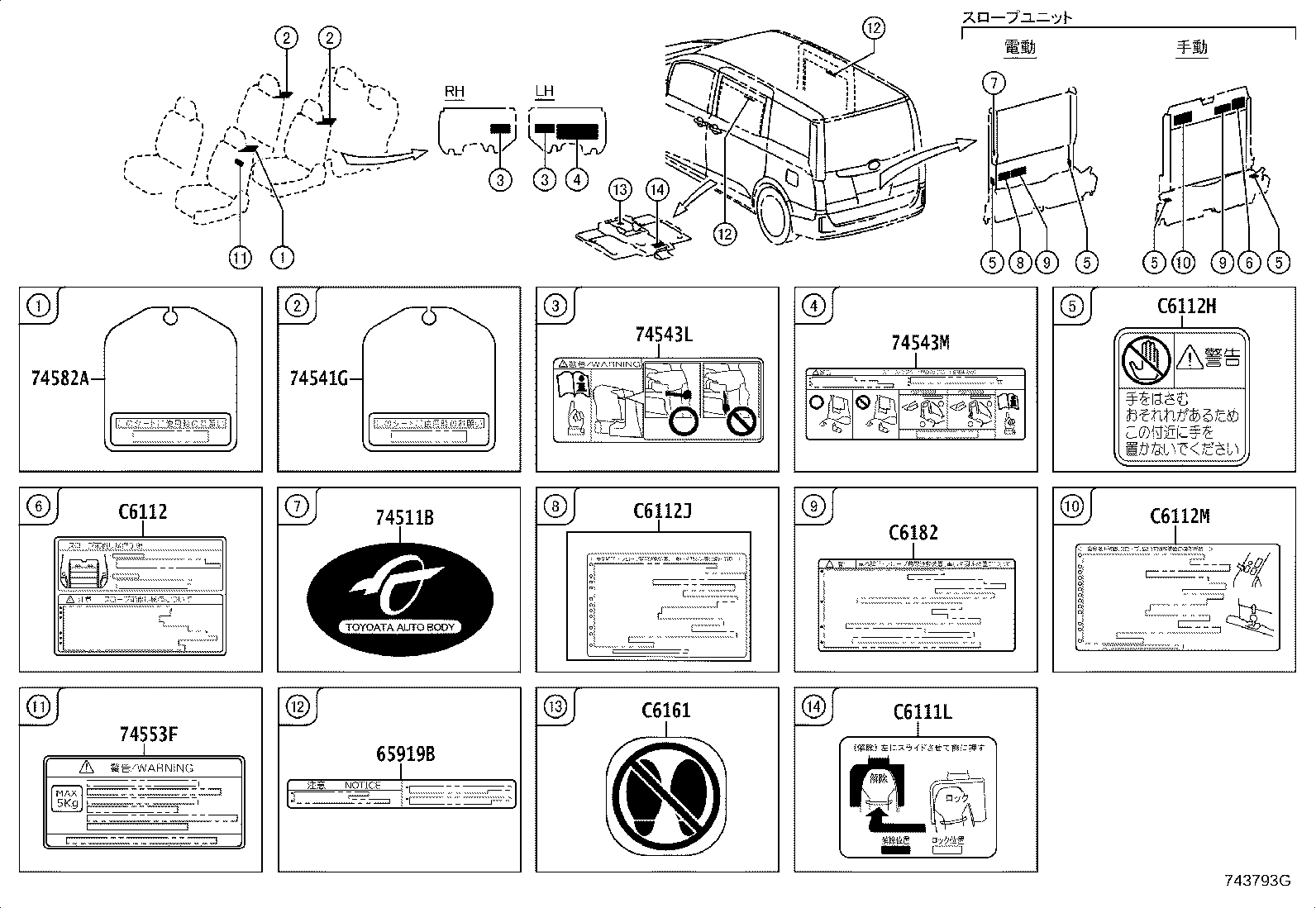

Figure 746038 746038 2014-01 → — Figure 743791F 743791F 2014-01 → — Figure 743825B 743825B 2014-01 → — Figure 743792H 743792H 2014-01 → — Figure 743793G 743793G 2014-01 → — Figure 743823D 743823D 2014-04 → — Figure 743824A 743824A 2014-01 → 2017-06 Figure 743811C 743811C 2014-04 → 2017-06 Figure 744732B 744732B 2017-10 → —

Part groups

PNCDescription
11293D Label, Engine Caution
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
41992 Label, Differential Notice
48969 Label, Jack UP Caution
65919B Label, Curtain Notice
69339C Label, Child Protector Information
74511B Plate, Name
74511F Label, Name (IDENTIFICATION LASER LABEL)
74512A Plate, Identification Number
74528B Label, Back Door Caution
74528E Label, Power Slide Door Notice
74529C Plate, Back Door Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74541G Plate, Safety Caution
74541H Plate, Body Caution
74543L Label, Rear Seat Caution, NO.1
74543M Label, Rear Seat Caution, NO.2
74543R Label, Rear Seat Caution
74543U Label, Rear Seat Information, NO.1
74548 Plate, Body Caution
74552 Plate, Safety Caution
74552A Label, Safety Caution
74552B Label, Safety Caution
74553F Label, Front Seat Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74571A Film, Label Cover
74582A Plate, Safety Caution
74582B Plate, Safety Caution
74582D Label, Safety Caution
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
75525 Label, Caution, NO.1
861C8 Label, Mobile Wireless Charger Caution
88723H Label, Cooler Service Caution
89356A Label, Clearance Warning Information
C6111 Plate, Safety Caution
C6111A Plate, Safety Caution
C6111C Plate, Tecs Safety Caution, NO.1
C6111D Plate, Safety Caution
C6111E Plate, Tecs Safety Caution, NO.2
C6111F Plate, Tecs Safety Caution, NO.3
C6111J Plate, Safety Caution
C6111K Plate, Safety Caution
C6111L Plate, Tecs Safety Caution, NO.4
C6112 Label, Safety Information, NO.2
C6112B Label, Safety Information, NO.2
C6112E Label, Safety Information, NO.5
C6112H Label, Safety Information, NO.8
C6112J Label, Safety Information, NO.9
C6112M Label, Safety Information, NO.12
C6112N Label, Safety Information, NO.13
C6112P Label, Safety Information, NO.14
C6112Q Label, Safety Information, NO.15
C6126 Label, Switch Notice
C6161 Label, Power Lift Caution
C6161A Label, Power Lift Caution
C6161B Label, Power Lift Information
C6162 Label, Power Lift Caution, NO.2
C6162B Label, Power Lift Caution, NO.3
C6182 Plate, Wheel Chair Holder Caution, NO.1
C6184A Plate, Wheel Chair Holder Caution, NO.3
C6248 Label, Body Number
C6248A Label, Body Number
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
