Toyota Noah/Voxy/Esquire
2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan
Supported model
Data version 2023-05

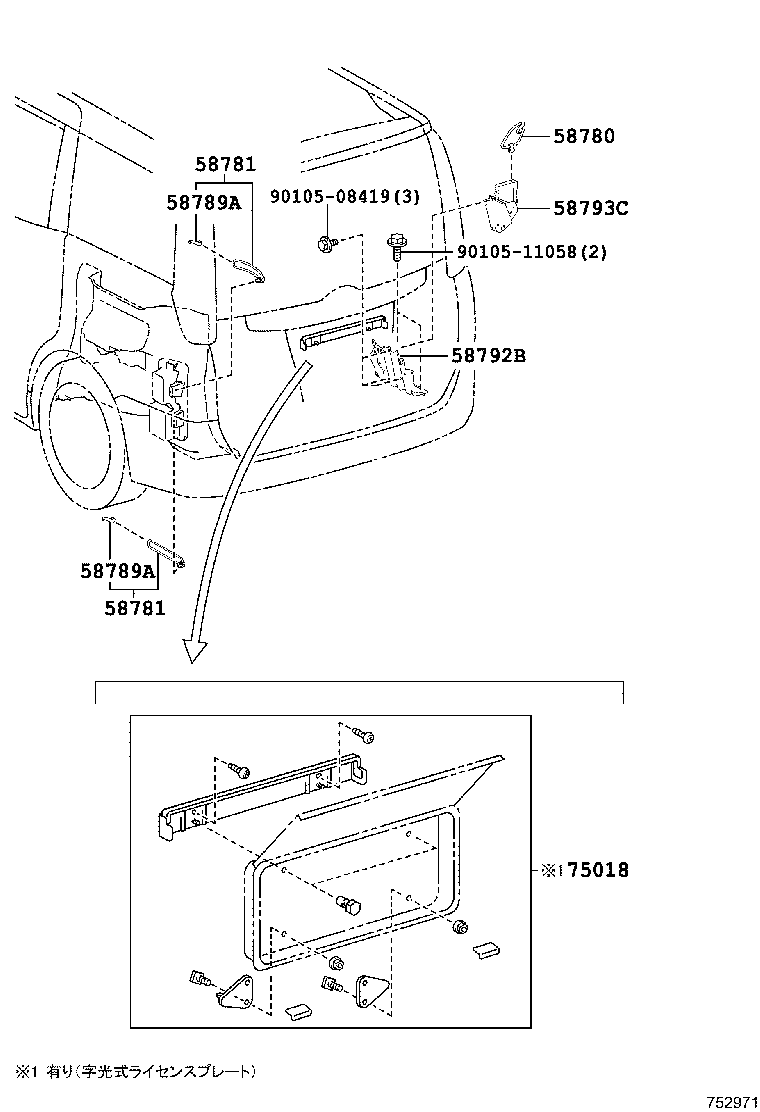

Tool Box & License Plate Bracket
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58780 | Band Assy, Tool Box |
| 58781 | Band, Tool Bag |
| 58789A | Hook, Tool Box Band, NO.2 |
| 58790 | Carrier Assy, Jack |
| 58792B | Support, Jack Carrier |
| 58793C | Bracket, Jack Carrier, NO.1 |
| 58796A | Hook, Jack Clamp |
| 75018 | Frame Sub-assy, Rear License Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
