Toyota Noah/Voxy/Esquire

2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

20 part groups · 4 illustrations

Illustrations

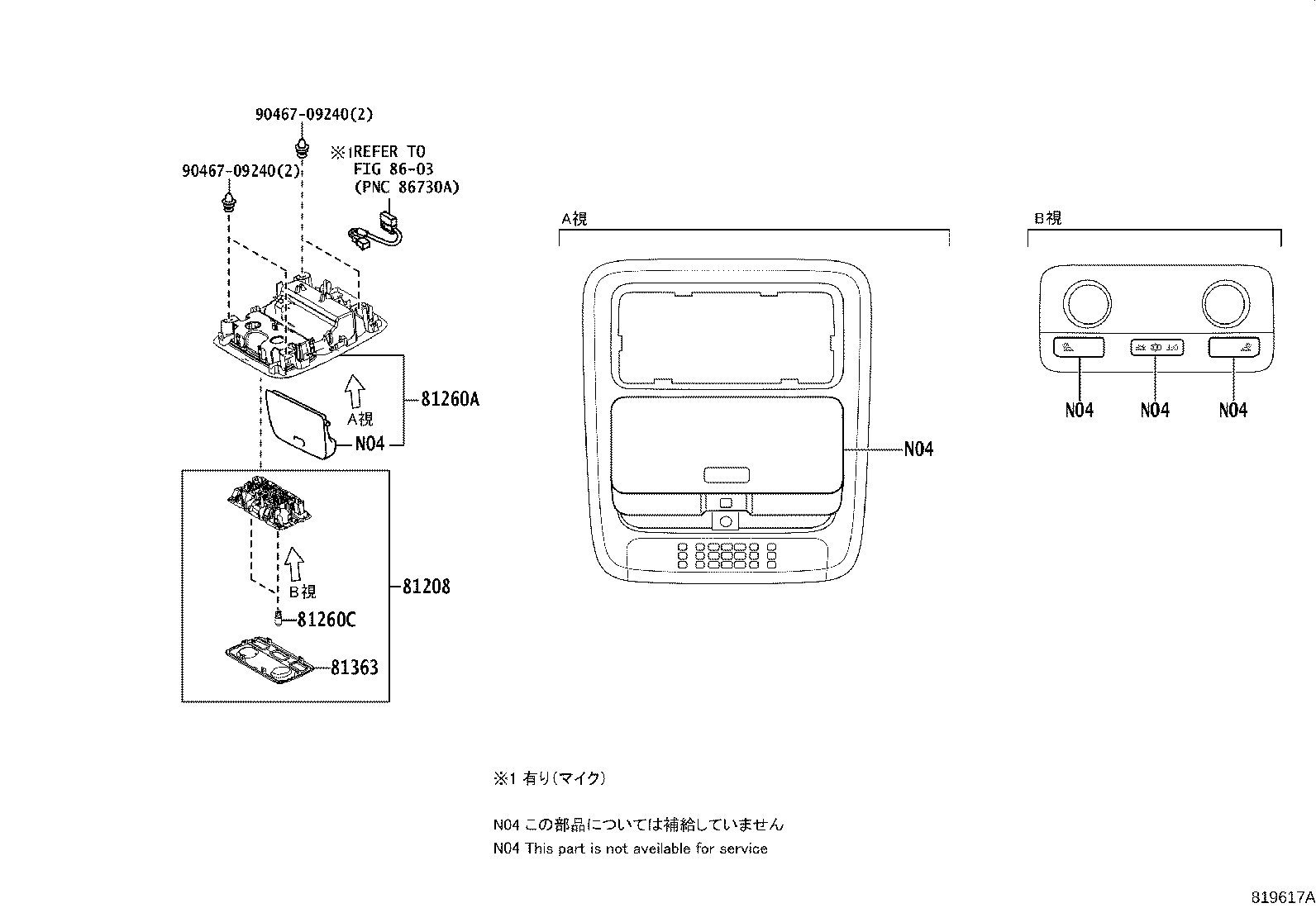

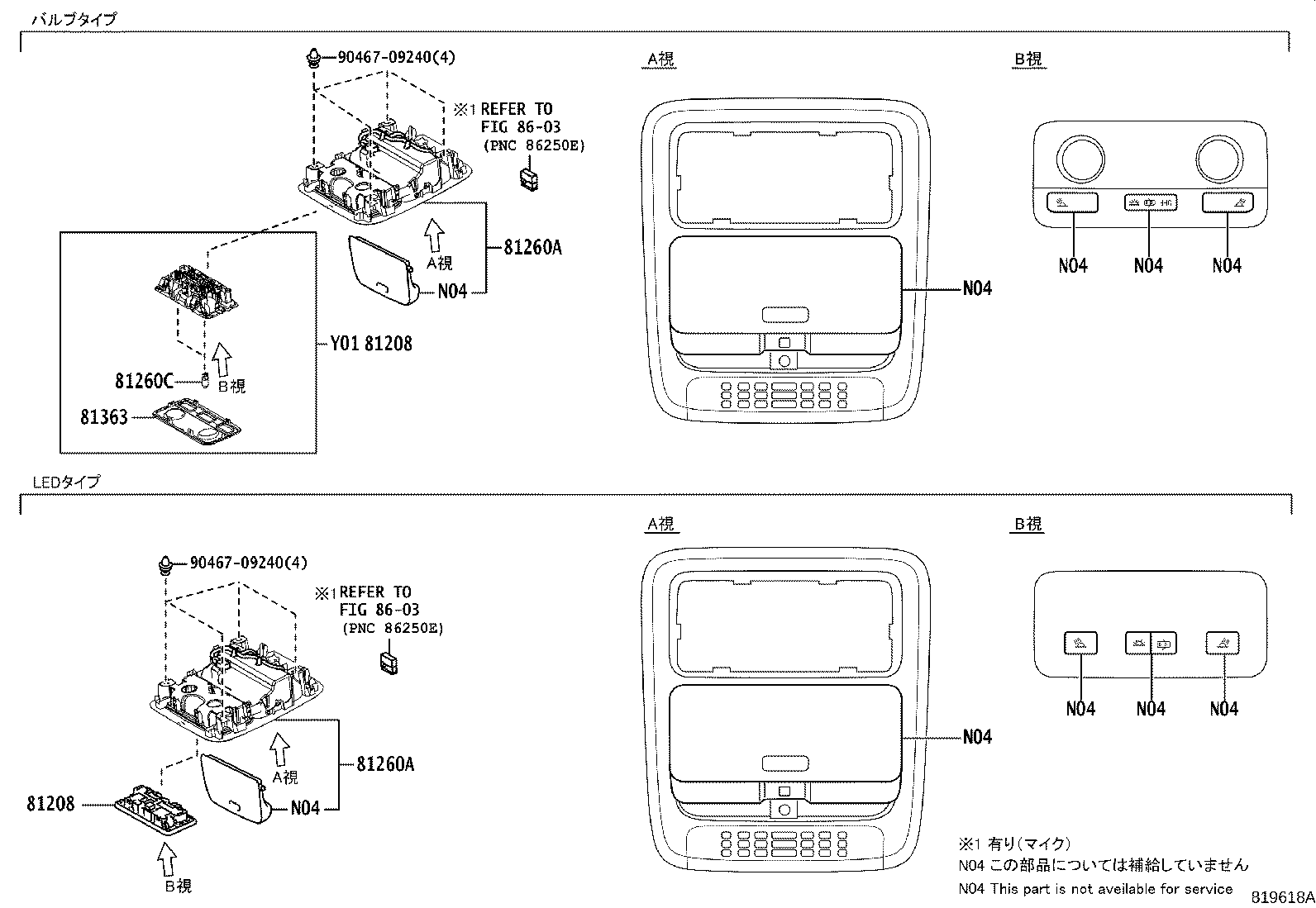

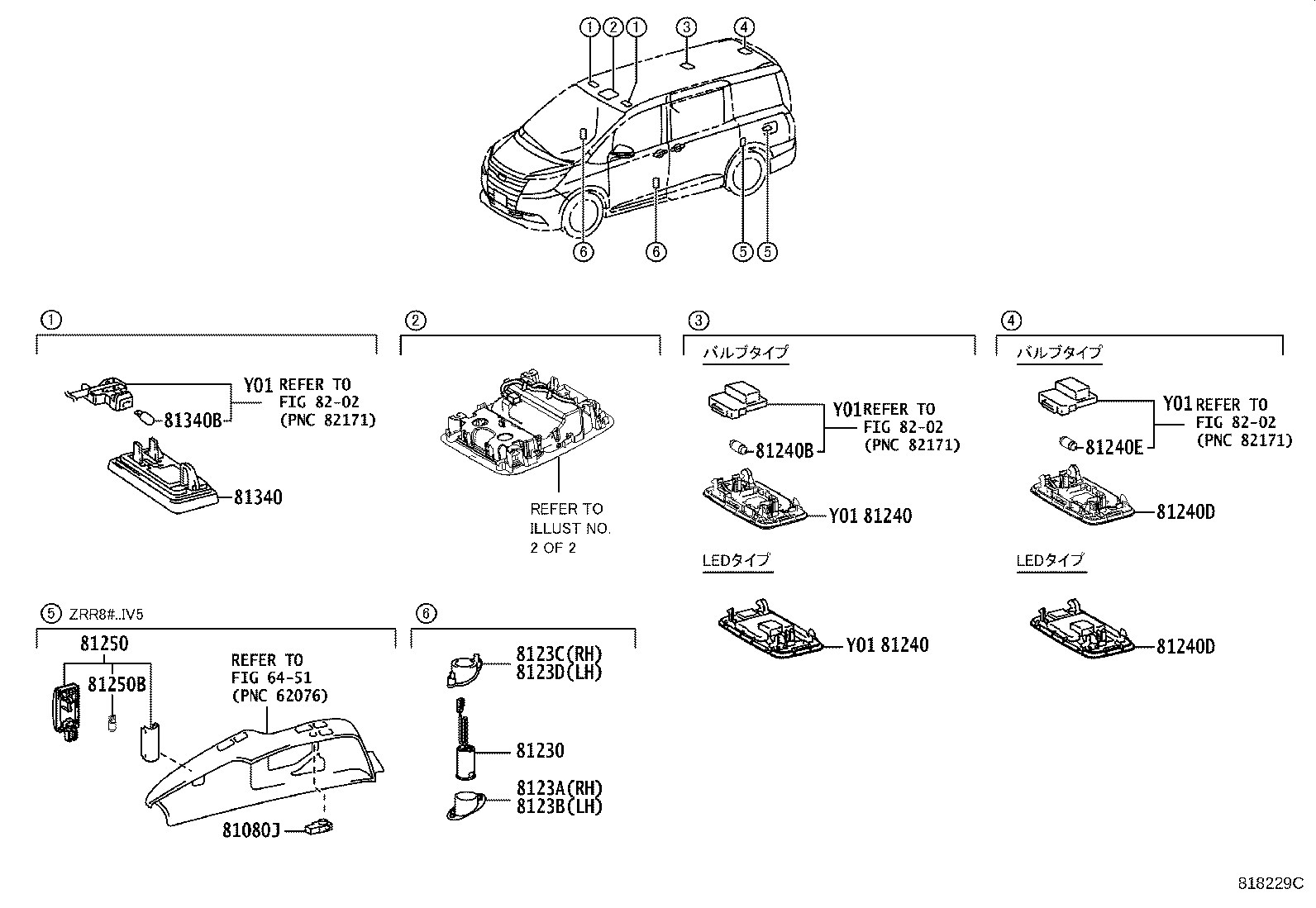

Figure 816852J 816852J 2014-01 → 2017-06 Figure 819617A 819617A 2014-01 → 2017-06 Figure 818229C 818229C 2017-06 → — Figure 819618A 819618A 2017-06 → —

Part groups

PNCDescription
81080J Lamp Assy, Interior Illumination, NO.1
81208 Lamp Sub-assy, Map
81230 Lamp Assy, Courtesy
8123A Bezel, Courtesy Lamp, Outer RH
8123B Bezel, Courtesy Lamp, Outer LH
8123C Spacer, Courtesy Lamp, Inner RH
8123D Spacer, Courtesy Lamp, Inner LH
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81363 Lens, Room Lamp, Outer
81870D Lamp Assy, Key Cylinder
84999E Bulb, Key Cylinder Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
