Toyota Noah/Voxy/Esquire

2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

165 part groups · 22 illustrations

Illustrations

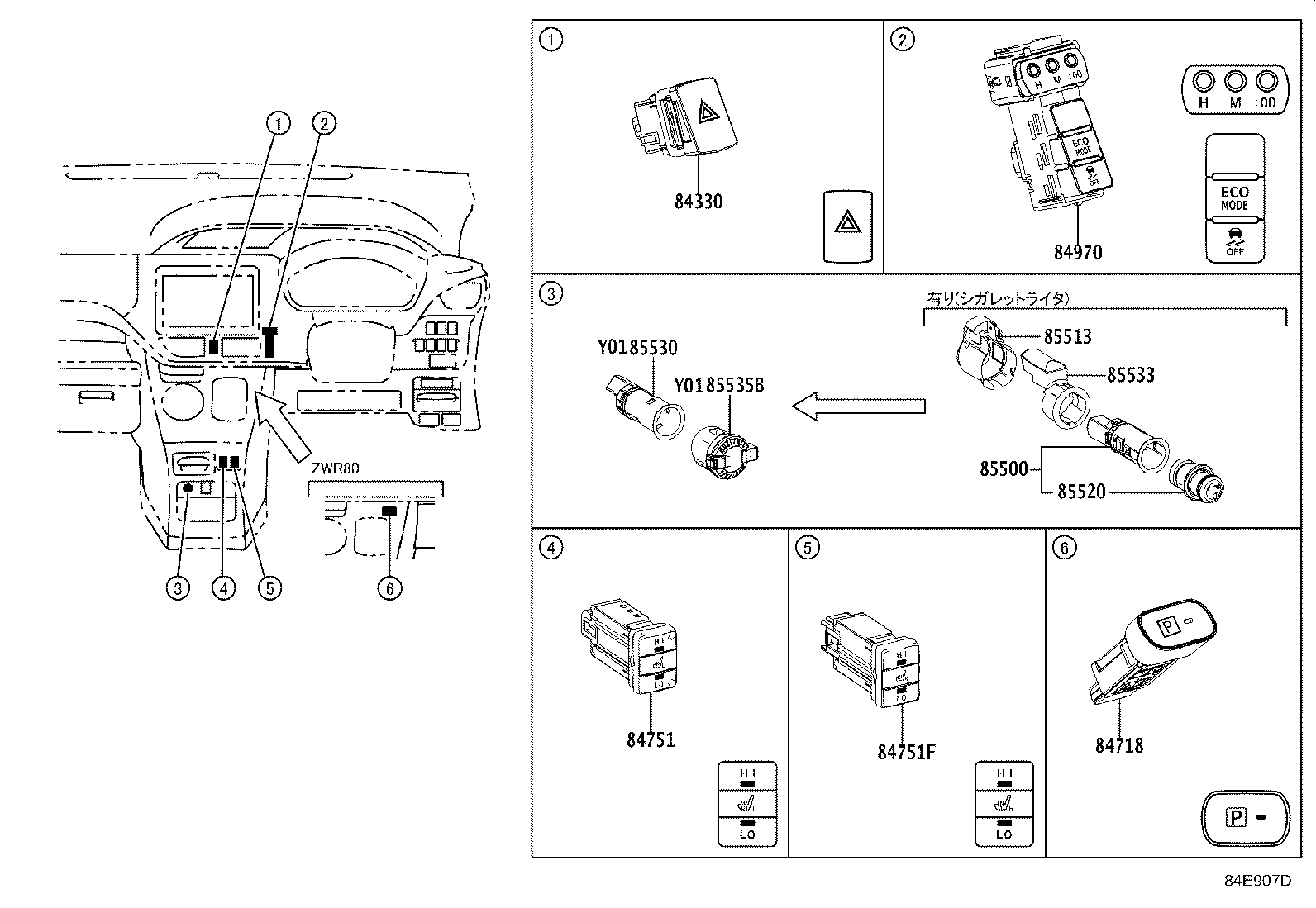

84E907D 2014-01 → 2016-01

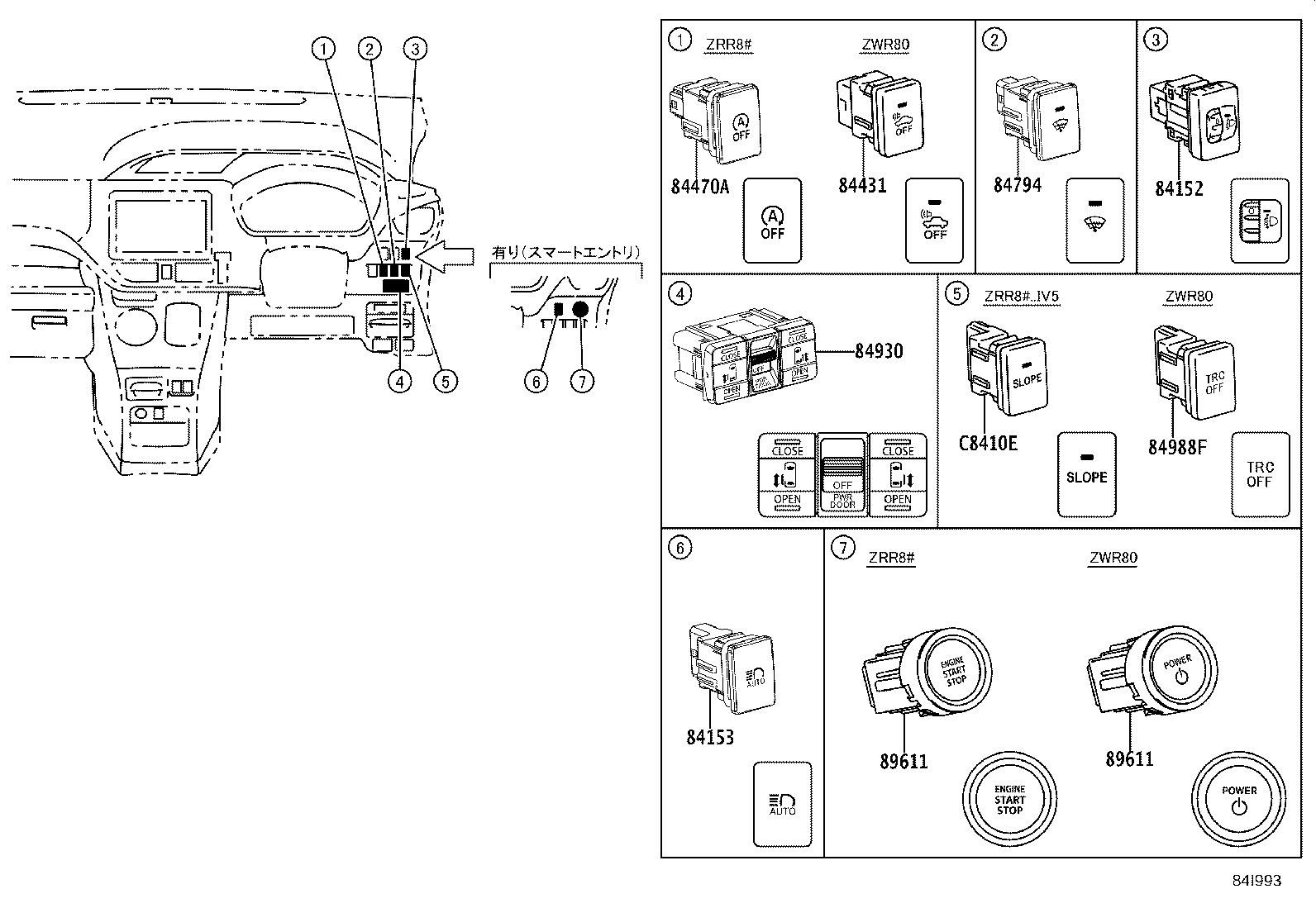

84I993 2014-01 → 2016-01

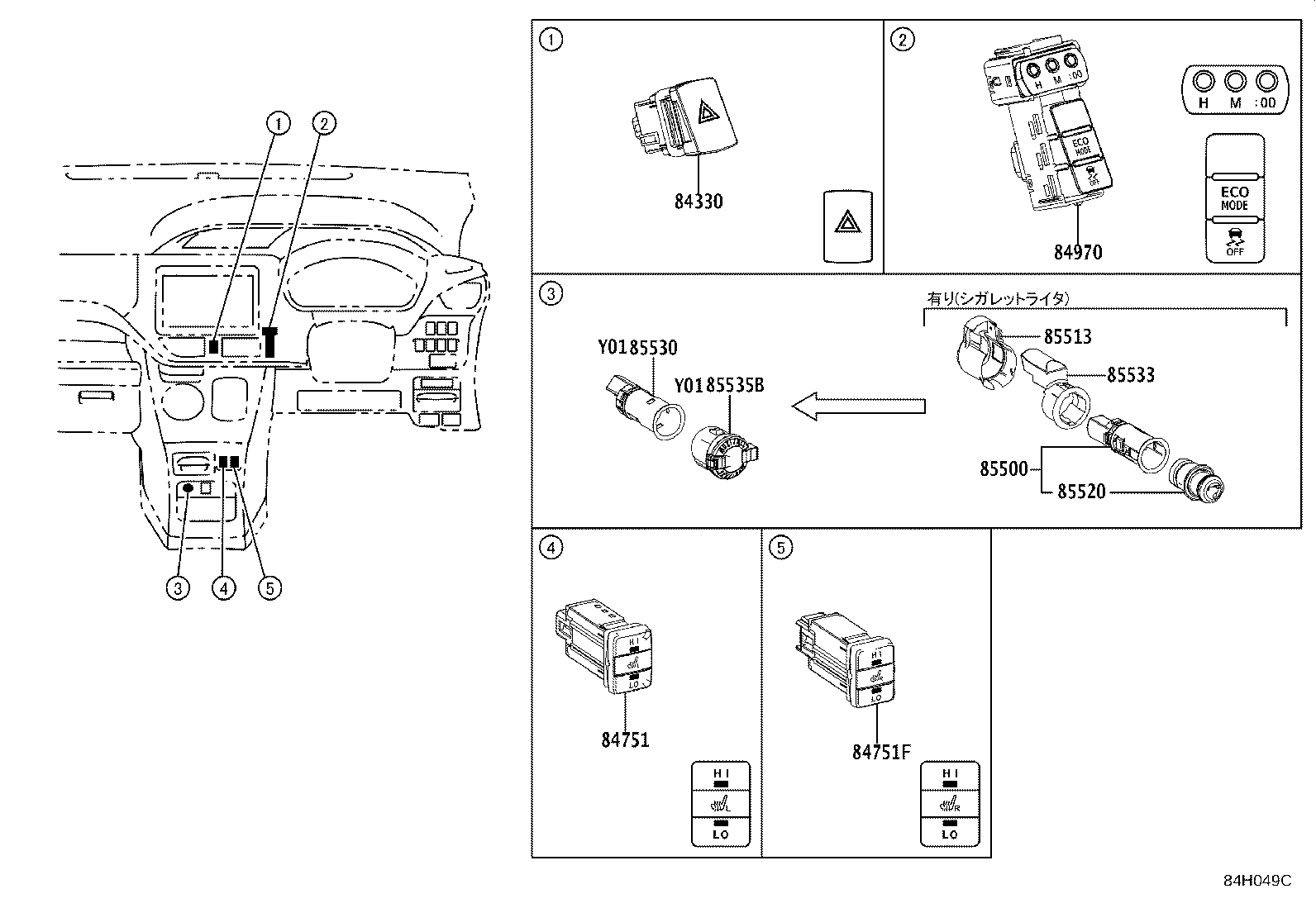

84H049C 2016-01 → 2017-06

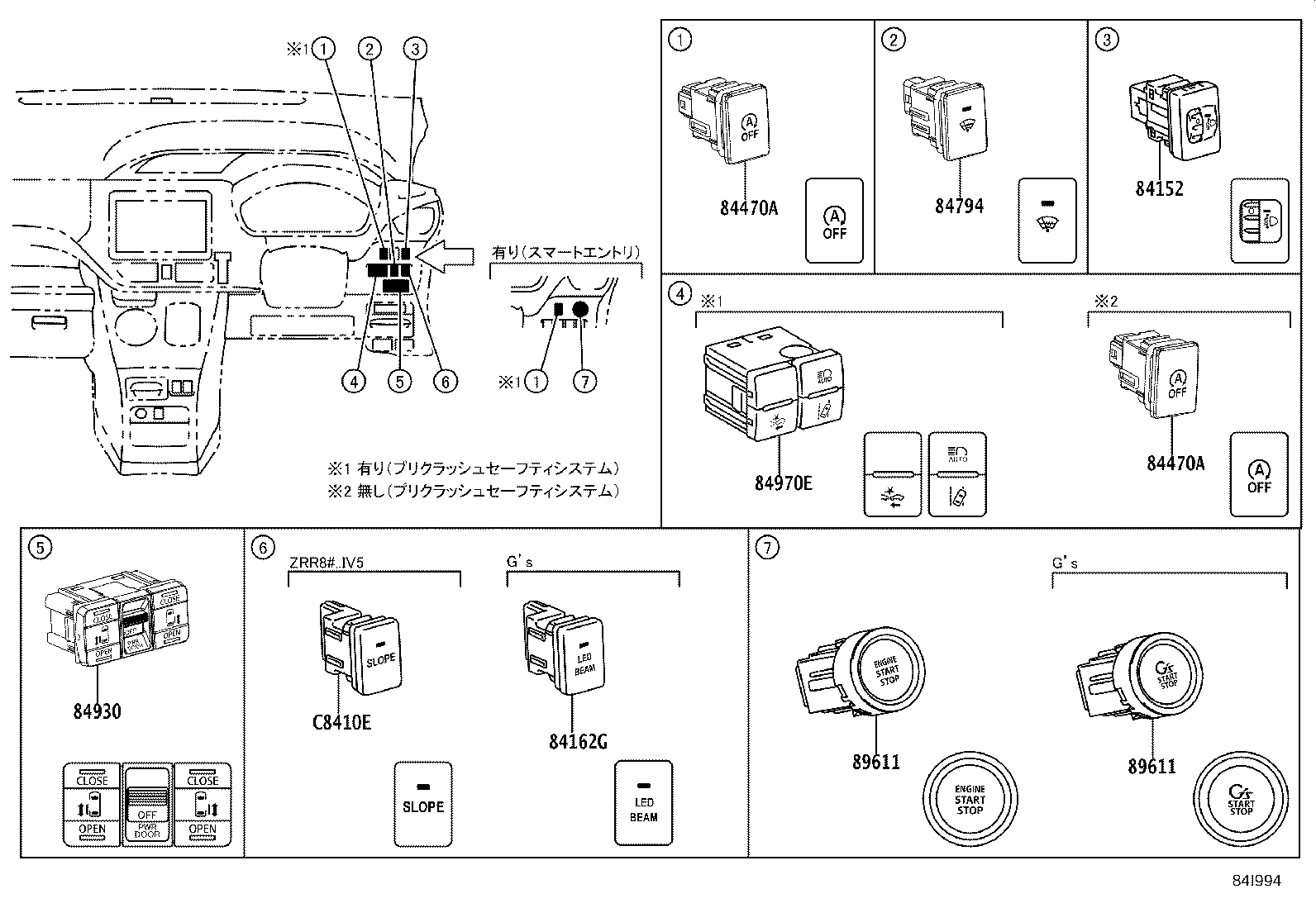

84I994 2016-01 → 2017-06

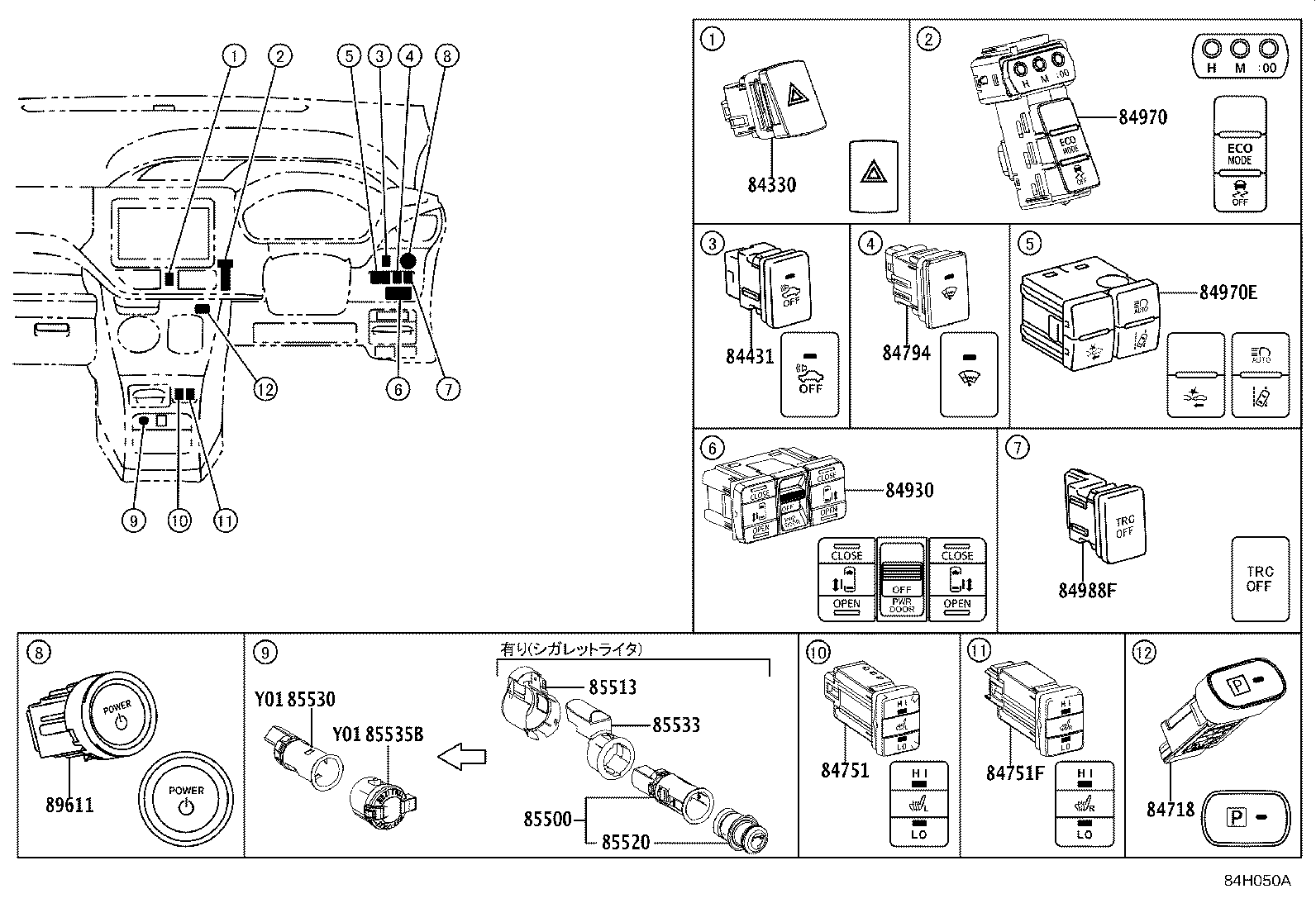

84H050A 2016-01 → 2017-06

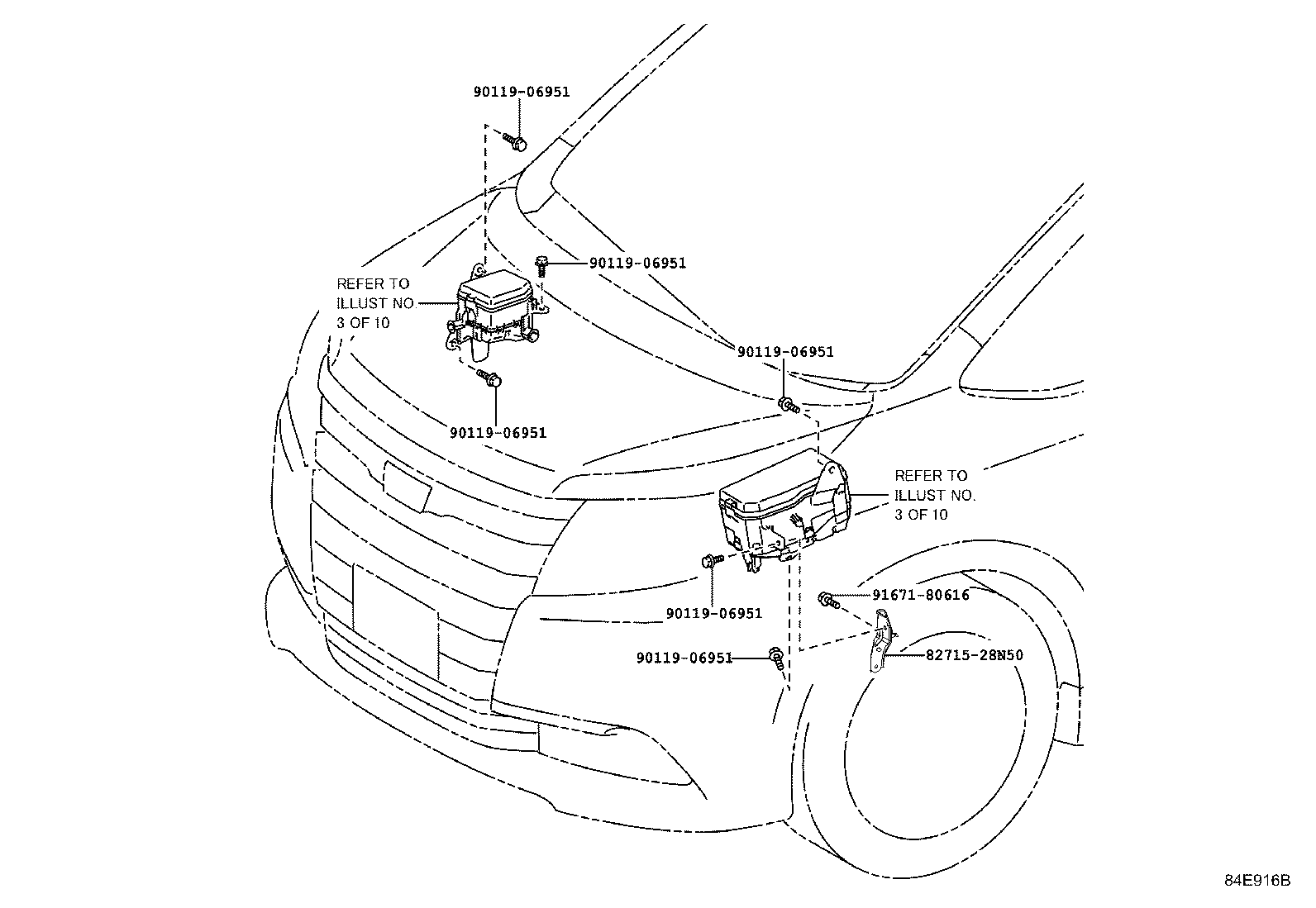

Part groups

PNC	Description
28300E	Relay Assy, Starter, NO.1
28300F	Relay Assy, Starter, NO.2

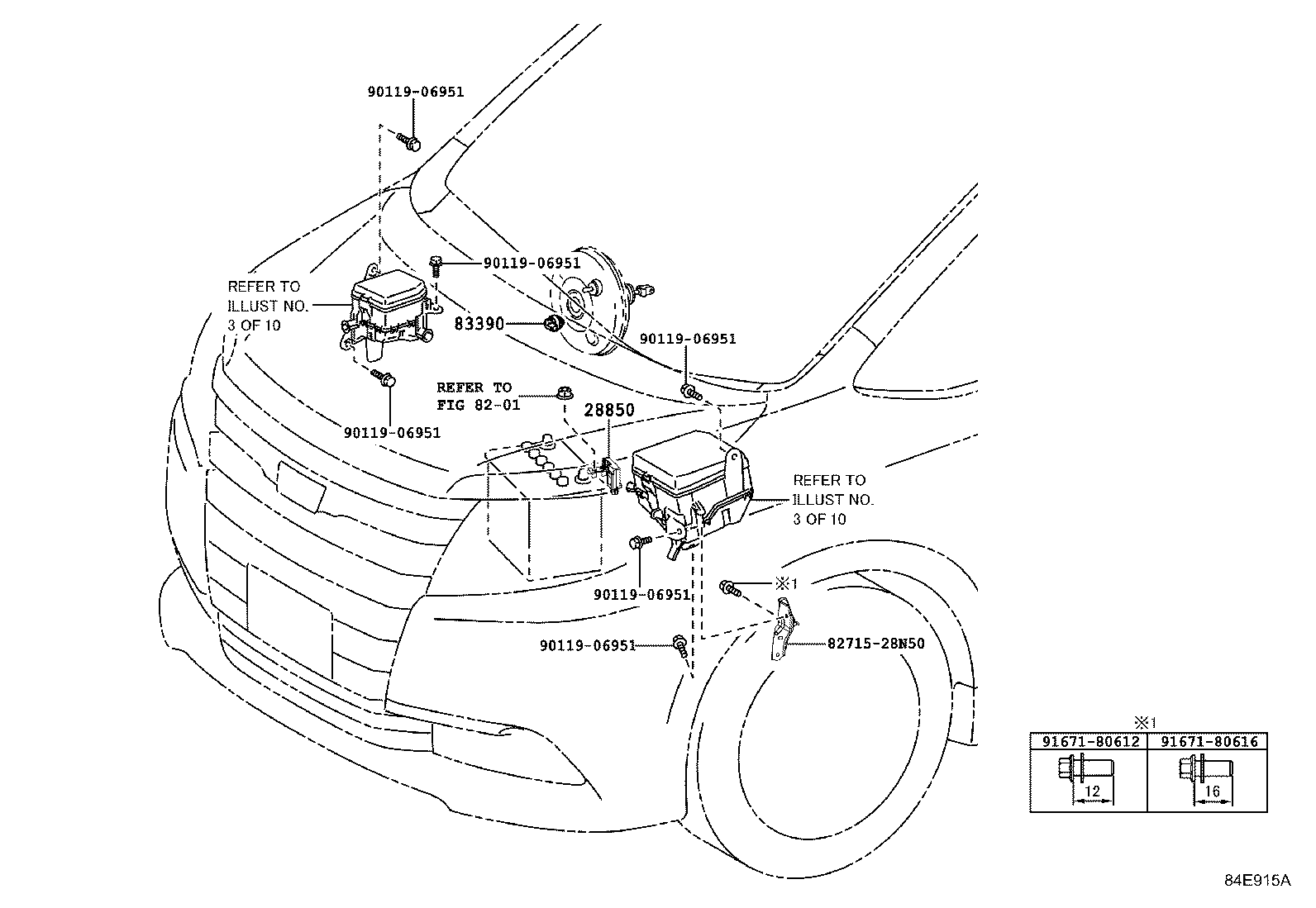

28850	Sensor Assy, Battery Current

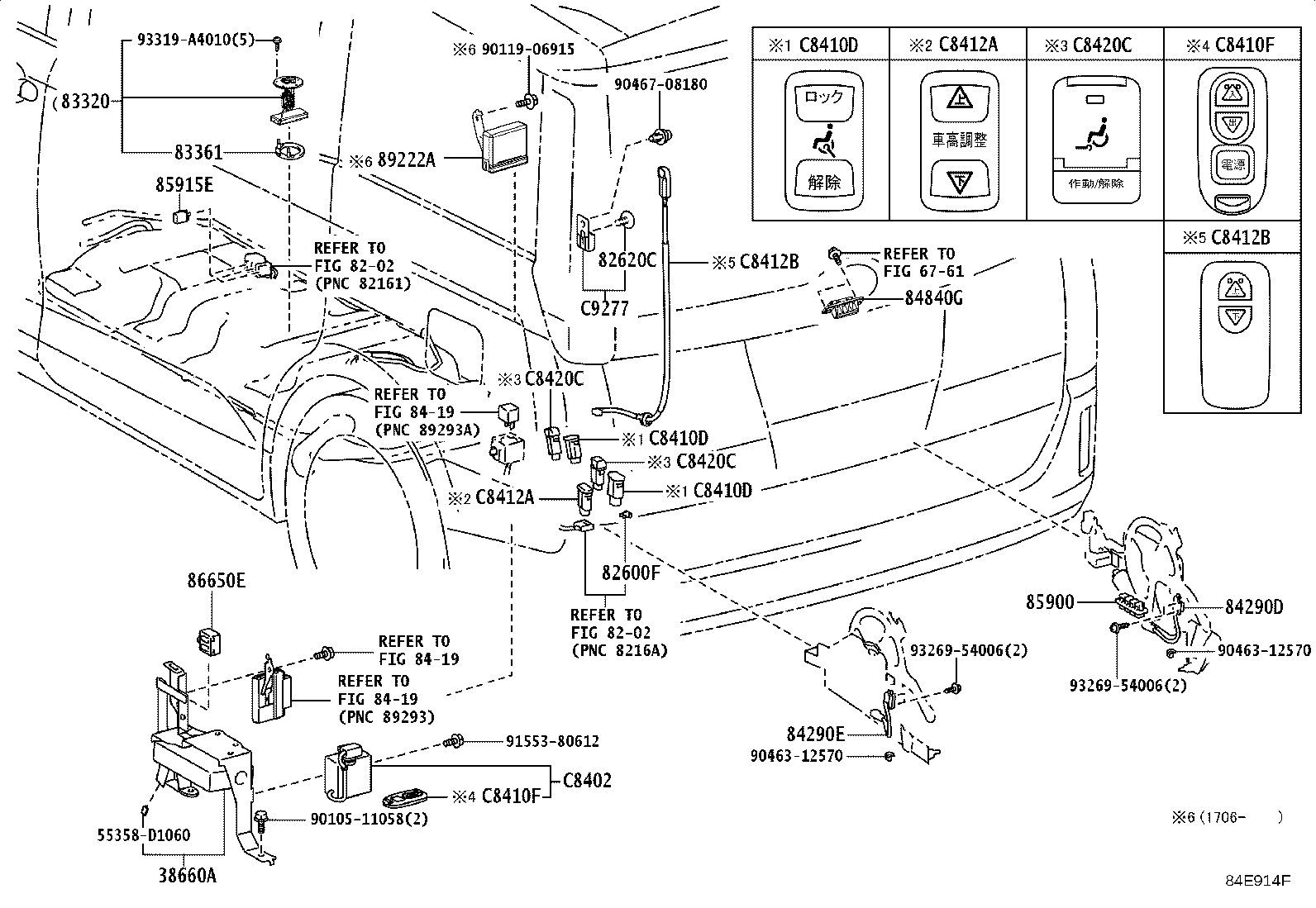

38660A	Controller Assy, Winch Motor
81550T	Relay, Back UP Lamp
82210M	Fusible Link
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82600F	Fuse, Fuse Block
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82620C	Clip
82620E	Block Assy, Fusible Link
82641	Relay, Integration NO.1
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82660F	Block Assy, Relay
82660G	Block Assy, Relay
82660H	Block Assy, Relay
82660J	Block Assy, Relay
82660K	Block Assy, Relay
82660L	Block Assy, Relay
82660M	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82661A	Cover, Relay Block, NO.2
82661B	Cover, Relay Block, NO.3
82662A	Cover, Relay Block, Upper, NO.1
82662B	Cover, Relay Block, Upper, NO.2
82663	Cover, Relay Block, Lower
82663A	Cover, Relay Block, Lower, NO.2
82672A	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82730F	Block Assy, Junction, LH

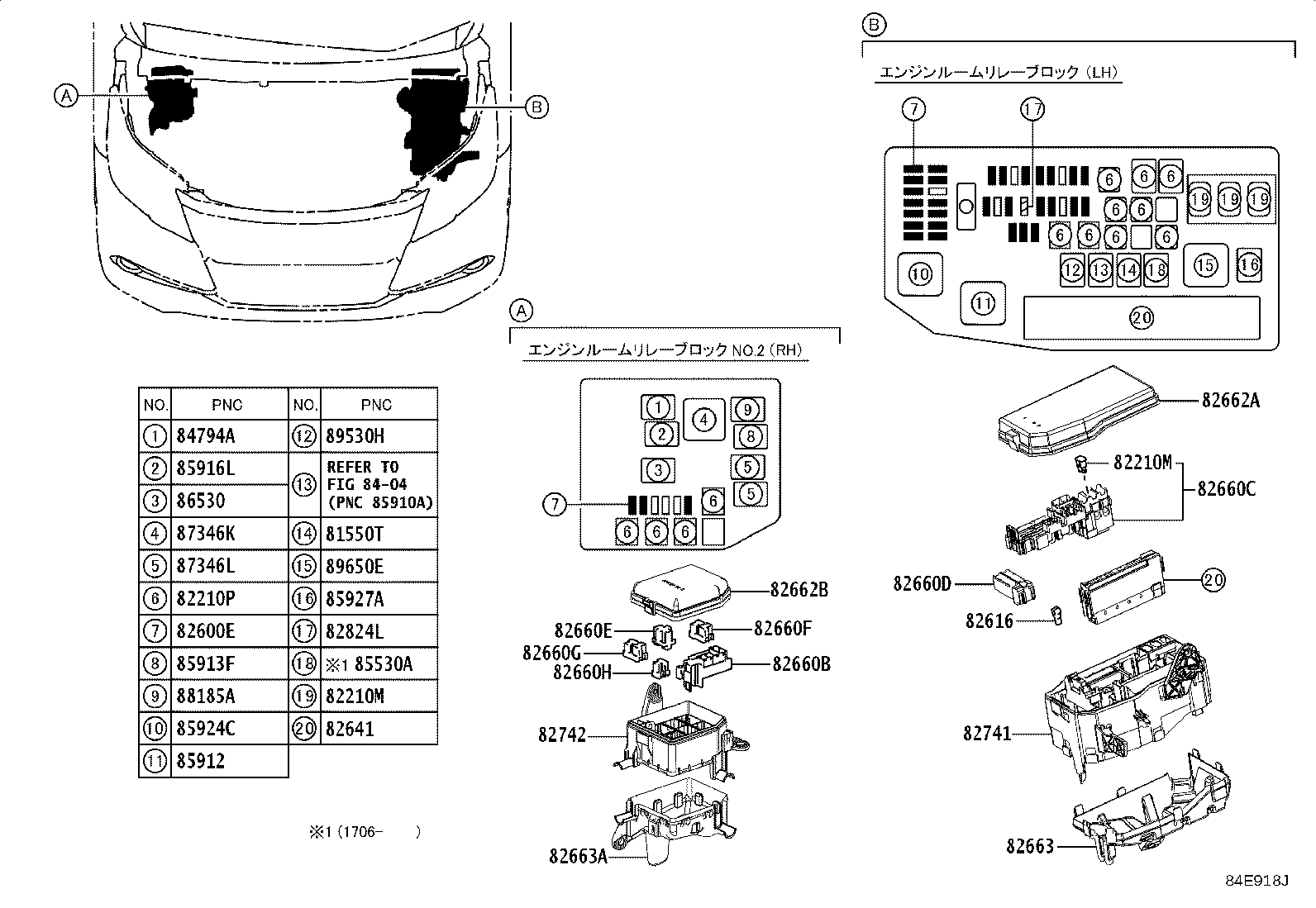

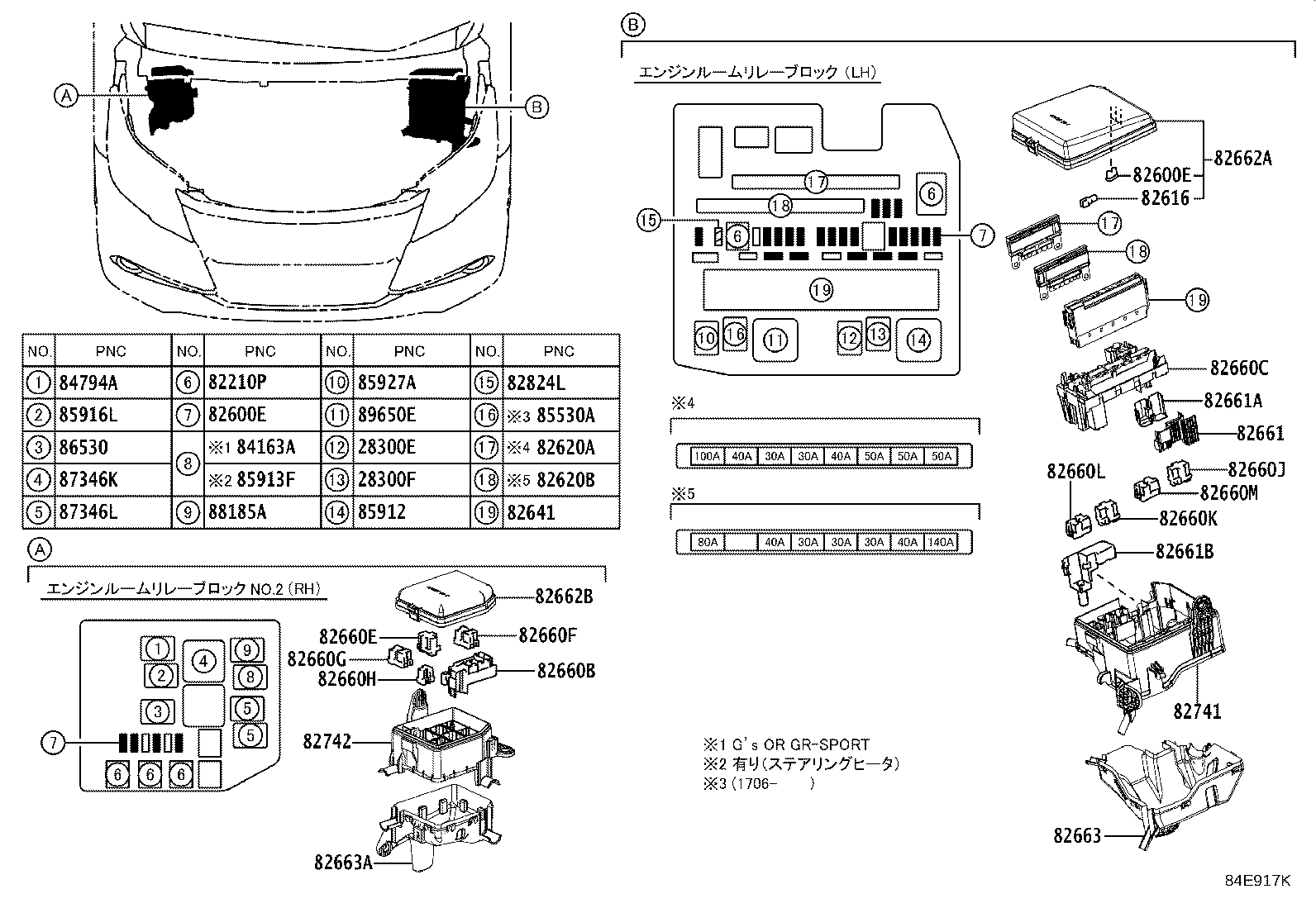

82741	Block, Engine Room Relay
82742	Block, Engine Room Relay, NO.2
82824L	Pin, Short
82877	Box, Computer Integration, RH

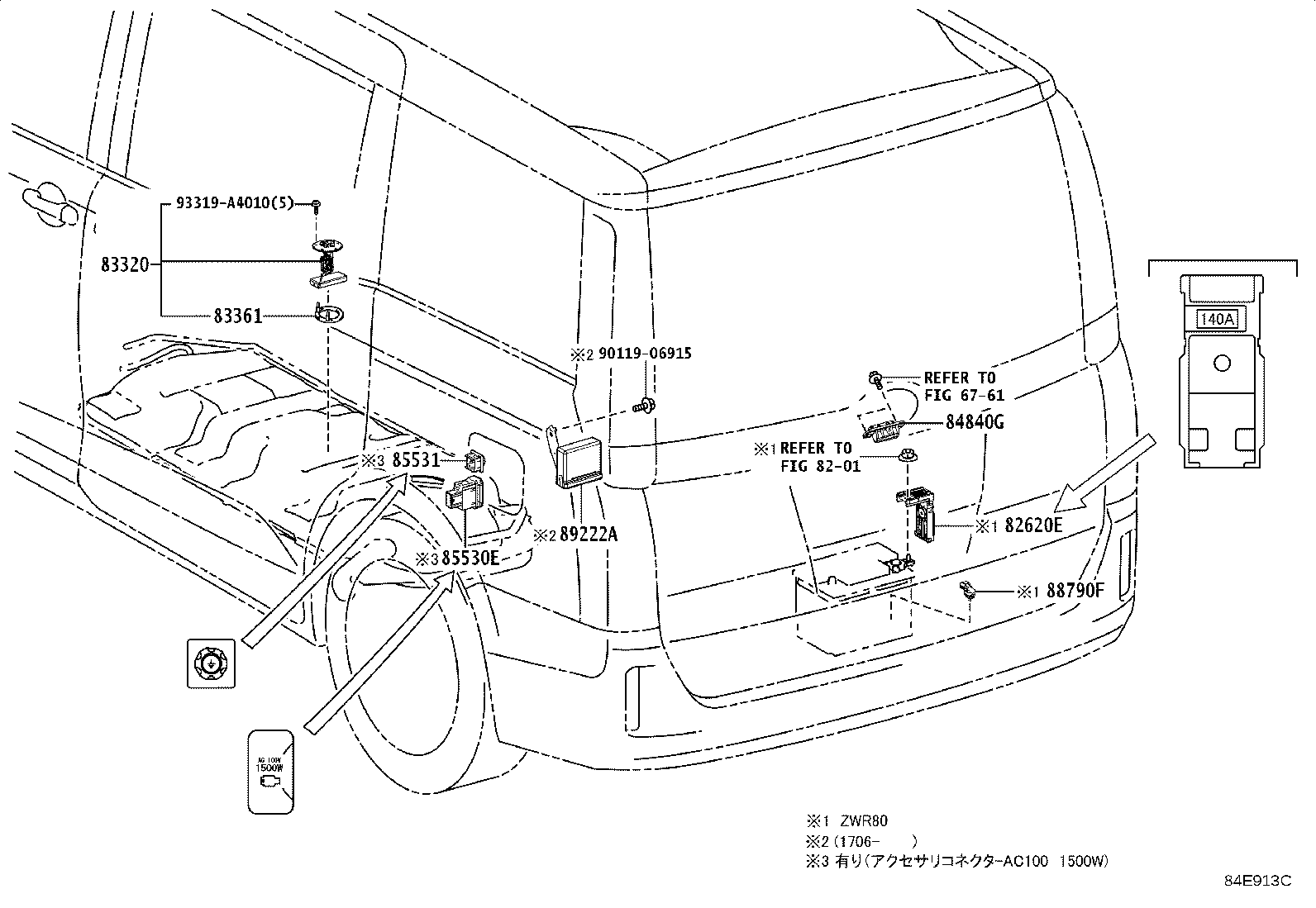

83320	Gage Assy, Fuel Sender
83361	Gasket, Fuel Sender Gage
83390	Switch Assy, Vacuum Warning

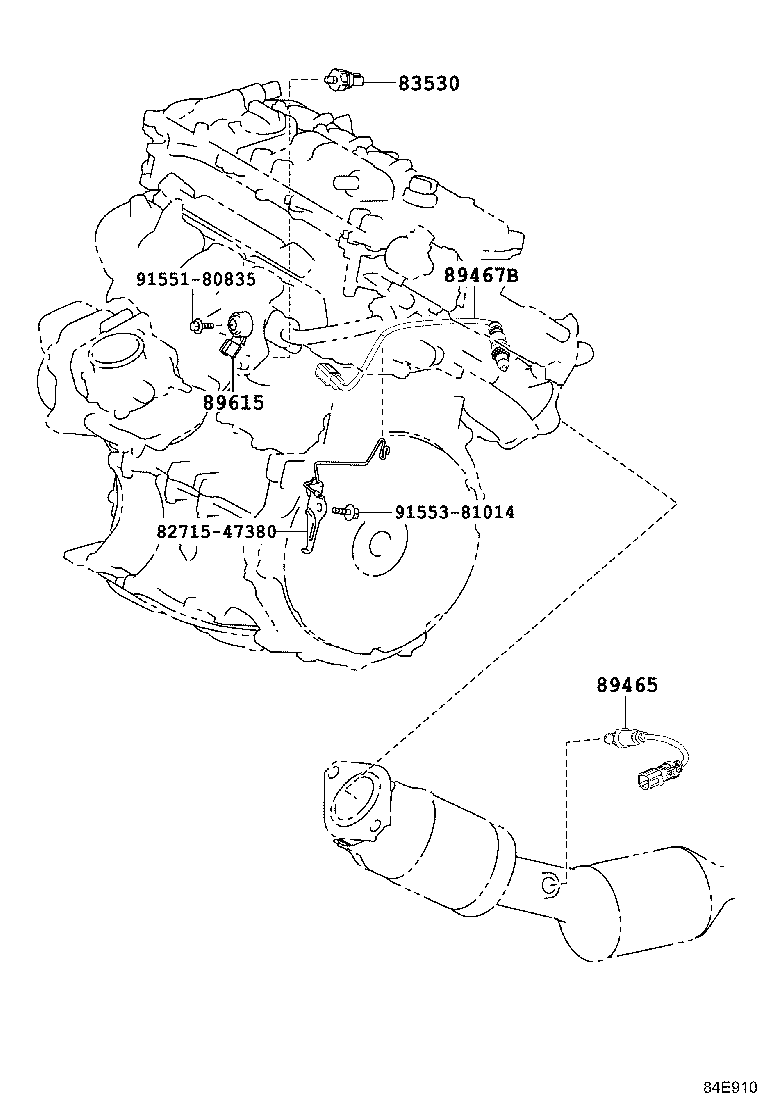

83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
84040	Master Switch Assy,Multiplex Network
84052	Switch Assy, Un-lock Warning

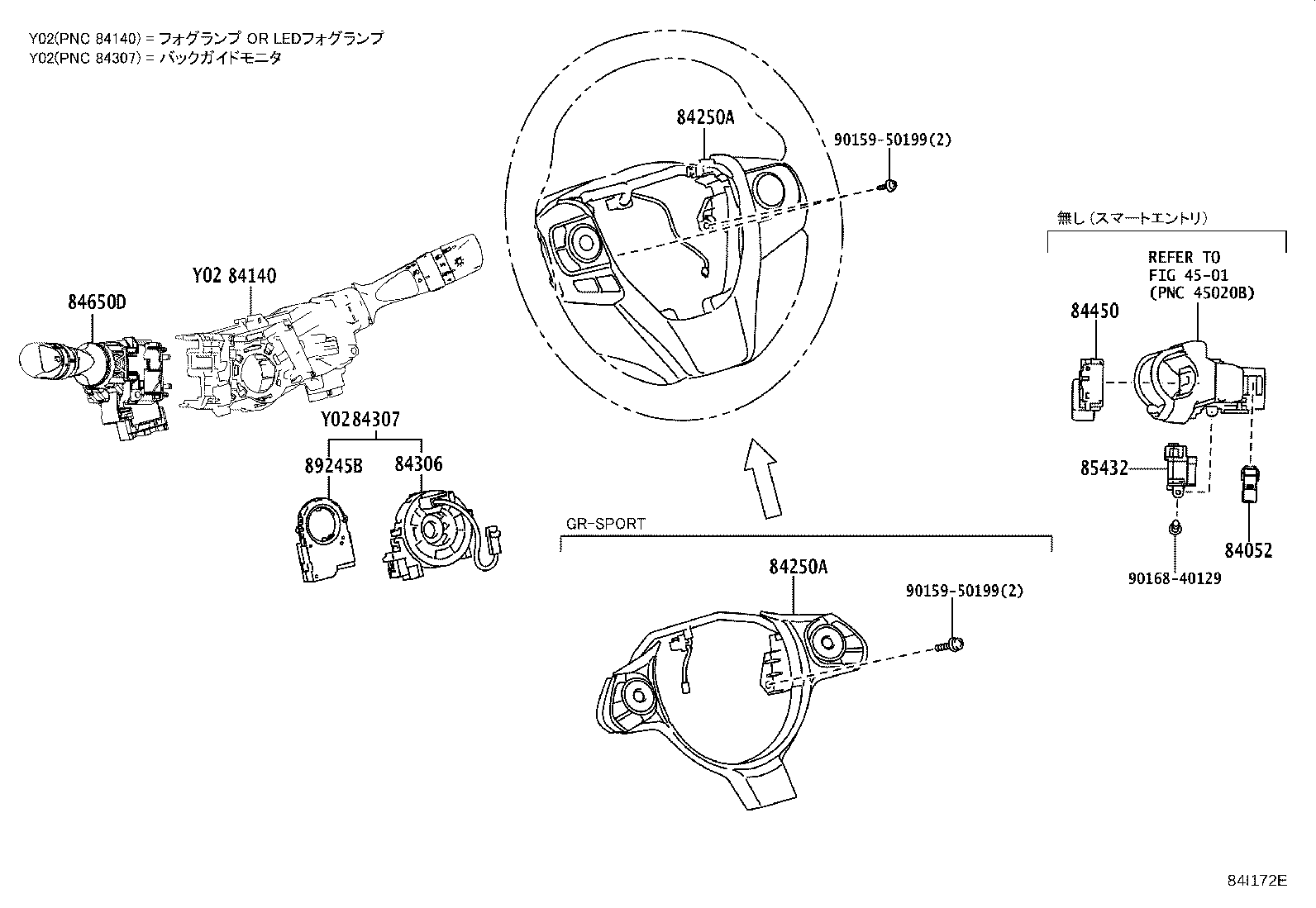

84140	Switch Assy, Headlamp Dimmer
84152	Switch, Headlamp Leveling
84153	Switch, Auto High Beam
84162G	Switch, Led Illumination Beam
84163A	Relay, Light Emitting Diode Illumination
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A	Switch Assy, Steering Pad
84255	Switch, Steering Heater
84290D	Switch Assy, Limit
84290E	Switch Assy, Limit
84290P	Switch, Limit(FOR SEAT RECLINING)
84306	Cable Sub-assy, Spiral
84307	Cable Sub-assy, Spiral W/Sensor

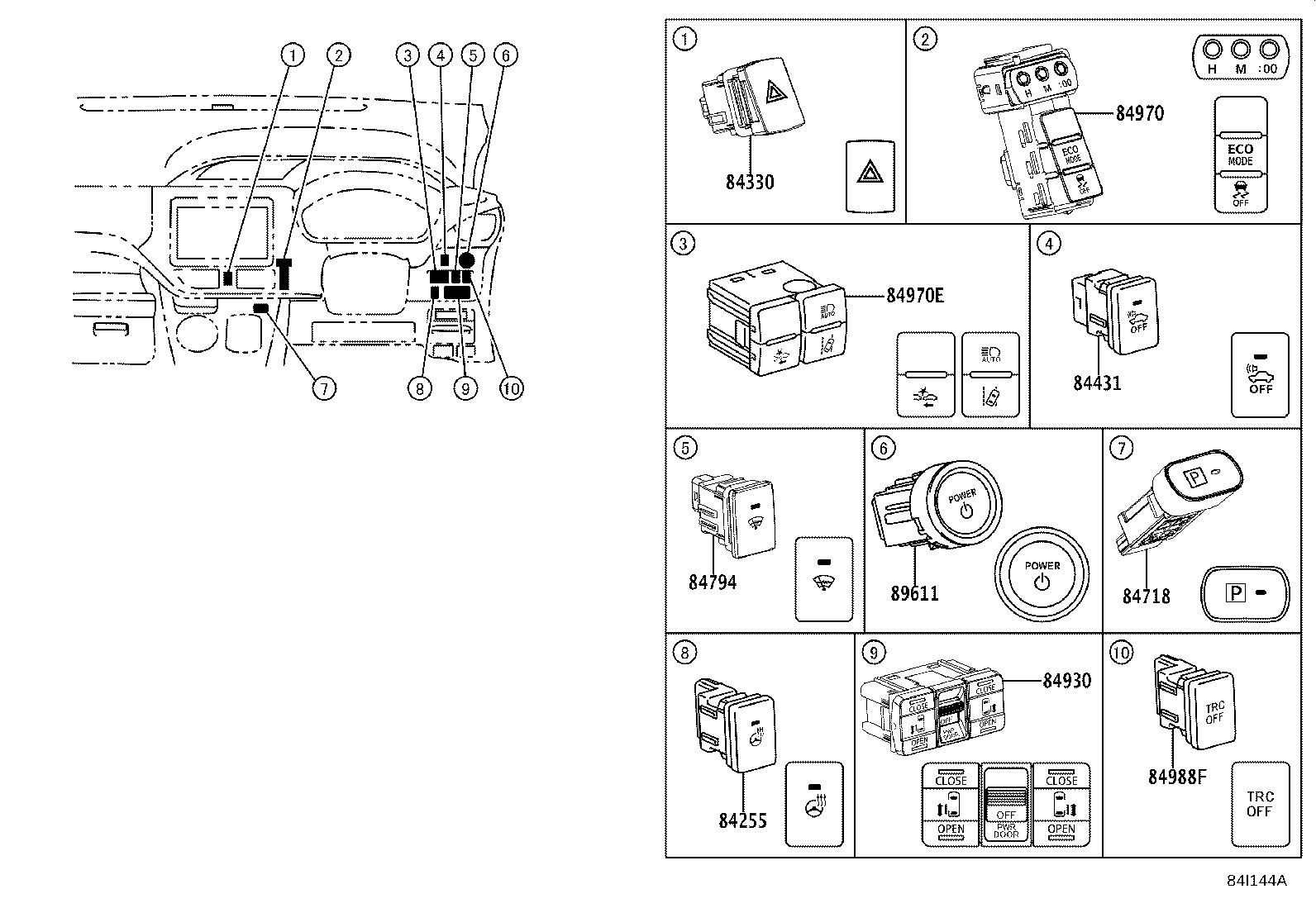

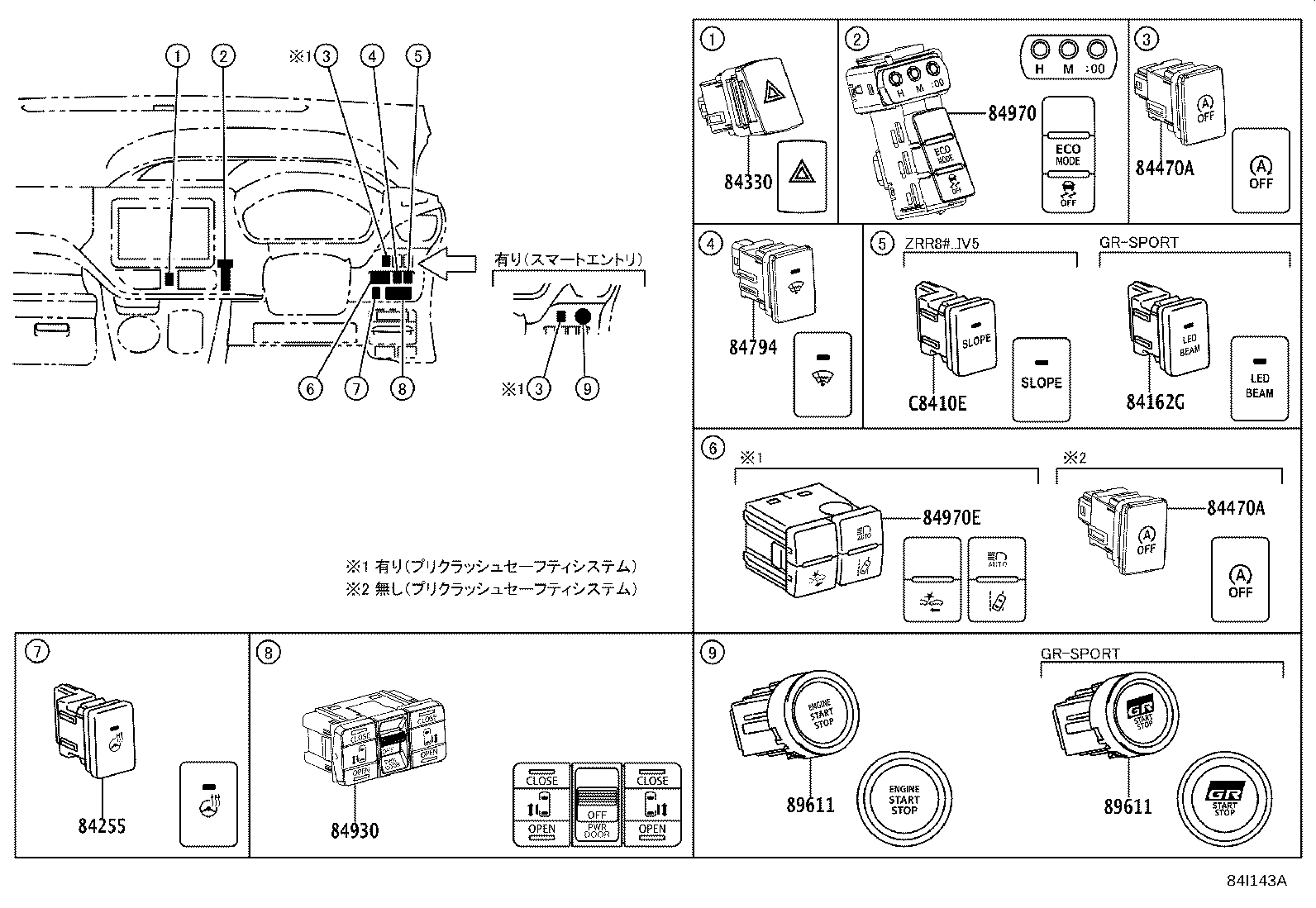

84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84431	Switch, Vehicle Approaching Speaker
84450	Switch Assy, Ignition OR Starter
84470A	Switch Assy, Ecorun Cancel
84485	Switch, Power Outlet(AC100V ACCESSORY SOCKET)
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84718	Switch, Transmission Shift Main
84751	Switch, Seat Heater
84751F	Switch, Seat Heater
84763	Plate, Switch
84794	Switch, FR Wiper Deicer
84794A	Relay, FR Wiper Deicer

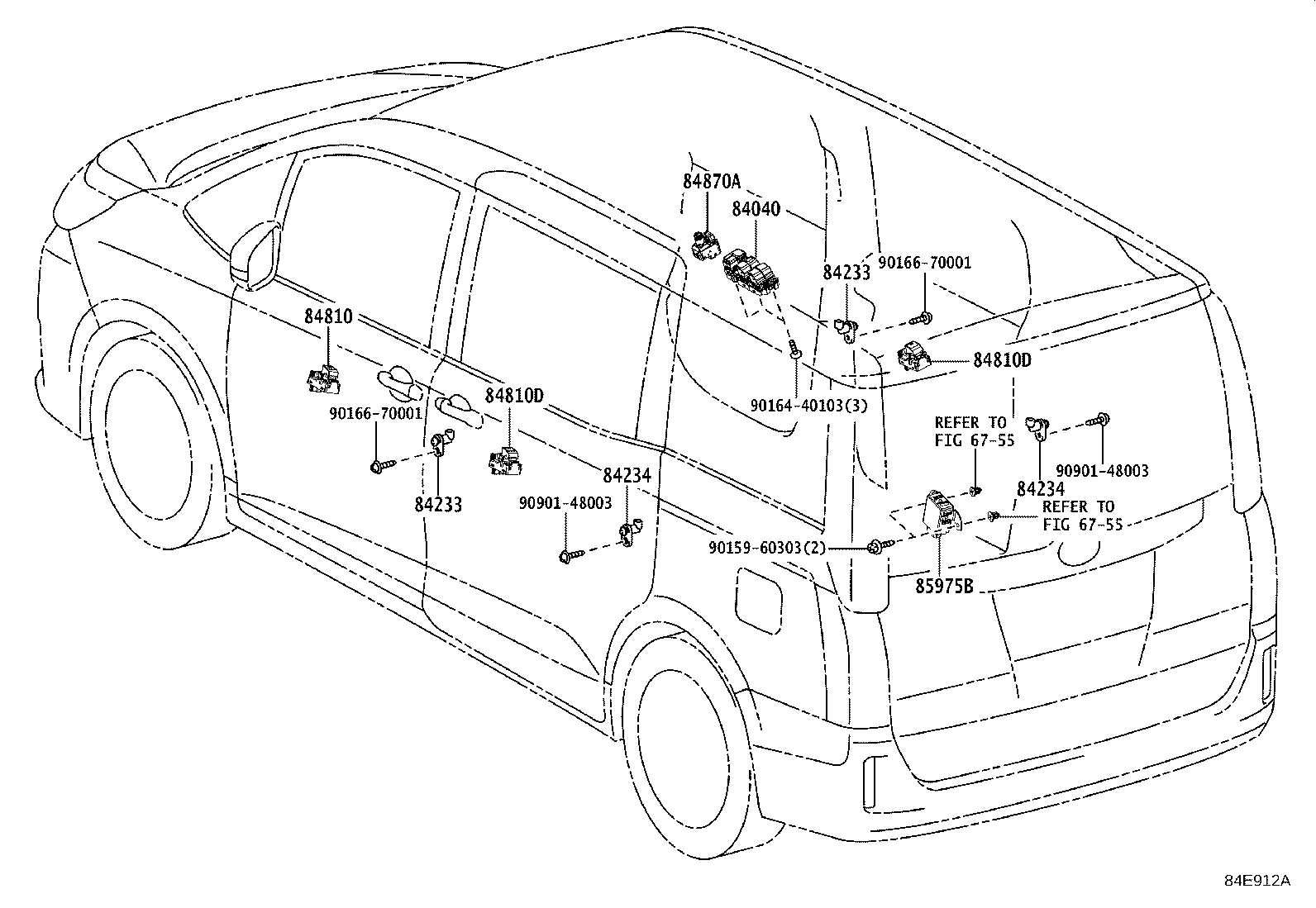

84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840G	Switch Assy, Back Door Opener
84870A	Switch Assy, Outer Mirror

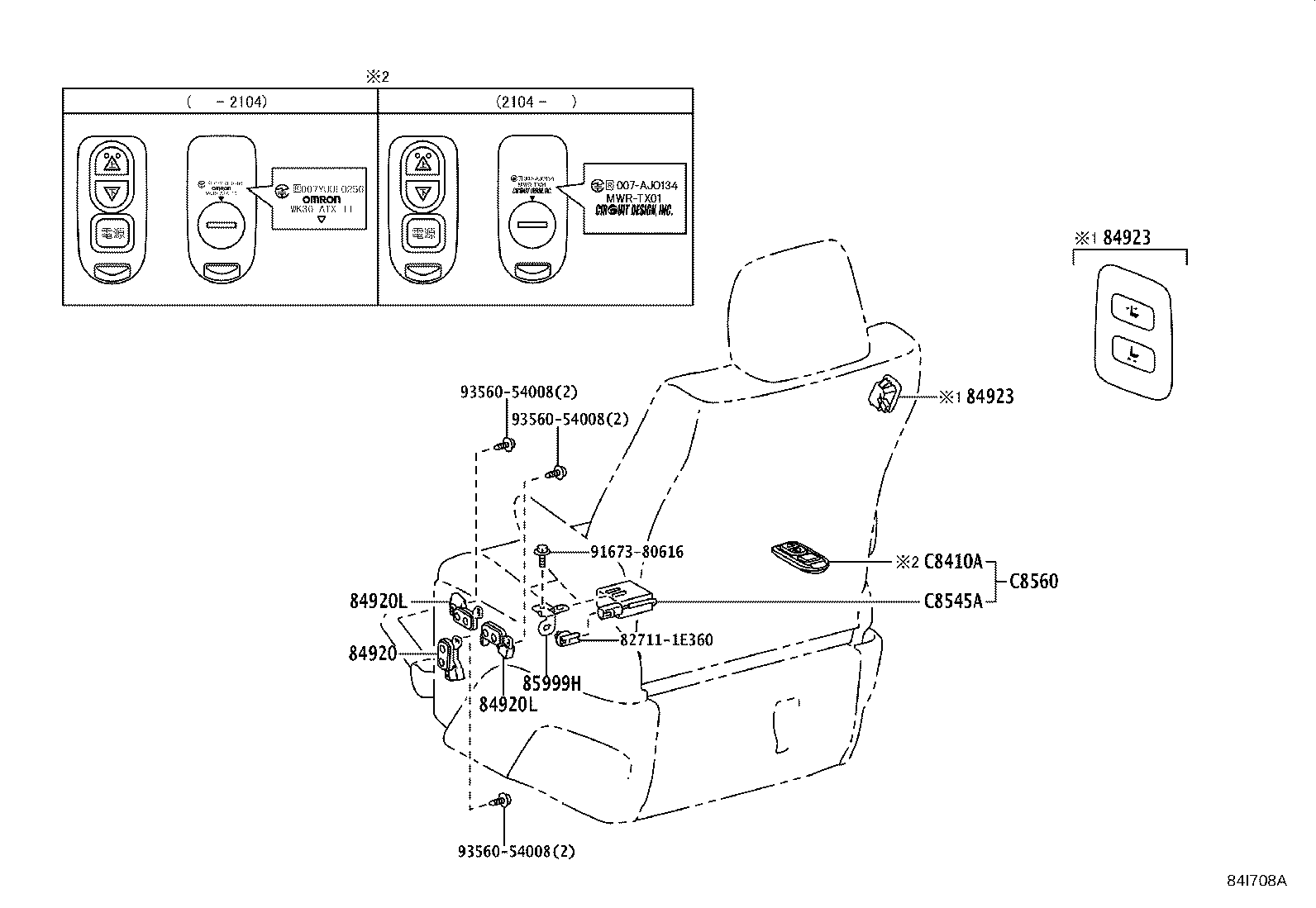

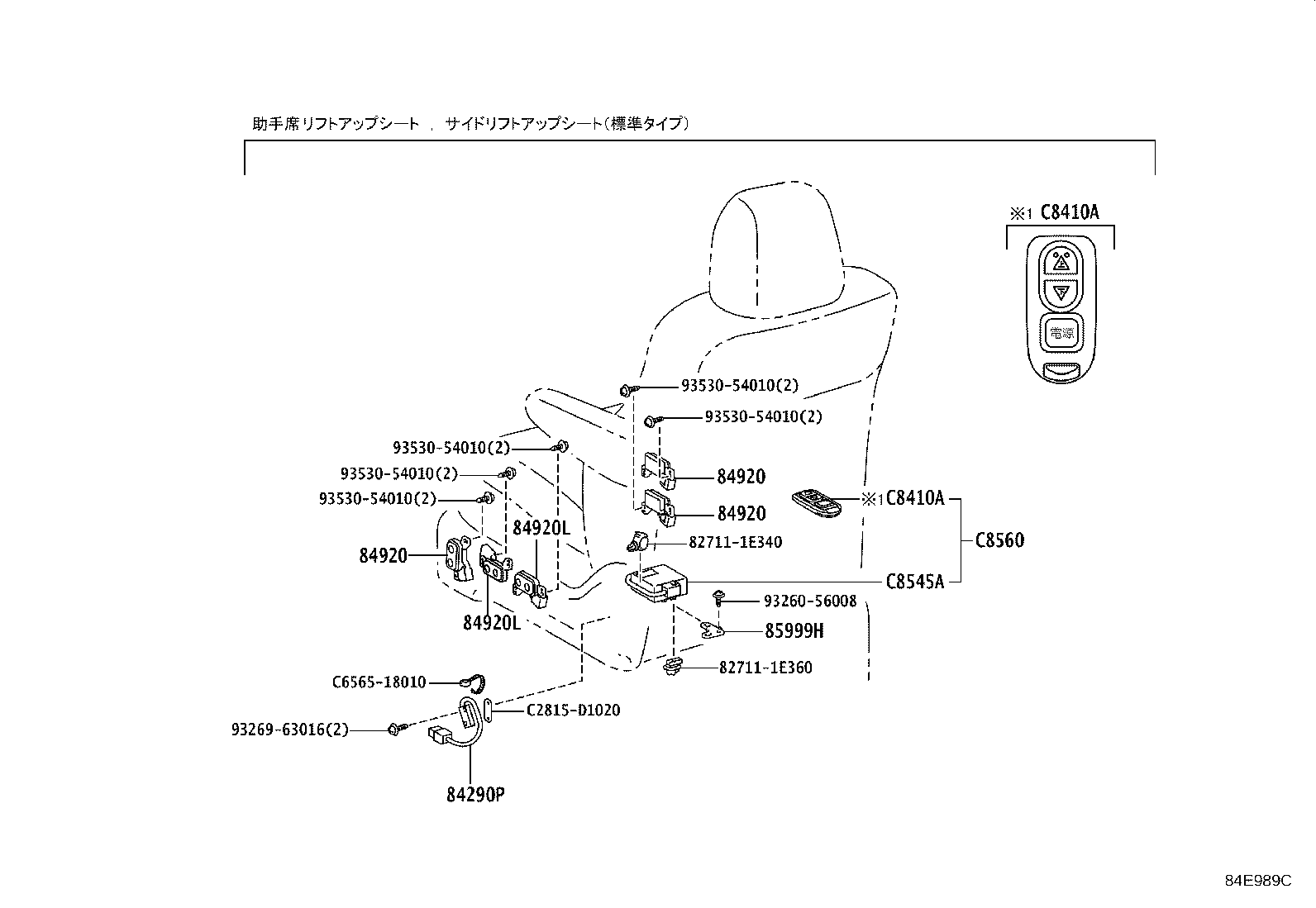

84920	Switch Assy, Power Seat
84920L	Switch Assy, Power Seat, NO.2
84920M	Switch, Power Seat
84923	Switch, Rear Power Seat
84930	Switch Assy, Door Control
84970	Switch Assy, Combination
84970E	Switch Assy, Combination NO.2
84988F	Switch, Traction Control
85432	Solenoid, Key Interlock

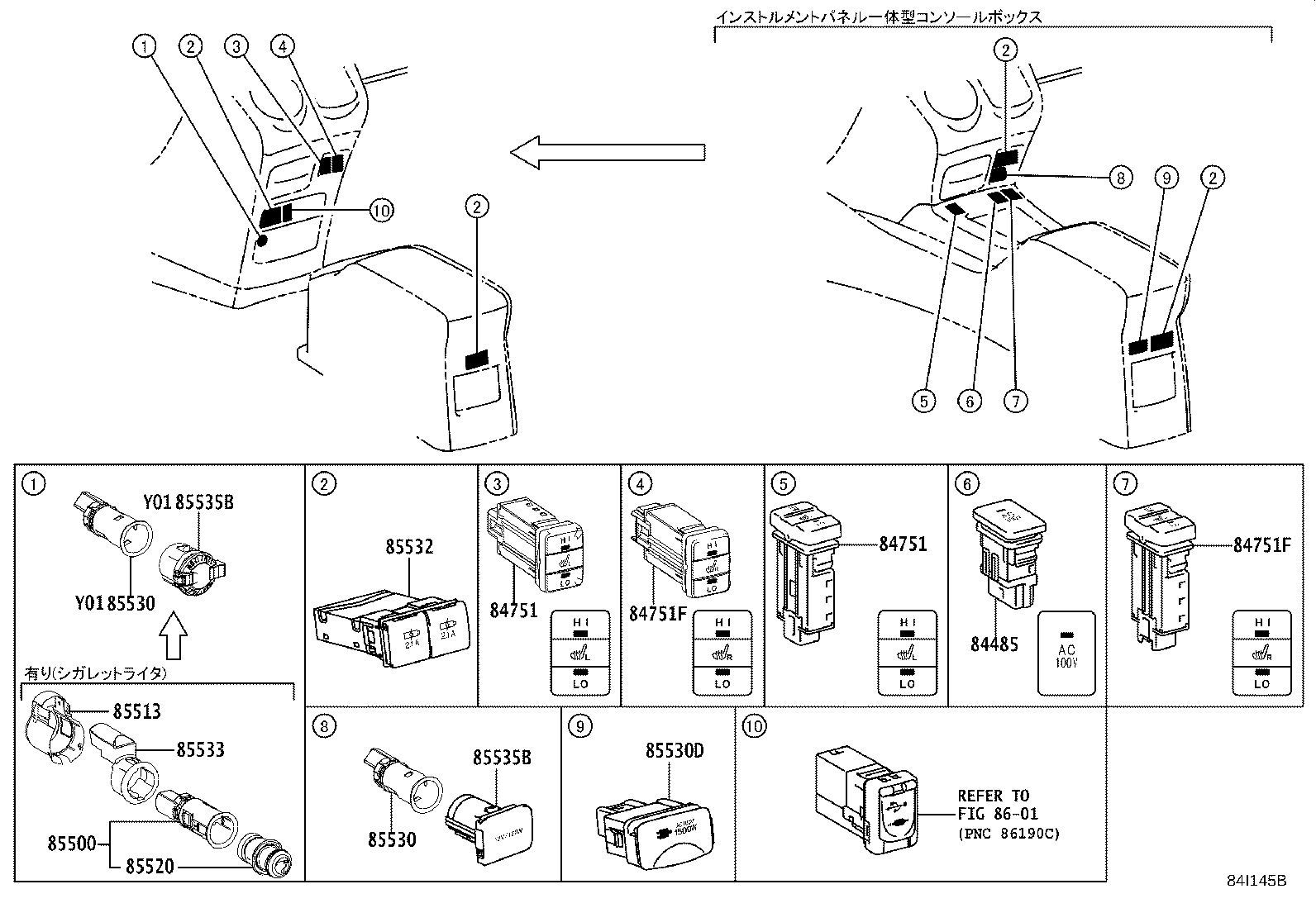

85500	Lighter Assy, Cigarette
85513	Cover, Cigarette Lighter
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85530A	Relay, Power Outlet Socket
85530D	Socket Assy, Power Outlet, NO.2
85530E	Socket Assy, Power Outlet, NO.3
85531	Socket, Power Outlet
85532	Socket, Usb Charger
85533	Lens, Cigarette Lighter Indicator
85535B	Cover, Power Outlet Socket, NO.1
85900	Relay Assy, Control Unit
85909C	Bracket Sub-assy, Relay, NO.1
85912	Relay, Defogger
85913F	Relay, Steering Heater
85915E	Relay
85916L	Relay, Rear Fog Lamp
85924C	Relay, Igct
85927A	Relay, Cooling Fan, NO.2
85975B	Relay, Slide Door Closer, RH
85999H	Bracket, Relay
86206B	Inverter Sub-assy, Voltage
86247A	Bracket, Voltage Inverter
86247C	Bracket, Voltage Inverter, NO.2
86247D	Bracket, Voltage Inverter, NO.3
86530	Relay Assy, Horn
86650E	Buzzer Assy
87346K	Relay, Ptc Heater
87346L	Relay, Ptc Heater
88185A	Relay, Pre-collision City Heater
88790F	Thermistor Assy

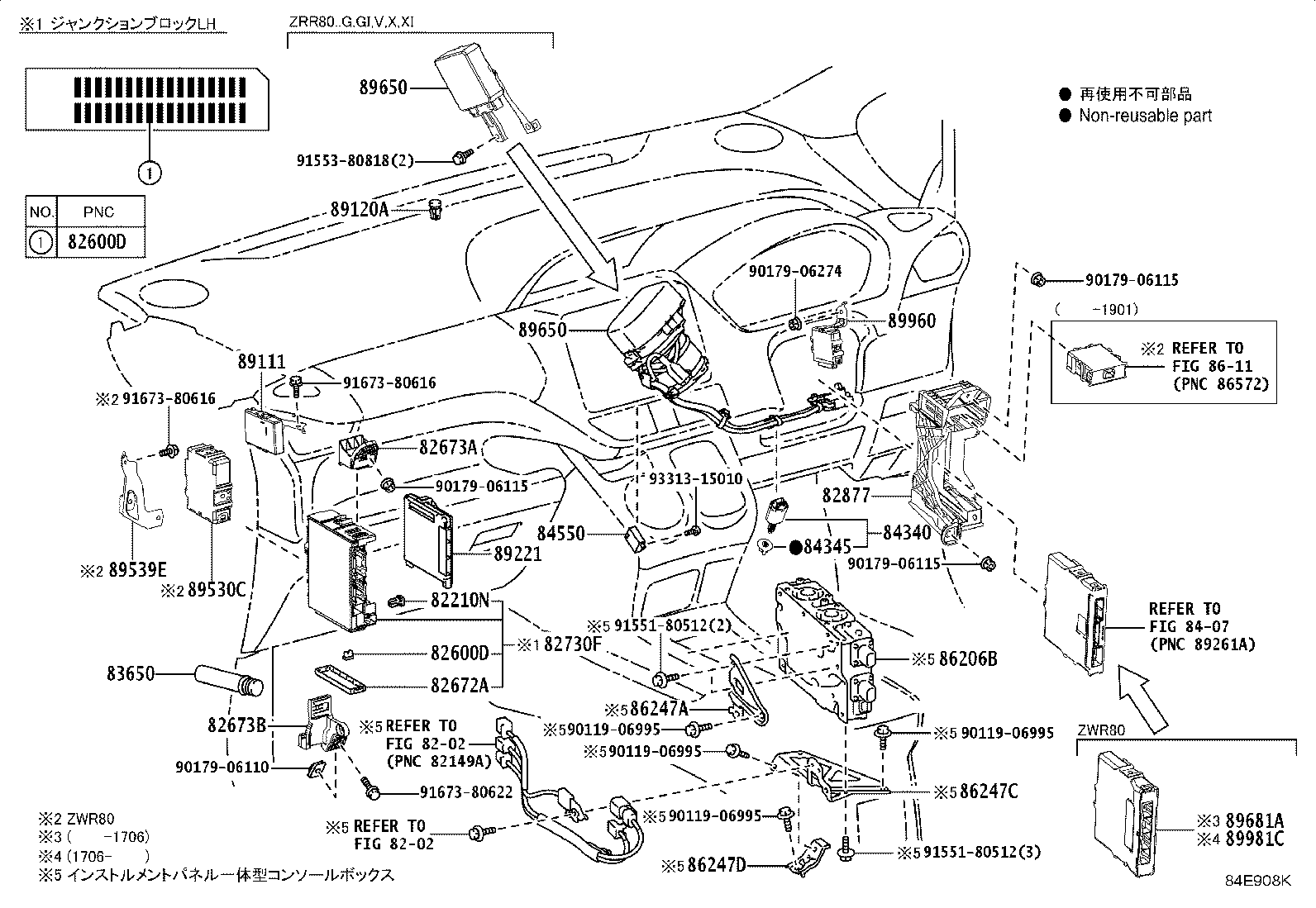

89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89222A	Computer, Multiplex Network Door
89245B	Sensor, Steering
89429F	Sensor, Temperature
89465	Sensor, Oxygen
89467B	Sensor, Air Fuel Ratio
89530C	Computer Assy, Transmission Control
89530H	Relay, Transaxle Parking Look Control
89539E	Bracket, Computer
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89650E	Relay, Electric Power Steering
89681A	Computer, Power Management Control
89960	Computer Assy, Headlamp Leveling
89981C	Computer, Hybrid Vehicle Control

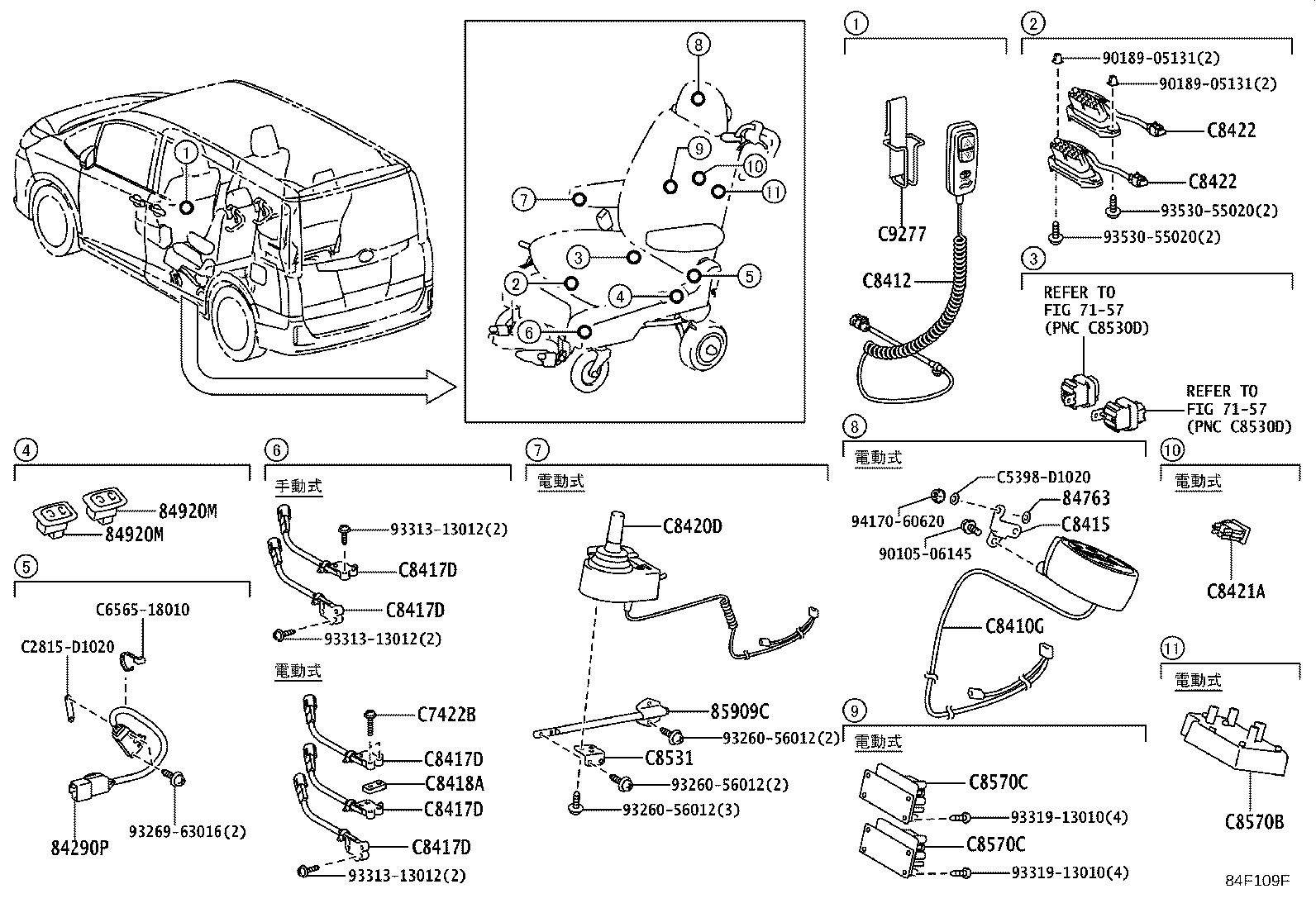

C7422B	Pin, Welcab Seat Arm Guide
C8402	Switch Set, Power Lift Remote Control
C8410A	Switch Assy, Power Lift Control
C8410D	Switch Assy, Control, NO.1
C8410E	Switch Assy, Power Lift Control, NO.1
C8410F	Switch, Power Lift Remote Control
C8410G	Switch Assy, Control, NO.1
C8412	Switch, Power Lift Control
C8412A	Switch, Power Lift Control, NO.1
C8412B	Switch, Power Lift Control, NO.2
C8415	Bracket, Control Switch
C8417D	Switch, Limit
C8418A	Plate, Limit Switch
C8420C	Switch Assy, Control, NO.2
C8420D	Switch Assy, Control, NO.2
C8421A	Switch, Change
C8422	Junction, Power Lift Seat Control Male
C8531	Bracket, Control Relay
C8545A	Relay, Power Lift Control
C8560	Relay Assy, Lifter
C8570B	Relay Assy, Drive Control, NO.1
C8570C	Relay Assy, Drive Control, NO.2
C9277	Bracket, Lift Control Switch

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
