Toyota Noah/Voxy/Esquire

2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

7 part groups · 2 illustrations

Illustrations

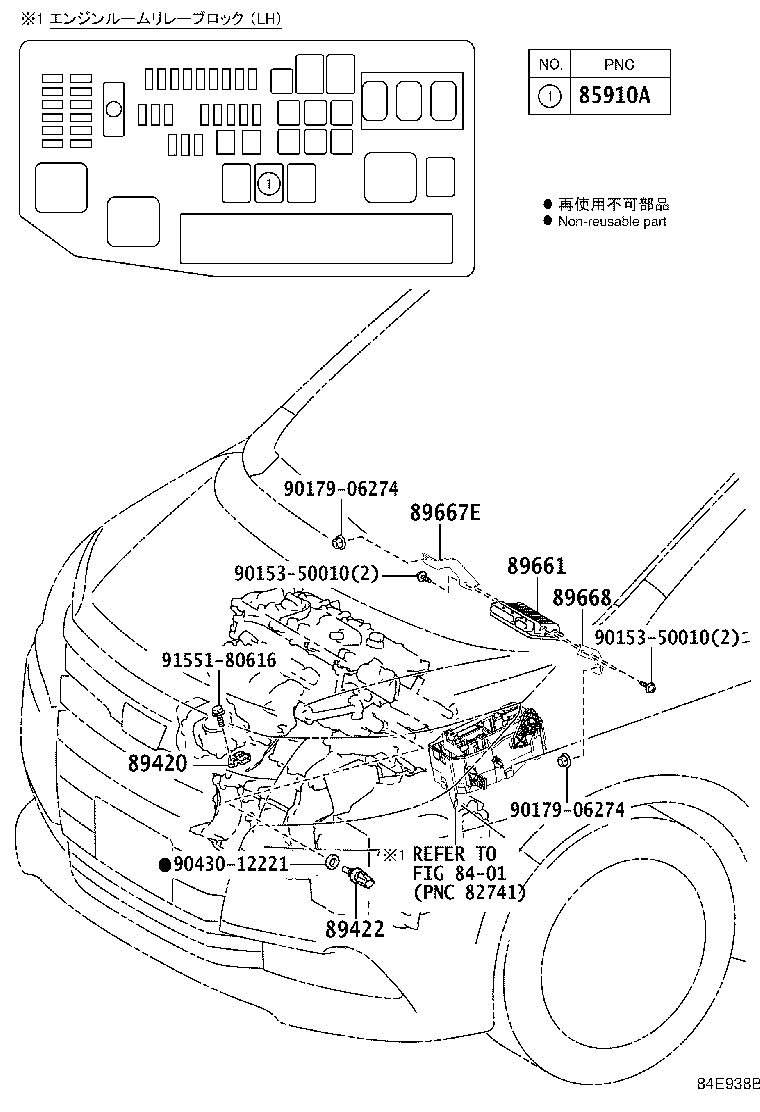

Figure 84E939B 84E939B 2014-01 → — Figure 84E938B 84E938B 2014-02 → —

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
89420 Sensor Assy, Vacuum
89422 Sensor, Water Temperature (FOR E.F.I.)
89426 Bracket, Vacuum Sensor
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
