Toyota Noah/Voxy/Esquire
2014-01 → 2021-12 · chassis ZRR8#,ZWR80 · catalogue 651180 · Japan
Supported model
Data version 2023-05

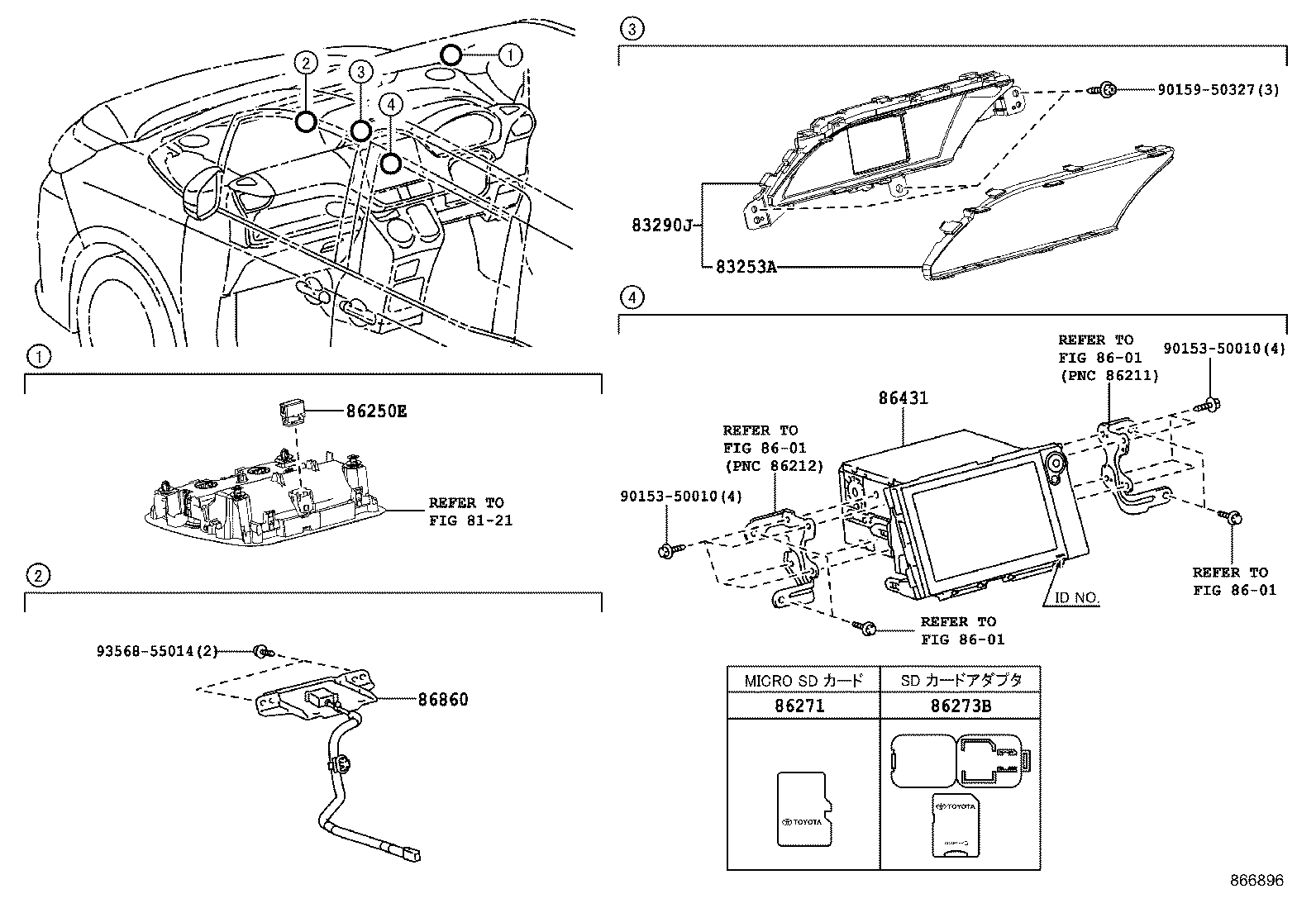

Navigation & Front Monitor Display
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83253A | Glass, Accessory Meter |
| 83290J | Meter Assy, Accessory |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86273B | Adapter, Disc Player |
| 86431 | Display, Display & Navigation Module |
| 86730A | Microphone Assy, Telephone |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
