Toyota Noah/Voxy

2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

9 part groups · 2 illustrations

Illustrations

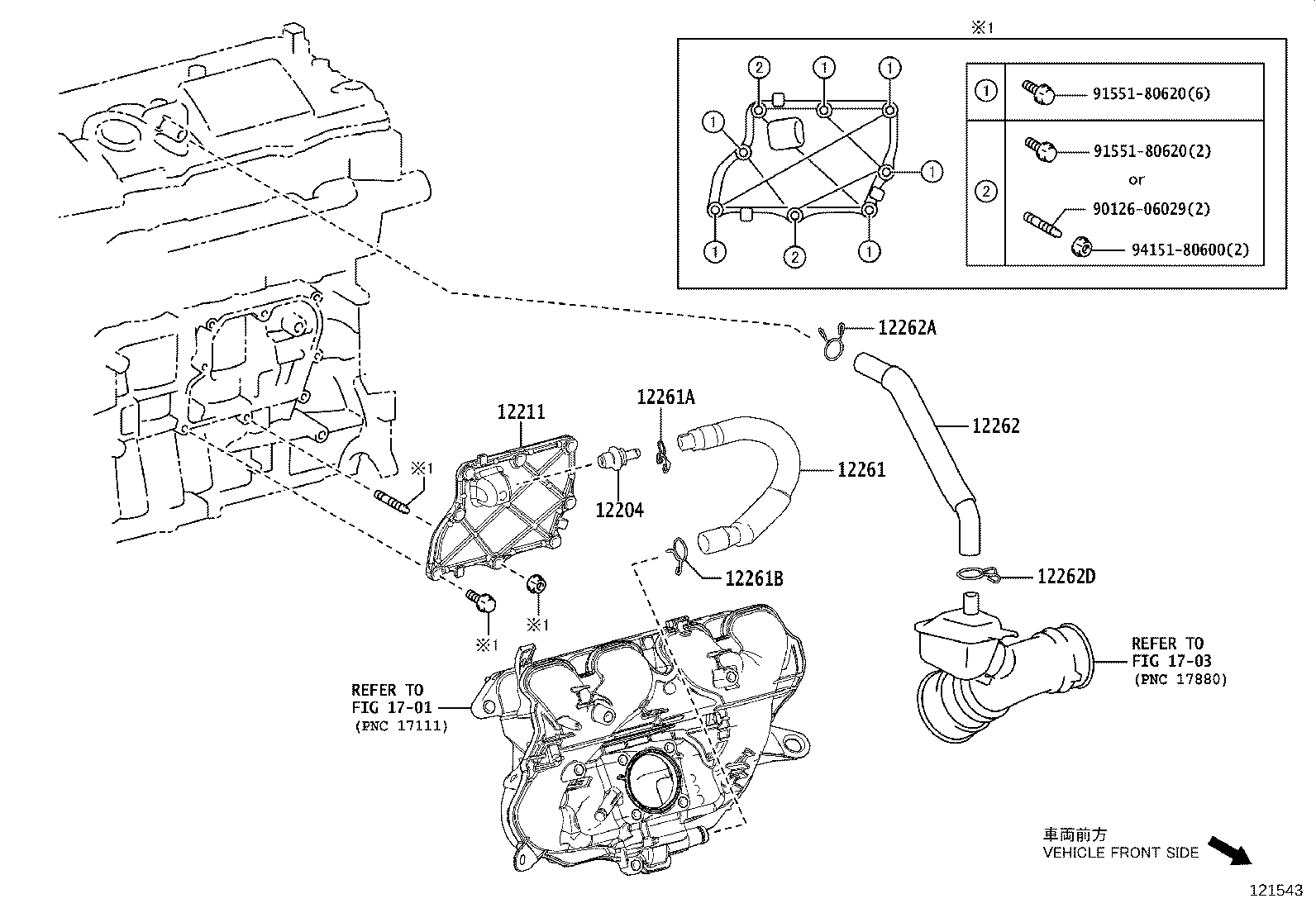

Figure 121536A 121536A 2022-01 → — Figure 121543 121543 2022-01 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12211 Case, Ventilation, NO.1
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12273E Gasket(FOR VENTILATION CASE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
