Toyota Noah/Voxy
2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan
Supported model
Data version 2022-01

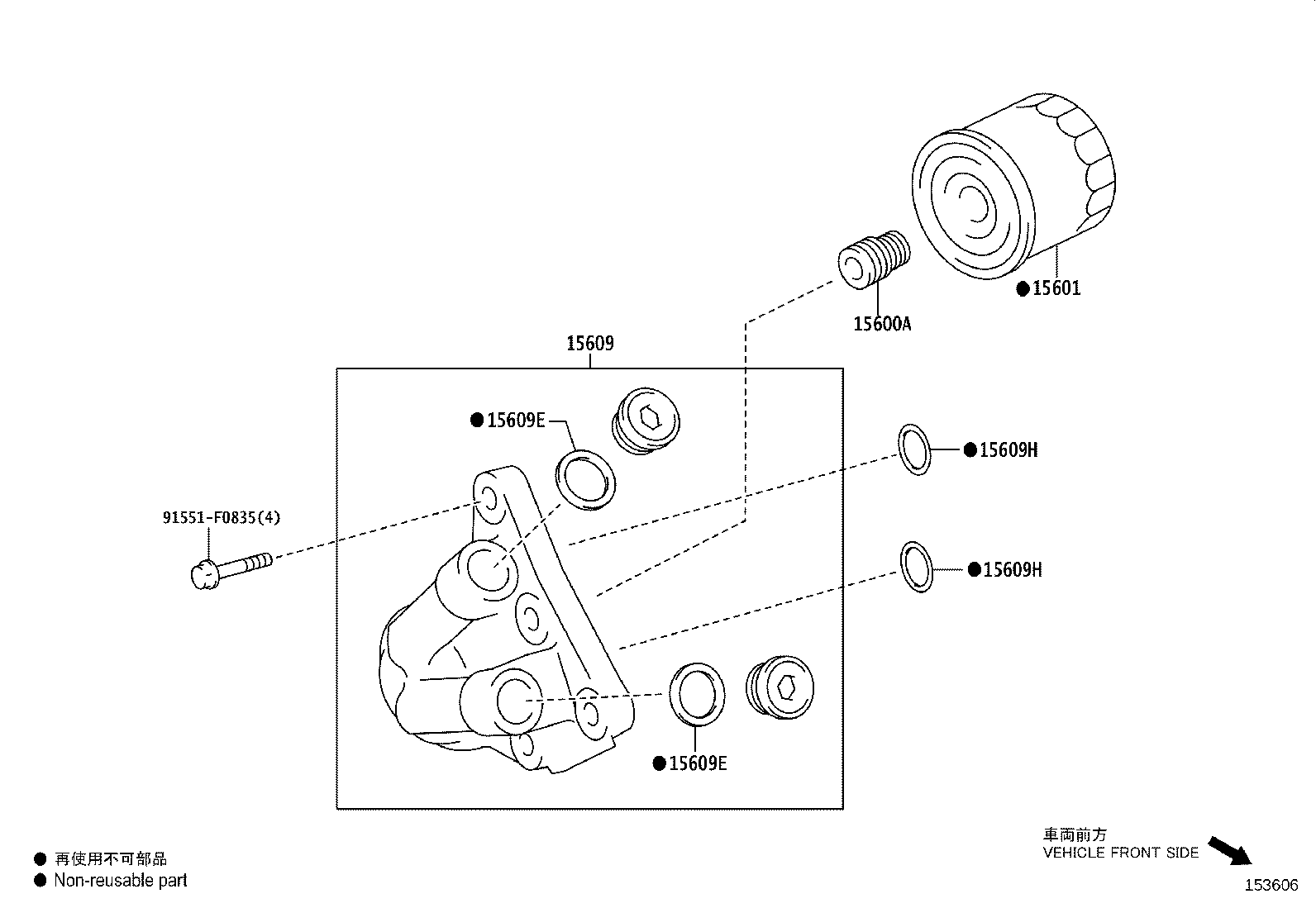

Oil Filter
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15600A | Union(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15609H | Ring, O(FOR OIL FILTER BRACKET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
