Toyota Noah/Voxy

2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

15 part groups · 2 illustrations

Illustrations

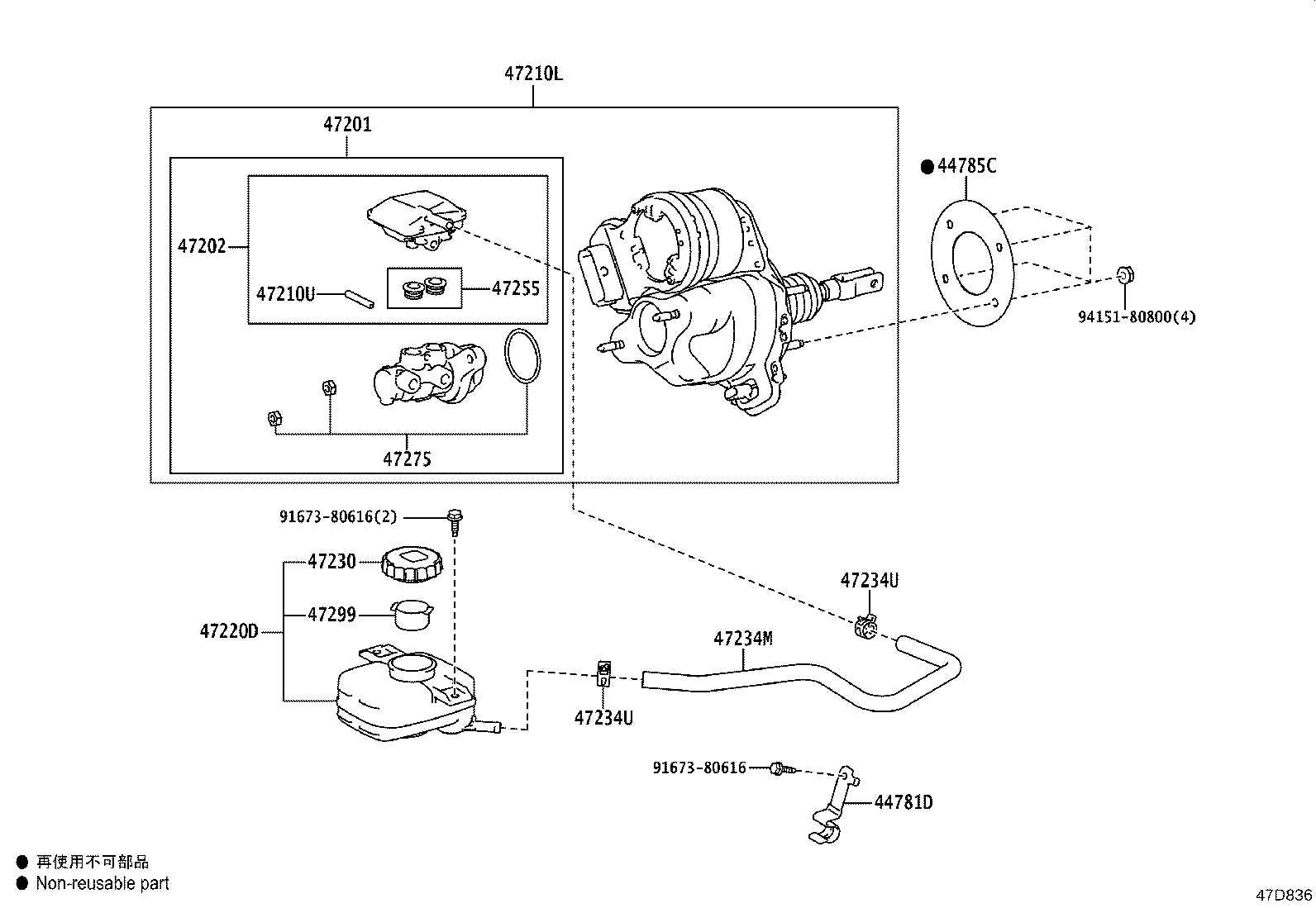

Figure 47D835A 47D835A 2022-01 → — Figure 47D836 47D836 2022-01 → —

Part groups

PNCDescription
44781D Bracket, Reservoir Hose
44785C Gasket, Brake Booster
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47202 Reservoir Sub-assy, Brake Master Cylinder
47210L Brake Booster Assy, W/Master Cylinder
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234M Hose, Reservoir, NO.1
47234U Clip(FOR RESERVOIR HOSE NO.1)
47255 Grommet, Master Cylinder Reservoir
47268A Nut, Brake Master Cylinder
47275 Gasket, Brake Master Cylinder
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
