Toyota Noah/Voxy

2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

29 part groups · 9 illustrations

Illustrations

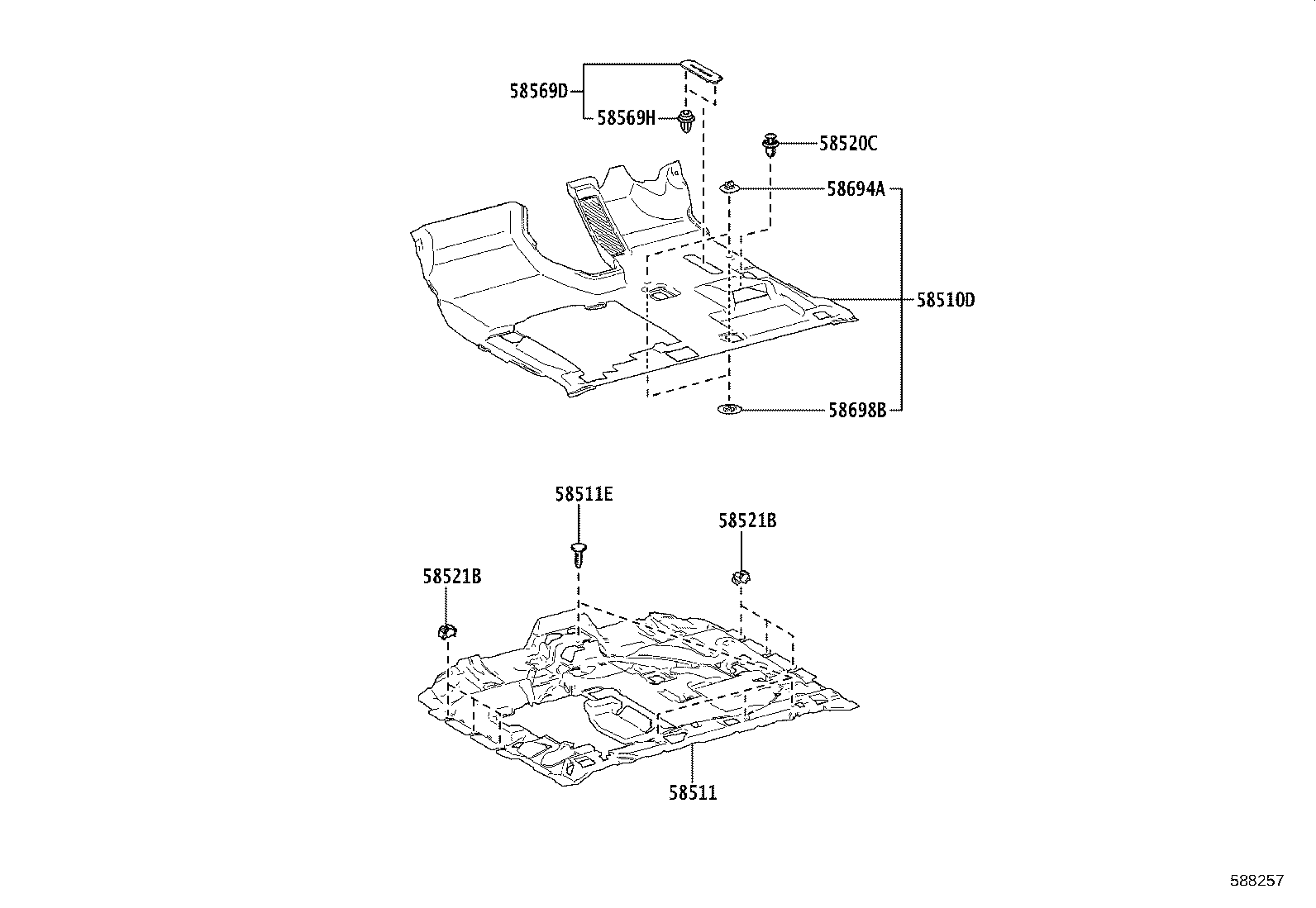

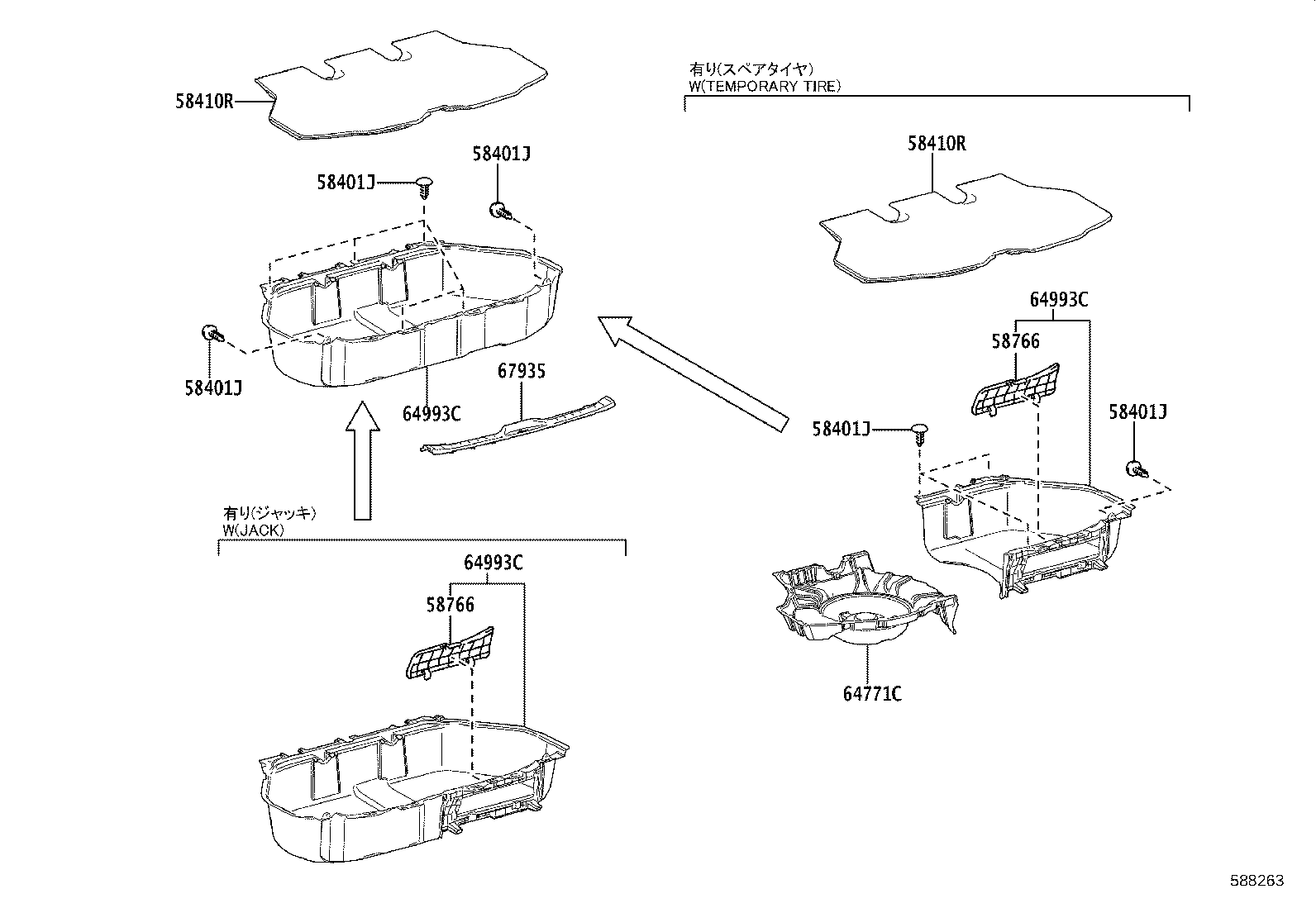

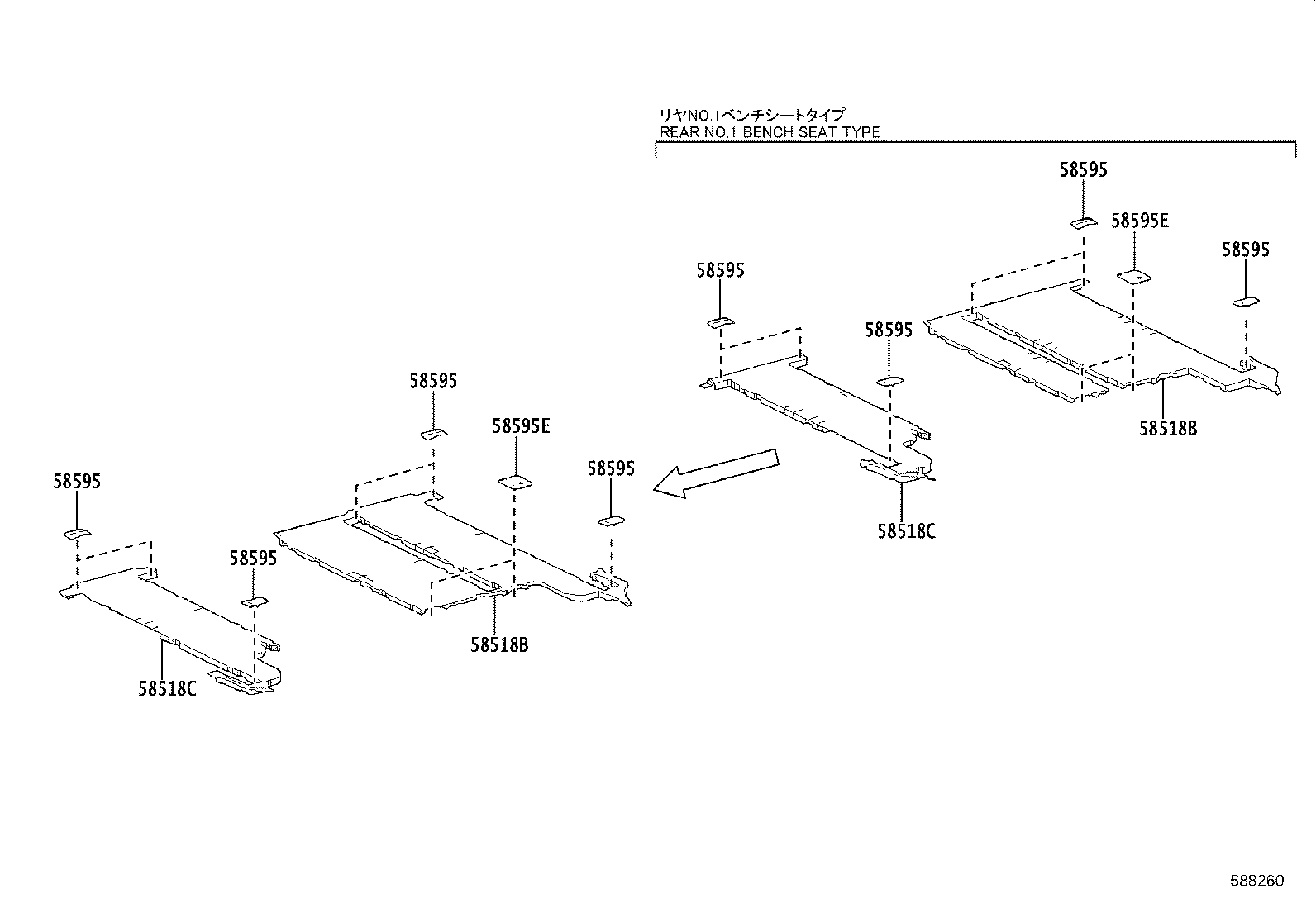

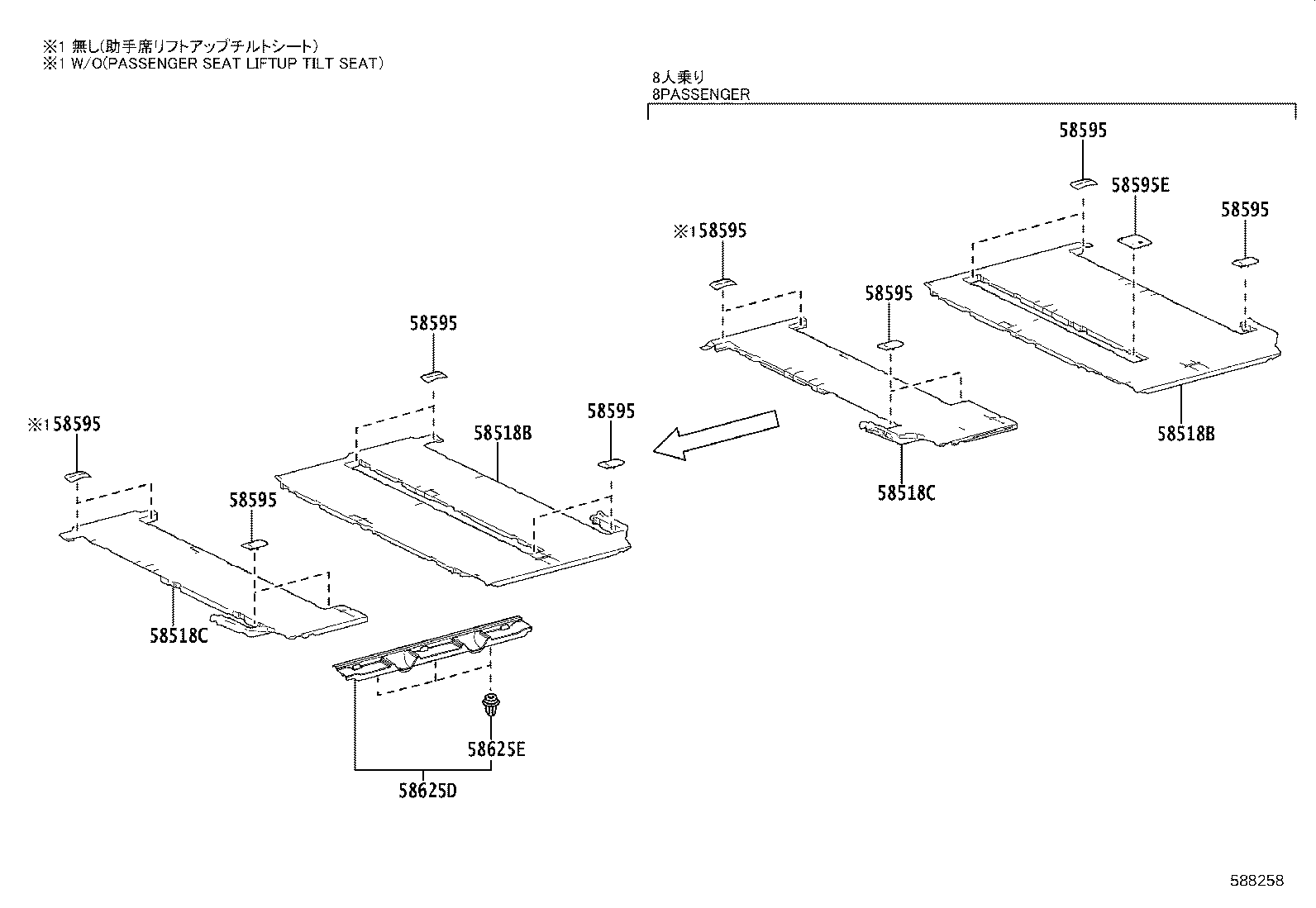

Figure 588256 588256 2022-01 → — Figure 588257 588257 2022-01 → — Figure 588258 588258 2022-01 → — Figure 588259 588259 2022-01 → — Figure 588260 588260 2022-01 → — Figure 588261 588261 2022-01 → — Figure 588262 588262 2022-01 → — Figure 588263 588263 2022-01 → — Figure 588264B 588264B 2022-01 → —

Part groups

PNCDescription
58285F Cover, Rear Floor Hole
58401J Clip(FOR DECK BOAD)
58402A Board Sub-assy, Rear Floor, NO.2
58403J Board Sub-assy, Rear Floor, NO.3
58410R Board Assy, Deck
58510D Carpet Assy, Floor, Front
58511 Mat, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58518B Mat, Rear Floor, NO.2
58518C Mat, Rear Floor, NO.2
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58530J Carpet Assy, Floor, Center
58540D Carpet Assy, Floor, Rear
58540F Clip(FOR REAR FLOOR CARPET)
58563H Clip(FOR REAR FLOOR MAT)
58569D Cover, Front Floor Caution Plate
58569H Clip, Front Floor Caution Plate Cover, NO.1
58595 Moulding, Floor Carpet, NO.3
58595E Moulding, Floor Carpet, NO.4
58625D Plate, Rear Floor Mat, NO.1
58625E Clip(FOR REAR FLOOR MAT PLATE)
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
58766 Cover, Jack Box Hole
64771C Cover, Spare Wheel
64993C Box, Deck Floor, Rear
67935 Plate, Back Door Scuff
C9712 Cover, Winch Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
