Toyota Noah/Voxy

2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 2 illustrations

Illustrations

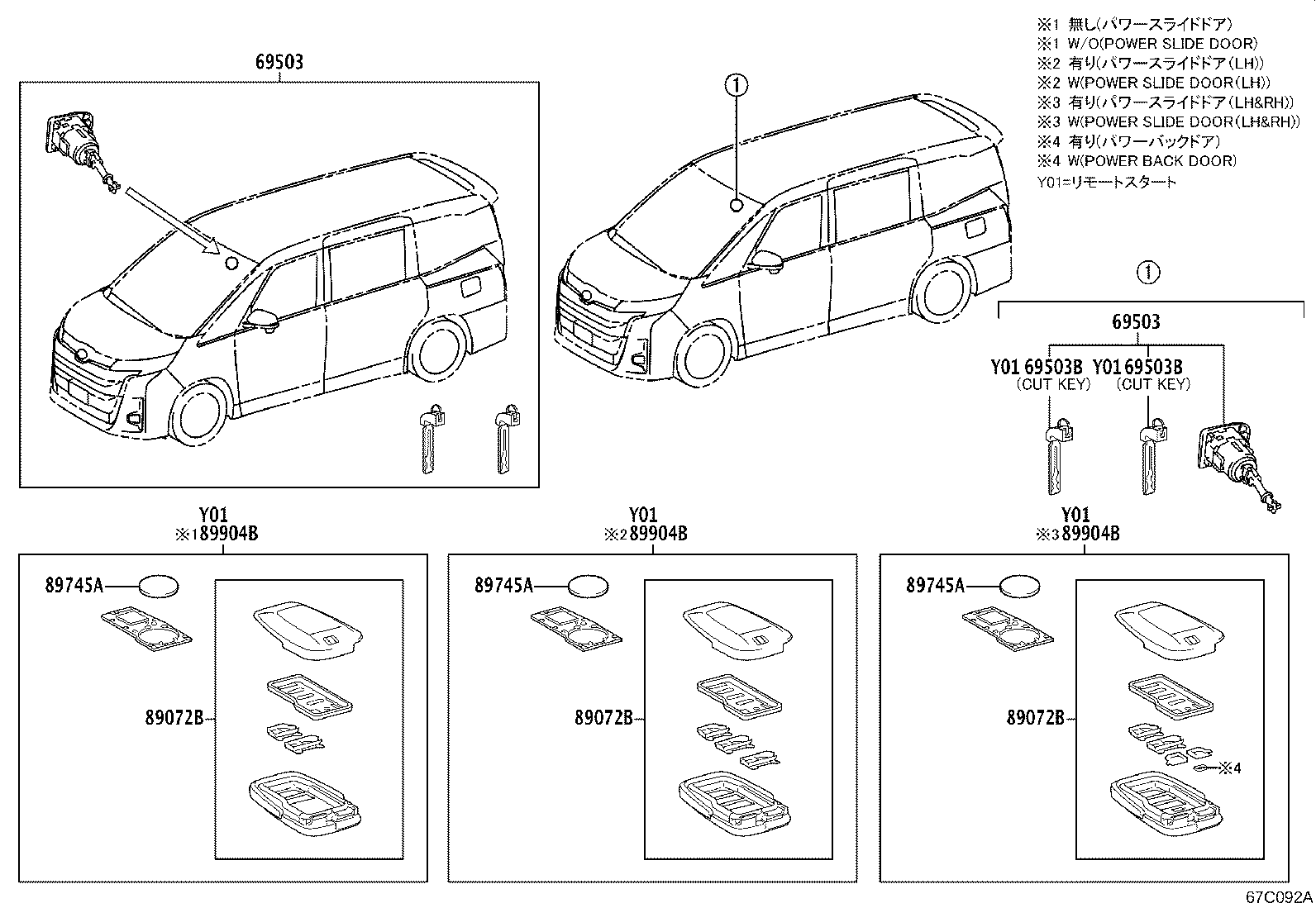

Figure 67C093B 67C093B 2022-01 → — Figure 67C092A 67C092A 2022-01 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
69510 Cylinder Assy, Front Door Lock, RH
69570 Cylinder Assy, Ignition Switch Lock
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
8907A Switch Set, Transmitter
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89785B Transmitter, Transponder Key Master
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
