Toyota Noah/Voxy
2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan
Supported model
Data version 2022-01
Seat Belt

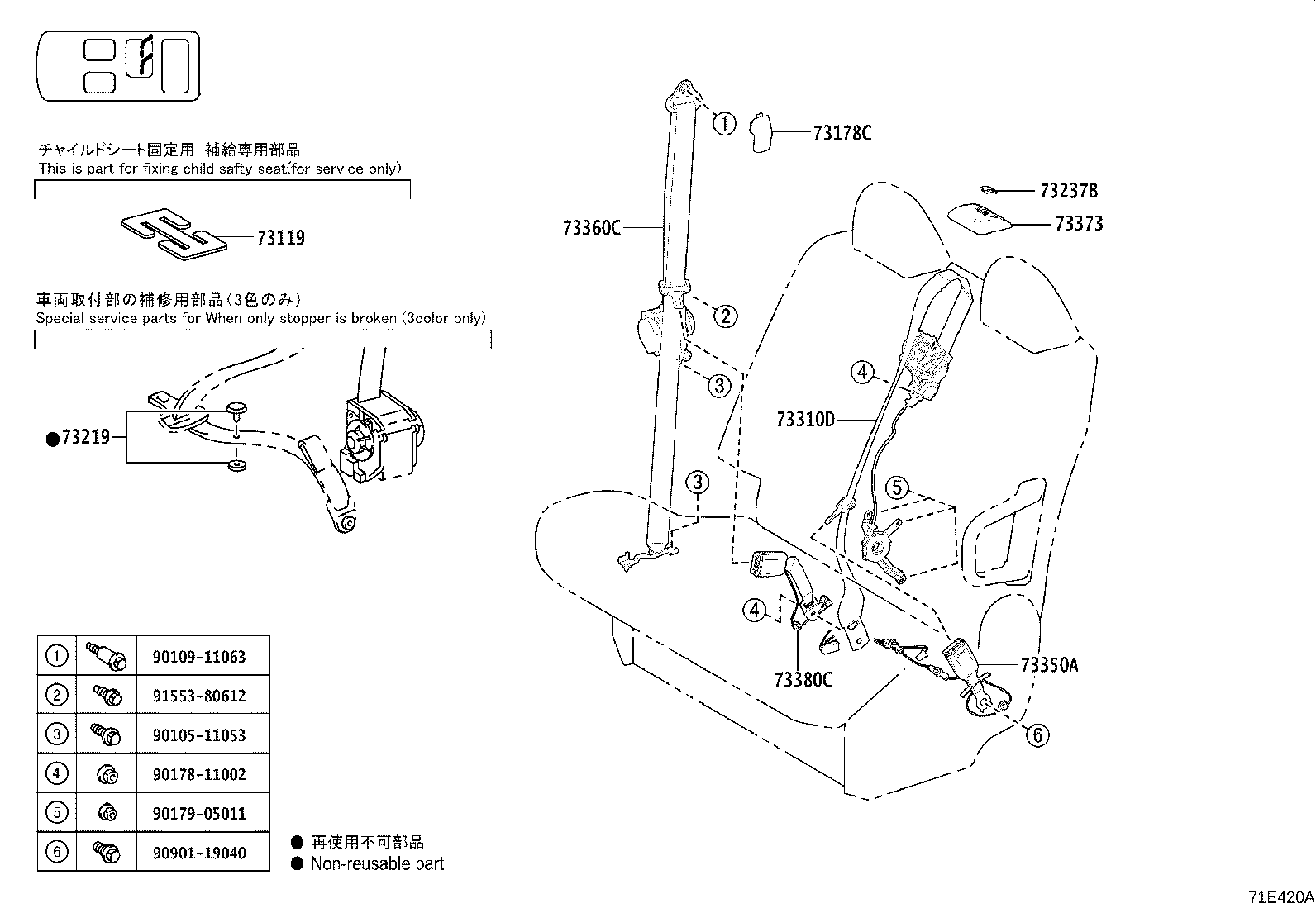

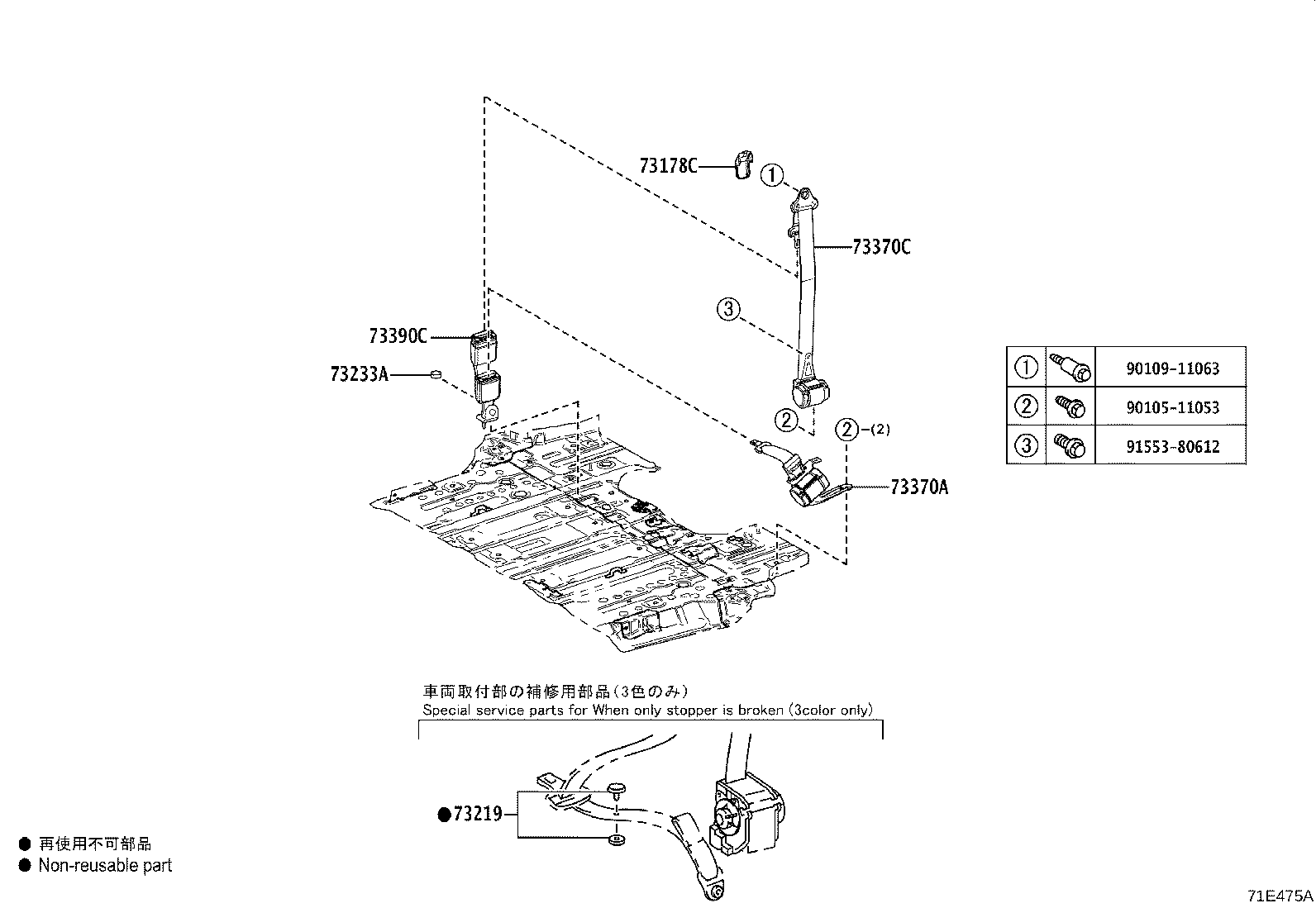

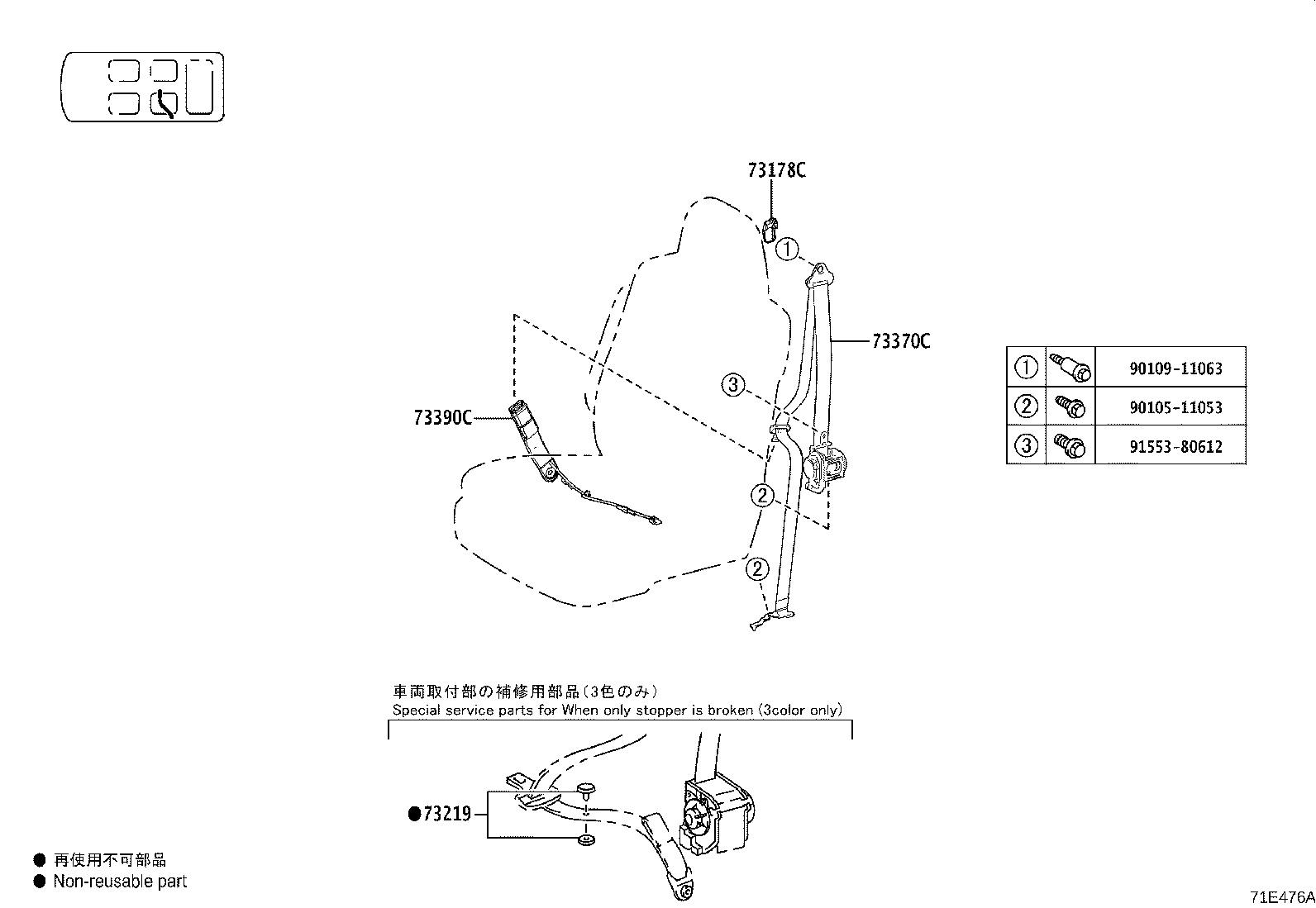

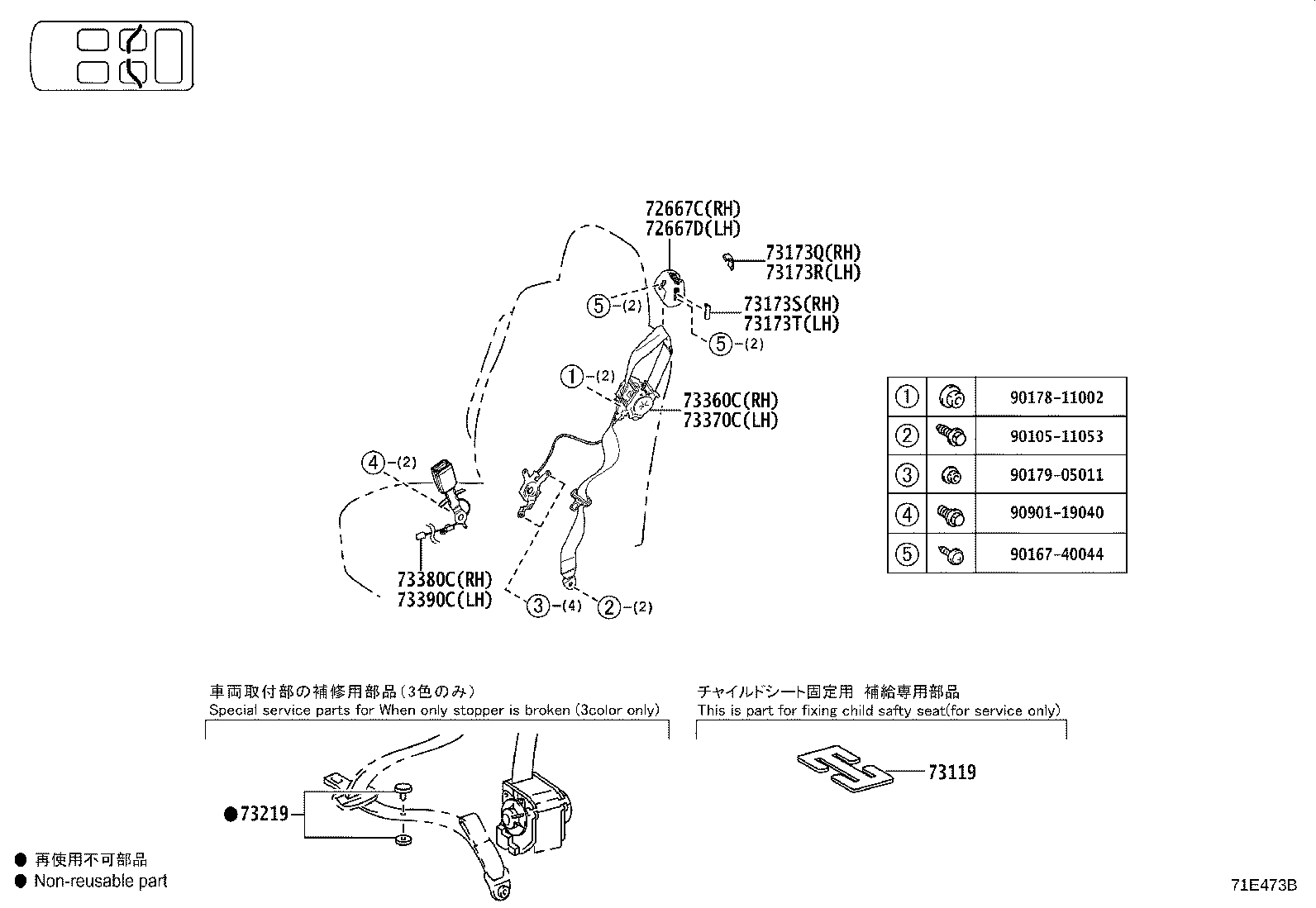

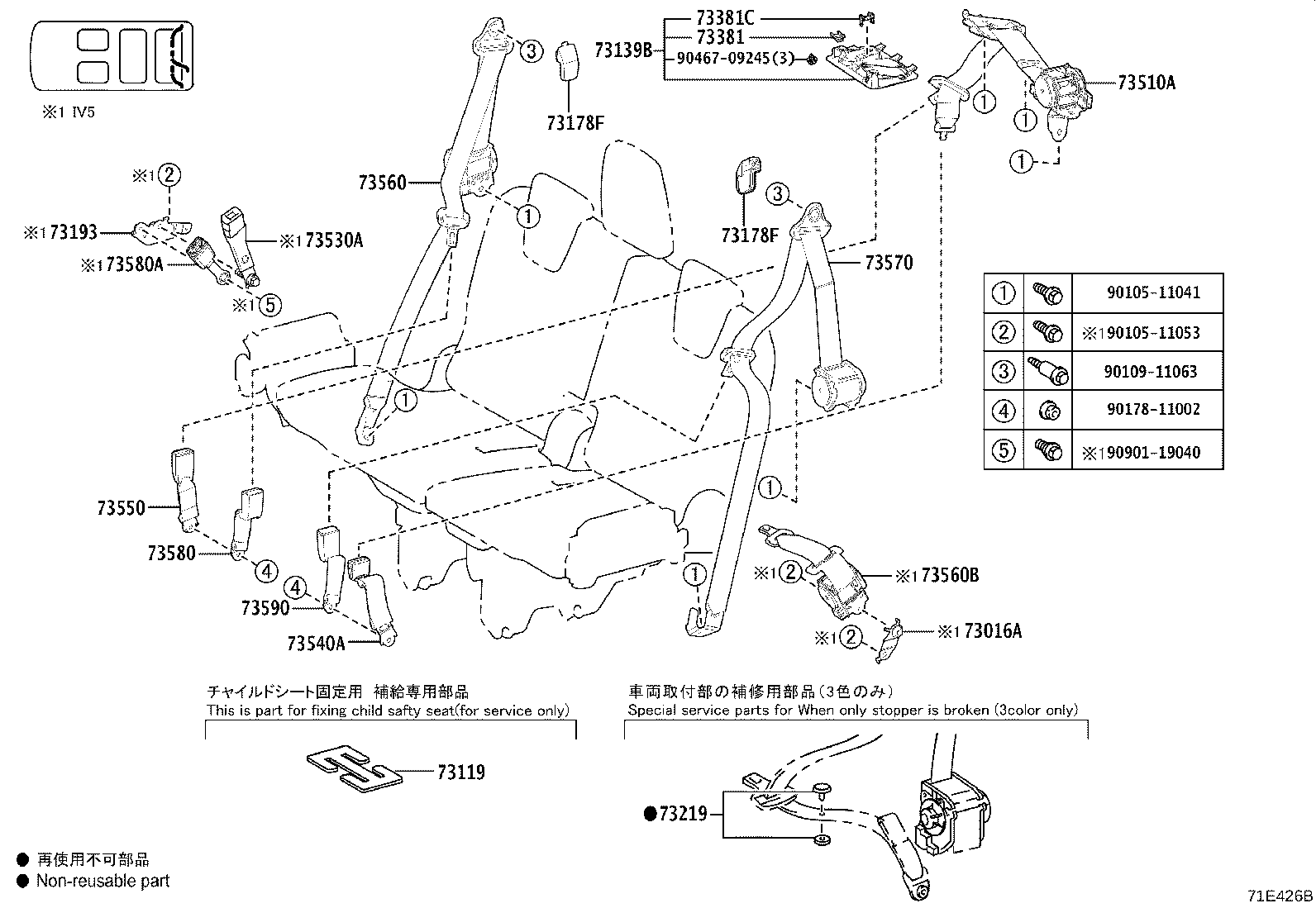

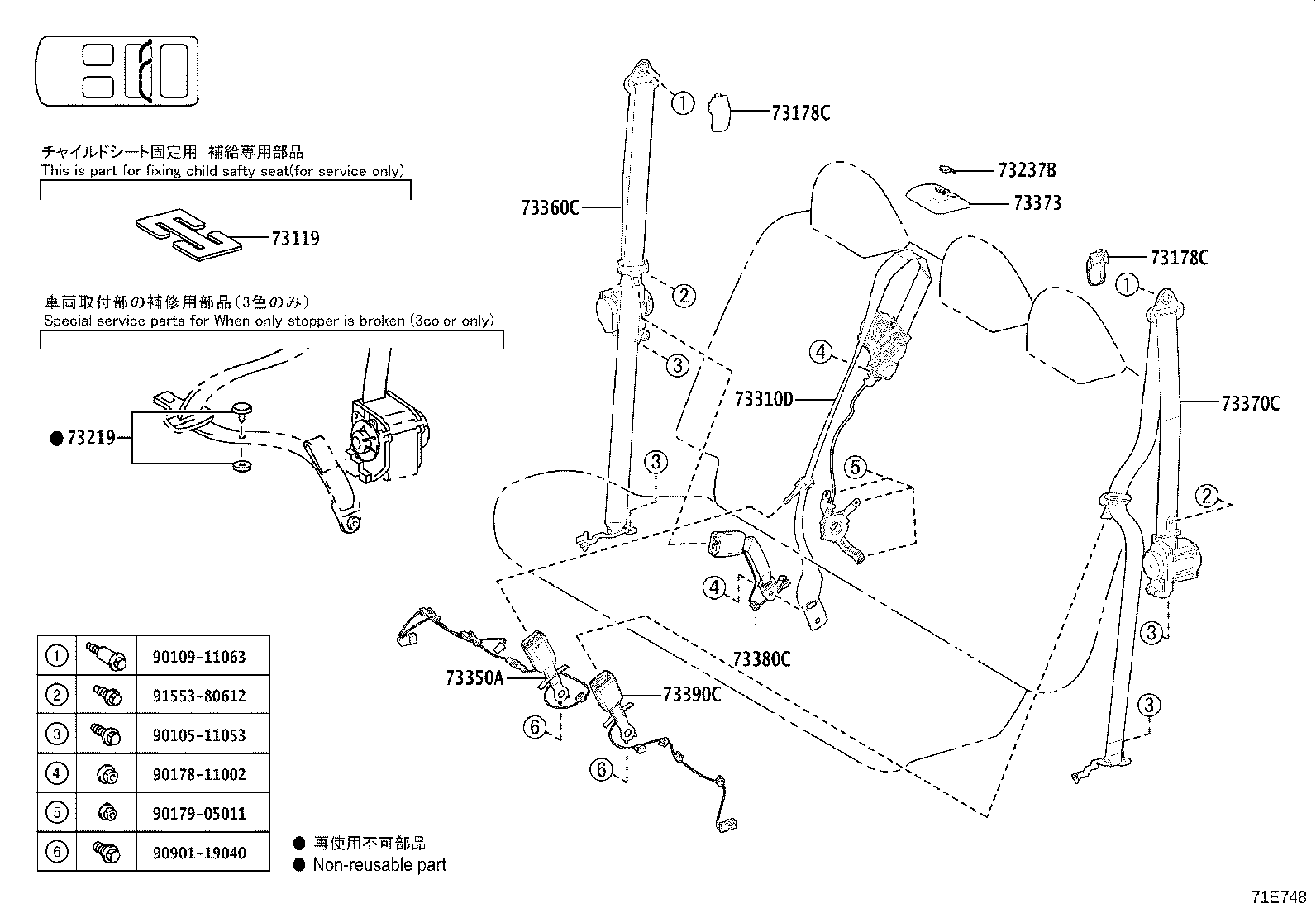

45 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 72667C | Bezel, Rear Seatback Lock, Upper RH |
| 72667D | Bezel, Rear Seatback Lock, Upper LH |
| 73016A | Bracket Sub-assy, Belt Outer Anchor, LH |
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73139B | Cover, Seat Belt Anchor |
| 73173Q | Cover, Rear Seat Shoulder Belt Hole, RH NO.1 |
| 73173R | Cover, Rear Seat Shoulder Belt Hole, LH NO.1 |
| 73173S | Cover, Rear Seat Shoulder Belt Hole, RH NO.2 |
| 73173T | Cover, Rear Seat Shoulder Belt Hole, LH NO.2 |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73178C | Cap, Seat Belt Anchor Cover |
| 73178F | Cap, Seat Belt Anchor Cover, NO.3 |
| 73193 | Bracket, Seat Belt Inner Anchor, NO.2 RH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73233A | Cover, Lap Belt Outer Anchor, Rear NO.1 Seat |
| 73237B | Cover, Shoulder Belt Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73310D | Belt Assy, Rear Seat 3 Point Type, Center |
| 73350A | Belt Assy, Rear NO.1 Seat Lap Type, Center |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370A | Belt Assy, Wheel Chair Rear Seat, Outer LH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73380C | Belt Assy, Rear NO.1 Seat, Inner RH |
| 73381 | Holder, Rear Seat Belt |
| 73381C | Holder, Seat Belt |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73510A | Belt Assy, Rear NO.2 Seat, 3 Point Type |
| 73530A | Belt Assy, Rear NO.2 Seat Lap Type, RH |
| 73540A | Belt Assy, Rear NO.2 Seat Lap Type, LH |
| 73550 | Belt Assy, Rear NO.2 Seat Lap Type, Center |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73560B | Belt Assy, Wheel Chair Rear NO.2 Seat, Outer |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73580A | Belt Sub Assy, Rear NO.2 Seat, Inner |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
