Toyota Noah/Voxy

2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

188 part groups · 11 illustrations

Illustrations

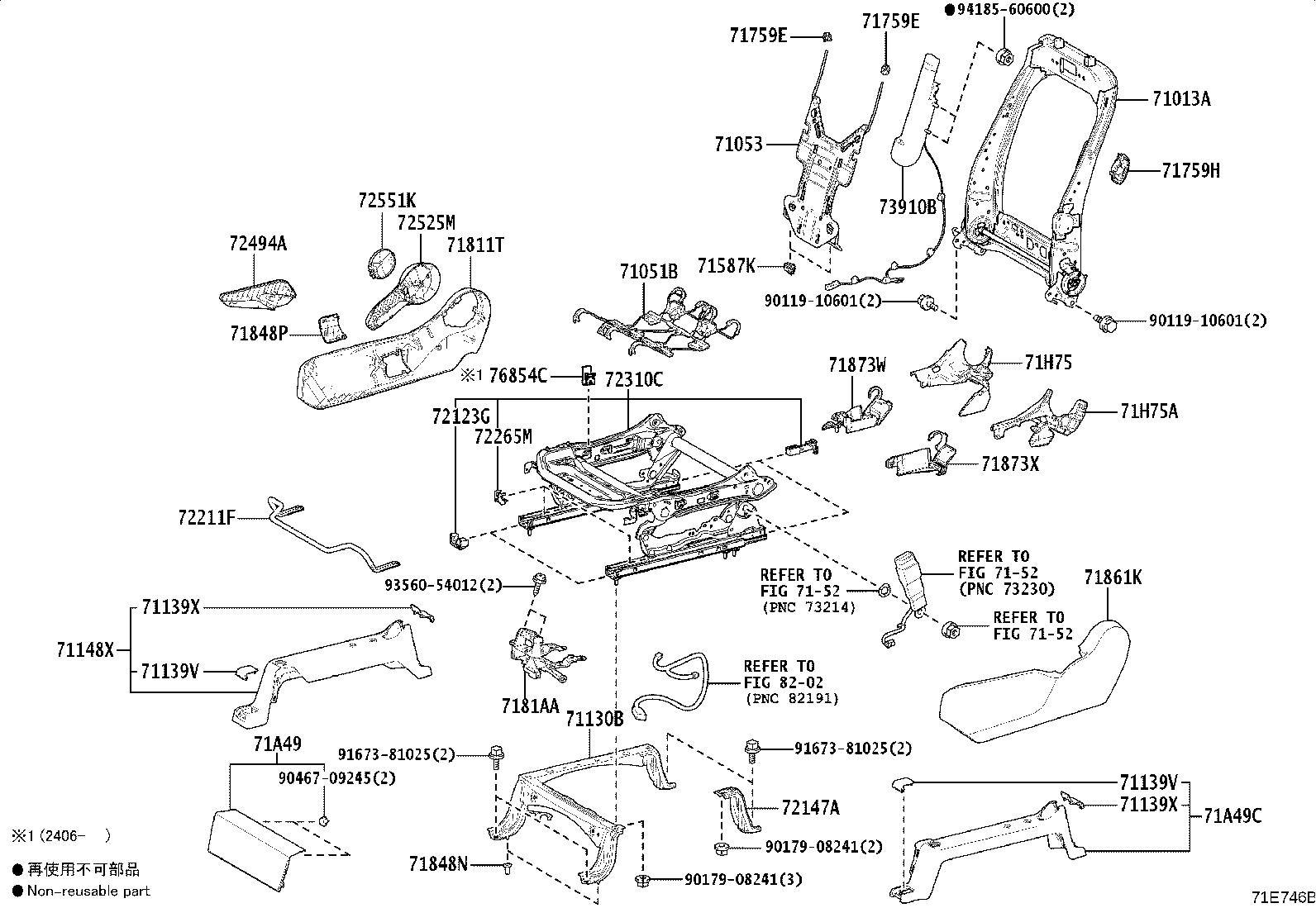

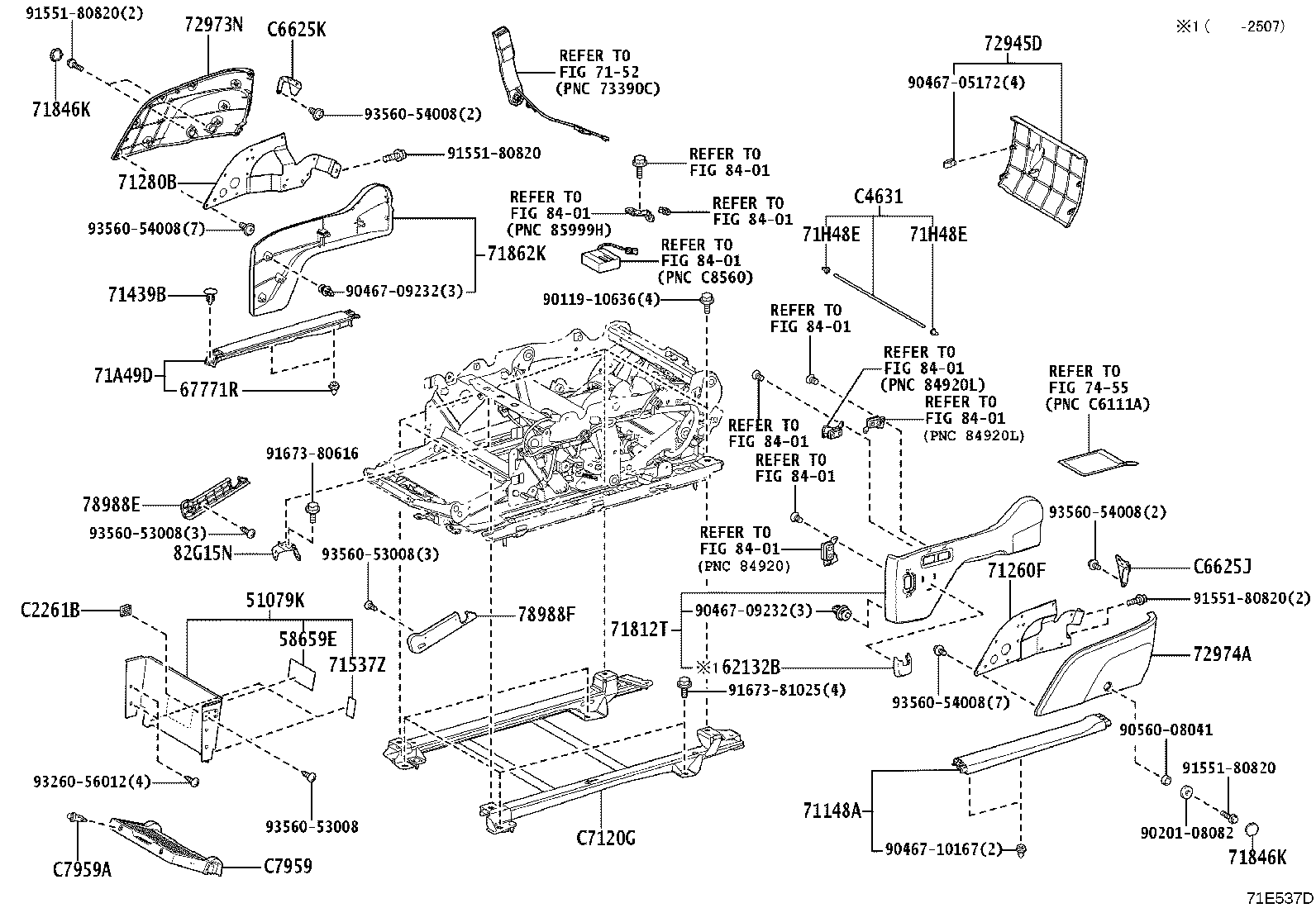

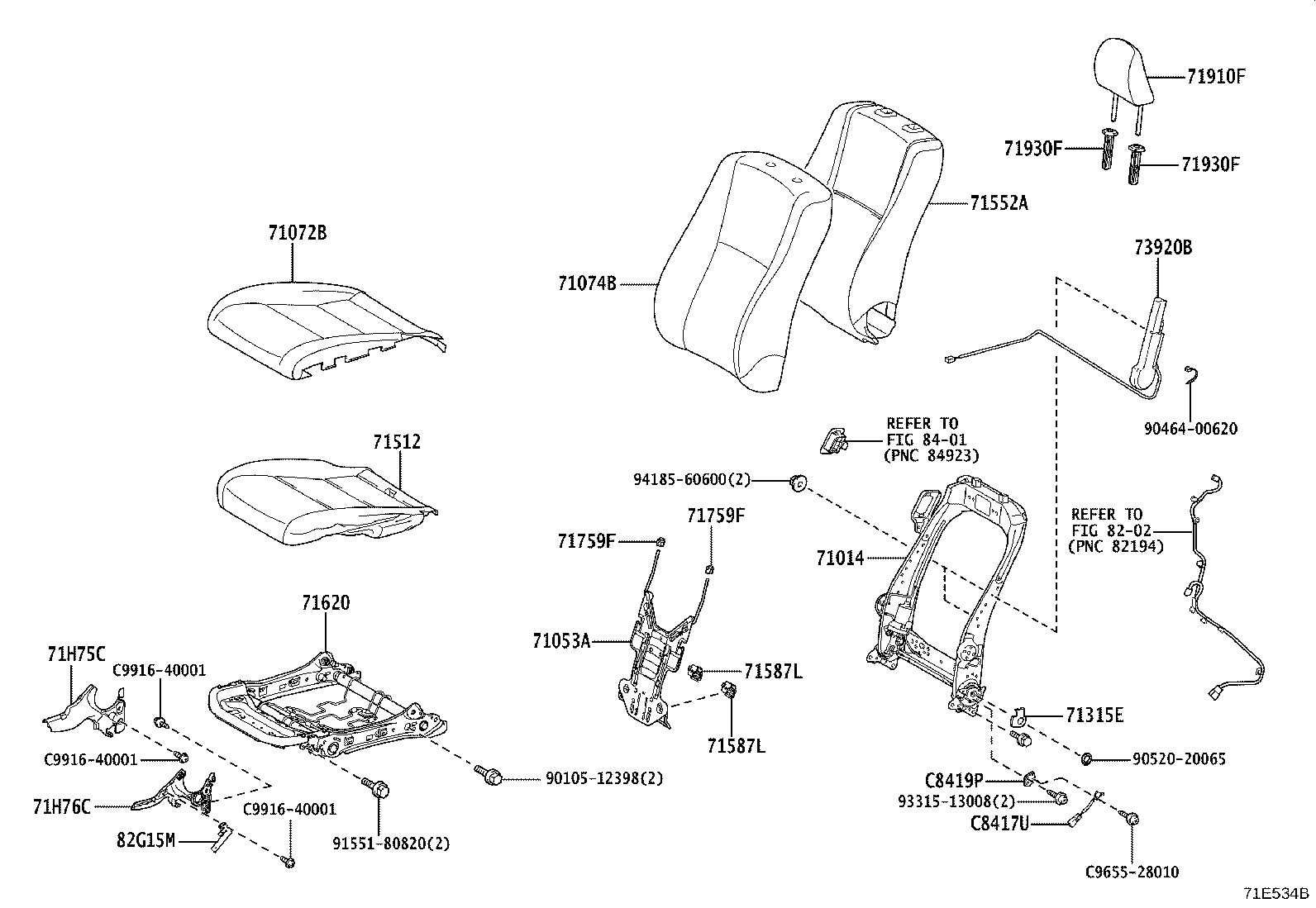

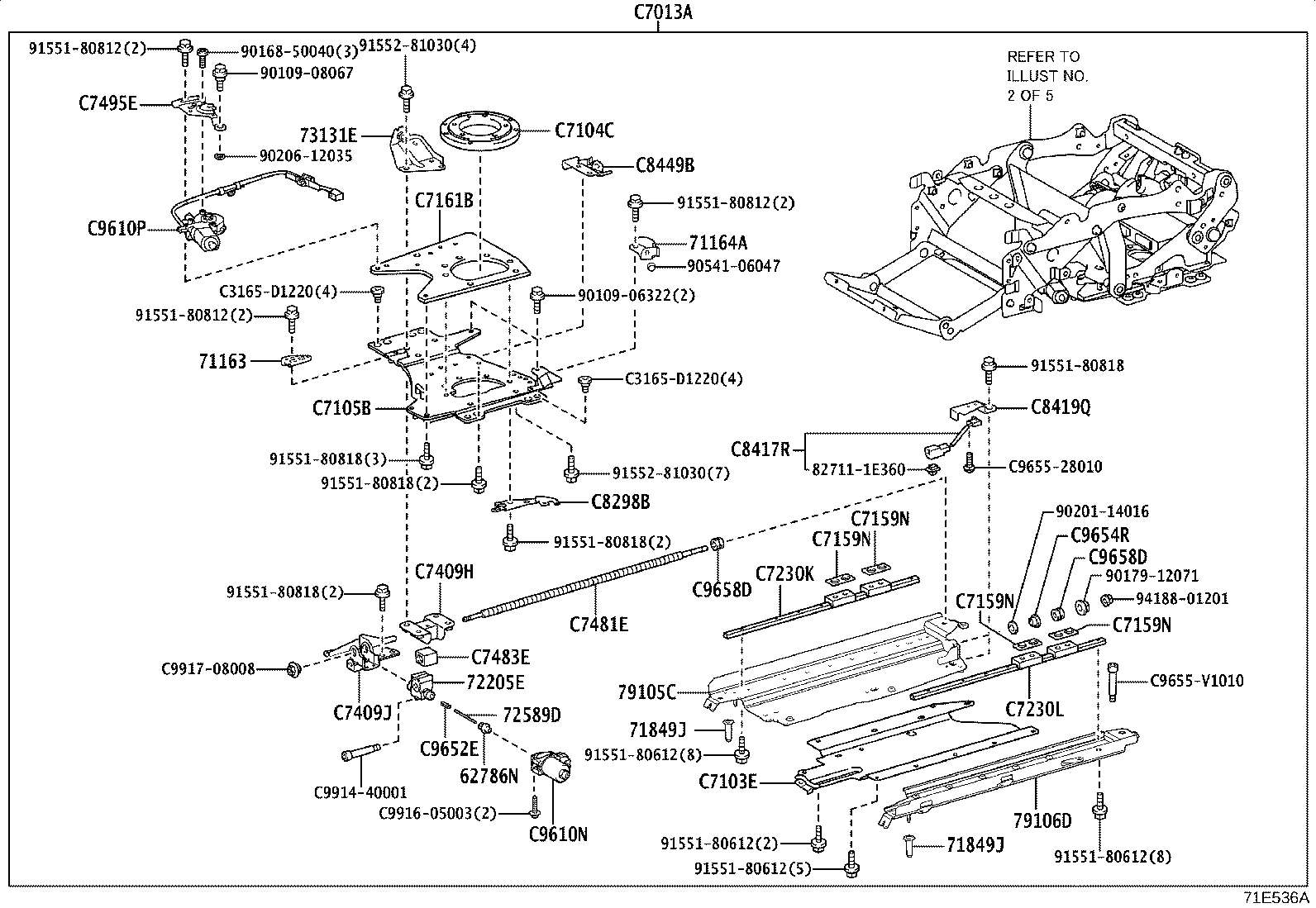

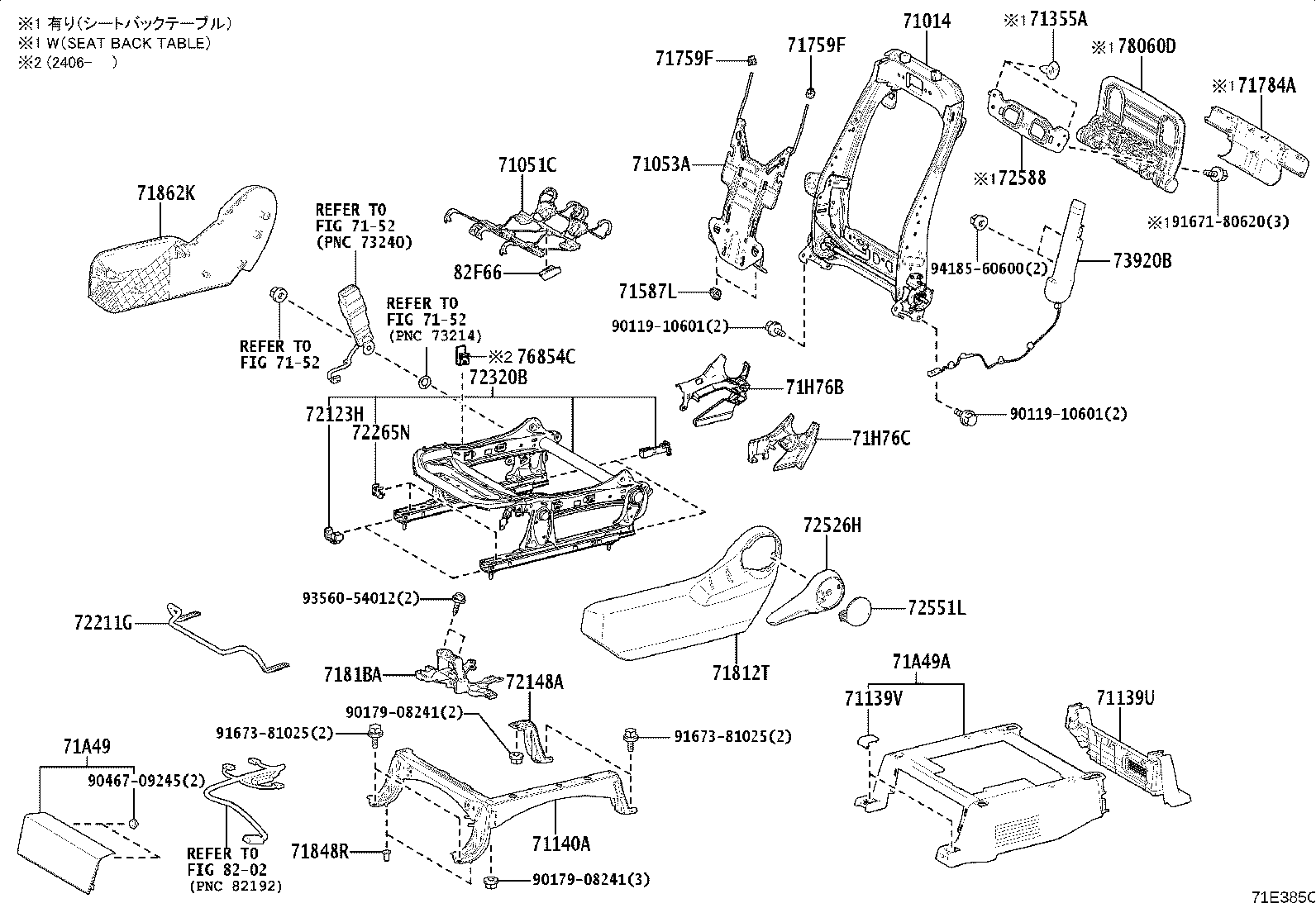

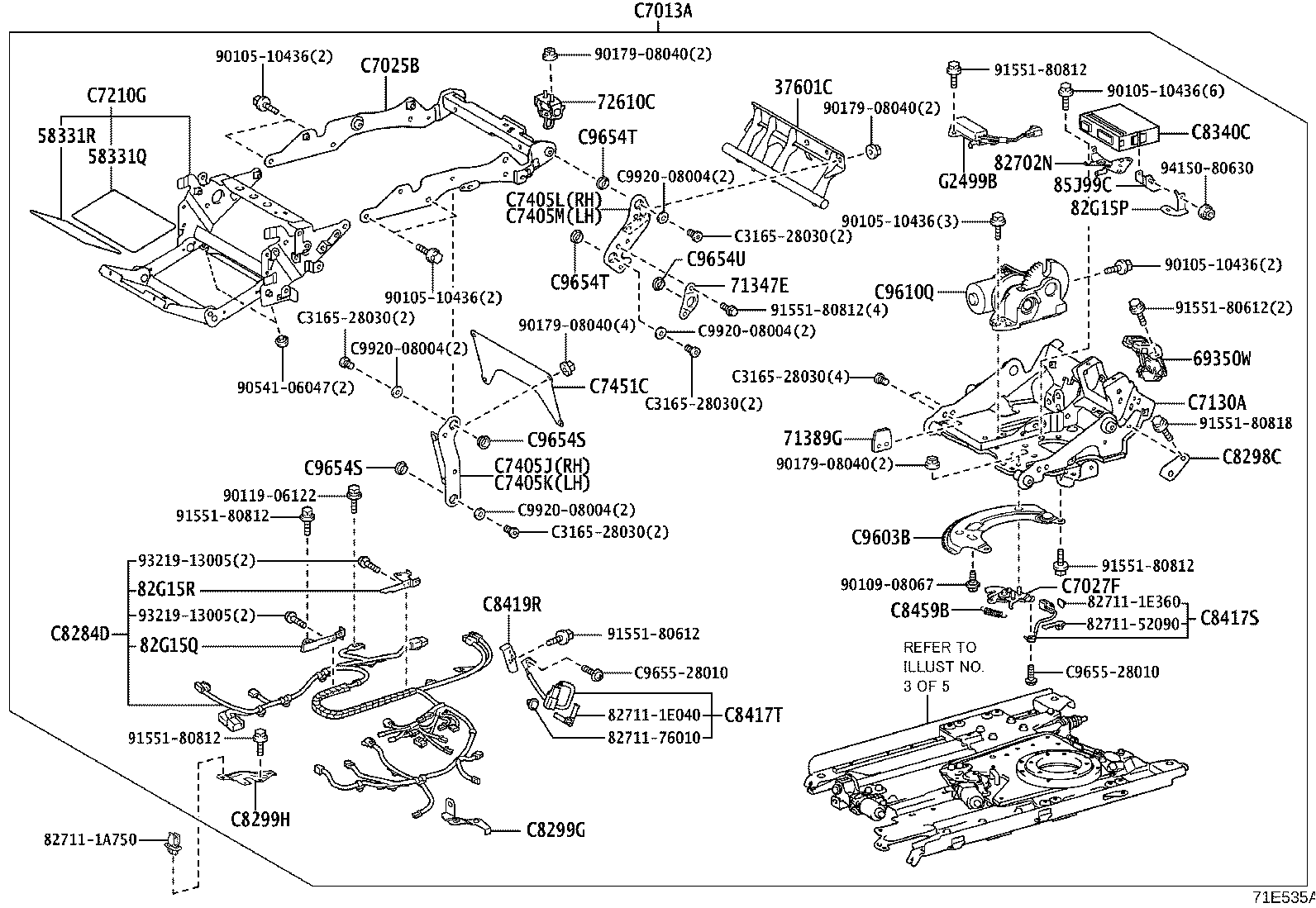

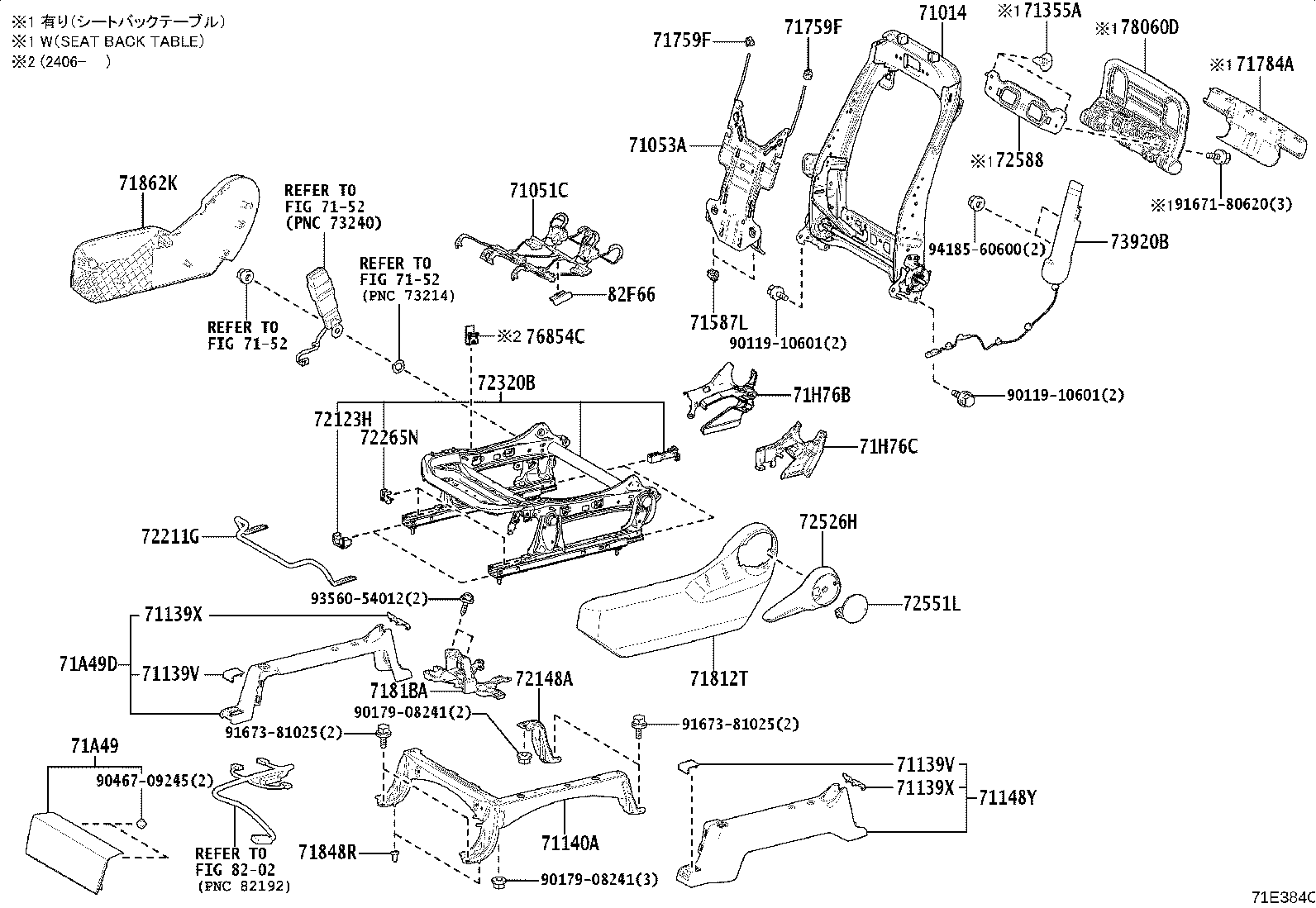

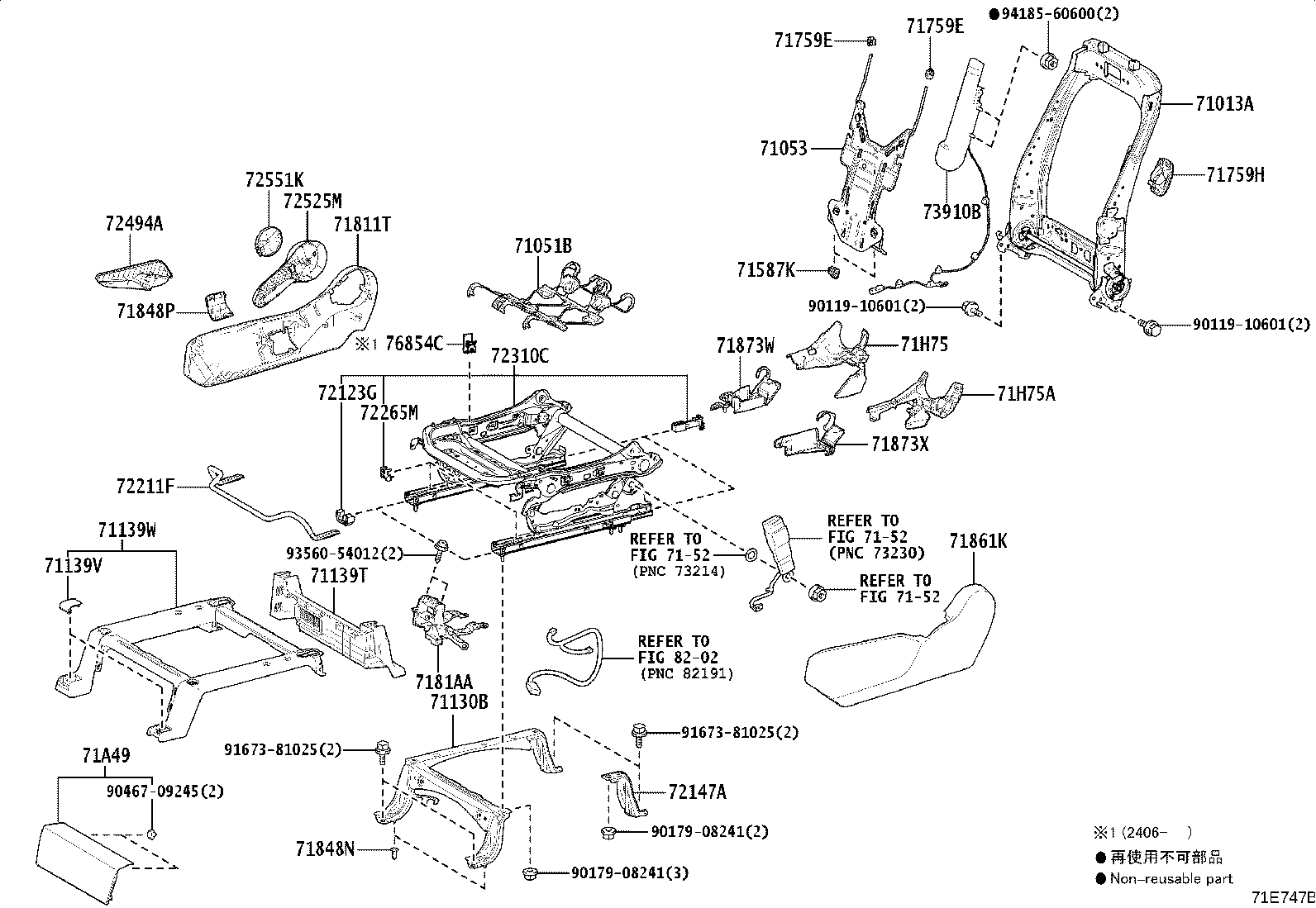

Figure 71E381E 71E381E 2022-01 → — Figure 71E746B 71E746B 2022-01 → — Figure 71E747B 71E747B 2022-01 → — Figure 71E384C 71E384C 2022-01 → — Figure 71E385C 71E385C 2022-01 → — Figure 71E534B 71E534B 2022-01 → — Figure 71E535A 71E535A 2022-01 → — Figure 71E536A 71E536A 2022-01 → — Figure 71E537D 71E537D 2022-01 → — Figure 71E538 71E538 2022-01 → — Figure 71E539 71E539 2022-01 → —

Part groups

PNCDescription
37601C Shaft Sub-assy, Drive, NO.1
51079K Panel Sub-assy, Front Step
58331Q Sheet, Front Step, NO.1
58331R Sheet, Front Step, NO.2
58659E Sheet, Step Silencer
62132B Pocket, Front Seat Cushion Shield
62786N Case, Side Window Lock
67771R Retainer, Front Seat Leg Cover
69350W Lock Assy, Power Lift
71013A Frame Sub-assy, Front Seatback, RH
71014 Frame Sub-assy, Front Seatback, LH
71051B Spring Sub-assy, Front Seat Cushion, RH
71051C Spring Sub-assy, Front Seat Cushion, LH
71053 Spring Sub-assy, Front Seatback, RH
71053A Spring Sub-assy, Front Seatback, LH
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71072B Cover Sub-assy, Welcab Seat Cushion
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71074B Cover Sub-assy, Welcab Seatback
71130B Leg Assy, Front Seat, RH
71139T Cover, Front Seat Leg, Rear RH
71139U Cover, Front Seat Leg, Rear LH
71139V Cover, Front Seat Leg NO.1
71139W Cover, Front Seat Leg(FOR RH SEAT)
71139X Cover, Front Seat Leg NO.2
71140A Leg Assy, Front Seat, LH
71148A Cover, FR Seat Leg, Outer
71148X Cover, Front Seat Leg, Outer RH
71148Y Cover, Front Seat Leg, Outer LH
71163 Bracket, Front Seatback Support, RH
71164A Bracket, Front Seatback Support, LH
71260F Bracket Assy, Seat, Outer LH
71280B Bracket Assy, Seat, Inner LH
71315E Plate, Front Seat Hinge
71347E Bracket, Front Seat Link
71355A Clip
71389G Plate, Front Seat Stopper
71439B Clip
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71537Z Protector, Front Seat Cushion
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71587K Protector, Front Seatback Edge, RH
71587L Protector, Front Seatback Edge, LH
71620 Spring Assy, Front Seat Cushion, LH
71759E Hook, Front Seatback, RH
71759F Hook, Front Seatback, LH
71759H Hook, Front Seatback
71784A Cap, Front Seatback Board
71811T Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
7181AA Holder, Front Seat Cushion Wire Harness, RH
7181BA Holder, Front Seat Cushion Wire Harness, LH
71846K Cap, Front Seat Cover, LH
71848N Cap, Front Seat Adjuster Cover, RH NO.1
71848P Cap, Front Seat Adjuster Cover, RH NO.2
71848R Cap, Front Seat Adjuster Cover, LH NO.1
71849J Cap, Front Seat Adjuster Cover, LH NO.3
71861K Shield, Front Seat Cushion, Inner RH
71862K Shield, Front Seat Cushion, Inner LH
71873W Shield, Front Seat Cushion, Lower RH, Outer
71873X Shield, Front Seat Cushion, Lower RH, Inner
71910E Headrest Assy, Front Seat, RH
71910F Headrest Assy, Front Seat, LH
71930E Support Assy, Front Seat Headrest, RH
71930F Support Assy, Front Seat Headrest, LH
71A49 Cover, Front Seat Leg, NO.1
71A49A Cover, Front Seat Leg(FOR LH SEAT)
71A49C Cover, Front Seat Leg, Inner NO.1(FOR RH SEAT)
71A49D Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
71H48E Cap, Shutter Shaft
71H75 Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT)
71H75A Cover, Reclining Adjuster Inside, RH Inner(FOR RH SEAT)
71H75C Cover, Reclining Adjuster Inside, RH(FOR LH SEAT)
71H76B Cover, Reclining Adjuster Inside, LH Inner(FOR LH SEAT)
71H76C Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT)
72123G Plate, Inner Seat Track Lock, RH
72123H Plate, Inner Seat Track Lock, LH
72147A Bracket, Front Inner Seat Track, Lower Rear RH
72148A Bracket, Front Inner Seat Track, Lower Rear LH
72205E Housing Sub-assy, Power Seat, NO.1
72211F Handle, Seat Track Adjusting, RH
72211G Handle, Seat Track Adjusting, LH
72265M Cover, Seat Track Upper Rail, RH
72265N Cover, Seat Track Upper Rail, LH
72310C Adjuster Assy, Front Seat Vertical, RH
72320B Adjuster Assy, Front Seat Vertical, LH
72494A Handle, Front Seat Vertical Adjuster, RH
72525M Handle, Reclining Adjuster Release, RH
72526H Handle, Reclining Adjuster Release, LH
72551K Cover, Reclining Hinge, RH
72551L Cover, Reclining Hinge, LH
72588 Bracket, Front Seatback Board
72589D Cable, Reclining Remote Control
72610C Striker Assy, Front Seatback Lock
72810K Armrest Assy, Front Seat, RH(FOR LH SEAT)
72812C Plate, Front Seat Armrest, NO.1 RH
72812D Plate, Front Seat Armrest, NO.1 LH
72820 Armrest Assy, Front Seat, LH(FOR RH SEAT)
72821A Plate, Seat Armrest, RH
72821B Plate, Seat Armrest, LH
72848K Cap, Seat Armrest, NO.1(FOR RH SEAT)
72848L Cap, Seat Armrest, NO.1(FOR LH SEAT)
72945D Cover, Front Seat Turn
72973N Cover, Front Seat Turn Table, RH
72974A Cover, Front Seat Turn Table, LH
73131E Bracket, Seat Belt
73910B Airbag Assy, Front Seat, RH
73920B Airbag Assy, Front Seat, LH
76854C Retainer, Front Seat Cushion Cover
78060D Table Assy, Front Seatback, LH
78988E Cover, Front Seat Footrest, NO.1
78988F Cover, Front Seat Footrest, NO.2
79105C Leg Sub-assy, Front Seat
79106D Leg Sub-assy, Seat, LH
82702N Bracket Sub-assy, Wiring Harness
82F66 Holder, Connector
82G15M Bracket, Wiring Harness Clamp, NO.1
82G15N Bracket, Wiring Harness Clamp, NO.2
82G15P Bracket, Wiring Harness Clamp, NO.3
82G15Q Bracket, Wiring Harness Clamp, NO.4
82G15R Bracket, Wiring Harness Clamp, NO.5
85J99C Bracket, Relay NO.2
87530D Heater Assy, Front Seatback, RH
87530E Heater Assy, Front Seatback, LH
87E10B Heater Assy, Front Seat Cushion, RH
87E10C Heater Assy, Front Seat Cushion, LH
C2261B Stopper, Front Step
C4631 Shaft, Shutter
C6625J Bracket, Side Curtain, Outer
C6625K Bracket, Side Curtain, Inner
C7013A Lift Kit, Passenger Seat
C7025B Bracket Sub-assy, Seat Holder
C7027F Lock Sub-assy, Welcab Seat Turn
C7099B Guard Sub-assy, Front Seat Turn
C7103E Panel Sub-assy, Welcab Seat Leg, NO.1
C7104C Plate Sub-assy, Seat Turn
C7105B Panel Sub-assy, Slide Table
C7120G Leg Assy, Welcab Seat
C7130A Panel Assy, Turn Table
C7159N Cushion, Welcab Seat Leg Stopper, NO.7
C7161B Panel, Slide Table
C7210G Footrest Assy, Welcab Seat
C7230K Track Assy, Welcab Seat
C7230L Track Assy, Welcab Seat, NO.1
C7405J Arm Sub-assy, Welcab Seat Link
C7405K Arm Sub-assy, Welcab Seat Link, NO.2
C7405L Arm Sub-assy, Welcab Seat Link, NO.3
C7405M Arm Sub-assy, Welcab Seat Link, NO.4
C7409H Bracket Sub-assy, Welcab Seat Rod Support, NO.1
C7409J Bracket Sub-assy, Welcab Seat Rod Support, NO.2
C7451C Arm, Welcab Seat Link, NO.1
C7481E Rod, Welcab Seat
C7483E Gear, Welcab Seat Leg, NO.1
C7495E Bracket, Welcab Seat Motor, NO.1
C7959 Cover, Front Seat Turn Footrest
C7959A Clip, Front Seat Turn Footresat Cover
C8284D Wire, Power Lift Main
C8298B Bracket, Welcab Seat Harness Clamp, NO.3
C8298C Bracket, Welcab Seat Harness Clamp, NO.4
C8299G Bracket, Welcab Seat Harness Connector, NO.1
C8299H Bracket, Welcab Seat Harness Connector, NO.2
C8340C Computer Assy, Welcab Device Control
C8417R Switch, Limit, NO.4
C8417S Switch, Limit, NO.5
C8417T Switch, Limit, NO.6
C8417U Switch, Limit, NO.7
C8419P Bracket, Limit Switch, NO.3
C8419Q Bracket, Limit Switch, NO.4
C8419R Bracket, Limit Switch, NO.5
C8449B Dog, Limit Switch
C8459B Spring, Limit Switch
C9055T Cover Sub-assy, Power Lift, NO.2
C9055U Cover Sub-assy, Power Lift, NO.1
C9603B Gear Sub-assy, Power Lift
C9610N Motor Assy, Lift UP Seat Slide
C9610P Motor Assy, Lift UP Seat Turn
C9610Q Motor Assy, Power Lift
C9652E Cap, Power Lift Cylinder
C9654R Collar, Power Lift Cylinder
C9654S Collar, Power Lift Cylinder
C9654T Collar, Power Lift Cylinder
C9654U Collar, Power Lift Cylinder
C9658D Plate, Power Lift Cylinder Rod, NO.1
G2499B Resistor, Electronic Circuit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
