Toyota Noah/Voxy

2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Rail

16 part groups · 6 illustrations

Illustrations

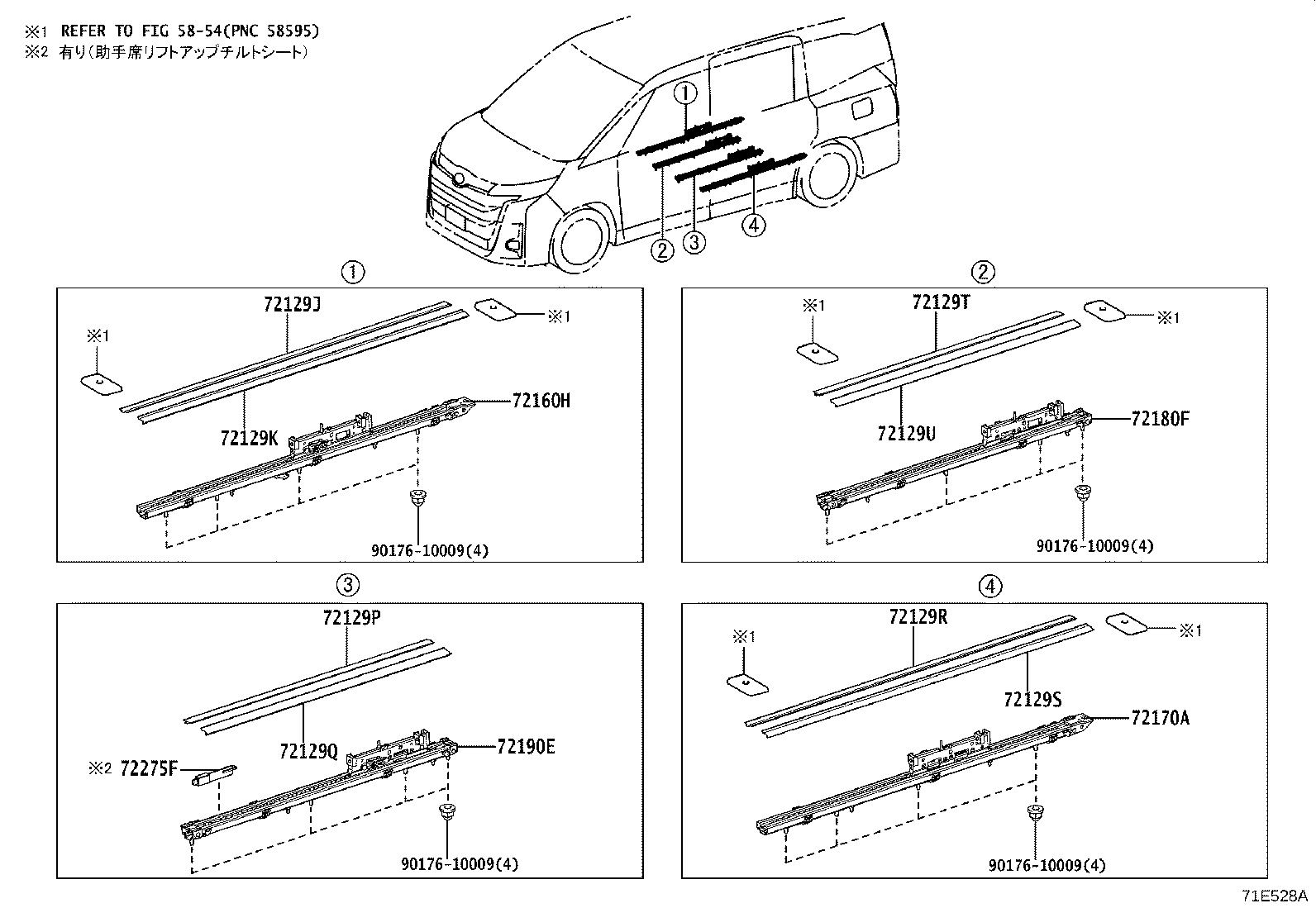

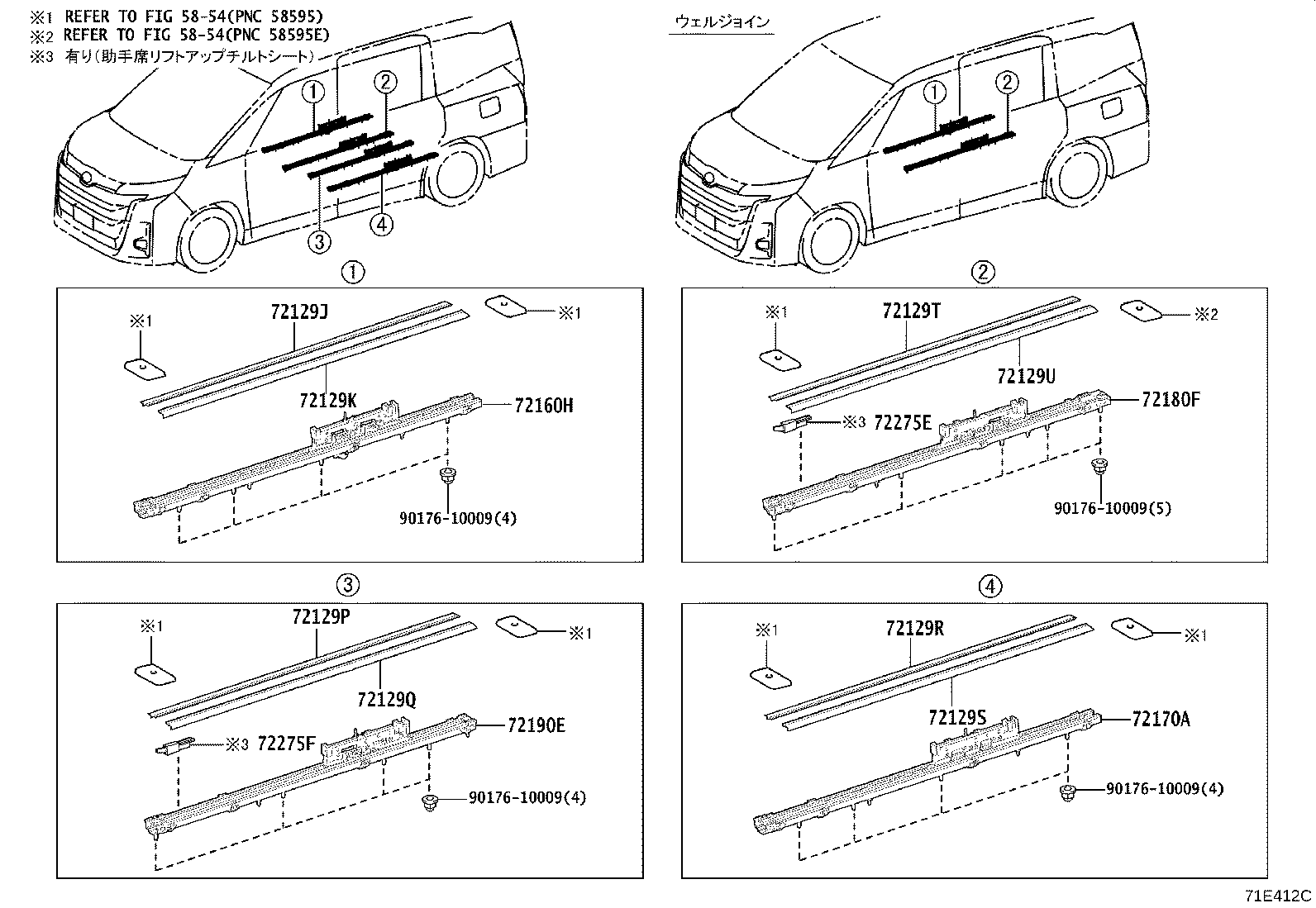

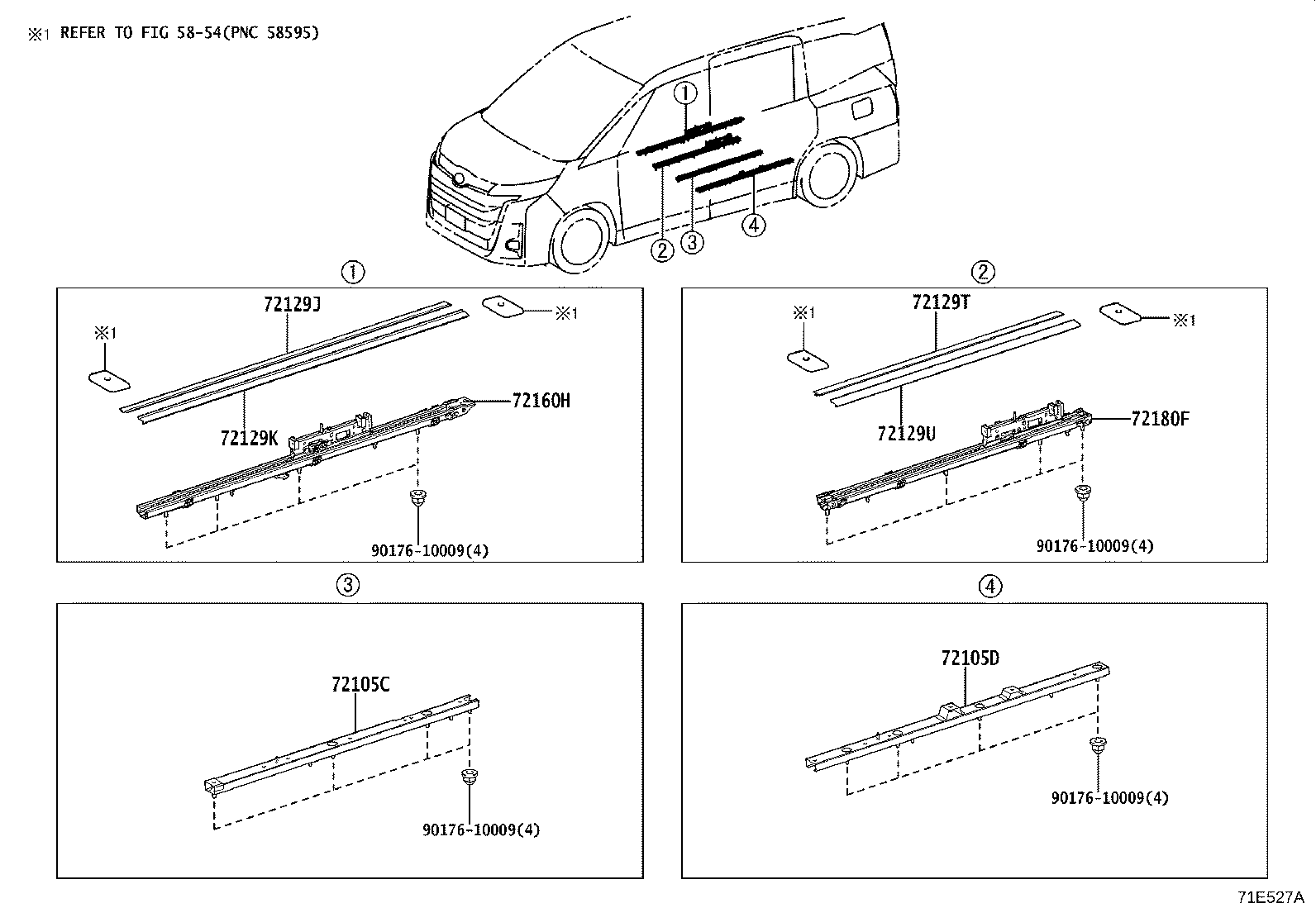

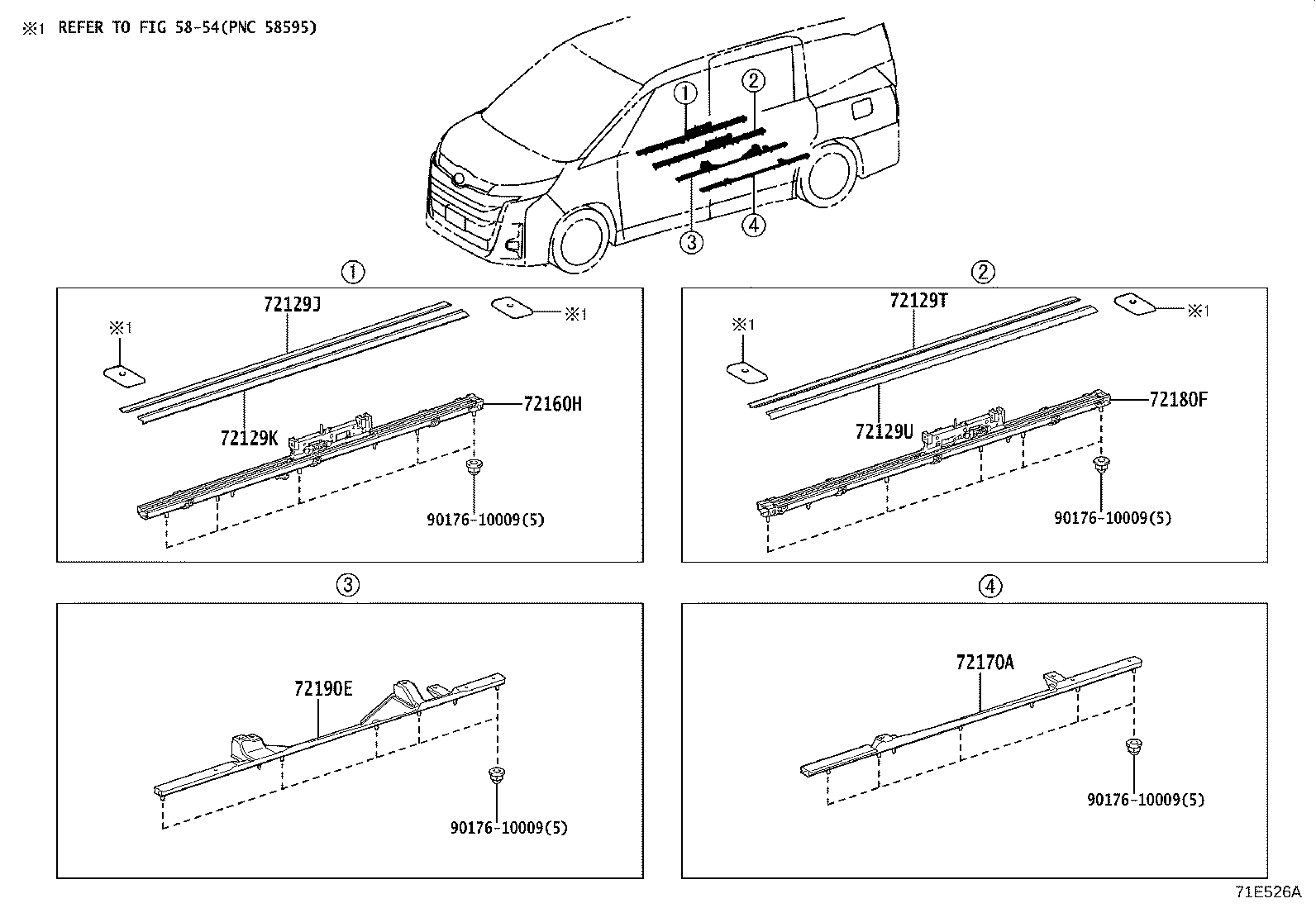

Figure 71E472C 71E472C 2022-01 → — Figure 71E527A 71E527A 2022-01 → — Figure 71E528B 71E528B 2022-01 → — Figure 71E528B 71E528B 2025-01 → — Figure 71E412C 71E412C 2022-01 → — Figure 71E526A 71E526A 2022-01 → —

Part groups

PNCDescription
72105C Rail Sub-assy, Seat Track, Lwr RH
72105D Rail Sub-assy, Seat Track, Lwr LH
72129J Protector, Seat Track Lower Rail, RH Outer NO.1
72129K Protector, Seat Track Lower Rail, RH Outer NO.2
72129P Protector, Seat Track Lower Rail, LH Inner NO.1
72129Q Protector, Seat Track Lower Rail, LH Inner NO.2
72129R Protector, Seat Track Lower Rail, LH Outer NO.1
72129S Protector, Seat Track Lower Rail, LH Outer NO.2
72129T Protector, Seat Track Lower Rail, RH Inner NO.1
72129U Protector, Seat Track Lower Rail, RH Inner NO.2
72160H Track Assy, Rear Seat, Outer RH
72170A Track Assy, Rear Seat, Outer LH
72180F Track Assy, Rear Seat, Inner RH
72190E Track Assy, Rear Seat, Inner LH
72275E Stopper, Rear Seat Track Slide, RH NO.2
72275F Stopper, Rear Seat Track Slide, LH NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
