Toyota Noah/Voxy
2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan
Supported model
Data version 2022-01

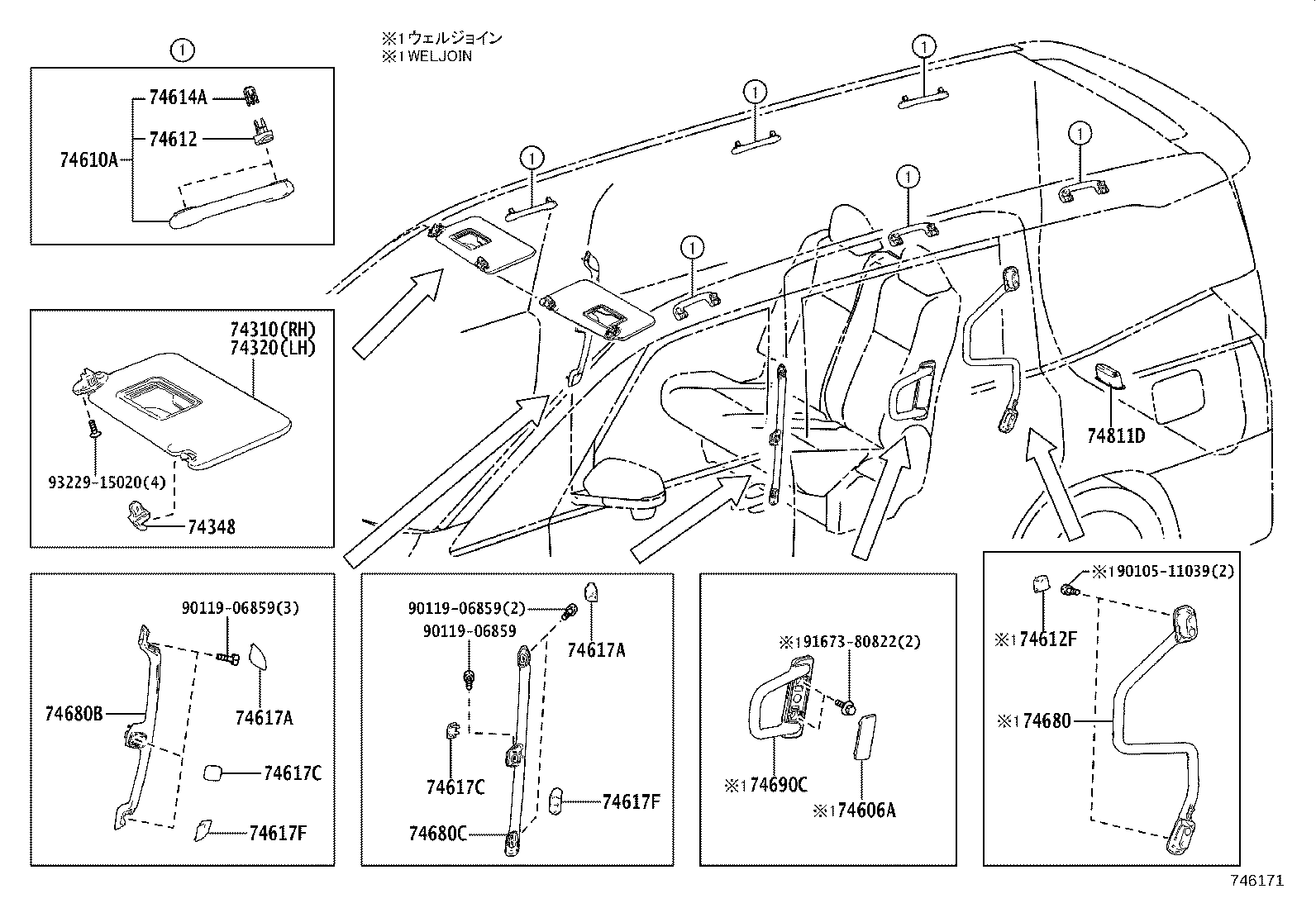

Armrest & Visor
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74606A | Cover, Assist Grip |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74612F | Cover, Assist Grip |
| 74614A | Plate, Assist Grip Lock |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74680 | Grip Assy, Pillar Assist |
| 74680B | Grip Assy, Pillar Assist, RH |
| 74680C | Grip Assy, Pillar Assist, LH |
| 74690C | Grip Assy, Seat Assist, Rear |
| 74811D | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
