Toyota Noah/Voxy
2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan
Supported model
Data version 2022-01

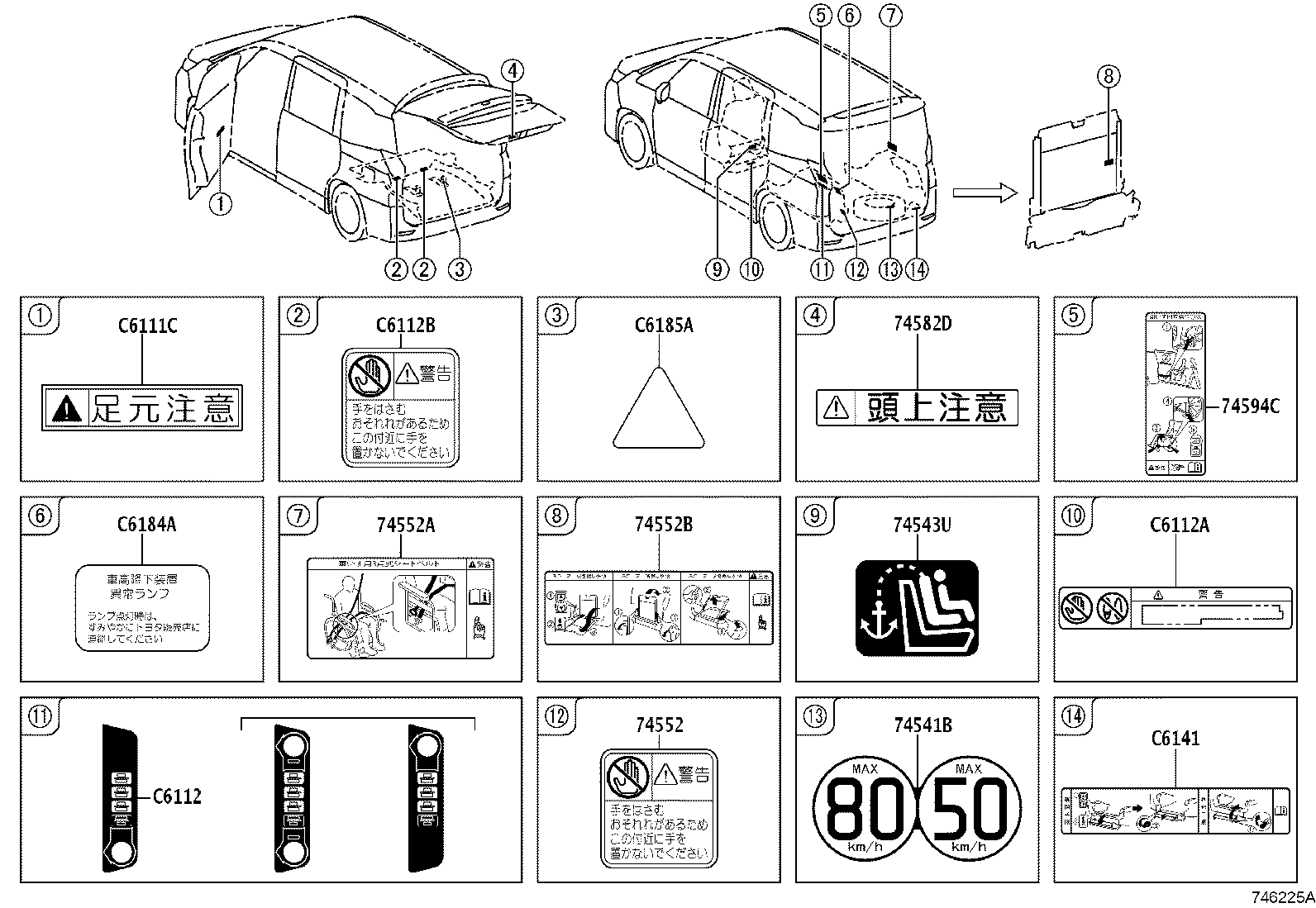

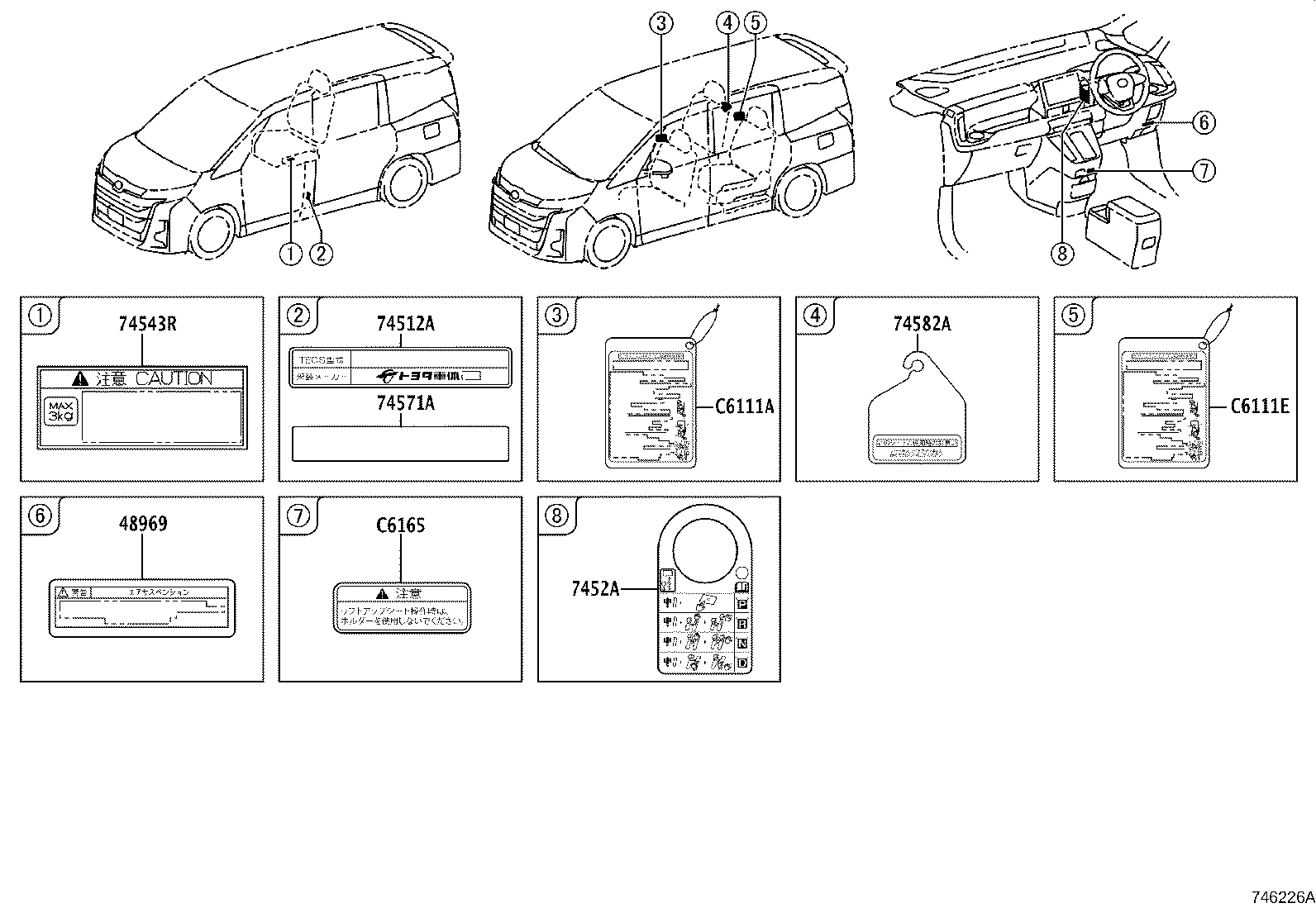

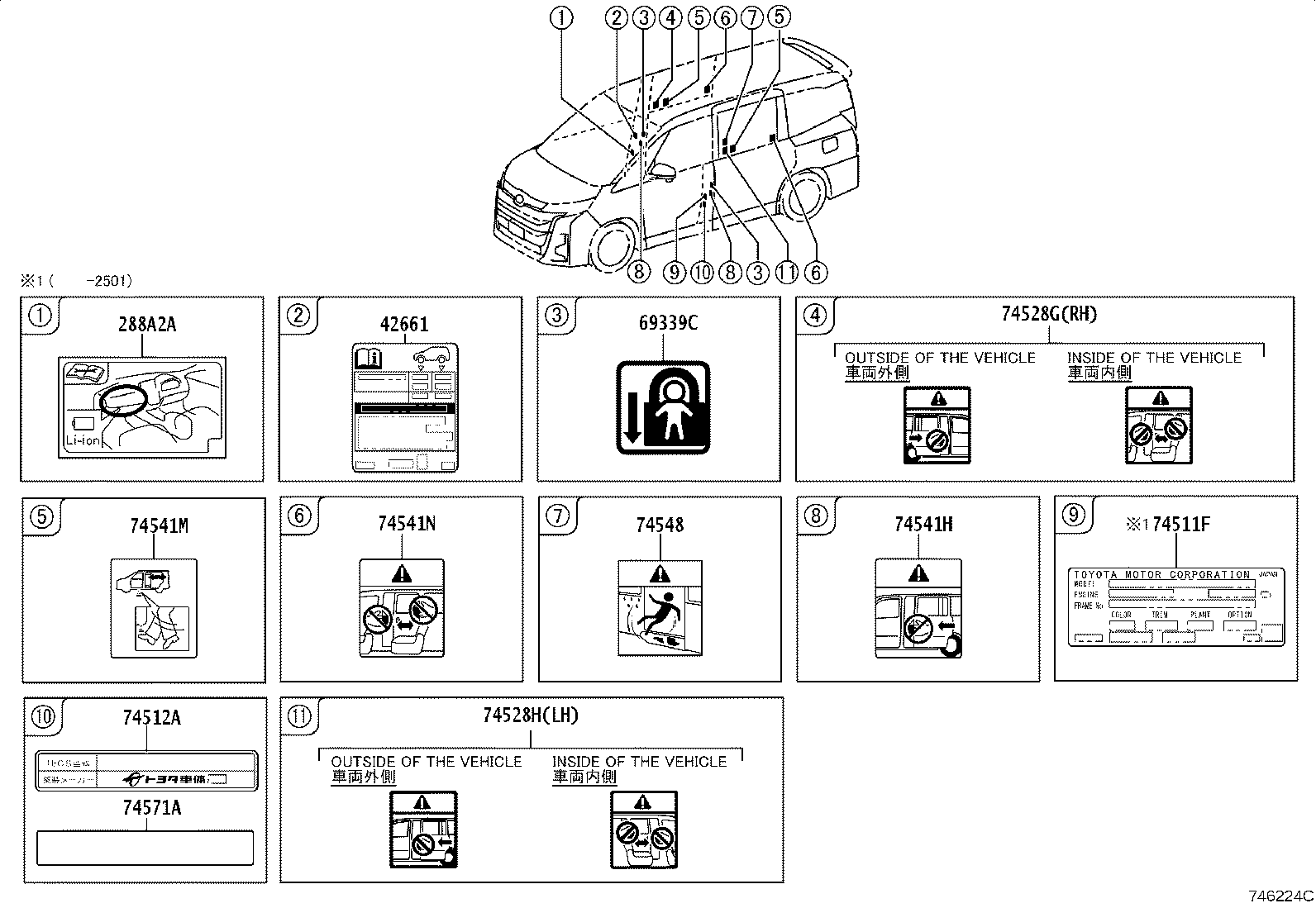

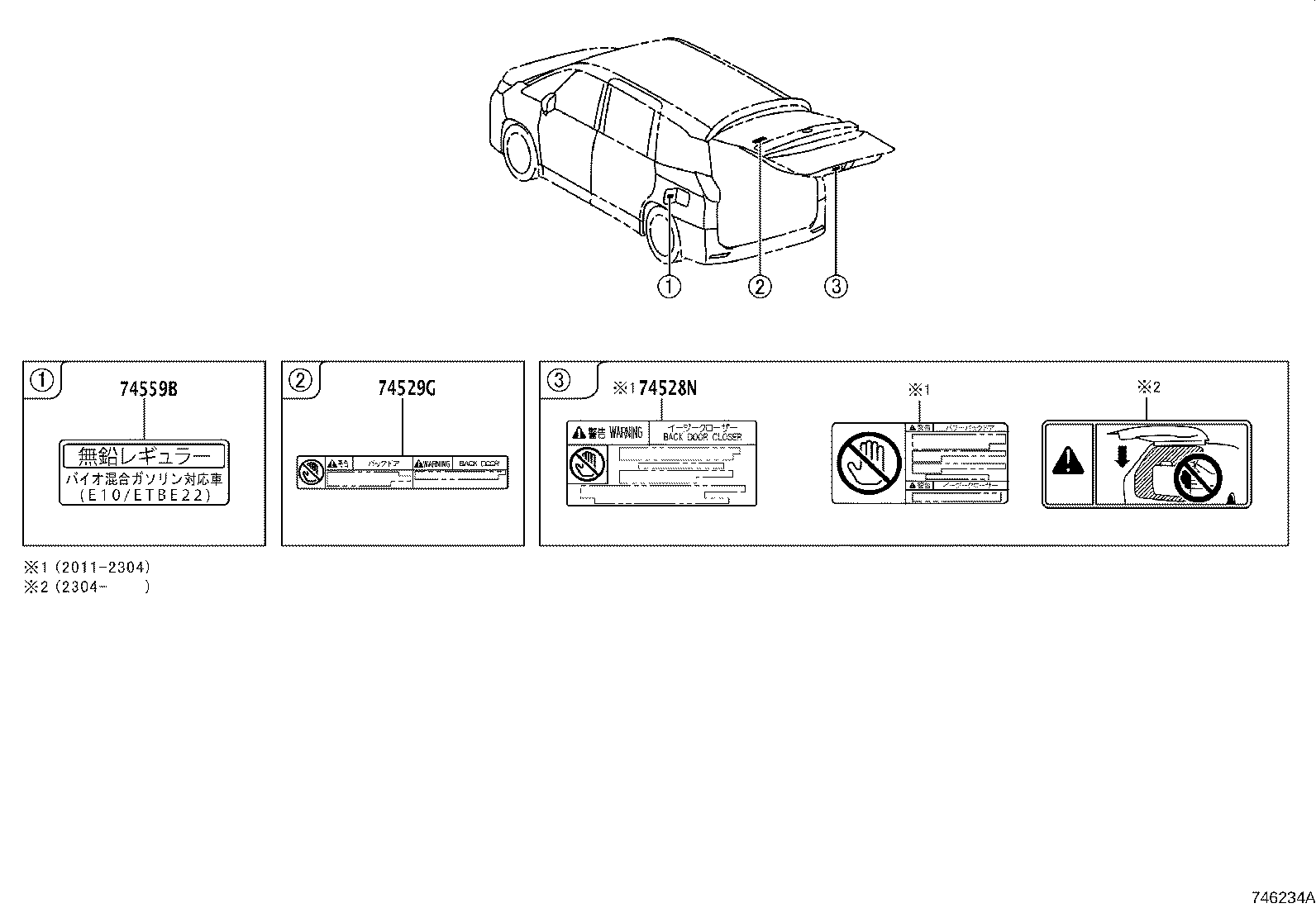

Caution Plate
40 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11291B | Plate, Engine Name |
| 11296C | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 288A2 | Label, Battery Location |
| 288A2A | Label, Battery Location, NO.2 |
| 42661 | Label, Tire Pressure Information |
| 48969 | Label, Jack UP Caution |
| 69339C | Label, Child Protector Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74512A | Plate, Identification Number |
| 74528G | Label, Power Slide Door Caution |
| 74528H | Label, Power Slide Door Caution |
| 74528N | Label, Back Door Caution, NO.2 |
| 74529G | Label, Back Door Caution |
| 7452A | Label, Shift Control Information |
| 74541B | Plate, Compact Spare Tire Caution |
| 74541H | Plate, Body Caution |
| 74541M | Label, Slide Door Information |
| 74541N | Label, Body Caution |
| 74543R | Label, Rear Seat Caution |
| 74543U | Label, Rear Seat Information, NO.1 |
| 74548 | Plate, Body Caution |
| 74552 | Plate, Safety Caution |
| 74552A | Label, Safety Caution |
| 74552B | Label, Safety Caution |
| 74559B | Label, Fuel Information |
| 74571A | Film, Label Cover |
| 74582A | Plate, Safety Caution |
| 74582D | Label, Safety Caution |
| 74594C | Label, Winch Caution |
| 88723E | Label, Cooler Service Caution |
| C6111A | Plate, Safety Caution |
| C6111C | Plate, Tecs Safety Caution, NO.1 |
| C6111E | Plate, Tecs Safety Caution, NO.2 |
| C6112 | Label, Safety Information, NO.2 |
| C6112A | Label, Safety Information |
| C6112B | Label, Safety Information, NO.2 |
| C6165 | Label, Power Lift Notice |
| C6184A | Plate, Wheel Chair Holder Caution, NO.3 |
| C6185A | Label, Wheel Chair Holder Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
