Toyota Noah/Voxy

2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

29 part groups · 3 illustrations

Illustrations

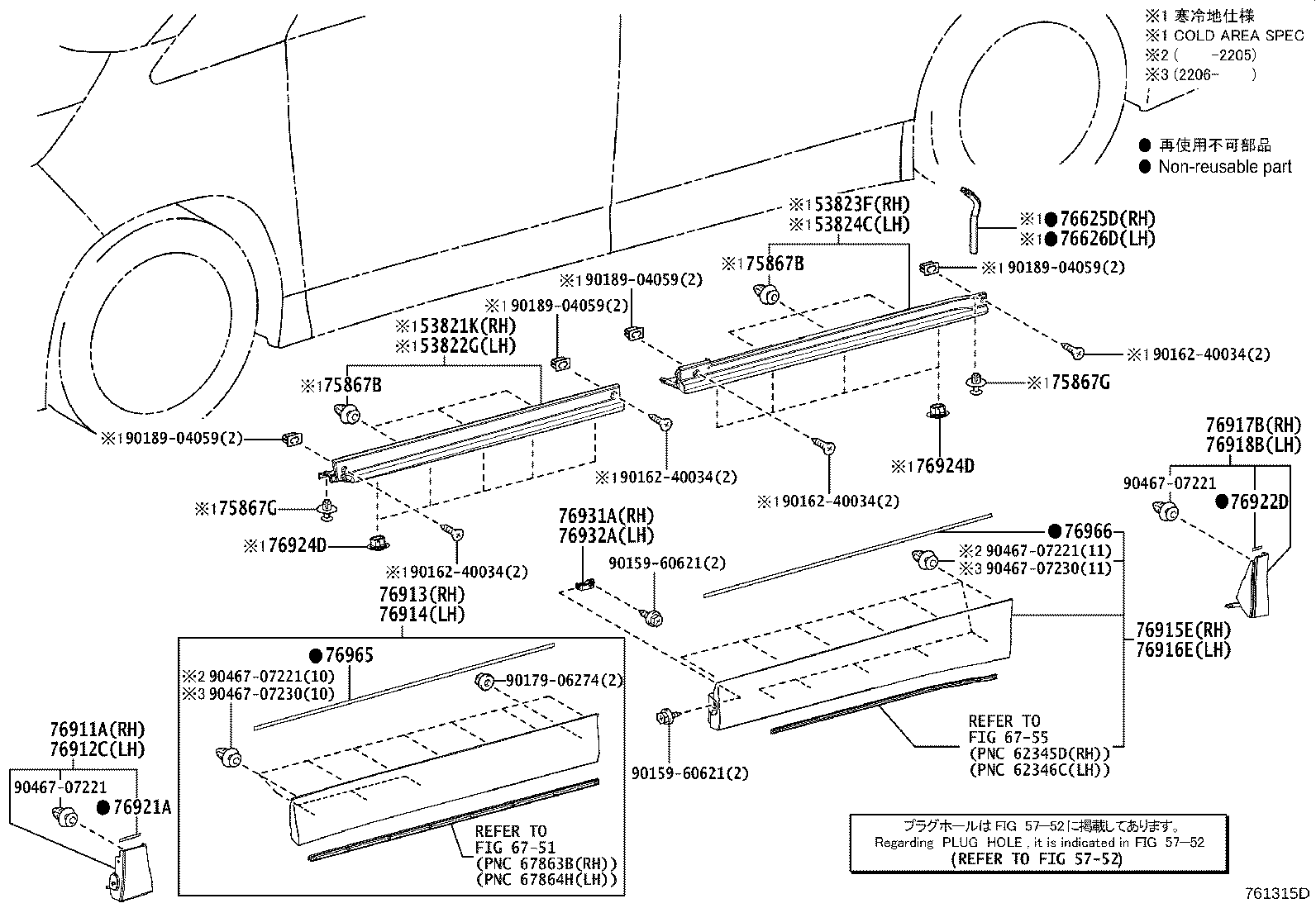

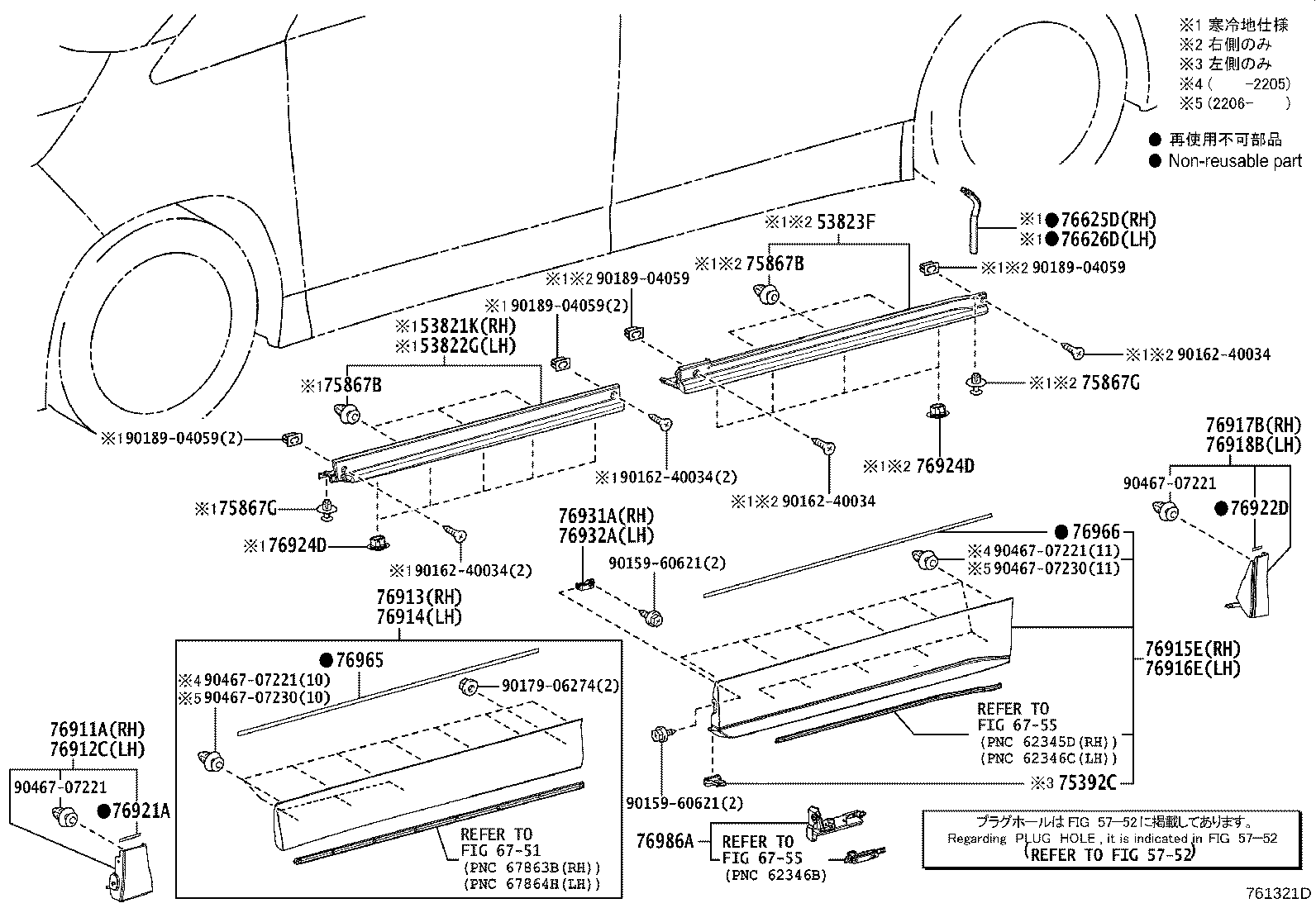

Figure 761335A 761335A 2022-01 → — Figure 761315D 761315D 2022-01 → — Figure 761321D 761321D 2022-01 → —

Part groups

PNCDescription
53821K Protector, Front Side Panel, NO.1 RH
53822G Protector, Front Side Panel, NO.1 LH
53823F Protector, Front Side Panel, NO.2 RH
53824C Protector, Front Side Panel, NO.2 LH
75392C Retainer, Outside Moulding
75867B Clip, Rocker Panel Moulding
75867G Clip, Rocker Panel Moulding NO.2
76085 Spoiler Sub-assy, Rear
76625D Mudguard, Quarter Panel, Rear RH
76626D Mudguard, Quarter Panel, Rear LH
76872A Protector, Rear Spoiler, NO.1
76873B Protector, Rear Spoiler, NO.2
76889H Seal, Rear Spoiler, NO.1
76911A Mudguard, Fender Panel, RH
76912C Mudguard, Fender Panel, LH
76913 Mudguard, Front Door, RH
76914 Mudguard, Front Door, LH
76915E Mudguard, Slide Door, RH
76916E Mudguard, Slide Door, LH
76917B Mudguard, Quarter Panel, RH
76918B Mudguard, Quarter Panel, LH
76921A Protector, Side Mudguard, NO.1
76922D Protector, Side Mudguard, NO.2
76924D Retainer, Side Mudguard, NO.2
76931A Bracket, Side Mudguard, NO.1 RH
76932A Bracket, Side Mudguard, NO.1 LH
76965 Protector, Front Door Lower Mudguard
76966 Protector, Slide Door Lower Mudguard
76986A Mudguard, Slide Door Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
