Toyota Noah/Voxy
2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan
Supported model
Data version 2022-01
Switch & Relay & Computer
152 part groups · 15 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371B | Relay, Igr |
| 28371L | Relay, Igp |

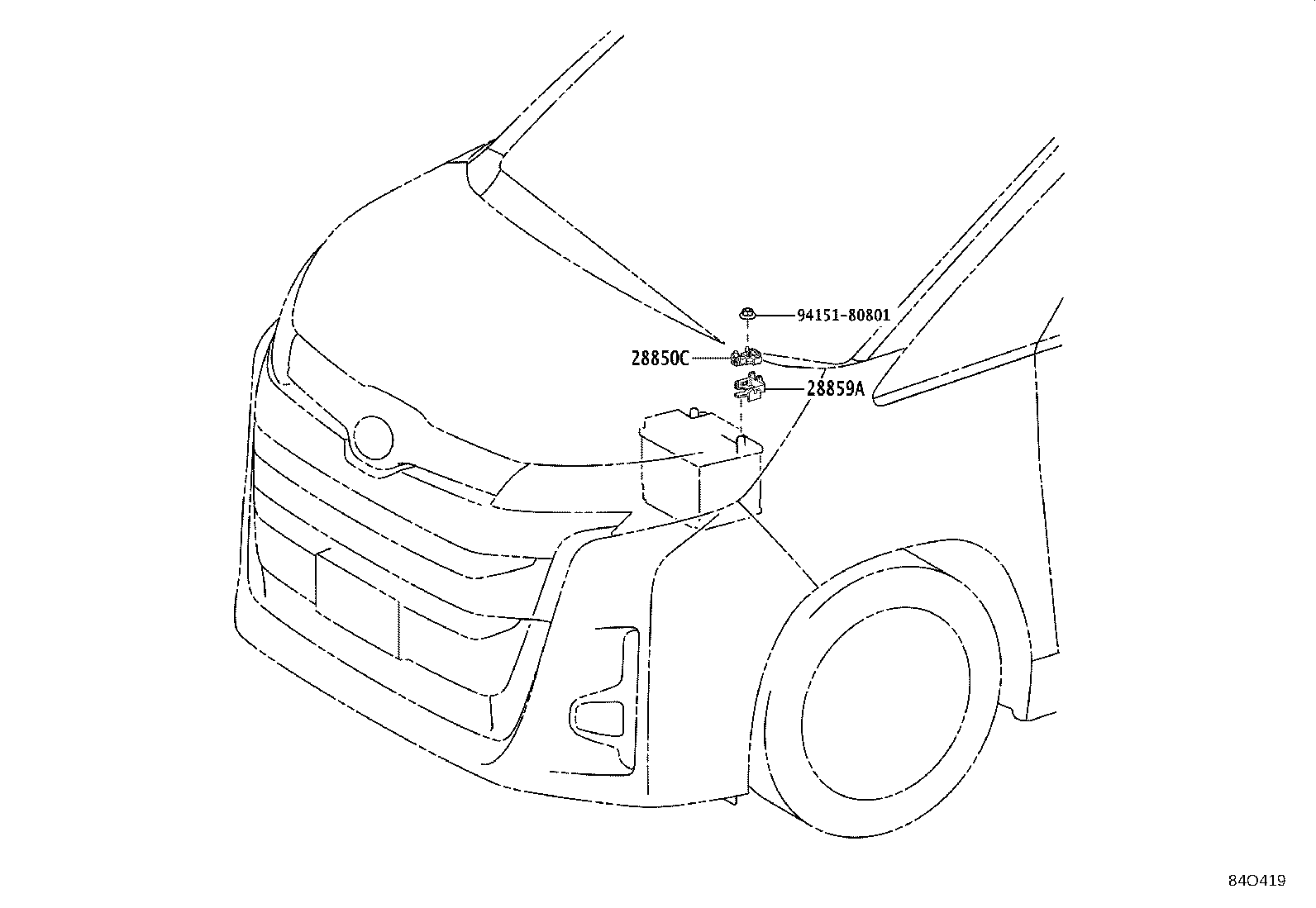

| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 28911 | Bracket, Integration Control Supply, NO.1 |
| 28912 | Supply, Integration Control |
| 55173F | Bracket, Electrical Part |
| 81851C | Lamp Assy, Indicator |
| 81851E | Lamp Assy, Indicator |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82613A | Block, Fuse Base |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82660 | Block Assy, Relay, Engine Room |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82662E | Cover, Relay Block, Upper, NO.7 |
| 82662F | Cover, Relay Block, Upper, NO.8 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82672K | Cover, Power Distribution Box |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715 | Bracket,Wiring Harness Clamp |
| 82715W | Bracket, Wiring Harness Clamp |
| 82715X | Bracket, Wiring Harness Clamp, NO.2 |

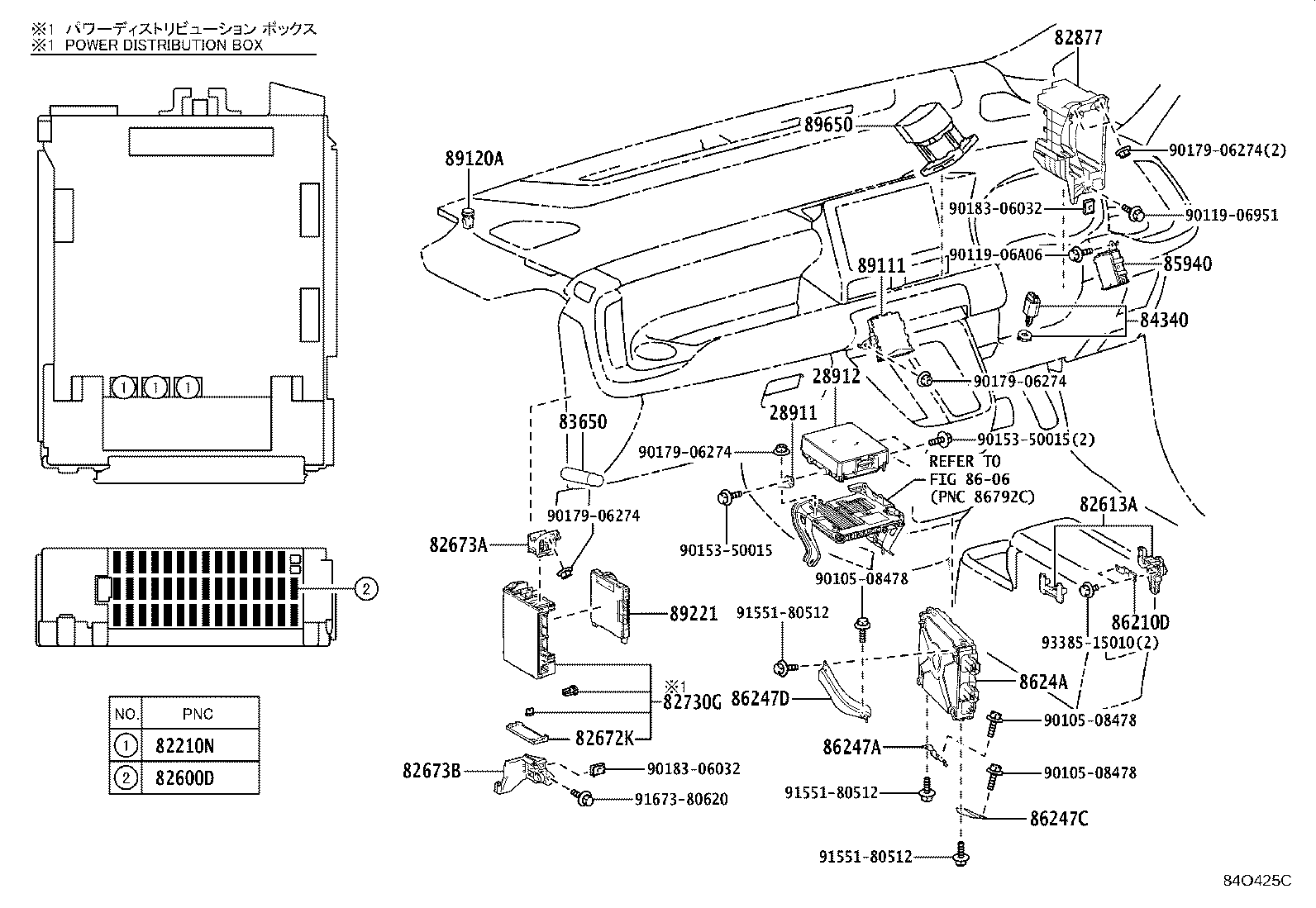

| 82730G | Box Assy, Power Distribution |

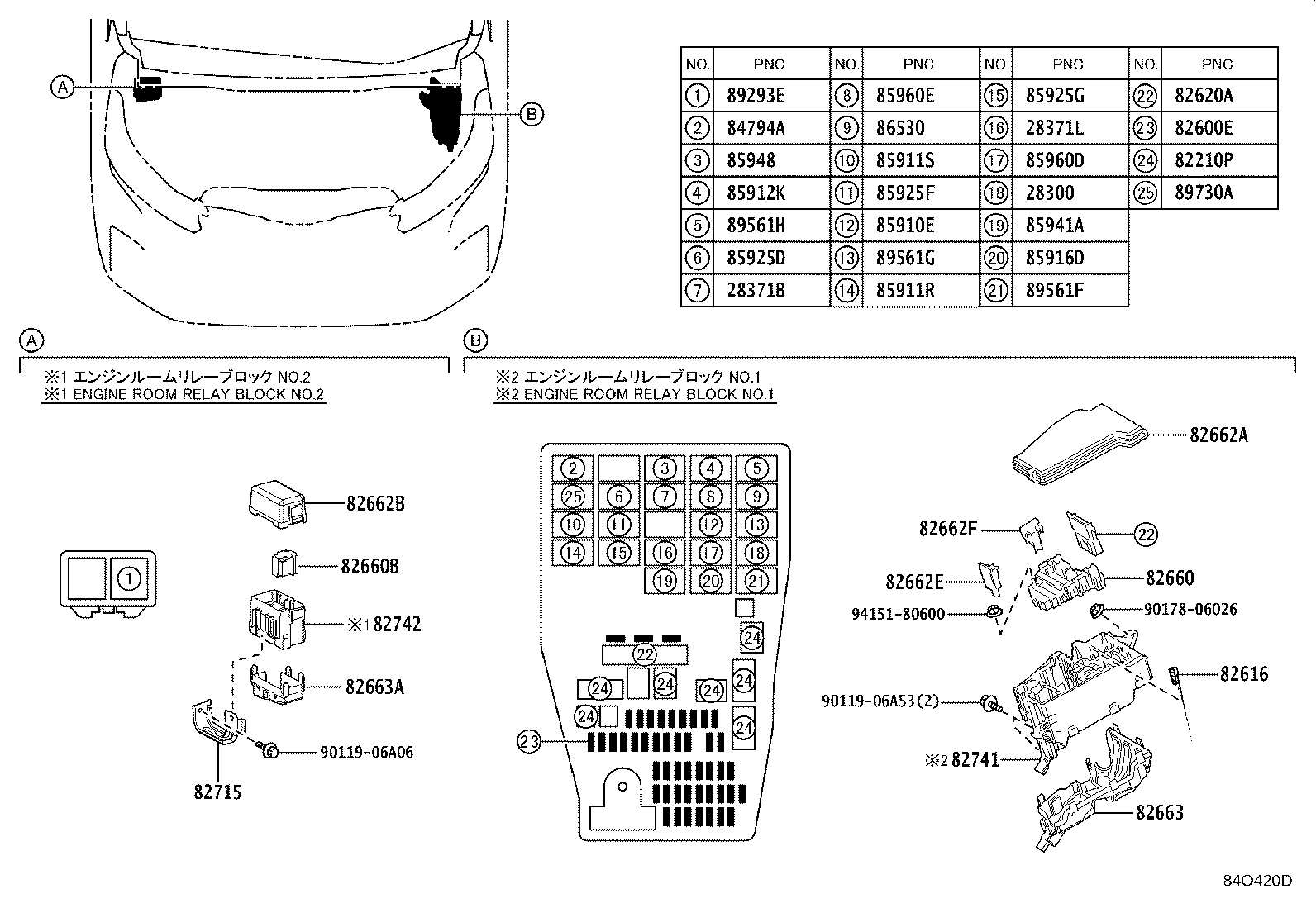

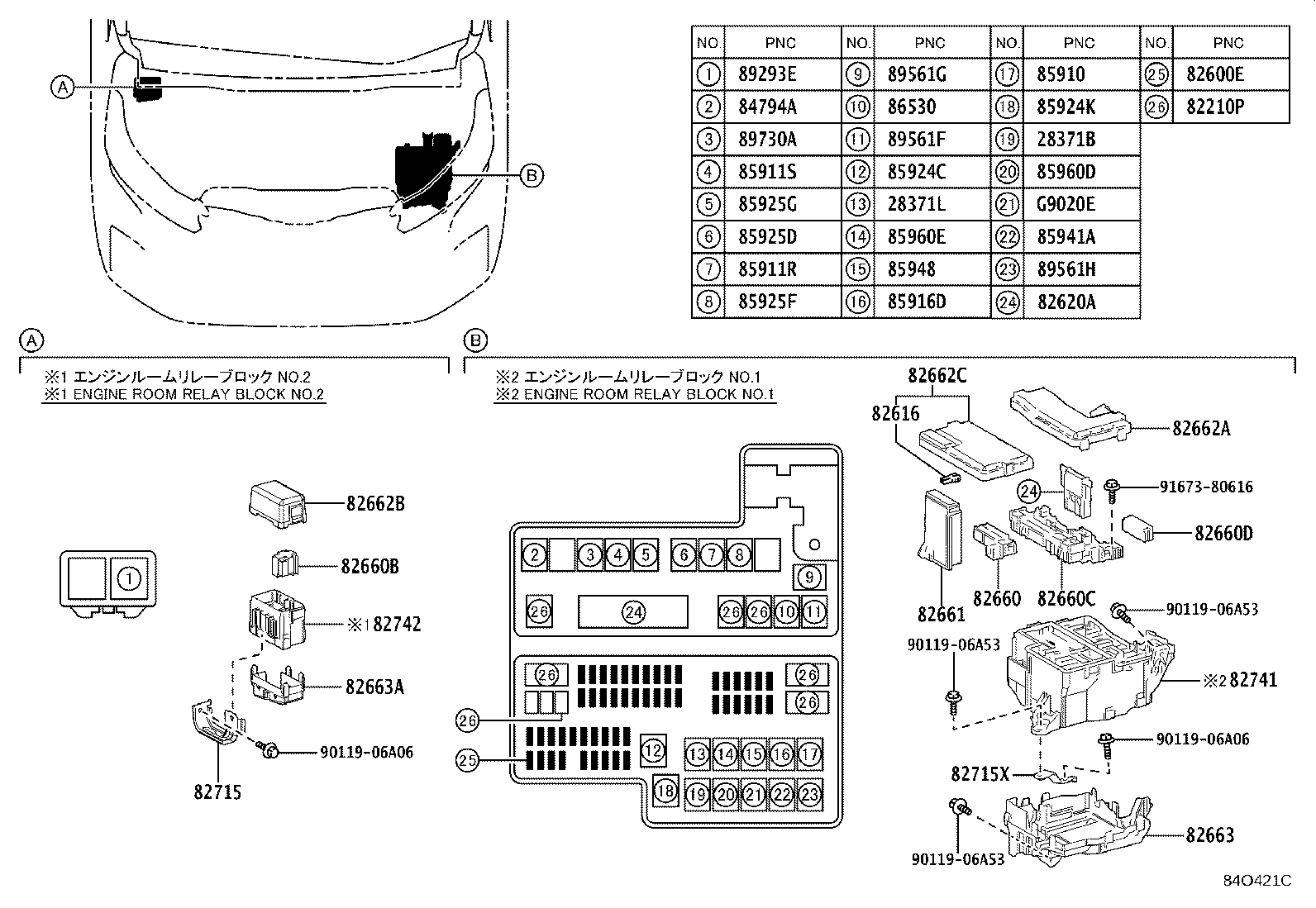

| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82877 | Box, Computer Integration, RH |
| 82G11K | Clamp, Wiring Harness |
| 82G11L | Clamp, Wiring Harness, NO.2 |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |
| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84390B | Switch Assy, Electric Parking Brake |
| 84450 | Switch Assy, Ignition OR Starter |
| 84485 | Switch, Power Outlet(AC100V ACCESSORY SOCKET) |
| 84540 | Switch Assy, Neutral Start |

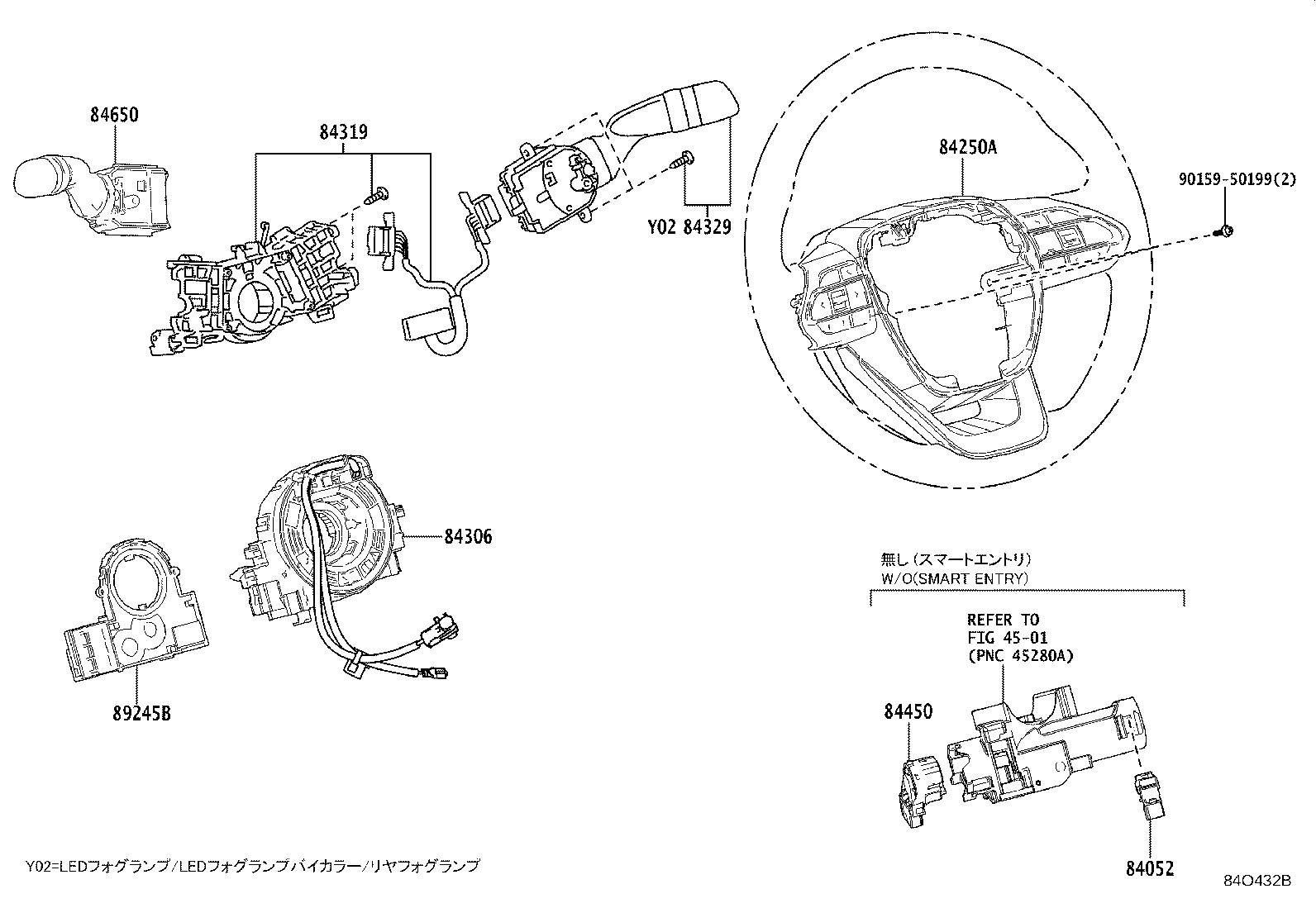

| 84650 | Switch Assy, Windshield Wiper |

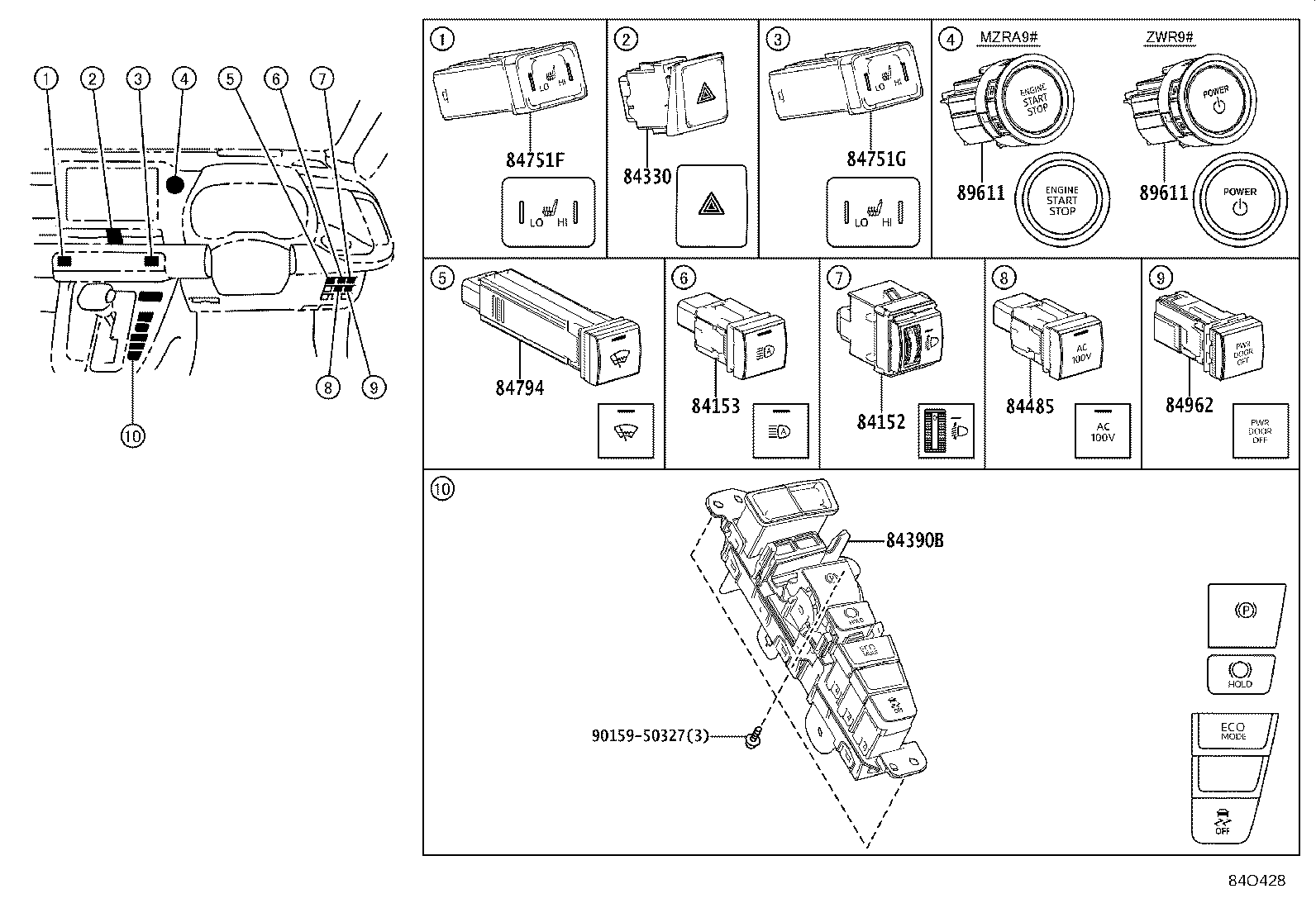

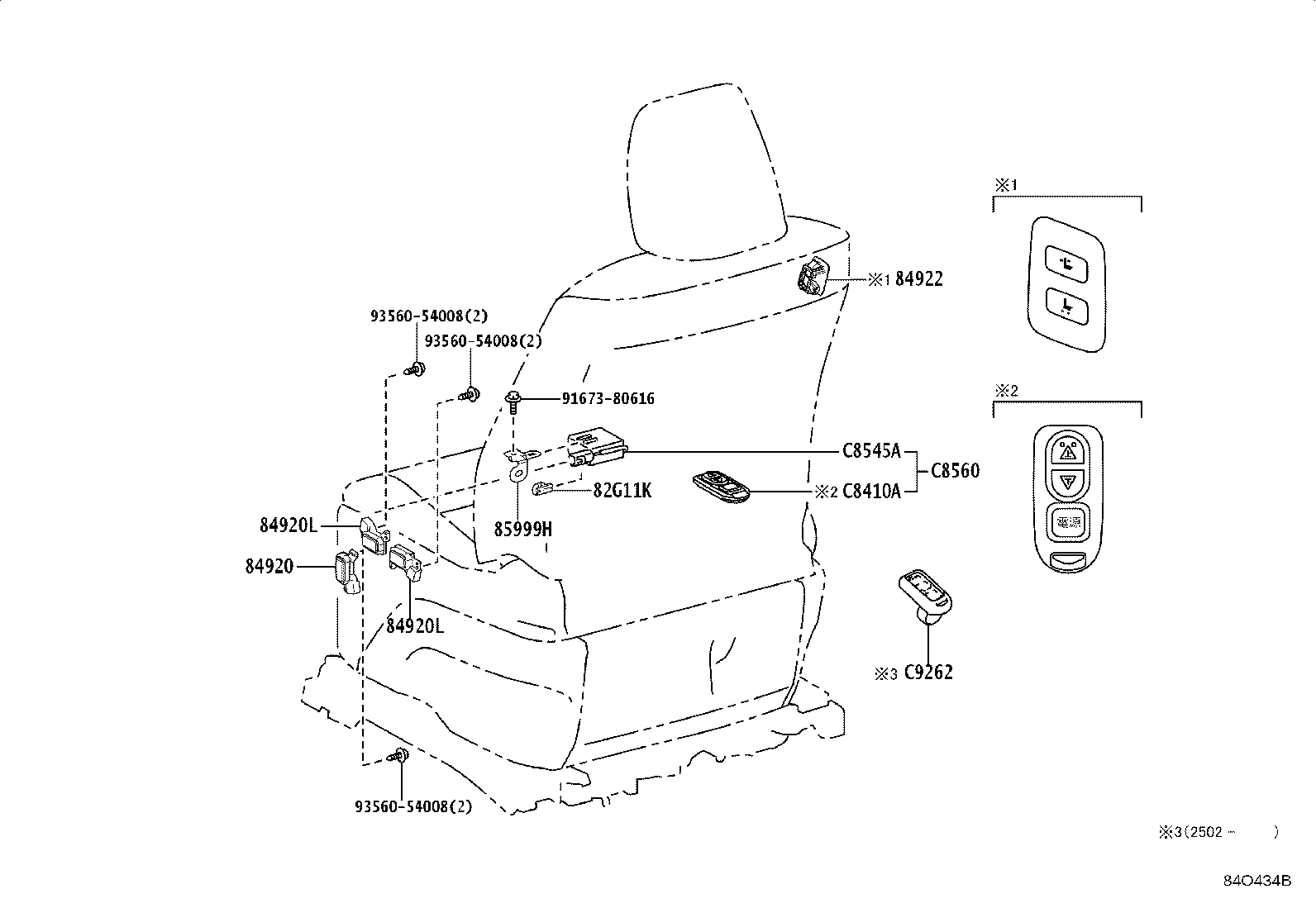

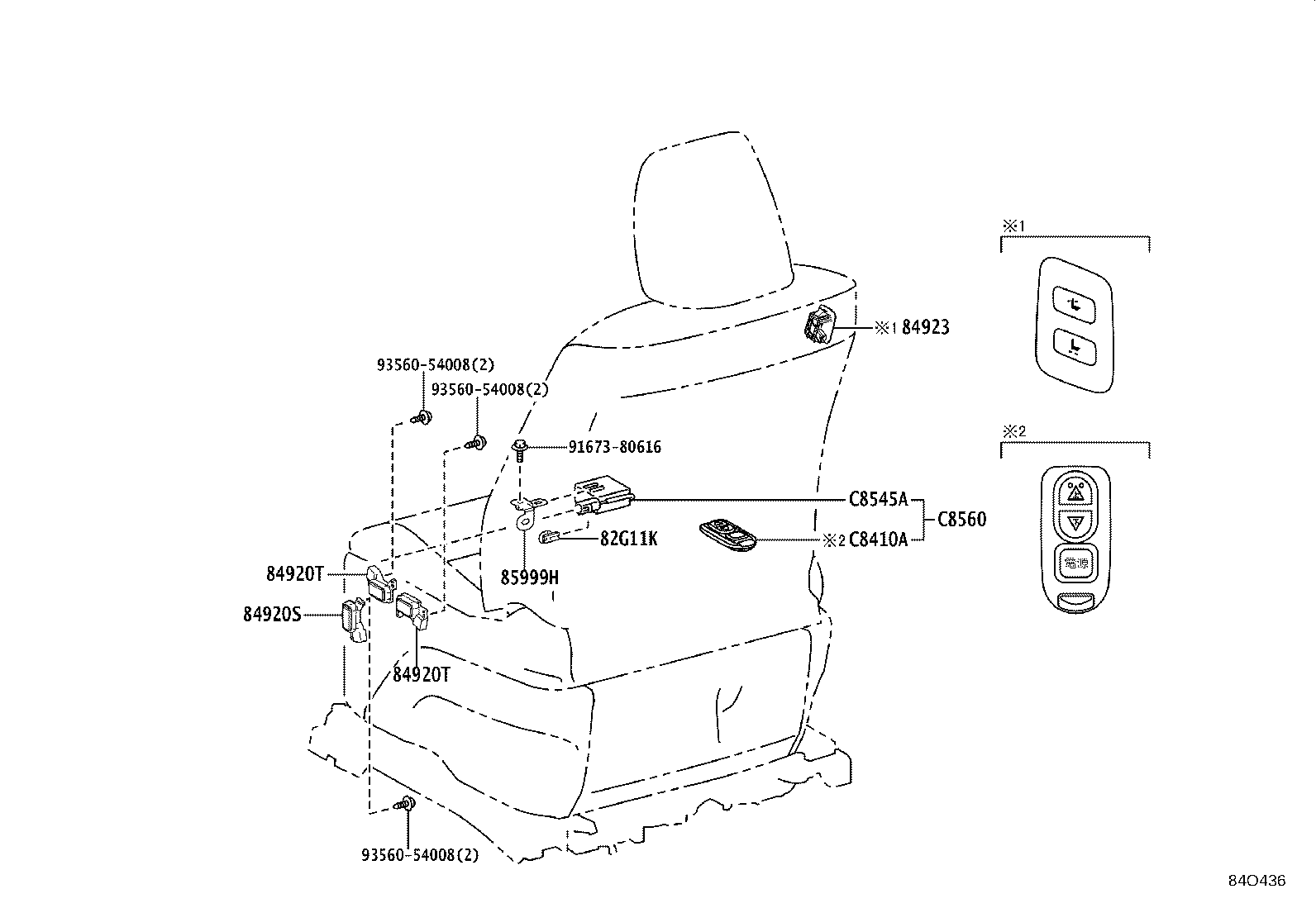

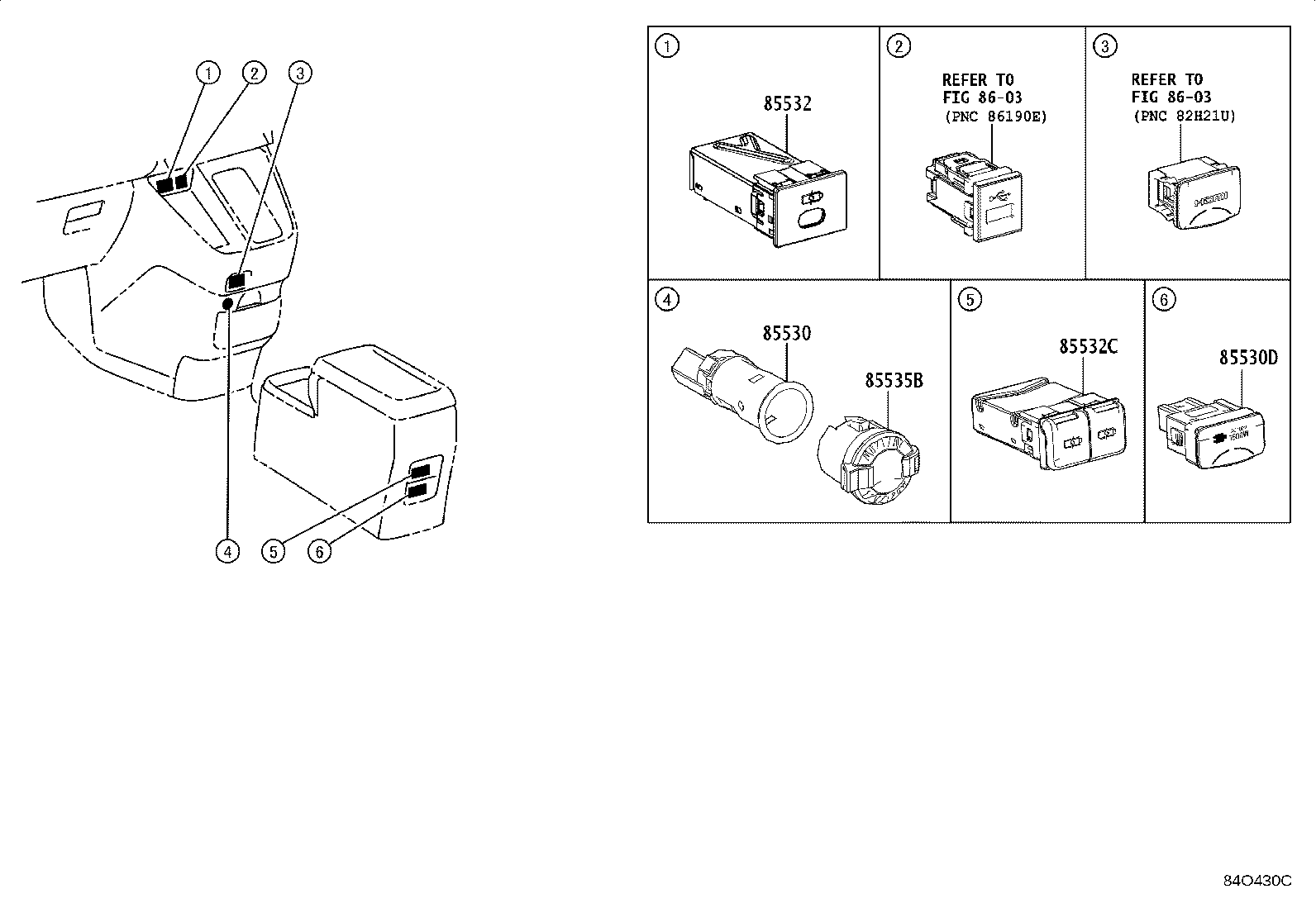

| 84751F | Switch, Seat Heater |
| 84751G | Switch, Seat Heater |
| 84794 | Switch, FR Wiper Deicer |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84870A | Switch Assy, Outer Mirror |
| 84920 | Switch Assy, Power Seat |
| 84920L | Switch Assy, Power Seat, NO.2 |
| 84920S | Switch Assy, Power Seat, NO.3 |
| 84920T | Switch Assy, Power Seat, NO.4 |
| 84922 | Switch, Front Power Seat |
| 84923 | Switch, Rear Power Seat |
| 84945A | Switch, Luggage Electrical Key |
| 84962 | Switch, Power Slide Door Main |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85531 | Socket, Power Outlet |
| 85532 | Socket, Usb Charger |
| 85532C | Socket, Usb Charger, NO.2 |

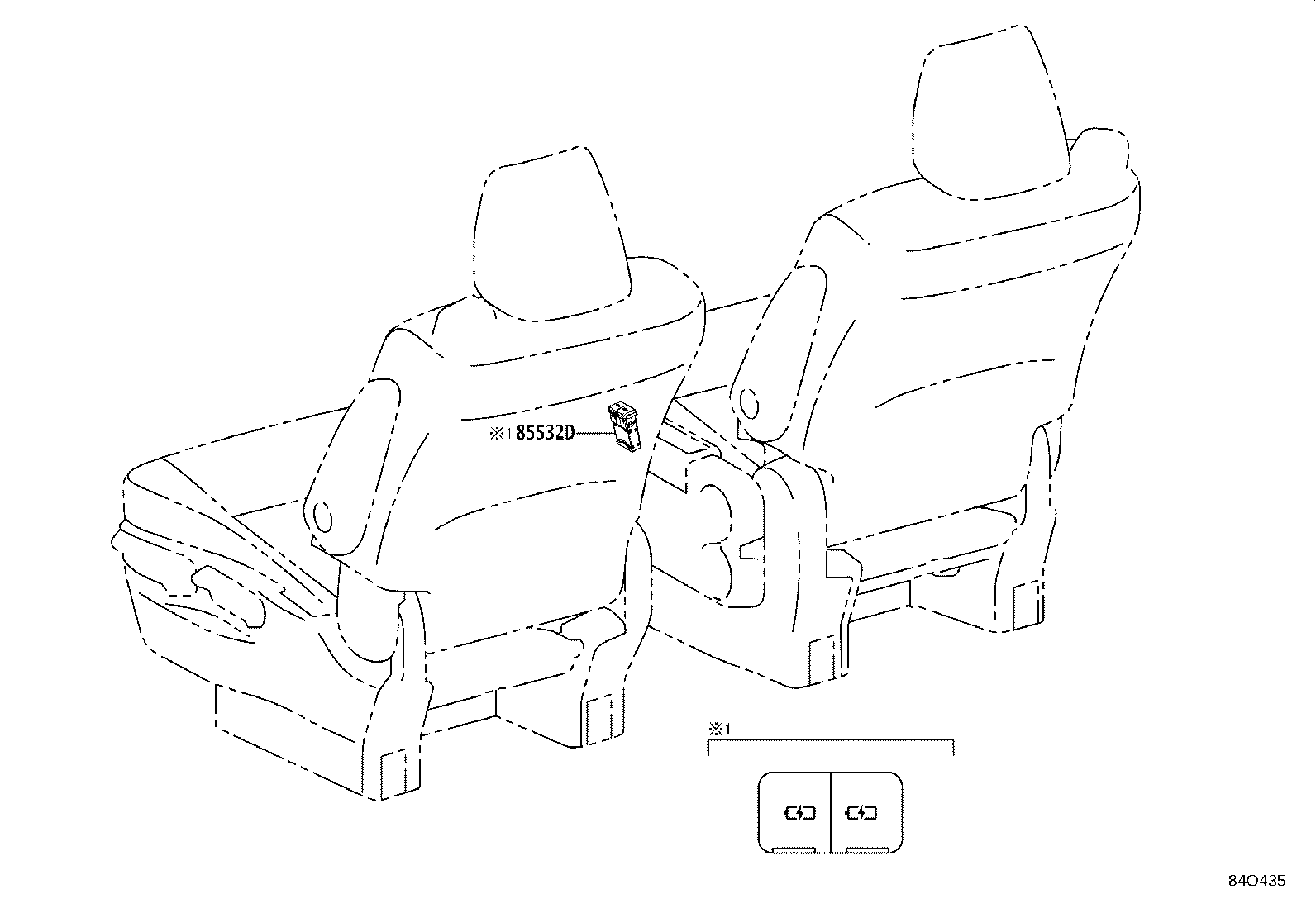

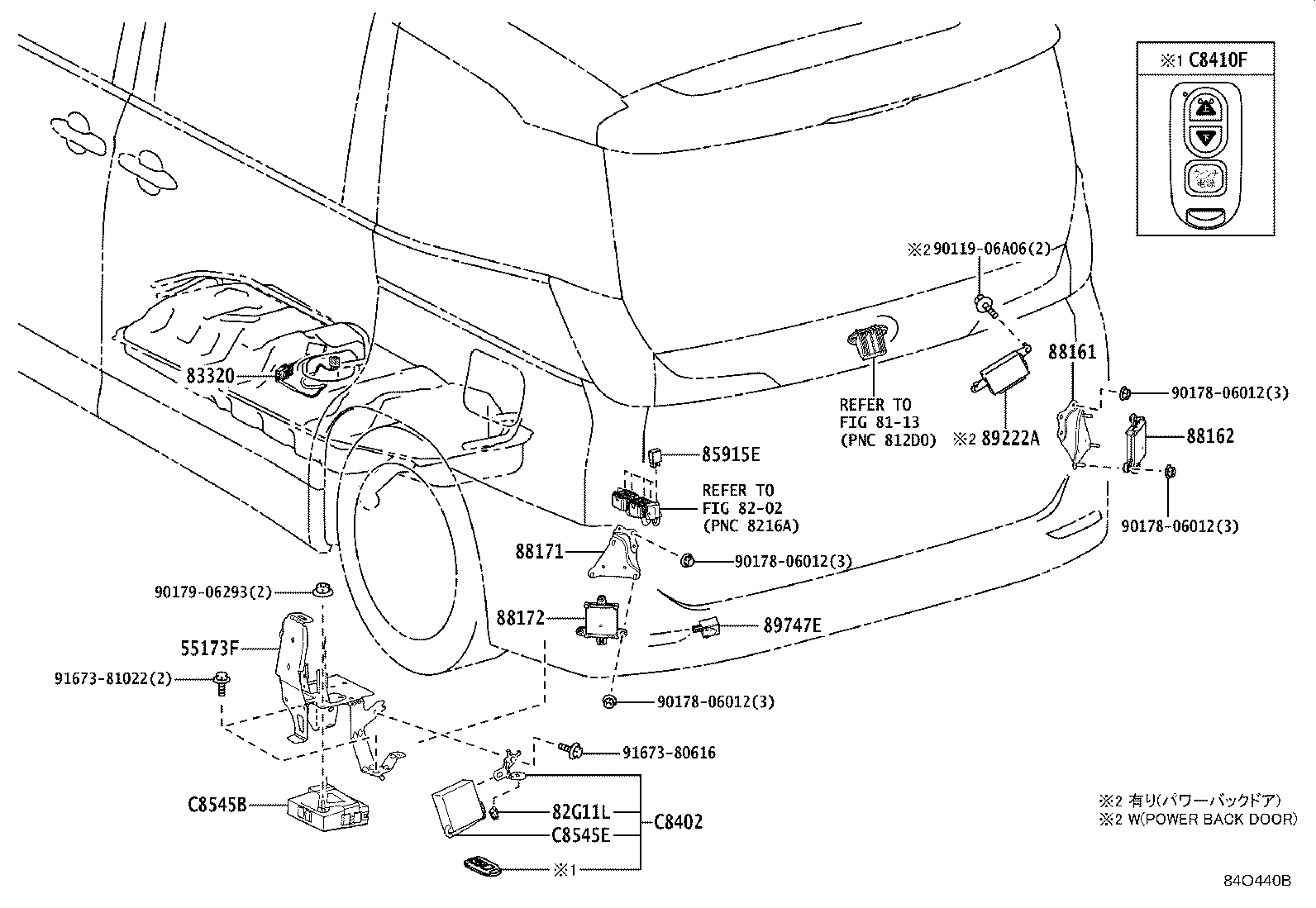

| 85532D | Socket, Usb Charger, NO.3 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910 | Relay Assy, Circuit Opening |
| 85910E | Relay, Injector |
| 85911R | Relay, Rear Seat Heater, RH |
| 85911S | Relay, Rear Seat Heater, LH |
| 85912K | Relay, Vvt |
| 85915E | Relay |
| 85916D | Relay, Fog Lamp |
| 85924C | Relay, Igct |
| 85924K | Relay, Igct, NO.2 |
| 85925D | Relay, Ptc Heater |
| 85925F | Relay, Ptc Heater NO.2 |
| 85925G | Relay, Ptc Heater NO.3 |
| 85940 | Relay Assy, Windshield Wiper |
| 85941A | Relay, Rear Windshield Washer |
| 85948 | Relay, Windshield Wiper |
| 85960D | Relay, Headlamp, RH |
| 85960E | Relay, Headlamp, LH |
| 85975B | Relay, Slide Door Closer, RH |
| 85975C | Relay, Slide Door Closer, LH |
| 85999H | Bracket, Relay |
| 86210D | Fuse, High Voltage |
| 86247A | Bracket, Voltage Inverter |
| 86247C | Bracket, Voltage Inverter, NO.2 |
| 86247D | Bracket, Voltage Inverter, NO.3 |
| 8624A | Inverter, Voltage |
| 86530 | Relay Assy, Horn |
| 869A1 | Computer, Intelligent Transport Systems Communication |
| 88161 | Bracket, Blind Spot Monitor, RH |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88171 | Bracket, Blind Spot Monitor, LH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |

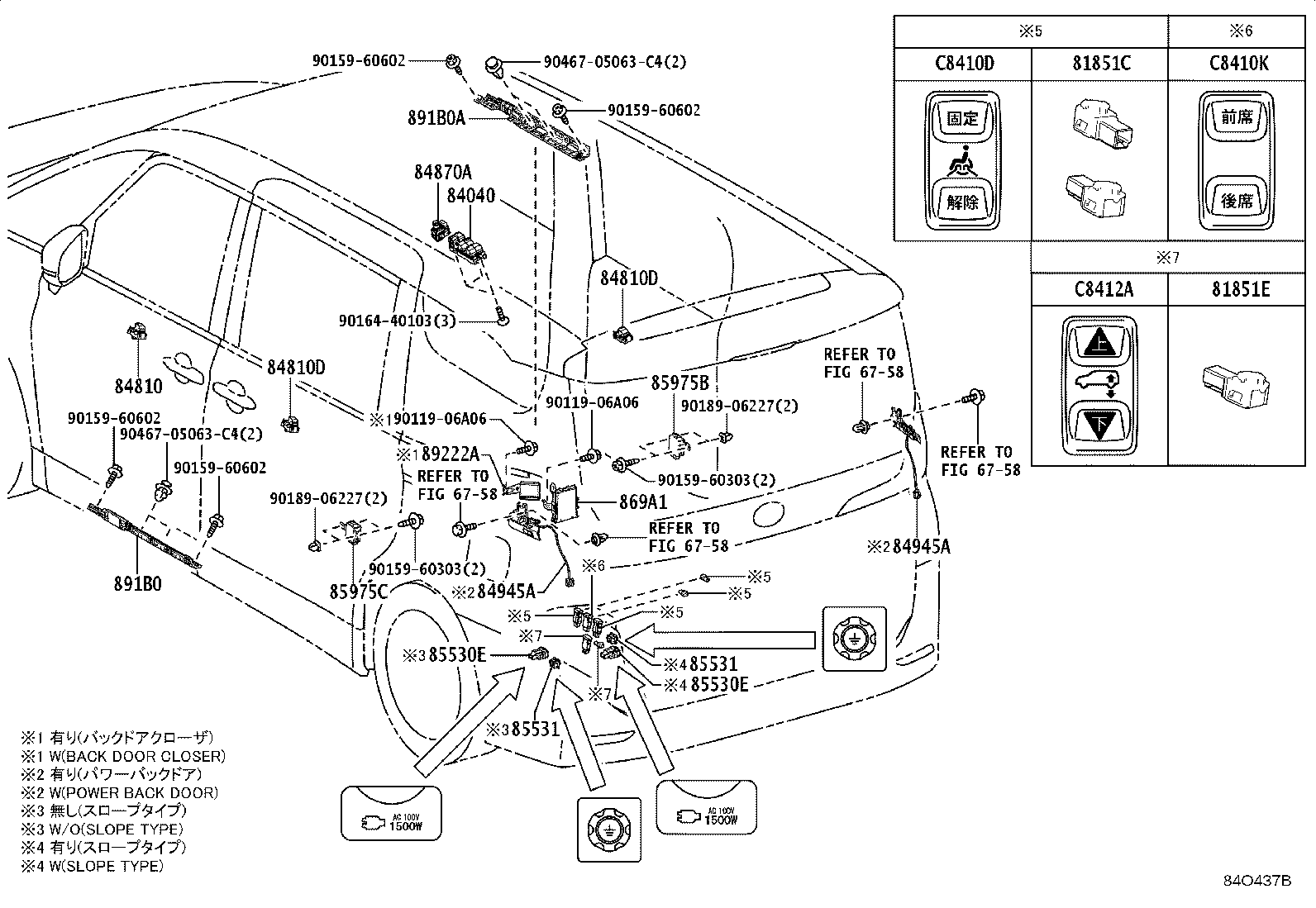

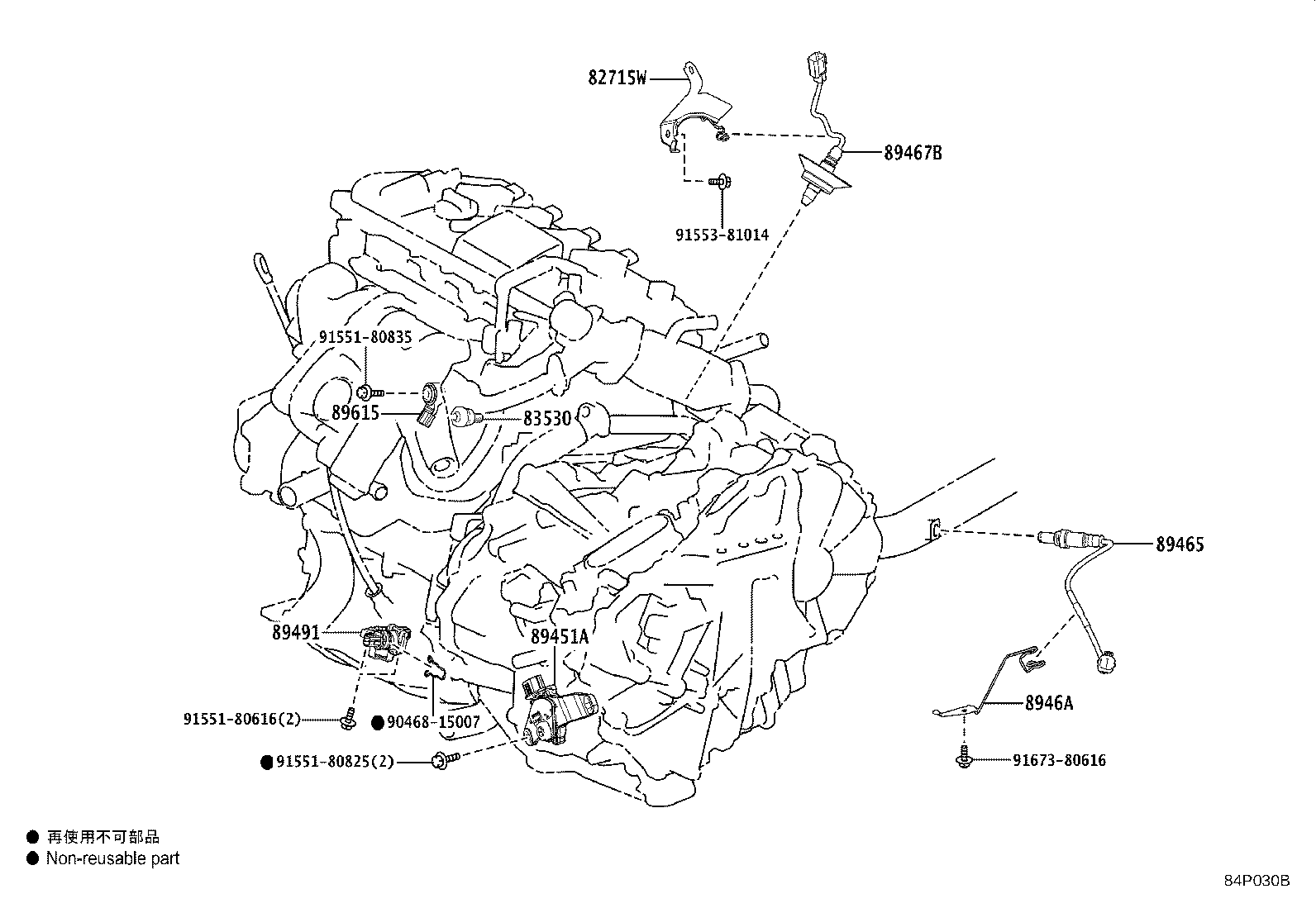

| 891B0 | Sensor Assy, Kick Door Control |
| 891B0A | Sensor Assy, Kick Door Control, NO.2 |
| 89221 | Computer, Multiplex Network Body |
| 89222A | Computer, Multiplex Network Door |
| 89245B | Sensor, Steering |
| 89293E | Relay, Air Suspension |
| 89419B | Sensor, Shift Stroke |
| 89422A | Sensor, Water Temperature |
| 89451A | Sensor, Shift Lever Position |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 8946A | Bracket, Exhaust Sensor Clamp |
| 8946AA | Bracket, Exhaust Sensor Clamp, NO.2 |
| 89491 | Sensor, Engine Oil Level |
| 89535B | Computer, Transmission Control |
| 89539M | Bracket, Transmission Control Computer, NO.1 |
| 89539N | Bracket, Transmission Control Computer, NO.2 |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89747E | Buzzer, Power Back Door Warning |
| C8402 | Switch Set, Power Lift Remote Control |
| C8410A | Switch Assy, Power Lift Control |
| C8410D | Switch Assy, Control, NO.1 |
| C8410F | Switch, Power Lift Remote Control |
| C8410K | Switch Assy, Control, NO.2 |
| C8412A | Switch, Power Lift Control, NO.1 |
| C8545A | Relay, Power Lift Control |
| C8545B | Relay, Power Lift Control, NO.2 |
| C8545E | Relay, Power Lift Control, NO.3 |
| C8560 | Relay Assy, Lifter |
| G9020E | Relay, Hybrid Water Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
