Toyota Noah/Voxy

2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

5 part groups · 2 illustrations

Illustrations

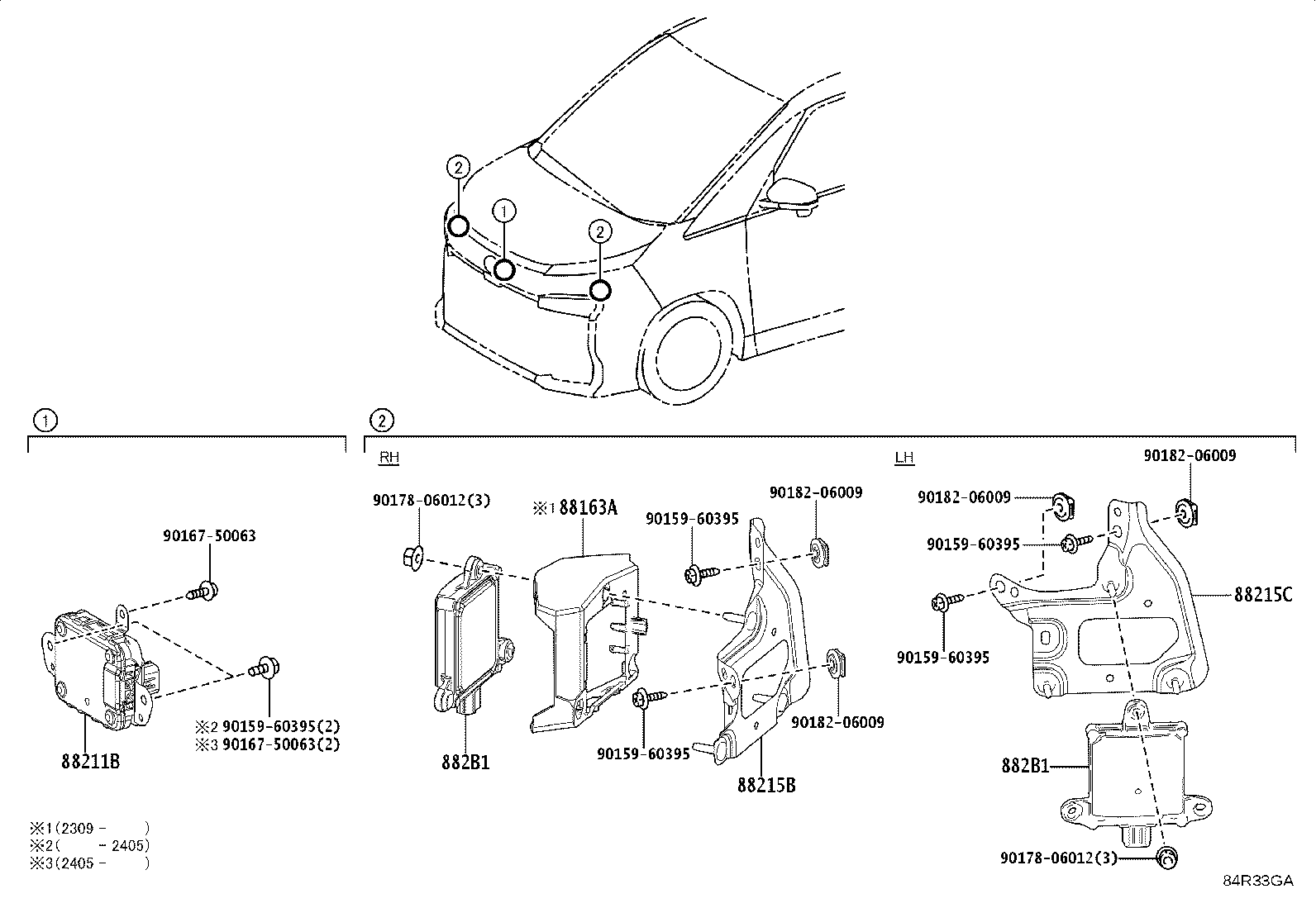

Figure 84O351B 84O351B 2022-01 → — Figure 84R33GA 84R33GA 2022-01 → —

Part groups

PNCDescription
88163A Cover, Front Side Radar Sensor, RH
88211B Sensor Assy, Millimeter Wave Radar
88215B Bracket, Front Side Radar Sensor, RH
88215C Bracket, Front Side Radar Sensor, LH
882B1 Sensor, Front Side Radar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
