Toyota Noah/Voxy

2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

11 part groups · 2 illustrations

Illustrations

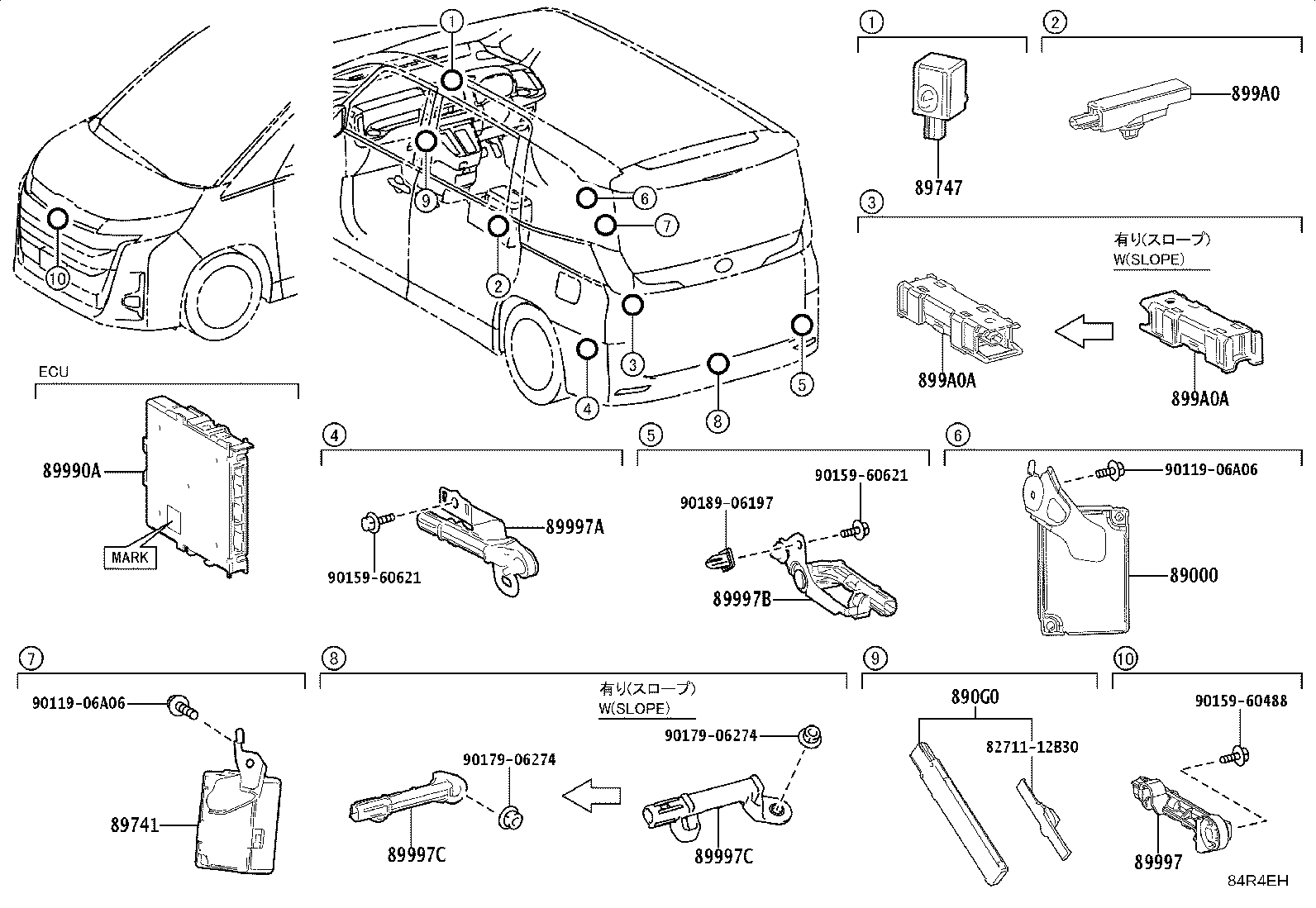

Figure 84O539D 84O539D 2022-01 → — Figure 84R4EH 84R4EH 2022-01 → —

Part groups

PNCDescription
89000 Computer Assy, Digital Key
890G0 Receiver Assy, Ble Indoor Digital Key
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
89997A Antenna, Electrical Key, NO.2
89997B Antenna, Electrical Key, NO.3
89997C Antenna, Electrical Key, NO.4
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
