Toyota Noah/Voxy

2022-01 → present · chassis MZRA9#,ZWR9# · catalogue 651190 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inverter Cooling

9 part groups · 2 illustrations

Illustrations

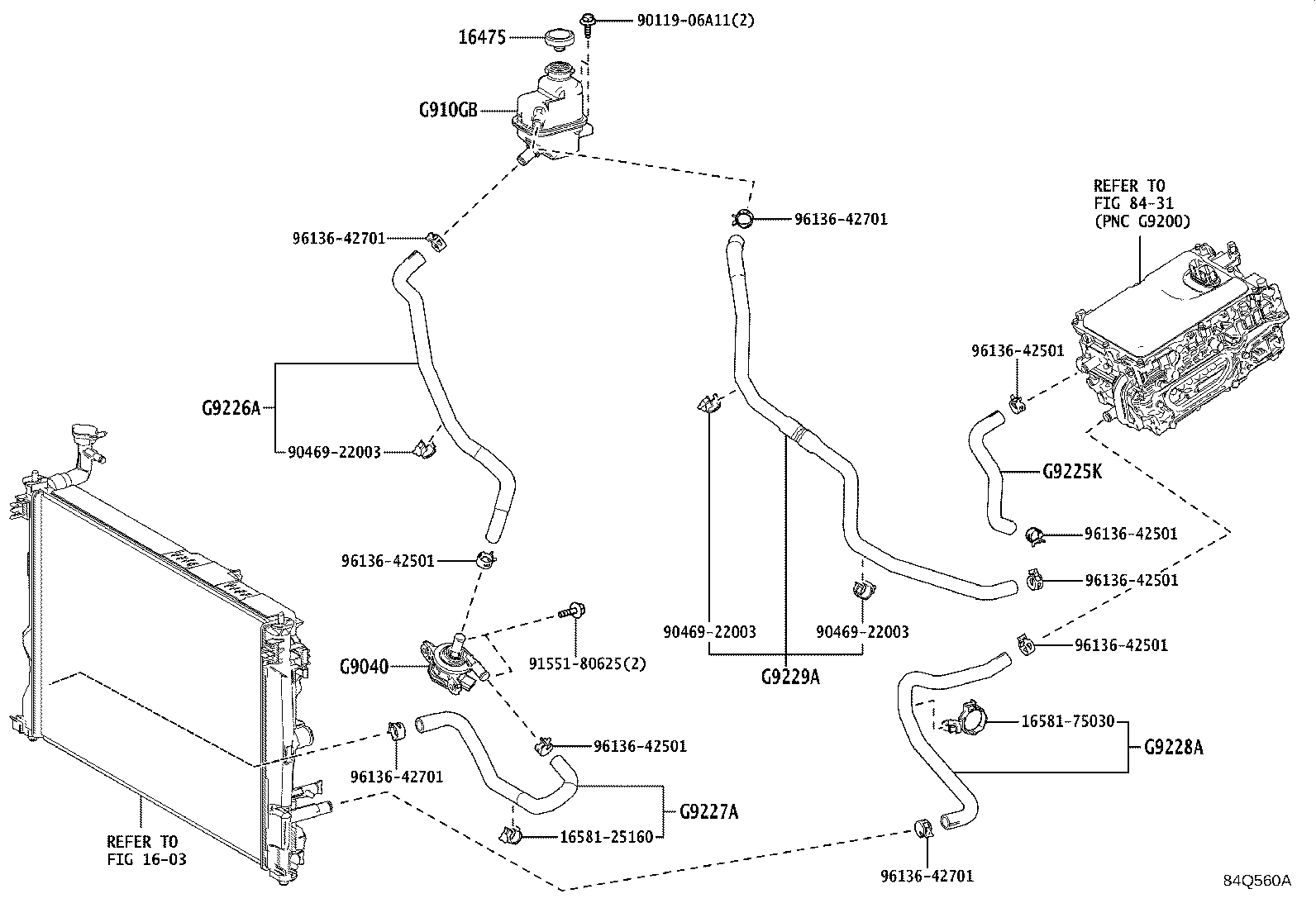

Figure 84O401B 84O401B 2022-01 → 2022-12 Figure 84Q560A 84Q560A 2022-12 → —

Part groups

PNCDescription
16475 Cap, Reserve Tank
G9040 Inverter Water Pump Assy(W/MOTOR)
G910GB Tank Sub-assy, Inverter Reserve W/O Cap
G9225K Hose, Inverter Cooling, NO.1
G9226A Hose, Inverter Cooling, NO.2
G9227A Hose, Inverter Cooling, NO.3
G9228A Hose, Inverter Cooling, NO.4
G9229A Hose, Inverter Cooling, NO.5
G92A0A Tank Assy, Inverter Reserve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
