Toyota Estima

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

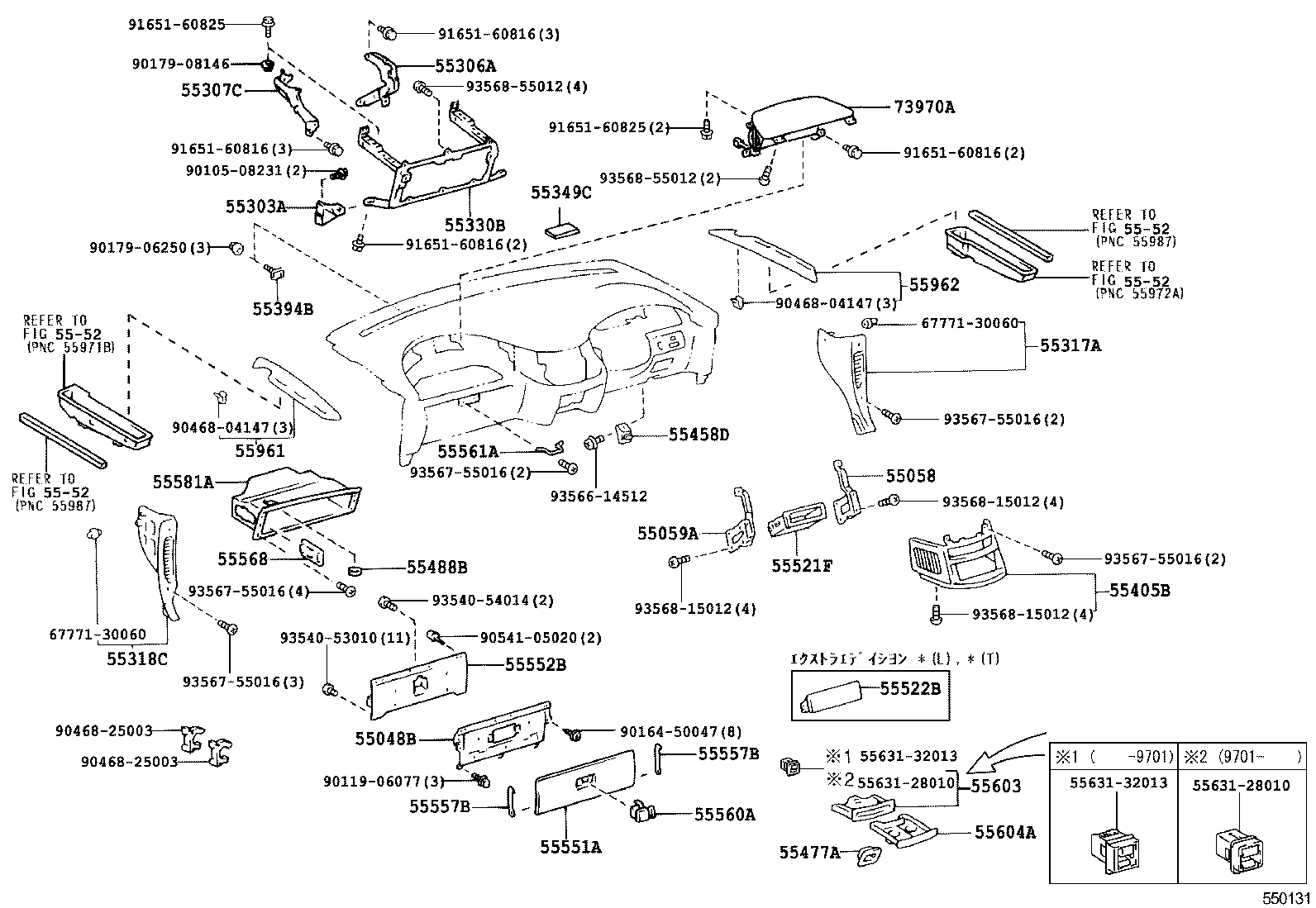

Exploded illustration 550131H 5552 — not listed in this catalogue 5563128010 — not listed in this catalogue 5563128010 — not listed in this catalogue 5563132013 — not listed in this catalogue 5563132013 — not listed in this catalogue 9356855012 — not listed in this catalogue 9165160816 — not listed in this catalogue 9165160816 — not listed in this catalogue 9165160825 — not listed in this catalogue 9356815012 — not listed in this catalogue 9356755016 — not listed in this catalogue 9165160816 — not listed in this catalogue 9356815012 — not listed in this catalogue 6777130060 — not listed in this catalogue 9046804147 — not listed in this catalogue 9356755016 — not listed in this catalogue 5552 — not listed in this catalogue 5552 — not listed in this catalogue 5552 — not listed in this catalogue 9356614512 — not listed in this catalogue 9356755016 — not listed in this catalogue 9356815012 — not listed in this catalogue 9016450047 — not listed in this catalogue 9356855012 — not listed in this catalogue 9011906077 — not listed in this catalogue 9354053010 — not listed in this catalogue 9054105020 — not listed in this catalogue 9354054014 — not listed in this catalogue 9046825003 — not listed in this catalogue 9046825003 — not listed in this catalogue 9356755016 — not listed in this catalogue 6777130060 — not listed in this catalogue 9356755016 — not listed in this catalogue 9046804147 — not listed in this catalogue 9017906250 — not listed in this catalogue 9010508231 — not listed in this catalogue 9165160816 — not listed in this catalogue 9017908146 — not listed in this catalogue 9165160825 — not listed in this catalogue 55522B — COVER, RADIO TUNER OPENING (1 parts) 55604A — HOLDER SUB-ASSY, INSTRUMENT PANEL CUP (7 parts) 55603 — CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER (1 parts) 55349C — CUSHION, INSTRUMENT PANEL (1 parts) 55330B — REINFORCEMENT ASSY, INSTRUMENT PANEL (1 parts) 55477A — BEZEL, CIGARETTE LIGHTER HOLE (8 parts) 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (1 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (8 parts) 55317A — PANEL, INSTRUMENT SIDE, RH (7 parts) 73970A — AIRBAG ASSY, INSTRUMENT PANEL PASSENGER (6 parts) 55058 — RETAINER SUB-ASSY, RADIO TUNER OPENING, RH (2 parts) 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (8 parts) 55458D — COVER, INSTRUMENT LOWER, RH (7 parts) 55521F — COVER, STEREO OPENING, NO.2 (2 parts) 55059A — RETAINER SUB-ASSY, RADIO TUNER OPENING, LH (1 parts) 55557B — STOPPER, GLOVE COMPERTMENT DOOR CHECK (1 parts) 55560A — LOCK ASSY, GLOVE COMPARTMENT DOOR (7 parts) 55551A — DOOR, GLOVE COMPARTMENT, OUTER (4 parts) 55557B — STOPPER, GLOVE COMPERTMENT DOOR CHECK (1 parts) 55048B — INSERT SUB-ASSY, INSTRUMENT PANEL SAFETY PAD, NO.2 (1 parts) 55552B — DOOR, GLOVE COMPARTMENT, INNER (1 parts) 55488B — LENS, FRONT FOOT LAMP, NO.1 (1 parts) 55561A — STRIKER, GLOVE COMPARTMENT DOOR LOCK (2 parts) 55318C — PANEL, INSTRUMENT SIDE, LH (7 parts) 55568 — PLATE, GLOVE COMPARTMENT DOOR PAD (2 parts) 55581A — COMPARTMENT, GLOVE (2 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (7 parts) 55394B — BOLT, INSTRUMENT PANEL (1 parts) 55303A — STAY SUB-ASSY, INSTRUMENT PANEL (1 parts) 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (1 parts)
550131H · 30 callouts, 39 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
99 parts on this figure
Part number Description Fitment Price
55048B — Insert Sub-assy, Instrument Panel Safety Pad, NO.2
55048-28020 Insert Sub-assy, Instrument Panel Safety Pad, NO.2
1996-08 → 1999-12 ended
TCR1#,2# ¥4,360
55058 — Retainer Sub-assy, Radio Tuner Opening, RH
55058-28030 Retainer Sub-assy, Radio Tuner Opening, RH
1999-07 → 1999-12 ended
TCR1#,2# ¥1,270
55058-95D00 Retainer Sub-assy, Radio Tuner Opening, RH
1990-05 → 1999-07 ended
TCR1#,2# ¥1,180
55059A — Retainer Sub-assy, Radio Tuner Opening, LH
55059-95D00 Retainer Sub-assy, Radio Tuner Opening, LH
1990-05 → 1999-12 ended
TCR1#,2# ¥1,180
55303A — Stay Sub-assy, Instrument Panel
55303-28030 Stay Sub-assy, Instrument Panel
1996-08 → 1999-12 ended
TCR1#,2# ¥680
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-28100 Brace Sub-assy, Instrument Panel, NO.1
1996-08 → 1999-12 ended
TCR1#,2# ¥2,960
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-28090 Brace Sub-assy, Instrument Panel, NO.2
1996-08 → 1999-12 ended
TCR1#,2# ¥1,820
55317A — Panel, Instrument Side, RH
55317-95D01-03 note Panel, Instrument Side, RH
1990-05 → 1993-08 ended
TCR1#,2# ¥3,240
55317-95D01-05 note Panel, Instrument Side, RH
1990-05 → 1993-08 ended
TCR11,21 ¥3,240
55317-95D01-B0 note Panel, Instrument Side, RH
1993-08 → 1999-12 ended
TCR1#,2# ¥3,240
55317-95D01-E2 note Panel, Instrument Side, RH
1993-08 → 1994-08 ended
TCR11,21 ¥3,240
55317-95D01-E2 note Panel, Instrument Side, RH
1997-04 → 1997-08 ended
TCR10,20 V ¥3,240
55317-95D01-E2 note Panel, Instrument Side, RH
1997-08 → 1997-12 ended
TCR10,20 V ¥3,240
55317-95D01-E2 note Panel, Instrument Side, RH
1998-10 → 1999-12 ended
TCR10,20 V ¥3,240
55318C — Panel, Instrument Side, LH
55318-28010-03 note Panel, Instrument Side, LH
1990-05 → 1993-08 ended
TCR1#,2# ¥3,240
55318-28010-05 note Panel, Instrument Side, LH
1990-05 → 1993-08 ended
TCR11,21 ¥3,240
55318-28010-B0 note Panel, Instrument Side, LH
1993-08 → 1999-12 ended
TCR1#,2# ¥3,240
55318-28010-E2 note Panel, Instrument Side, LH
1993-08 → 1994-08 ended
TCR11,21 ¥3,240
55318-28010-E2 note Panel, Instrument Side, LH
1998-10 → 1999-12 ended
TCR10,20 V ¥3,240
55318-28010-E2 note Panel, Instrument Side, LH
1997-08 → 1997-12 ended
TCR10,20 V ¥3,240
55318-28010-E2 note Panel, Instrument Side, LH
1997-04 → 1997-08 ended
TCR10,20 V ¥3,240
55330B — Reinforcement Assy, Instrument Panel
55330-28060 Reinforcement Assy, Instrument Panel
1996-08 → 1999-12 ended
TCR1#,2# ¥7,500
55349C — Cushion, Instrument Panel
55349-28090 Cushion, Instrument Panel
1996-08 → 1999-12 ended
TCR1#,2# ¥180
55394B — Bolt, Instrument Panel
55394-95D00 Bolt, Instrument Panel
1990-05 → 1999-12 ended
TCR1#,2# ¥190
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-28140 note Panel Sub-assy, Instrument Cluster Finish, Center
1998-04 → 1999-12 ended
TCR10,20 V ¥21,300
55405-28140 Panel Sub-assy, Instrument Cluster Finish, Center
1996-08 → 1999-12 ended
TCR11,21 ¥21,300
55405-28140 note Panel Sub-assy, Instrument Cluster Finish, Center
1997-08 → 1997-12 ended
TCR10,20 V ¥21,300
55405-28140 note Panel Sub-assy, Instrument Cluster Finish, Center
1997-04 → 1997-08 ended
TCR10,20 V ¥21,300
55405-28160 Panel Sub-assy, Instrument Cluster Finish, Center
1998-01 → 1999-12 ended
TCR10,20 AERAS ¥21,500
55405-28300 note Panel Sub-assy, Instrument Cluster Finish, Center
1999-01 → 1999-12 ended
TCR1#,2# G,V ¥13,000
55405-95D00 Panel Sub-assy, Instrument Cluster Finish, Center
1996-08 → 1999-12 ended
TCR10,20 V,X ¥10,800
55405-95D00 Panel Sub-assy, Instrument Cluster Finish, Center
1990-05 → 1996-08 ended
TCR1#,2# ¥10,800
55458D — Cover, Instrument Lower, RH
55458-28020-03 note Cover, Instrument Lower, RH
1990-05 → 1993-08 ended
TCR1#,2# ¥340
55458-28020-05 note Cover, Instrument Lower, RH
1990-05 → 1993-08 ended
TCR11,21 ¥340
55458-28020-B0 note Cover, Instrument Lower, RH
1993-08 → 1999-12 ended
TCR1#,2# ¥340
55458-28020-E2 note Cover, Instrument Lower, RH
1998-10 → 1999-12 ended
TCR10,20 V ¥340
55458-28020-E2 note Cover, Instrument Lower, RH
1997-08 → 1997-12 ended
TCR10,20 V ¥340
55458-28020-E2 note Cover, Instrument Lower, RH
1997-04 → 1997-08 ended
TCR10,20 V ¥340
55458-28020-E2 note Cover, Instrument Lower, RH
1993-08 → 1994-08 ended
TCR11,21 ¥340
55477A — Bezel, Cigarette Lighter Hole
55477-95D00-03 note Bezel, Cigarette Lighter Hole
1990-05 → 1993-08 ended
TCR1#,2# ¥980
55477-95D00-05 note Bezel, Cigarette Lighter Hole
1990-05 → 1993-08 ended
TCR11,21 ¥980
55477-95D00-17 note Bezel, Cigarette Lighter Hole
1993-08 → 1999-12 ended
TCR1#,2# ¥980
55477-95D00-44 note Bezel, Cigarette Lighter Hole
1993-08 → 1994-08 ended
TCR11,21 ¥980
55477-95D00-44 note Bezel, Cigarette Lighter Hole
1997-04 → 1997-08 ended
TCR10,20 V ¥980
55477-95D00-44 note Bezel, Cigarette Lighter Hole
1997-08 → 1997-12 ended
TCR10,20 V ¥980
55477-95D00-44 note Bezel, Cigarette Lighter Hole
1998-10 → 1999-12 ended
TCR10,20 V ¥980
55477-95D00-B0 note Bezel, Cigarette Lighter Hole
1998-03 → 1999-12 ended
TCR1#,2# G,V ¥980
55488B — Lens, Front Foot Lamp, NO.1
55488-28010 Lens, Front Foot Lamp, NO.1
1990-05 → 1999-12 ended
TCR1#,2# ¥380
55521F — Cover, Stereo Opening, NO.2
55521-16030 Cover, Stereo Opening, NO.2
1993-08 → 1999-12 ended
TCR10,20 ¥1,580
55521-16030 Cover, Stereo Opening, NO.2
1990-05 → 1993-08 ended
TCR1#,2# ¥1,580
55522B — Cover, Radio Tuner Opening
55522-20070 note Cover, Radio Tuner Opening
1999-04 → 1999-12 ended
TCR10,20 V ¥1,690
55551A — Door, Glove Compartment, Outer
55551-28050-B0 note Door, Glove Compartment, Outer
1996-08 → 1999-12 ended
TCR1#,2# ¥5,800
55551-28050-E0 note Door, Glove Compartment, Outer
1997-04 → 1997-08 ended
TCR10,20 V ¥5,800
55551-28050-E0 note Door, Glove Compartment, Outer
1997-08 → 1997-12 ended
TCR10,20 V ¥5,800
55551-28050-E0 note Door, Glove Compartment, Outer
1998-10 → 1999-12 ended
TCR10,20 V ¥5,800
55552B — Door, Glove Compartment, Inner
55552-28050 Door, Glove Compartment, Inner
1996-08 → 1999-12 ended
TCR1#,2# ¥4,410
55557B — Stopper, Glove Compertment Door Check
55557-28040 Stopper, Glove Compertment Door Check
1996-08 → 1999-12 ended
TCR1#,2# ¥750
55560A — Lock Assy, Glove Compartment Door
55560-28010-B0 note Lock Assy, Glove Compartment Door
1996-08 → 1999-12 ended
TCR1#,2# ¥2,350
55560-28010-E1 note Lock Assy, Glove Compartment Door
1997-04 → 1997-08 ended
TCR10,20 V ¥2,350
55560-28010-E1 note Lock Assy, Glove Compartment Door
1997-08 → 1997-12 ended
TCR10,20 V ¥2,350
55560-28010-E1 note Lock Assy, Glove Compartment Door
1998-10 → 1999-12 ended
TCR10,20 V ¥2,350
55560-95D00-03 note Lock Assy, Glove Compartment Door
1993-02 → 1993-08 ended
TCR10,20 ¥2,330
55560-95D00-B0 note Lock Assy, Glove Compartment Door
1993-08 → 1996-08 ended
TCR1#,2# ¥2,330
55560-95D00-E0 note Lock Assy, Glove Compartment Door
1993-08 → 1994-08 ended
TCR11,21 ¥2,330
55561A — Striker, Glove Compartment Door Lock
55561-28040 Striker, Glove Compartment Door Lock
1996-08 → 1999-12 ended
TCR1#,2# ¥320
55561-95D00 Striker, Glove Compartment Door Lock
1990-05 → 1996-08 ended
TCR1#,2# ¥320
55568 — Plate, Glove Compartment Door Pad
55568-24020 Plate, Glove Compartment Door Pad
1996-08 → 1999-12 ended
TCR1#,2# ¥750
55568-95D00 Plate, Glove Compartment Door Pad
1990-05 → 1996-08 ended
TCR1#,2# ¥390
55581A — Compartment, Glove
55506-28090 Compartment, Glove
1996-08 → 1999-12 ended
TCR1#,2# ¥10,300
55581-95D01 Compartment, Glove
1990-05 → 1996-08 ended
TCR1#,2# ¥5,800
55603 — Case Sub-assy, Instrument Panel Cup Holder
55603-95D00 Case Sub-assy, Instrument Panel Cup Holder
1990-05 → 1999-12 ended
TCR1#,2# ¥2,910
55604A — Holder Sub-assy, Instrument Panel Cup
55604-95D00-03 note Holder Sub-assy, Instrument Panel Cup
1990-05 → 1993-08 ended
TCR1#,2# ¥3,500
55604-95D00-05 note Holder Sub-assy, Instrument Panel Cup
1990-05 → 1993-08 ended
TCR11,21 ¥3,500
55604-95D00-17 note Holder Sub-assy, Instrument Panel Cup
1993-08 → 1999-12 ended
TCR1#,2# ¥3,500
55604-95D00-44 note Holder Sub-assy, Instrument Panel Cup
1998-10 → 1999-12 ended
TCR10,20 V ¥3,500
55604-95D00-44 note Holder Sub-assy, Instrument Panel Cup
1997-04 → 1997-08 ended
TCR10,20 V ¥3,500
55604-95D00-44 note Holder Sub-assy, Instrument Panel Cup
1993-08 → 1994-08 ended
TCR11,21 ¥3,500
55604-95D00-44 note Holder Sub-assy, Instrument Panel Cup
1997-08 → 1997-12 ended
TCR10,20 V ¥3,500
55961 — Nozzle, Side Defroster, NO.1
55961-28010-03 note Nozzle, Side Defroster, NO.1
1990-05 → 1993-08 ended
TCR1#,2# ¥4,630
55961-28010-05 note Nozzle, Side Defroster, NO.1
1990-05 → 1993-08 ended
TCR11,21 ¥4,630
55961-28010-B0 note Nozzle, Side Defroster, NO.1
1993-08 → 1999-12 ended
TCR1#,2# ¥4,630
55961-28010-E0 note Nozzle, Side Defroster, NO.1
1993-08 → 1994-08 ended
TCR11,21 ¥4,630
55961-28010-E0 note Nozzle, Side Defroster, NO.1
1997-04 → 1997-08 ended
TCR10,20 V ¥4,630
55961-28010-E0 note Nozzle, Side Defroster, NO.1
1997-08 → 1997-12 ended
TCR10,20 V ¥4,630
55961-28010-E0 note Nozzle, Side Defroster, NO.1
1998-10 → 1999-12 ended
TCR10,20 V ¥4,630
55962 — Nozzle, Side Defroster, NO.2
55962-28010-03 note Nozzle, Side Defroster, NO.2
1990-05 → 1993-08 ended
TCR1#,2# ¥4,630
55962-28010-05 note Nozzle, Side Defroster, NO.2
1990-05 → 1993-08 ended
TCR11,21 ¥4,630
55962-28010-B0 note Nozzle, Side Defroster, NO.2
1993-08 → 1999-12 ended
TCR1#,2# ¥4,630
55962-28010-B1 note Nozzle, Side Defroster, NO.2
1999-01 → 1999-12 ended
TCR1#,2# G,V ¥4,630
55962-28010-E0 note Nozzle, Side Defroster, NO.2
1993-08 → 1994-08 ended
TCR11,21 ¥4,630
55962-28010-E0 note Nozzle, Side Defroster, NO.2
1998-10 → 1999-12 ended
TCR10,20 V ¥4,630
55962-28010-E0 note Nozzle, Side Defroster, NO.2
1997-08 → 1997-12 ended
TCR10,20 V ¥4,630
55962-28010-E0 note Nozzle, Side Defroster, NO.2
1997-04 → 1997-08 ended
TCR10,20 V ¥4,630
73970A — Airbag Assy, Instrument Panel Passenger
73970-28040-B0 note Airbag Assy, Instrument Panel Passenger
1996-08 → 1998-01 ended
TCR1#,2# ¥217,000
73970-28040-E0 note Airbag Assy, Instrument Panel Passenger
1997-04 → 1997-08 ended
TCR10,20 V ¥217,000
73970-28040-E0 note Airbag Assy, Instrument Panel Passenger
1997-08 → 1997-12 ended
TCR10,20 V ¥217,000
73970-28041-B0 note Airbag Assy, Instrument Panel Passenger
1998-01 → 1999-12 ended
TCR1#,2# ¥217,000
73970-28041-B1 note Airbag Assy, Instrument Panel Passenger
1999-01 → 1999-12 ended
TCR1#,2# G,V ¥217,000
73970-28041-E0 note Airbag Assy, Instrument Panel Passenger
1998-10 → 1999-12 ended
TCR10,20 V ¥217,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
