Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07

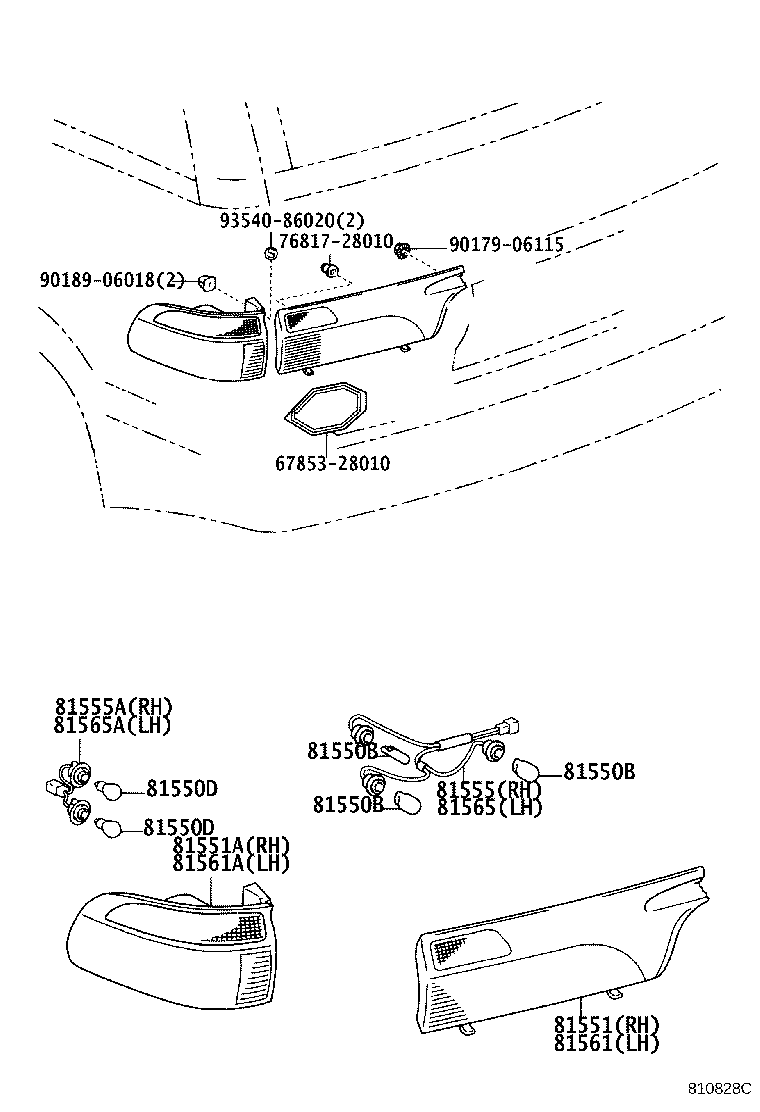

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81550B — Bulb(FOR REAR COMBINATION LAMP) | ||||
| 90981-11039 note |
Bulb(FOR REAR COMBINATION LAMP)
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥200 | |
| 90981-13051 note |
Bulb(FOR REAR COMBINATION LAMP)
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥230 | |
| 99132-11210 note |
Bulb(FOR REAR COMBINATION LAMP)
1990-05 → 1998-01
ended
|
TCR1#,2# | ¥170 | |
| 99132-21210 note |
Bulb(FOR REAR COMBINATION LAMP)
1990-05 → 1998-01
ended
|
TCR1#,2# | ¥190 | |
| 81550D — Bulb(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 note |
Bulb(FOR REAR COMBINATION LAMP)
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥230 | |
| 90981-15009 note |
Bulb(FOR REAR COMBINATION LAMP)
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥350 | |
| 99132-11210 note |
Bulb(FOR REAR COMBINATION LAMP)
1990-05 → 1998-01
ended
|
TCR1#,2# | ¥170 | |
| 99132-21210 note |
Bulb(FOR REAR COMBINATION LAMP)
1990-05 → 1998-01
ended
|
TCR1#,2# | ¥190 | |
| 81551 — Lens, Rear Combination Lamp, RH | ||||
| 81551-28150 |
Lens, Rear Combination Lamp, RH
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥20,500 | |
| 81551-95D02 |
Lens, Rear Combination Lamp, RH
1990-05 → 1998-01
ended
|
TCR1#,2# | ¥21,100 | |
| 81551A — Lens, Rear Combination Lamp, RH | ||||
| 81551-28100 |
Lens, Rear Combination Lamp, RH
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥22,000 | |
| 81551-28200 |
Lens, Rear Combination Lamp, RH
1994-10 → 1998-01
ended
|
TCR1#,2# | ¥18,400 | |
| 81551-95D03 |
Lens, Rear Combination Lamp, RH
1990-05 → 1994-10
ended
|
TCR1#,2# | ¥13,400 | |
| 81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 81555-28150 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥2,470 | |
| 81555-95D07 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1990-05 → 1998-01
ended
|
TCR1#,2# | ¥2,060 | |
| 81555A — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 81555-28100 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥2,030 | |
| 81555-95D01 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1990-05 → 1998-01
ended
|
TCR1#,2# | ¥2,050 | |
| 81561 — Lens, Rear Combination Lamp, LH | ||||
| 81561-28120 |
Lens, Rear Combination Lamp, LH
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥20,500 | |
| 81561-95D02 |
Lens, Rear Combination Lamp, LH
1990-05 → 1998-01
ended
|
TCR1#,2# | ¥21,100 | |
| 81561A — Lens, Rear Combination Lamp, LH | ||||
| 81561-28090 |
Lens, Rear Combination Lamp, LH
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥22,000 | |
| 81561-28180 |
Lens, Rear Combination Lamp, LH
1994-10 → 1998-01
ended
|
TCR1#,2# | ¥18,400 | |
| 81561-95D03 |
Lens, Rear Combination Lamp, LH
1990-05 → 1994-10
ended
|
TCR1#,2# | ¥13,400 | |
| 81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 81555-28150 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥2,470 | |
| 81555-95D07 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1990-05 → 1998-01
ended
|
TCR1#,2# | ¥2,060 | |
| 81565A — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 81555-28100 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥2,030 | |
| 81555-95D01 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1990-05 → 1998-01
ended
|
TCR1#,2# | ¥2,050 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
