Toyota Estima
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan
Discontinued model
Data version 2000-07

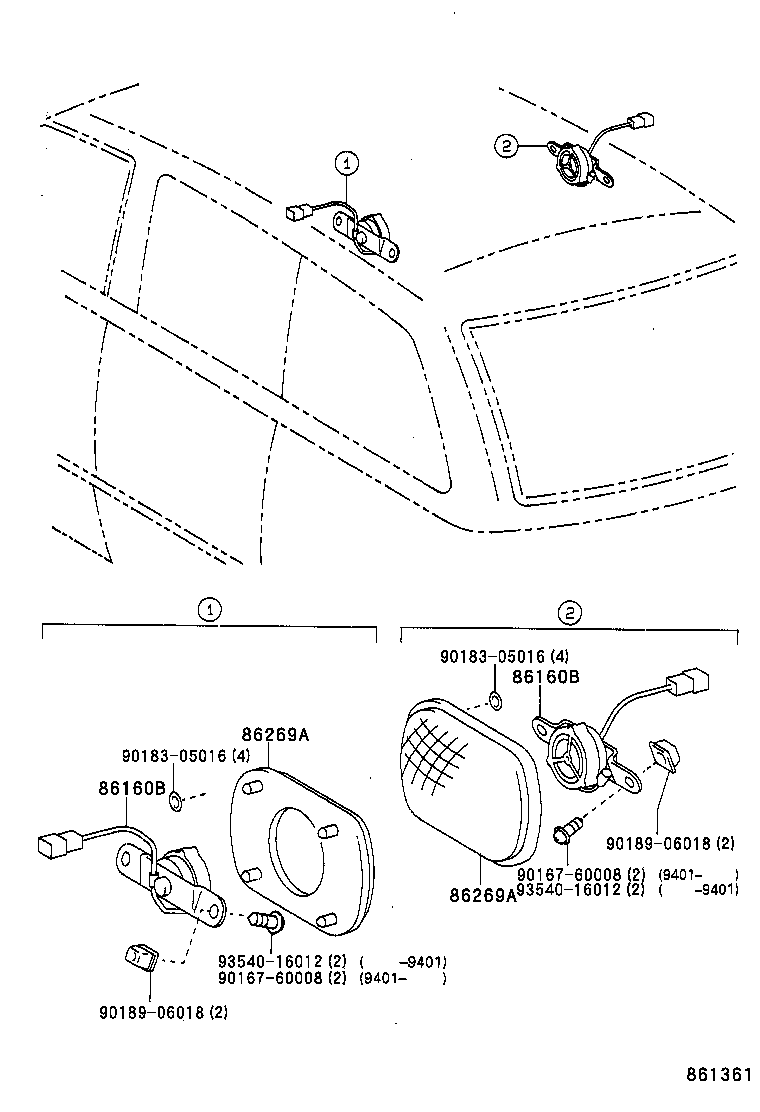

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160B — Speaker Assy, Rear | ||||
| 86160-28180 note |
Speaker Assy, Rear
1993-02 → 1993-08
ended
|
TCR1#,2# | ¥9,300 | |
| 86160-28190 note |
Speaker Assy, Rear
1993-02 → 1993-08
ended
|
TCR1#,2# | ¥9,300 | |
| 86160-28201 note |
Speaker Assy, Rear
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥8,500 | |
| 86160-28310 note |
Speaker Assy, Rear
1996-08 → 1999-12
ended
|
TCR1#,2# AERAS,G | ¥35,100 | |
| 86160-28310 note |
Speaker Assy, Rear
1996-08 → 1999-12
ended
|
TCR10,20 V,X | ¥35,100 | |
| 86160-28320 note |
Speaker Assy, Rear
1991-08 → 1996-08
ended
|
TCR11,21 | ¥38,800 | |
| 86160-28320 note |
Speaker Assy, Rear
1993-02 → 1996-08
ended
|
TCR10,20 | ¥38,800 | |
| 86160-28370 note |
Speaker Assy, Rear
1993-08 → 1996-08
ended
|
TCR11,21 | ¥13,200 | |
| 86160-28370 note |
Speaker Assy, Rear
1993-08 → 1996-08
ended
|
TCR10,20 | ¥13,200 | |
| 86160-28371 note |
Speaker Assy, Rear
1996-08 → 1999-12
ended
|
TCR1#,2# | ¥13,200 | |
| 86160-28380 note |
Speaker Assy, Rear
1993-08 → 1996-08
ended
|
TCR10,20 | ¥13,200 | |
| 86160-28380 note |
Speaker Assy, Rear
1993-08 → 1996-08
ended
|
TCR11,21 | ¥13,200 | |
| 86160-28381 note |
Speaker Assy, Rear
1996-08 → 1999-12
ended
|
TCR1#,2# | ¥13,200 | |
| 86160-28470 note |
Speaker Assy, Rear
1996-08 → 1999-12
ended
|
TCR10,20 V,X | ¥7,400 | |
| 86160-28470 note |
Speaker Assy, Rear
1996-08 → 1999-12
ended
|
TCR1#,2# AERAS,G | ¥7,400 | |
| 86160-95D04 note |
Speaker Assy, Rear
1993-02 → 1996-08
ended
|
TCR10,20 | ¥7,400 | |
| 86160-95D04 note |
Speaker Assy, Rear
1990-05 → 1996-08
ended
|
TCR11,21 | ¥7,400 | |
| 86160-95D05 note |
Speaker Assy, Rear
1990-05 → 1991-08
ended
|
TCR11,21 | ¥38,800 | |
| 86160-95D10 note |
Speaker Assy, Rear
1990-05 → 1993-02
ended
|
TCR11,21 | ¥9,300 | |
| 86160-95D11 note |
Speaker Assy, Rear
1990-05 → 1993-02
ended
|
TCR11,21 | ¥9,300 | |
| 86269A — Grille, Speaker | ||||
| 86269-95D00-03 note |
Grille, Speaker
1990-05 → 1993-08
ended
|
TCR1#,2# | ¥2,190 | |
| 86269-95D00-05 note |
Grille, Speaker
1990-05 → 1993-08
ended
|
TCR11,21 | ¥2,190 | |
| 86269-95D00-B1 note |
Grille, Speaker
1998-01 → 1999-12
ended
|
TCR1#,2# | ¥2,190 | |
| 86269-95D00-B8 note |
Grille, Speaker
1993-08 → 1998-01
ended
|
TCR1#,2# | ¥2,190 | |
| 86269-95D00-L1 note |
Grille, Speaker
1993-08 → 1994-08
ended
|
TCR11,21 | ¥2,190 | |
| 86269-95D00-L1 note |
Grille, Speaker
1997-04 → 1997-08
ended
|
TCR10,20 V | ¥2,190 | |
| 86269-95D00-L1 note |
Grille, Speaker
1997-08 → 1997-12
ended
|
TCR10,20 V | ¥2,190 | |
| 86269-95D00-L1 note |
Grille, Speaker
1998-10 → 1999-12
ended
|
TCR10,20 V | ¥2,190 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
