Toyota Estima

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652140 · Japan

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

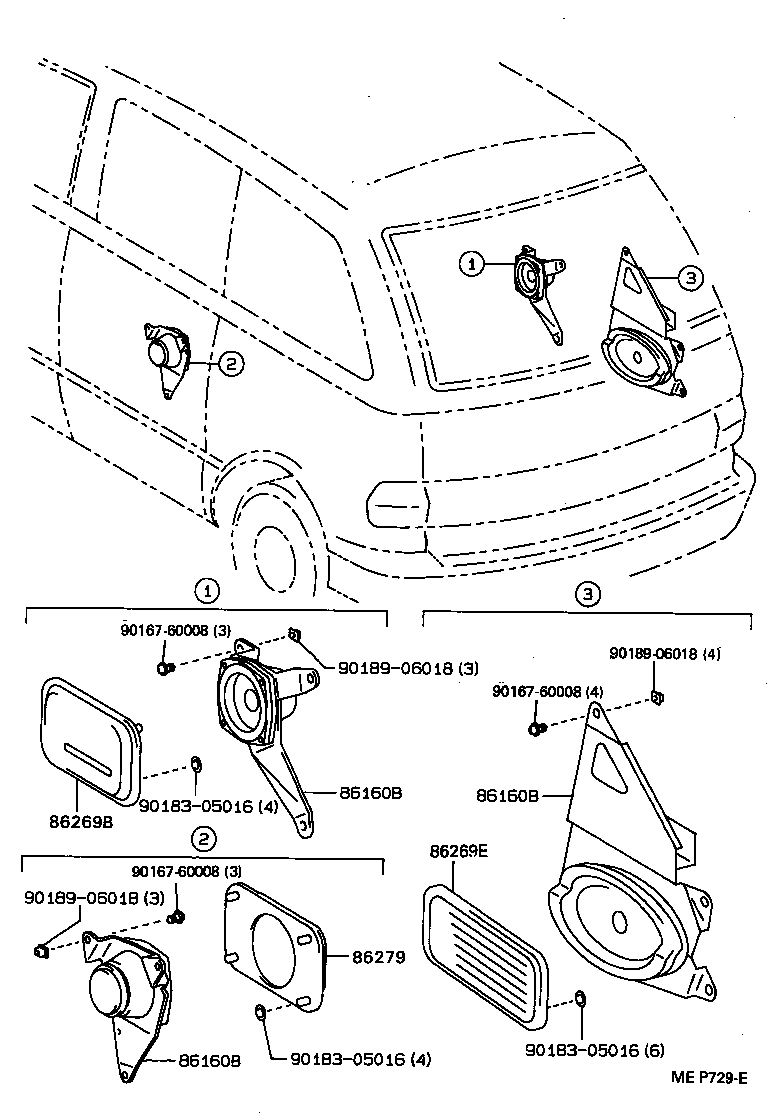

Exploded illustration MEP729E 9016760008 — not listed in this catalogue 9018906018 — not listed in this catalogue 9018906018 — not listed in this catalogue 9016760008 — not listed in this catalogue 86160B — SPEAKER ASSY, REAR (20 parts) 86160B — SPEAKER ASSY, REAR (20 parts) 9018305016 — not listed in this catalogue 86269B — GRILLE, SPEAKER (9 parts) 86269E — GRILLE, SPEAKER (8 parts) 9016760008 — not listed in this catalogue 9018906018 — not listed in this catalogue 86279 — GRILLE, SPEAKER, LH (9 parts) 9018305016 — not listed in this catalogue 9018305016 — not listed in this catalogue 86160B — SPEAKER ASSY, REAR (20 parts)
MEP729E · 6 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
86160B — Speaker Assy, Rear
86160-28180 note Speaker Assy, Rear
1993-02 → 1993-08 ended
TCR1#,2# ¥9,300
86160-28190 note Speaker Assy, Rear
1993-02 → 1993-08 ended
TCR1#,2# ¥9,300
86160-28201 note Speaker Assy, Rear
1998-01 → 1999-12 ended
TCR1#,2# ¥8,500
86160-28310 note Speaker Assy, Rear
1996-08 → 1999-12 ended
TCR10,20 V,X ¥35,100
86160-28310 note Speaker Assy, Rear
1996-08 → 1999-12 ended
TCR1#,2# AERAS,G ¥35,100
86160-28320 note Speaker Assy, Rear
1991-08 → 1996-08 ended
TCR11,21 ¥38,800
86160-28320 note Speaker Assy, Rear
1993-02 → 1996-08 ended
TCR10,20 ¥38,800
86160-28370 note Speaker Assy, Rear
1993-08 → 1996-08 ended
TCR11,21 ¥13,200
86160-28370 note Speaker Assy, Rear
1993-08 → 1996-08 ended
TCR10,20 ¥13,200
86160-28371 note Speaker Assy, Rear
1996-08 → 1999-12 ended
TCR1#,2# ¥13,200
86160-28380 note Speaker Assy, Rear
1993-08 → 1996-08 ended
TCR10,20 ¥13,200
86160-28380 note Speaker Assy, Rear
1993-08 → 1996-08 ended
TCR11,21 ¥13,200
86160-28381 note Speaker Assy, Rear
1996-08 → 1999-12 ended
TCR1#,2# ¥13,200
86160-28470 note Speaker Assy, Rear
1996-08 → 1999-12 ended
TCR10,20 V,X ¥7,400
86160-28470 note Speaker Assy, Rear
1996-08 → 1999-12 ended
TCR1#,2# AERAS,G ¥7,400
86160-95D04 note Speaker Assy, Rear
1993-02 → 1996-08 ended
TCR10,20 ¥7,400
86160-95D04 note Speaker Assy, Rear
1990-05 → 1996-08 ended
TCR11,21 ¥7,400
86160-95D05 note Speaker Assy, Rear
1990-05 → 1991-08 ended
TCR11,21 ¥38,800
86160-95D10 note Speaker Assy, Rear
1990-05 → 1993-02 ended
TCR11,21 ¥9,300
86160-95D11 note Speaker Assy, Rear
1990-05 → 1993-02 ended
TCR11,21 ¥9,300
86269B — Grille, Speaker
86269-28030-B0 note Grille, Speaker
1991-12 → 1994-08 ended
TCR1#,2# ¥3,470
86269-28030-E0 note Grille, Speaker
1991-12 → 1994-08 ended
TCR11,21 ¥3,470
86269-28050-B0 note Grille, Speaker
1994-08 → 1999-12 ended
TCR1#,2# ¥3,500
86269-28050-E0 note Grille, Speaker
1997-04 → 1997-08 ended
TCR10,20 V ¥3,500
86269-28050-E0 note Grille, Speaker
1997-08 → 1997-12 ended
TCR10,20 V ¥3,500
86269-28050-E0 note Grille, Speaker
1998-10 → 1999-12 ended
TCR10,20 V ¥3,500
86269-95D03-03 note Grille, Speaker
1990-05 → 1991-12 ended
TCR11,21 ¥3,470
86269-95D03-05 note Grille, Speaker
1990-05 → 1991-08 ended
TCR11,21 ¥3,470
86269-95D03-E2 note Grille, Speaker
1991-08 → 1991-12 ended
TCR11,21 ¥3,470
86269E — Grille, Speaker
86269-28020-B1 note Grille, Speaker
1991-12 → 1994-08 ended
TCR1#,2# ¥9,300
86269-28020-E1 note Grille, Speaker
1991-08 → 1994-08 ended
TCR11,21 ¥9,300
86269-28060-B0 note Grille, Speaker
1994-08 → 1999-12 ended
TCR1#,2# ¥9,300
86269-28060-E0 note Grille, Speaker
1997-04 → 1997-08 ended
TCR10,20 V ¥9,300
86269-28060-E0 note Grille, Speaker
1998-10 → 1999-12 ended
TCR10,20 V ¥9,300
86269-28060-E0 note Grille, Speaker
1997-08 → 1997-12 ended
TCR10,20 V ¥9,300
86269-95D02-03 note Grille, Speaker
1990-05 → 1991-08 ended
TCR11,21 ¥9,400
86269-95D02-05 note Grille, Speaker
1990-05 → 1991-08 ended
TCR11,21 ¥9,400
86279 — Grille, Speaker, LH
86279-28020-B0 note Grille, Speaker, LH
1991-12 → 1994-08 ended
TCR1#,2# ¥3,470
86279-28020-E0 note Grille, Speaker, LH
1991-12 → 1994-08 ended
TCR11,21 ¥3,470
86279-28030-B0 note Grille, Speaker, LH
1994-08 → 1999-12 ended
TCR1#,2# ¥3,500
86279-28030-E0 note Grille, Speaker, LH
1997-04 → 1997-08 ended
TCR10,20 V ¥3,500
86279-28030-E0 note Grille, Speaker, LH
1997-08 → 1997-12 ended
TCR10,20 V ¥3,500
86279-28030-E0 note Grille, Speaker, LH
1998-10 → 1999-12 ended
TCR10,20 V ¥3,500
86279-95D02-03 note Grille, Speaker, LH
1990-05 → 1991-12 ended
TCR11,21 ¥3,470
86279-95D02-05 note Grille, Speaker, LH
1990-05 → 1991-08 ended
TCR11,21 ¥3,470
86279-95D02-E2 note Grille, Speaker, LH
1991-08 → 1991-12 ended
TCR11,21 ¥3,470
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
